XZU415-TKFQX3 (2003)
Toyota Dyna/Toyoace

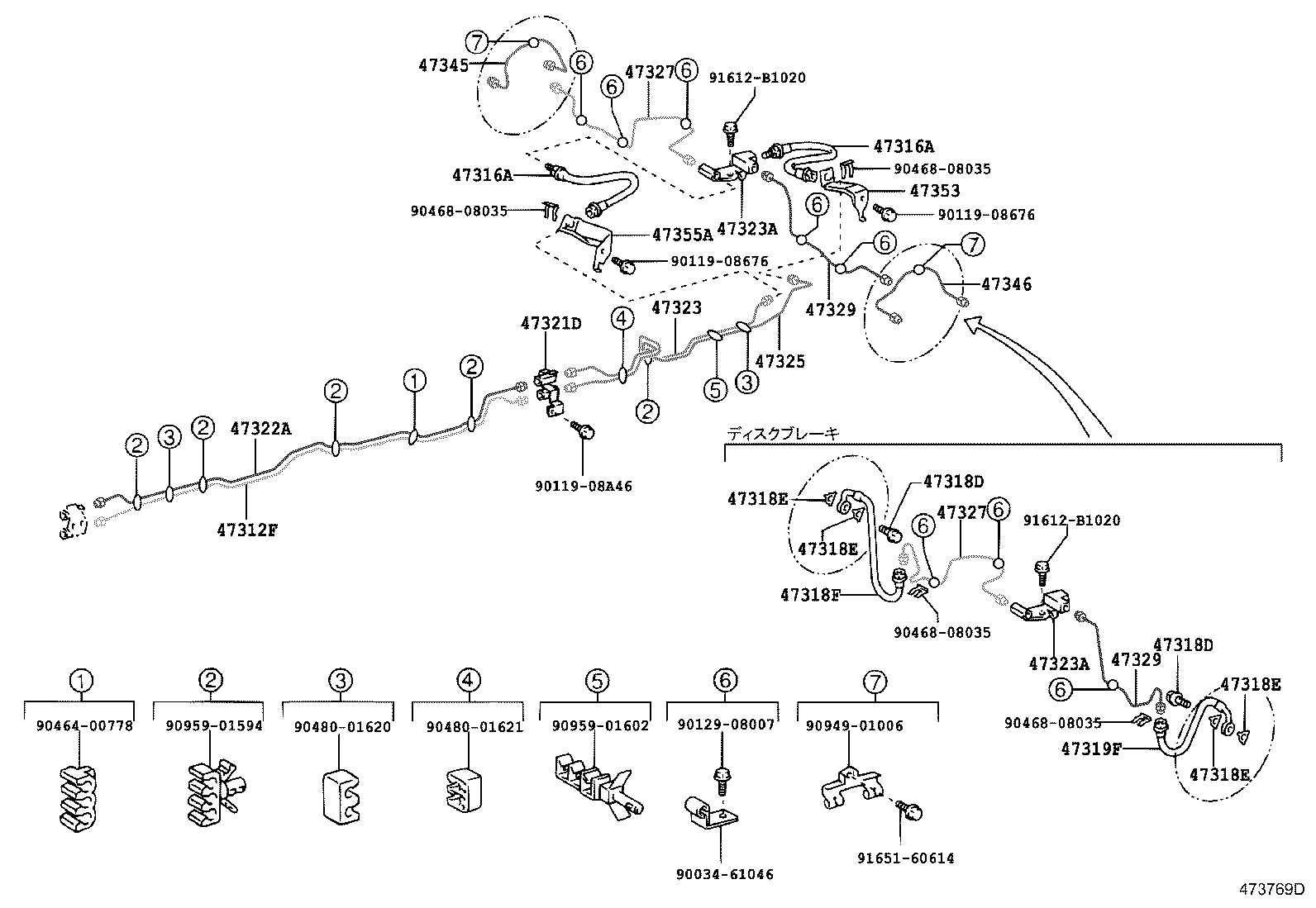

ILLUST NO. 2 OF 4(9905-0406)XZU410..4FC ; (9905-0406)XZU412..CNG; (9905-0406)XZU430..40TOV ; (9905-
ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸ & LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-37130 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 44591-37130 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 44591-37130 |
XZU414,415 |
1 | ||
| 44591-37130 |
XZU414,415 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-12060 |
BU410,420,430,XZU382,41#,42#,430 |
3 | ||
| 90412-12060 |
BU410,420,430,XZU382,41#,42#,430 |
3 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-12060 |
BU410,420,430,XZU382,41#,42#,430 |
3 | ||
| 90412-12060 |
BU410,420,430,XZU382,41#,42#,430 |
3 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-12060 |
BU410,420,430,XZU382,41#,42#,430 |
3 | ||
| 90412-12060 |
BU410,420,430,XZU382,41#,42#,430 |
3 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37470 |
XZU414,415 |
1 | ||
| 47312-37470 |
XZU414,415 |
1 | ||
| 47312-37470 |
XZU41# |
1 | ||
| 47312-37470 |
XZU41# |
1 | ||
| 47312-37471 |
XZU41#..DCRL,DSL,DSLL |
1 | ||
| 47312-37471 |
XZU41#..DCRL,DSL,DSLL |
1 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90904-12076 |
BU400,410,420,430,XZU382,40#,41#,42#,430 |
1 | ||
| 90904-12076 |
BU400,410,420,430,XZU382,40#,41#,42#,430 |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37580 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
1 | ||
| 47314-37580 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
1 | ||
| 47314-37580 |
XZU414,415..30T |
1 | ||
| 47314-37580 |
XZU414,415..30T |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B78 |
XZU414,415 |
2 | ||
| 90947-02B78 |
XZU414,415 |
2 | ||
| 90947-02B78 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 90947-02B78 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B78 |
XZU414,415 |
2 | ||
| 90947-02B78 |
XZU414,415 |
2 | ||
| 90947-02B78 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 90947-02B78 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-37220 |
XZU401..T3..35T..IV3;BU410,XZU41#..T3..IV3;BU420,XZU400,42#..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ & LSPV) |
1 | ||
| 47318-37220 |
XZU401..T3..35T..IV3;BU410,XZU41#..T3..IV3;BU420,XZU400,42#..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ & LSPV) |
1 | ||
| 47318-37210 |
BU400,410,420,430,XZU40#,41#,42#,430..CBU,IV3 ﾅｼ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) & ｱﾘ(LSPV) |
1 | ||
| 47318-37210 |
BU400,410,420,430,XZU40#,41#,42#,430..CBU,IV3 ﾅｼ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) & ｱﾘ(LSPV) |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-37080 |
XZU401..T3..35T..IV3;BU410,XZU41#..T3..IV3;BU420,XZU400,42#..IV3 |
1 | ||
| 47319-37080 |
XZU401..T3..35T..IV3;BU410,XZU41#..T3..IV3;BU420,XZU400,42#..IV3 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10229 |
XZU414,415 |
1 | ||
| 90412-10229 |
XZU414,415 |
1 | ||
| 90413-12009 |
BU400,410,420,430,XZU382,40#,41#,42#,430..CBU,IV3,IV5 |
1 | ||
| 90413-12009 |
BU400,410,420,430,XZU382,40#,41#,42#,430..CBU,IV3,IV5 |
1 | ||
| 90412-10229 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 90412-10229 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37570 |
XZU41# |
1 | ||
| 47322-37570 |
XZU41# |
1 | ||
| 47322-37570 |
XZU414,415 |
1 | ||
| 47322-37570 |
XZU414,415 |
1 | ||
| 47322-37571 |
XZU41#..DCRL,DSL,DSLL |
1 | ||
| 47322-37571 |
XZU41#..DCRL,DSL,DSLL |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90904-13055 |
XZU412..CNG;XZU401..T3..35T..IV3;BU420,XZU400,42#..IV3,IV6;BU410,XZU41#..T3..(IV3,IV6) |
1 | ||
| 90904-13055 |
XZU412..CNG;XZU401..T3..35T..IV3;BU420,XZU400,42#..IV3,IV6;BU410,XZU41#..T3..(IV3,IV6) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37220 |
BU400,410,420,430,XZU40#,41#,42#,430..CBU,IV3 |
1 | ||
| 47323-37220 |
BU400,410,420,430,XZU40#,41#,42#,430..CBU,IV3 |
1 | ||
| 47323-37240 |
XZU412..CNG;XZU401..T3..35T..IV3;BU420,XZU400,42#..IV3,IV6;BU410,XZU41#..T3..(IV3,IV6) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47323-37240 |
XZU412..CNG;XZU401..T3..35T..IV3;BU420,XZU400,42#..IV3,IV6;BU410,XZU41#..T3..(IV3,IV6) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47323-37520 |
XZU414,415 |
1 | ||
| 47323-37520 |
XZU414,415 |
1 | ||
| 47323-37520 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 47323-37520 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 47391-37090 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 47391-37090 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 47391-37090 |
XZU414,415 |
1 | ||
| 47391-37090 |
XZU414,415 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37270 |
XZU401..T3..35T..IV3;BU410,XZU41#..T3..IV3;BU420,XZU400,42#..IV3 |
1 | ||
| 47324-37270 |
XZU401..T3..35T..IV3;BU410,XZU41#..T3..IV3;BU420,XZU400,42#..IV3 |
1 | ||
| 47324-37230 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 47324-37230 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 47324-37230 |
XZU414,415 |
1 | ||
| 47324-37230 |
XZU414,415 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37310 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 47325-37310 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 47325-37310 |
XZU414,415 |
1 | ||
| 47325-37310 |
XZU414,415 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37660 |
XZU414,415..30T |
1 | ||
| 47327-37660 |
XZU414,415..30T |
1 | ||
| 47327-37660 |
XZU423,433..T4..(30T,35T);XZU40#,41#,421,424..30T,35T |
1 | ||
| 47327-37660 |
XZU423,433..T4..(30T,35T);XZU40#,41#,421,424..30T,35T |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37500 |
XZU423,433..T4..(30T,35T);XZU40#,41#,421,424..30T,35T |
1 | ||
| 47329-37500 |
XZU423,433..T4..(30T,35T);XZU40#,41#,421,424..30T,35T |
1 | ||
| 47329-37500 |
XZU414,415..30T |
1 | ||
| 47329-37500 |
XZU414,415..30T |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37250 |
XZU414,415 |
1 | ||
| 47353-37250 |
XZU414,415 |
1 | ||
| 47353-37250 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 47353-37250 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47354-37230 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 47354-37230 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 47354-37230 |
XZU414,415 |
1 | ||
| 47354-37230 |
XZU414,415 |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-37080 |
BU410,XZU41# |
1 | ||
| 47361-37080 |
BU410,XZU41# |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A46 | ||||
| 90129-08007 | ||||
| 90464-00778 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90480-01577 | ||||
| 90949-01006 | ||||
| 90949-01871 | ||||
| 90949-01970 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 91611-G0820 | ||||
| 91612-B1020 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
