XZU415-TKFQX3 (2003)
Toyota Dyna/Toyoace
ILLUST NO. 2 OF 2(0406- )BZU410,XZU401,411,414,421,424..5F,6FC..30T,35T..CNG,DCRL,DSL,LPG ; (0610
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46405A - SCREW SET, SHOE ADJUSTING, RH | ||||
| SU002-00289 |
XZU414,415 |
1 | ||
| SU002-00289 |
XZU414,415 |
1 | ||
| SU002-00289 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00289 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| SU002-00284 |
XZU414,415 |
1 | ||
| SU002-00284 |
XZU414,415 |
1 | ||
| 46511-37080 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46511-37080 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| SU002-00302 |
XZU414,415 |
4 | ||
| SU002-00302 |
XZU414,415 |
4 | ||
| SU002-00302 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
4 | ||
| SU002-00302 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| SU002-00296 |
XZU414,415 |
1 | ||
| SU002-00296 |
XZU414,415 |
1 | ||
| SU002-00296 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00296 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| SU002-00286 |
XZU414,415 |
1 | ||
| SU002-00286 |
XZU414,415 |
1 | ||
| SU002-00286 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00286 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| SU002-00286 |
XZU414,415 |
1 | ||
| SU002-00286 |
XZU414,415 |
1 | ||
| SU002-00286 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00286 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00287 |
XZU414,415 |
2 | ||
| SU002-00287 |
XZU414,415 |
2 | ||
| SU002-00287 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
2 | ||
| SU002-00287 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00287 |
XZU414,415 |
2 | ||
| SU002-00287 |
XZU414,415 |
2 | ||
| SU002-00287 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
2 | ||
| SU002-00287 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| SU002-00299 |
XZU414,415 |
1 | ||
| SU002-00299 |
XZU414,415 |
1 | ||
| SU002-00299 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00299 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00288 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00288 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00288 |
XZU414,415 |
1 | ||
| SU002-00288 |
XZU414,415 |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00288 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00288 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00288 |
XZU414,415 |
1 | ||
| SU002-00288 |
XZU414,415 |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| SU002-00290 |
XZU414,415 |
2 | ||
| SU002-00290 |
XZU414,415 |
2 | ||
| SU002-00925 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
2 | ||
| SU002-00925 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| SU002-00297 |
XZU414,415 |
2 | ||
| SU002-00297 |
XZU414,415 |
2 | ||
| SU002-00297 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
2 | ||
| SU002-00297 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| SU002-00303 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
4 | ||
| SU002-00303 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
4 | ||
| SU002-00303 |
XZU414,415 |
4 | ||
| SU002-00303 |
XZU414,415 |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| SU002-00303 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
4 | ||
| SU002-00303 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
4 | ||
| SU002-00303 |
XZU414,415 |
4 | ||
| SU002-00303 |
XZU414,415 |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| SU002-00293 |
XZU414,415 |
1 | ||
| SU002-00293 |
XZU414,415 |
1 | ||
| SU002-00293 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00293 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| SU002-00294 |
XZU414,415 |
1 | ||
| SU002-00294 |
XZU414,415 |
1 | ||
| SU002-00294 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00294 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| SU002-00295 |
XZU414,415 |
1 | ||
| SU002-00295 |
XZU414,415 |
1 | ||
| SU002-00295 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00295 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| SU002-00292 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00292 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00292 |
XZU414,415 |
1 | ||
| SU002-00292 |
XZU414,415 |
1 | ||
| Common parts | ||||
| 90119-10398 | ||||
| 90119-12211 | ||||

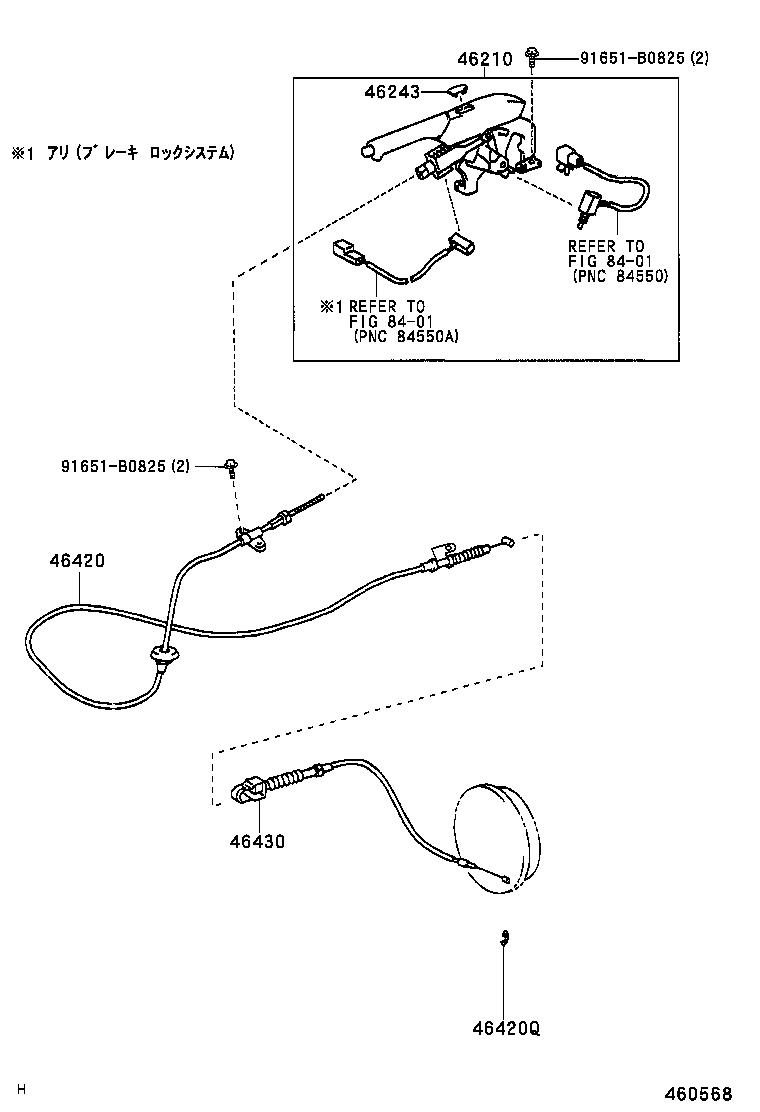

ILLUST NO. 1 OF 2(0310-0406)XZU414,415
