XZU415-TKFQX3 (2003)

Toyota Dyna/Toyoace

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310-0406)XZU414,415

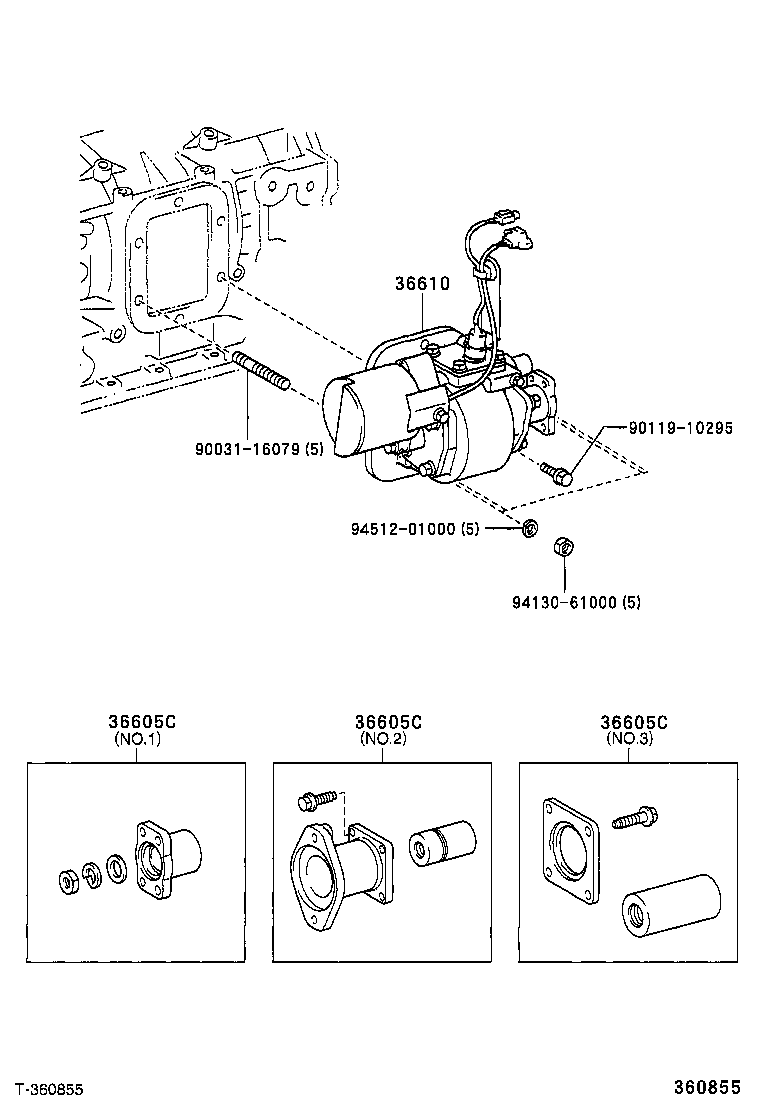

Click highlighted areas on diagram

diagram 36605C 36605C 36605C 36610 9003116079 9011910295 9413061000 9451201000
Part # Description Qty Price
36610 - POWER TAKE-OFF ASSY
36610-37110

BU420..40T;XZU41#,42#,430..6F..(CBU,IV3)

 1
Common parts
90031-16079
90119-10295
94130-61000
94512-01000

(0406-0610)XZU404,414..40T..IV3 ; (0501-0610)XZU414..T3..35T..IV3 ; (0610- )DM7,

Click highlighted areas on diagram

ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ20KG

diagram 35775B 36605C 36605C 36605C 36610 36610E 36610N 36611 36620B 36621 36621A 36622A 36622A 36714 36718 36718C 36723 36723J 36723J 36723K 36728 36728D 36728D 36728G 36728H 36728H 36807B 36811A 36835A 36870D 9003116079 9413061000 9451201000 SU00200719 SU00200719 SU00200719 SU00200719 SU00200731 SU00200737 SU00200786 SU00200861 SU00200863
Part # Description Qty Price
36610 - POWER TAKE-OFF ASSY
36610-37110

BU420..40T;XZU41#,42#,430..6F..(CBU,IV3)

 1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37050

BU420..40T;XZU41#,42#,430..6F

 1
Common parts
90031-16079
94130-61000
94512-01000
SU002-00719
SU002-00731
SU002-00737
SU002-00786
SU002-00861
SU002-00863
