XZU415-TKFQX3 (2003)
Toyota Dyna/Toyoace
(0310-0406)XZU414,415 ; (0406-0705)XZU404,414,415,424..6F..DCR,DCRL,DSLL
MYY6P
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| SU002-00274 |
XZU414,415 |
1 | ||
| SU002-00274 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| SU002-00355 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00355 |
XZU414,415 |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| SU002-00264 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00264 |
XZU414,415 |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| SU002-00357 |
XZU414,415 |
1 | ||
| SU002-00357 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| SU002-00349 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
1 | ||
| SU002-00349 |
XZU414,415 |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| SU002-00349 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
1 | ||
| SU002-00349 |
XZU414,415 |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| SU002-00240 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00240 |
XZU414,415 |
1 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| SU002-00322 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
1 | ||
| SU002-00322 |
XZU414,415 |
1 | ||
| 33213J - BUSHING, SHIFT ARM | ||||
| SU002-00161 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
4 | ||
| SU002-00161 |
XZU414,415 |
4 | ||
| 33213J - BUSHING, SHIFT ARM | ||||
| SU002-00161 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
4 | ||
| SU002-00161 |
XZU414,415 |
4 | ||
| 33213J - BUSHING, SHIFT ARM | ||||
| SU002-00161 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
4 | ||
| SU002-00161 |
XZU414,415 |
4 | ||
| 33213J - BUSHING, SHIFT ARM | ||||
| SU002-00161 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
4 | ||
| SU002-00161 |
XZU414,415 |
4 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| SU002-00347 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
1 | ||
| SU002-00347 |
XZU414,415 |
1 | ||
| 33215B - FORK, GEAR SHIFT, NO.4 | ||||
| SU002-00331 |
XZU414,415 |
1 | ||
| SU002-00331 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
1 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| SU002-00127 |
XZU414,415 |
4 | ||
| SU002-00127 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
4 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| SU002-00127 |
XZU414,415 |
4 | ||
| SU002-00127 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
4 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| SU002-00127 |
XZU414,415 |
4 | ||
| SU002-00127 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
4 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| SU002-00127 |
XZU414,415 |
4 | ||
| SU002-00127 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
4 | ||
| 33234A - HEAD, GEAR SHIFT, NO.3 | ||||
| SU002-00281 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
3 | ||
| SU002-00281 |
XZU414,415 |
3 | ||
| 33234A - HEAD, GEAR SHIFT, NO.3 | ||||
| SU002-00281 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
3 | ||
| SU002-00281 |
XZU414,415 |
3 | ||
| 33242H - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| SU002-00276 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
1 | ||
| SU002-00276 |
XZU414,415 |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| SU002-00332 |
XZU414,415 |
1 | ||
| SU002-00332 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
1 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| SU002-00333 |
XZU414,415 |
1 | ||
| SU002-00333 |
XZU404,413,414,415,423,424,433..6F..(DCRL,DSLL) |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| SU002-00249 |
XZU414,415 |
1 | ||
| SU002-00249 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| SU002-00352 |
XZU414,415 NO.1 |
1 | ||
| SU002-00353 |
XZU414,415 NO.2 |
1 | ||
| SU002-00352 |
XZU404,413,414,415,423,424,433..6F..(DCRL,DSLL) NO.1 |
1 | ||
| SU002-00353 |
XZU404,413,414,415,423,424,433..6F..(DCRL,DSLL) NO.2 |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| SU002-00352 |
XZU414,415 NO.1 |
1 | ||
| SU002-00353 |
XZU414,415 NO.2 |
1 | ||
| SU002-00352 |
XZU404,413,414,415,423,424,433..6F..(DCRL,DSLL) NO.1 |
1 | ||
| SU002-00353 |
XZU404,413,414,415,423,424,433..6F..(DCRL,DSLL) NO.2 |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| SU002-00334 |
XZU414,415 |
1 | ||
| SU002-00334 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| SU002-00246 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
1 | ||
| SU002-00246 |
XZU414,415 |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| SU002-00354 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
1 | ||
| SU002-00354 |
XZU414,415 |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| SU002-00271 |
XZU414,415 |
1 | ||
| SU002-00271 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
1 | ||
| 33262E - SHAFT, SELECT LEVER | ||||
| SU002-00252 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00252 |
XZU414,415 |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| SU002-00272 |
XZU414,415 |
1 | ||
| SU002-00272 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
1 | ||
| Common parts | ||||
| SU002-00248 | ||||
| SU002-00251 | ||||
| SU002-00258 | ||||
| SU002-00259 | ||||
| SU002-00270 | ||||
| SU002-00278 | ||||
| SU002-00279 | ||||
| SU002-00317 | ||||
| SU002-00335 | ||||
| SU002-00358 | ||||
| SU002-00360 | ||||
| SU002-00365 | ||||

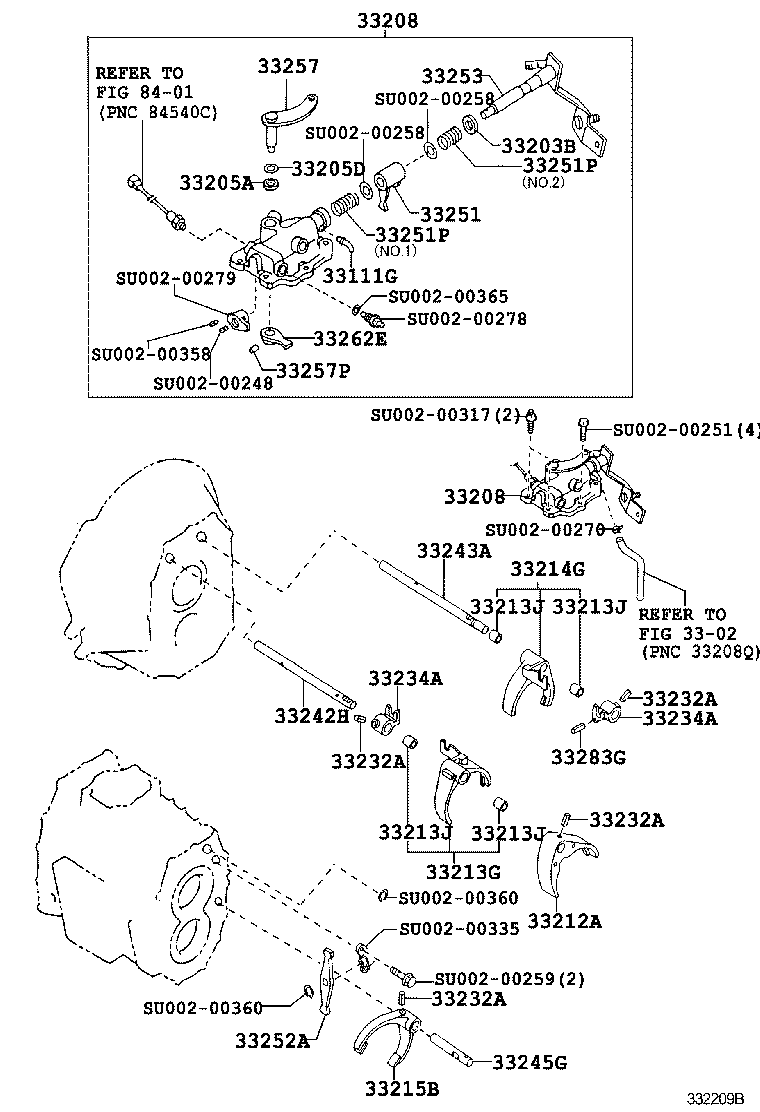

| Linked diagrams | ||||
| 3302 | ||||
| 8401 | ||||
