XZU415-TKFQX3 (2003)
Toyota Dyna/Toyoace

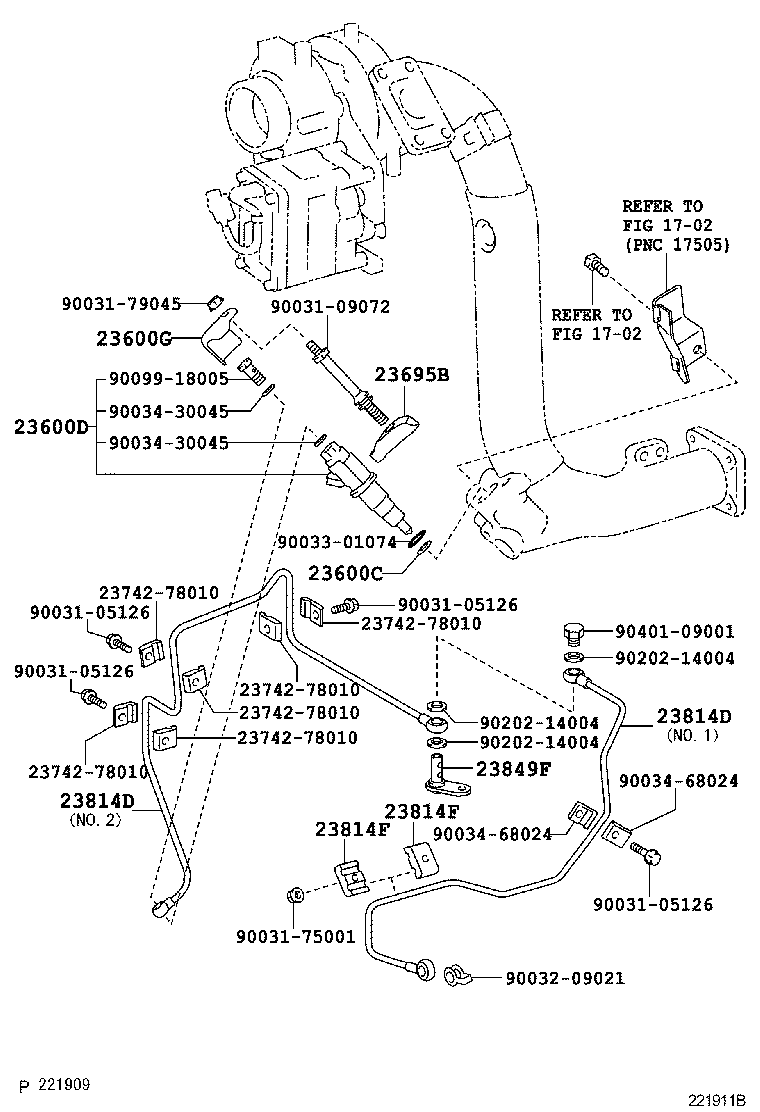

ILLUST NO. 2 OF 2(0604- )N04C..XZU415 ; (0604- )N04C..XZU414..DCR
ﾌｭｰｴﾙ ﾊﾟｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23600C - GASKET(FOR HOLDER & NOZZLE SET) | ||||
| 23682-78020 |
N04C..XZU415;N04C..XZU414..DCR |
1 | ||
| 23682-78020 |
N04C..XZU415 |
1 | ||
| 23600D - INJECTOR ASSY, EXHAUST FUEL ADDITION | ||||
| 23250-78010 |
N04C..XZU415;N04C..XZU414..DCR |
1 | ||
| 23250-78010 |
N04C..XZU415 |
1 | ||
| 23600G - INSULATOR, HEAT(FOR EXHAUST FUEL ADDITION INJECTOR) | ||||
| 17167-78060 |
N04C..XZU415 |
1 | ||
| 17167-78060 |
N04C..XZU415;N04C..XZU414..DCR |
1 | ||
| 23695B - CLAMP, NOZZLE HOLDER, NO.2 | ||||
| 23695-78030 |
N04C..XZU415;N04C..XZU414..DCR |
1 | ||
| 23695-78030 |
N04C..XZU415 |
1 | ||
| 23814D - PIPE, FUEL DELIVERY | ||||
| 23814-78070 |
N04C..XZU415;N04C..XZU414..DCR |
1 | ||
| 23814-78090 |
N04C..XZU415 NO.1 |
1 | ||
| 23814-78110 |
N04C..XZU415 NO.2 |
1 | ||
| 23814-78070 |
N04C..XZU415;N04C..XZU414..DCR |
1 | ||
| 23814D - PIPE, FUEL DELIVERY | ||||
| 23814-78070 |
N04C..XZU415;N04C..XZU414..DCR |
1 | ||
| 23814-78090 |
N04C..XZU415 NO.1 |
1 | ||
| 23814-78110 |
N04C..XZU415 NO.2 |
1 | ||
| 23814-78070 |
N04C..XZU415;N04C..XZU414..DCR |
1 | ||
| 23814F - CLIP(FOR FUEL DELIVERY PIPE) | ||||
| 23742-66020 |
N04C..XZU415 |
2 | ||
| 23742-66020 |
N04C..XZU415;N04C..XZU414..DCR |
2 | ||
| 23814F - CLIP(FOR FUEL DELIVERY PIPE) | ||||
| 23742-66020 |
N04C..XZU415 |
2 | ||
| 23742-66020 |
N04C..XZU415;N04C..XZU414..DCR |
2 | ||
| 23849F - SUPPORT, FUEL PIPE | ||||
| 23809-78030 |
N04C..XZU415;N04C..XZU414..DCR |
1 | ||
| 23849-78070 |
N04C..XZU415;N04C..XZU414..DCR |
1 | ||
| 23849-78070 |
N04C..XZU415;N04C..XZU414..DCR |
1 | ||
| 23809-78031 |
N04C..XZU415 |
1 | ||
| Common parts | ||||
| 23742-78010 | ||||
| 90031-05126 | ||||
| 90031-09072 | ||||
| 90031-75001 | ||||
| 90031-79045 | ||||
| 90032-09021 | ||||
| 90033-01074 | ||||
| 90034-30045 | ||||
| 90034-68024 | ||||
| 90099-18005 | ||||
| 90202-14004 | ||||
| 90401-09001 | ||||
| Linked diagrams | ||||
| 1702 | ||||
ILLUST NO. 1 OF 2(0310- )N04C..XZU388,404,414,415,424..DCR,DCRL,DSLL
ｲﾝｼﾞｴｸｼﾖﾝ ﾉｽﾞﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-78010 |
N04C..XZU388,404,414,415,424..DCRL,DSLL |
4 | ||
| 11176-78010 |
N04C..XZU414,415 |
4 | ||
| 11176C - GASKET, NO.2(FOR INJECTION NOZZLE SEAT) | ||||
| 90034-30044 |
N04C..XZU388,404,414,415,424..DCRL,DSLL |
4 | ||
| 90034-30044 |
N04C..XZU414,415 |
4 | ||
| 11177 - GASKET, INJECTION NOZZLE SEAT | ||||
| 23682-78030 |
N04C..XZU388,404,414,415,424..DCRL,DSLL |
4 | ||
| 23682-78030 |
N04C..XZU414,415 |
4 | ||
| 23627A - SCREW, FOLLOW(FOR NOZZLE) | ||||
| 90034-01017 |
N04C..XZU414,415 |
4 | ||
| 90034-01017 |
J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-78020 |
N04C..XZU415;N04C..XZU414..DCR |
4 | ||
| 23670-78020 |
N04C..XZU415 |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-78020 |
N04C..XZU415;N04C..XZU414..DCR |
4 | ||
| 23670-78020 |
N04C..XZU415 |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-78020 |
N04C..XZU415;N04C..XZU414..DCR |
4 | ||
| 23670-78020 |
N04C..XZU415 |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-78020 |
N04C..XZU415;N04C..XZU414..DCR |
4 | ||
| 23670-78020 |
N04C..XZU415 |
4 | ||
| 23670A - RING, O(FOR INJECTOR ASSY) | ||||
| 90301-19005 |
N04C..XZU414,415 |
4 | ||
| 90301-19005 |
N04C..XZU388,404,414,415,424..DCRL,DSLL |
4 | ||
| 23681 - SEAL, NOZZLE HOLDER | ||||
| 23681-78010 |
N04C..XZU414,415 |
4 | ||
| 23681-78010 |
N04C..XZU388,404,414,415,424..DCRL,DSLL |
4 | ||
| 23695 - CLAMP, NOZZLE HOLDER, NO.1 | ||||
| 23695-78020 |
N04C..XZU388,404,414,415,424..DCRL,DSLL |
4 | ||
| 23695-78020 |
N04C..XZU414,415 |
4 | ||
| 23760 - PIPE ASSY, NOZZLE LEAKAGE | ||||
| 23708-78010 |
N04C..XZU414,415 |
1 | ||
| 23708-78010 |
N04C..XZU388,404,414,415,424..DCRL,DSLL |
1 | ||
| 23760A - GASKET | ||||
| 90032-09030 |
N04C..XZU388,404,414,415,424..DCRL,DSLL |
5 | ||
| 90032-09030 |
N04C..XZU414,415 |
5 | ||
| 23760A - GASKET | ||||
| 90032-09030 |
N04C..XZU388,404,414,415,424..DCRL,DSLL |
5 | ||
| 90032-09030 |
N04C..XZU414,415 |
5 | ||
| 23760B - BOLT, UNION(FOR NOZZLE LEAKAGE PIPE) | ||||
| 90034-01009 |
J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 90034-01009 |
N04C..XZU414,415 |
1 | ||
| Common parts | ||||
| 90031-09071 | ||||

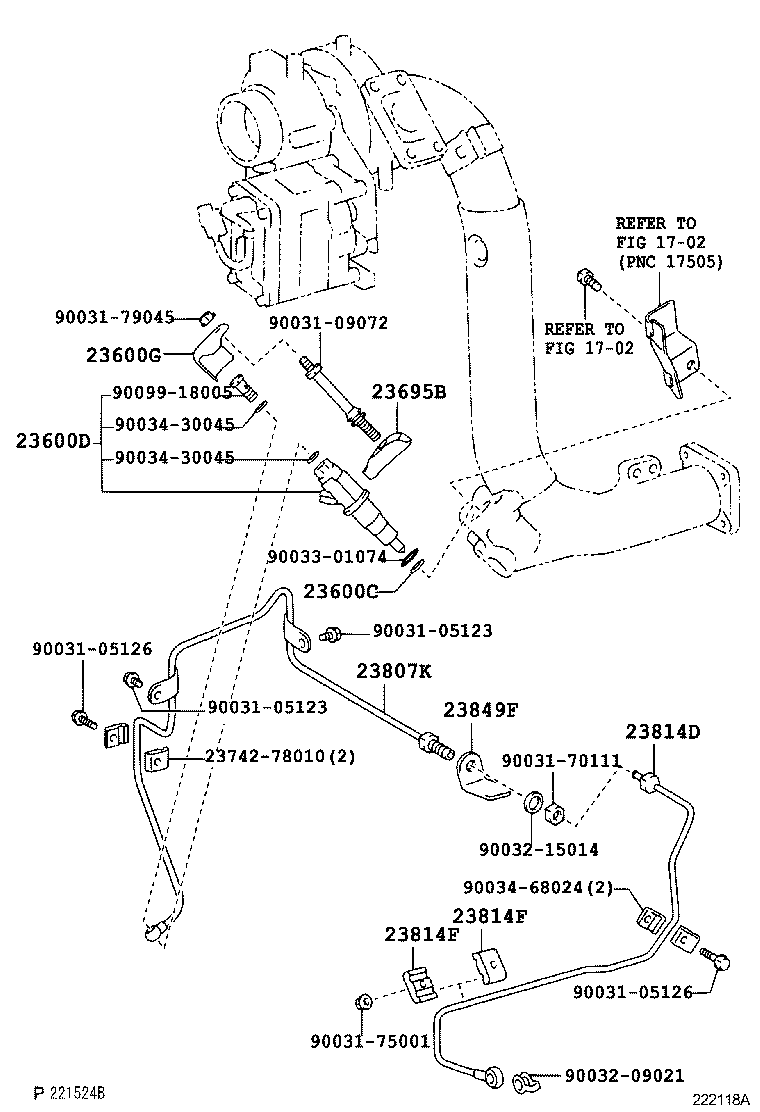

ILLUST NO. 2 OF 2(0310-0604)N04C..XZU415 ; (0310-0604)N04C..XZU414..DCR
ﾌﾕ-ｴﾙ ﾊﾟｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23600C - GASKET(FOR HOLDER & NOZZLE SET) | ||||
| 23682-78020 |
N04C..XZU415;N04C..XZU414..DCR |
1 | ||
| 23682-78020 |
N04C..XZU415 |
1 | ||
| 23600D - INJECTOR ASSY, EXHAUST FUEL ADDITION | ||||
| 23250-78010 |
N04C..XZU415;N04C..XZU414..DCR |
1 | ||
| 23250-78010 |
N04C..XZU415 |
1 | ||
| 23600G - INSULATOR, HEAT(FOR EXHAUST FUEL ADDITION INJECTOR) | ||||
| 17167-78060 |
N04C..XZU415 |
1 | ||
| 17167-78060 |
N04C..XZU415;N04C..XZU414..DCR |
1 | ||
| 23695B - CLAMP, NOZZLE HOLDER, NO.2 | ||||
| 23695-78030 |
N04C..XZU415;N04C..XZU414..DCR |
1 | ||
| 23695-78030 |
N04C..XZU415 |
1 | ||
| 23807K - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-78010 |
N04C..XZU415;N04C..XZU414..DCR |
1 | ||
| 23807-78010 |
N04C..XZU415;N04C..XZU414..DCR |
1 | ||
| 23814D - PIPE, FUEL DELIVERY | ||||
| 23814-78070 |
N04C..XZU415;N04C..XZU414..DCR |
1 | ||
| 23814-78090 |
N04C..XZU415 NO.1 |
1 | ||
| 23814-78110 |
N04C..XZU415 NO.2 |
1 | ||
| 23814-78070 |
N04C..XZU415;N04C..XZU414..DCR |
1 | ||
| 23814F - CLIP(FOR FUEL DELIVERY PIPE) | ||||
| 23742-66020 |
N04C..XZU415 |
2 | ||
| 23742-66020 |
N04C..XZU415;N04C..XZU414..DCR |
2 | ||
| 23814F - CLIP(FOR FUEL DELIVERY PIPE) | ||||
| 23742-66020 |
N04C..XZU415 |
2 | ||
| 23742-66020 |
N04C..XZU415;N04C..XZU414..DCR |
2 | ||
| 23849F - SUPPORT, FUEL PIPE | ||||
| 23809-78030 |
N04C..XZU415;N04C..XZU414..DCR |
1 | ||
| 23849-78070 |
N04C..XZU415;N04C..XZU414..DCR |
1 | ||
| 23849-78070 |
N04C..XZU415;N04C..XZU414..DCR |
1 | ||
| 23809-78031 |
N04C..XZU415 |
1 | ||
| Common parts | ||||
| 23742-78010 | ||||
| 90031-05123 | ||||
| 90031-05126 | ||||
| 90031-09072 | ||||
| 90031-70111 | ||||
| 90031-75001 | ||||
| 90031-79045 | ||||
| 90032-09021 | ||||
| 90032-15014 | ||||
| 90033-01074 | ||||
| 90034-30045 | ||||
| 90034-68024 | ||||
| 90099-18005 | ||||
| Linked diagrams | ||||
| 1702 | ||||
