XZU415-TKFQX3 (2003)

Toyota Dyna/Toyoace

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )N04C..XZU404,414,415,424..DCR,DCRL,DSLL

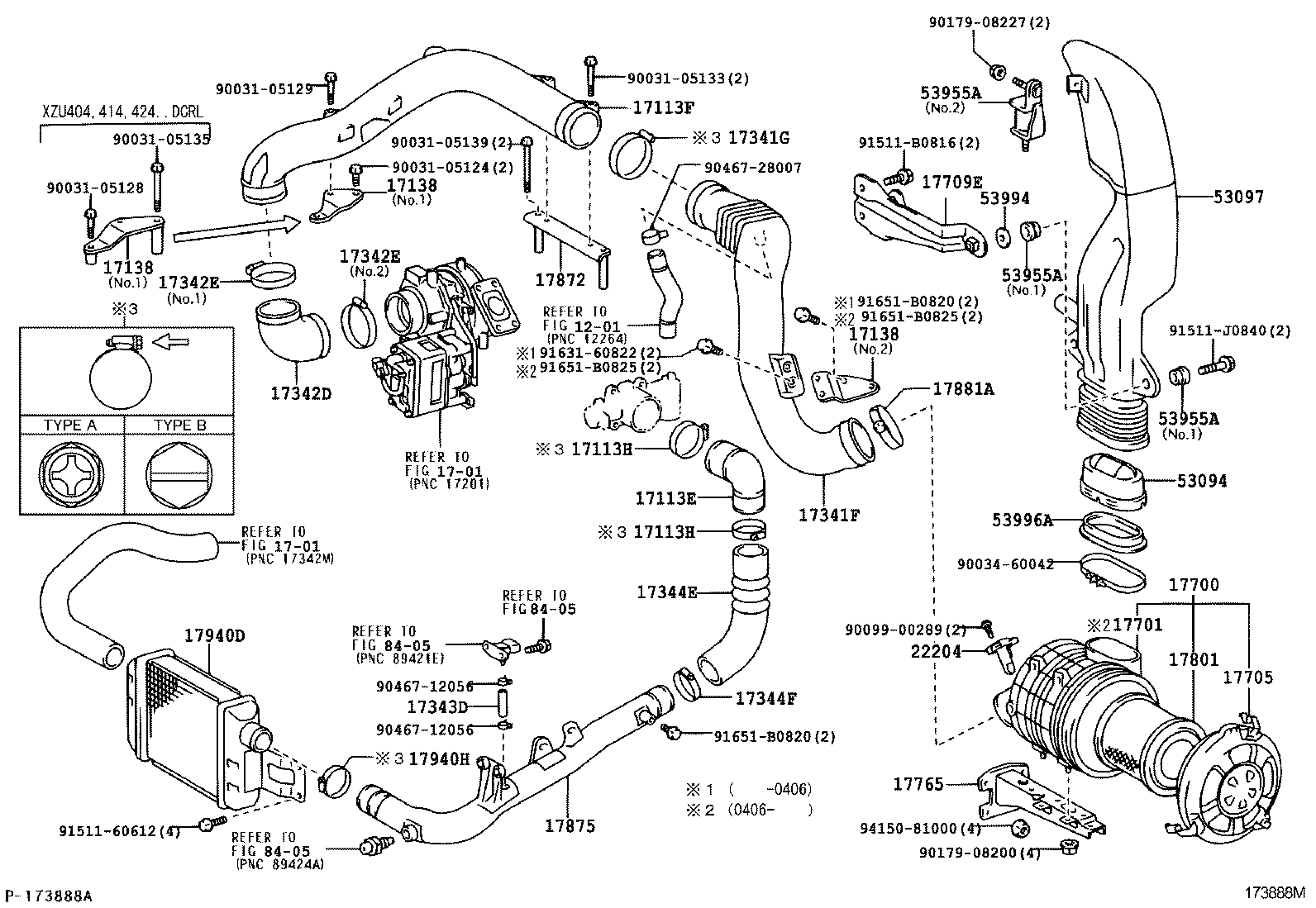

Click highlighted areas on diagram

diagram 1201 1701 1701 17113E 17113F 17113H 17113H 17138 17138 17138 17341F 17341G 17342D 17342E 17342E 17343D 17344E 17344F 17700 17701 17705 17709E 17765 17801 17872 17875 17881A 17940D 17940H 22204 53094 53097 53955A 53955A 53955A 53994 53996A 8405 8405 8405 9003105124 9003105128 9003105129 9003105133 9003105135 9003105139 9003460042 9009900289 9017908200 9017908227 9046712056 9046712056 9046728007 9151160612 91511B0816 91511J0840 9163160822 91651B0820 91651B0820 91651B0825 91651B0825 9415081000
Part # Description Qty Price
17113E - PIPE, INTAKE, NO.1
17015-78010

N04C..XZU388,404,414,415,424

 1
17015-78010

N04C..XZU414,415

 1
17113F - PIPE, INTAKE, NO.2
17113-78130

N04C..XZU414,415

 1
17113H - CLAMP, INTAKE PIPE
90460-82002

N04C..XZU388,404,414,415,424

TYPE A:ｲﾗｽﾄ参照

 2
90460-82002

N04C..XZU414,415

 2
17113H - CLAMP, INTAKE PIPE
90460-82002

N04C..XZU388,404,414,415,424

TYPE A:ｲﾗｽﾄ参照

 2
90460-82002

N04C..XZU414,415

 2
17138 - STAY, INTAKE PIPE OR HOSE
17138-78090

N04C..XZU415;N04C..XZU414..DCR,DSLL

NO.1

 1
17138-78030

N04C..XZU414,415

NO.2

 1
17138-78030

N04C..XZU404,414,415,424..DCRL,DSLL

NO.2

 1
17138-78090

N04C..XZU415;N04C..XZU414..DSLL

NO.1

 1
17138 - STAY, INTAKE PIPE OR HOSE
17138-78090

N04C..XZU415;N04C..XZU414..DCR,DSLL

NO.1

 1
17138-78030

N04C..XZU414,415

NO.2

 1
17138-78030

N04C..XZU404,414,415,424..DCRL,DSLL

NO.2

 1
17138-78090

N04C..XZU415;N04C..XZU414..DSLL

NO.1

 1
17138 - STAY, INTAKE PIPE OR HOSE
17138-78090

N04C..XZU415;N04C..XZU414..DCR,DSLL

NO.1

 1
17138-78030

N04C..XZU414,415

NO.2

 1
17138-78030

N04C..XZU404,414,415,424..DCRL,DSLL

NO.2

 1
17138-78090

N04C..XZU415;N04C..XZU414..DSLL

NO.1

 1
17341F - HOSE, AIR, NO.1
17030-78271

N04C..XZU414,415

 1
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-92002

N04C..XZU388,404,414,415,424

TYPE A:ｲﾗｽﾄ参照

 1
90460-92002

N04C..XZU414,415

 1
17342D - HOSE, AIR, NO.2
17341-78020

N04C..XZU415;N04C..XZU414..DCR,DSLL

 1
17341-78020

N04C..XZU415;N04C..XZU414..DSLL

 1
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90034-67025

N04C..XZU415;N04C..XZU414..DCR,DSLL

NO.1 & NO.2

 2
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90034-67025

N04C..XZU415;N04C..XZU414..DCR,DSLL

NO.1 & NO.2

 2
17343D - HOSE, AIR, NO.3
17343-78020

N04C..XZU414,415

 1
17343-78020

N04C..XZU388,404,414,415,424..DCRL,DSLL

 1
17344E - HOSE, AIR, NO.4
17344-78020

N04C..XZU414,415

 1
17344-78020

N04C..XZU404,414,415,424..DCRL,DSLL

 1
17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4)
90460-67004

N04C..XZU414,415

 1
90460-67004

N04C..XZU388,404,414,415,424

 1
17700 - CLEANER ASSY, AIR
17700-78200

N04C..XZU414,415

 1
17700-78200

J05D,N04C,S05D..XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-78160

J05D,N04C,S05D..XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-78020

N04C..XZU414,415

 1
17705-78020

J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

 1
17709E - BRACKET, AIR CLEANER INLET, NO.2
53773-37080

J05D,N04C,S05D..XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)

 1
53773-37080

N04C..XZU414,415

 1
17765 - STAY, AIR CLEANER, NO.1
17706-78150

N04C..XZU414,415

 1
17706-78150

J05D,N04C,S05D..XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-78020

N04C..XZU414,415

 1
17801-78020

J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

 1
17872 - BRACKET, INTAKE AIR CONNECTOR
17872-78020

N04C..XZU414,415

 1
17872-78020

N04C..XZU388,404,414,415,424..DCRL,DSLL

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17103-78050

N04C..XZU414,415

 1
17103-78050

N04C..XZU404,414,415,424

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-99006

N04C..XZU414,415

 1
90460-99006

N04C..XZU388,404,414,415,424

 1
17940D - INTERCOOLER ASSY
17940-78050

N04C..XZU414,415

 1
17940-78050

N04C..XZU404,414,415,424..DCRL,DSLL

 1
17940H - CLAMP, HOSE(FOR INTERCOOLER)
90460-57002

N04C..XZU388,404,414,415,424

TYPE A:ｲﾗｽﾄ参照

 1
90460-57002

N04C..XZU414,415

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-21010

N04C..XZU414,415

 1
22204-21010

J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

 1
53094 - INLET, AIR CLEANER PIPE, NO.3
53094-37010

XZU414,415

 1
53094-37010

XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)

 1
53097 - INLET SUB-ASSY
53097-37280

XZU414,415

 1
53097-37280

XZU388,404,413,414,415,423,424,433

 1
53955A - CUSHION, AIR CLEANER INLET NO.1
53955-37020

XZU414,415

NO.1

 4
53955-37020

XZU388,404,413,414,415,423,424,433..DCRL,DSLL

NO.1

 4
53955-37040

XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)

NO.2

 1
53955-37040

XZU414,415

NO.2

 1
53955A - CUSHION, AIR CLEANER INLET NO.1
53955-37020

XZU414,415

NO.1

 4
53955-37020

XZU388,404,413,414,415,423,424,433..DCRL,DSLL

NO.1

 4
53955-37040

XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)

NO.2

 1
53955-37040

XZU414,415

NO.2

 1
53955A - CUSHION, AIR CLEANER INLET NO.1
53955-37020

XZU414,415

NO.1

 4
53955-37020

XZU388,404,413,414,415,423,424,433..DCRL,DSLL

NO.1

 4
53955-37040

XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)

NO.2

 1
53955-37040

XZU414,415

NO.2

 1
53994 - RETAINER, AIR CLEANER INLET PIPE
53994-37020

XZU388,404,413,414,415,423,424,433..DCRL,DSLL

 2
53994-37020

XZU414,415

 2
53996A - PACKING, AIR CLEANER INLET PIPE
53996-37040

XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

 1
53996-37040

XZU414,415

 1
Common parts
90031-05124
90031-05128
90031-05129
90031-05133
90031-05135
90031-05139
90034-60042
90099-00289
90179-08200
90179-08227
90467-12056
90467-28007
91511-60612
91511-B0816
91511-J0840
91631-60822
91651-B0820
91651-B0825
94150-81000
Linked diagrams
1201
1701
8405
