XZU415-TKFQX3 (2003)
Toyota Dyna/Toyoace
(0310- )N04C..XZU388,404,414,415,424..DCR,DCRL,DSLL

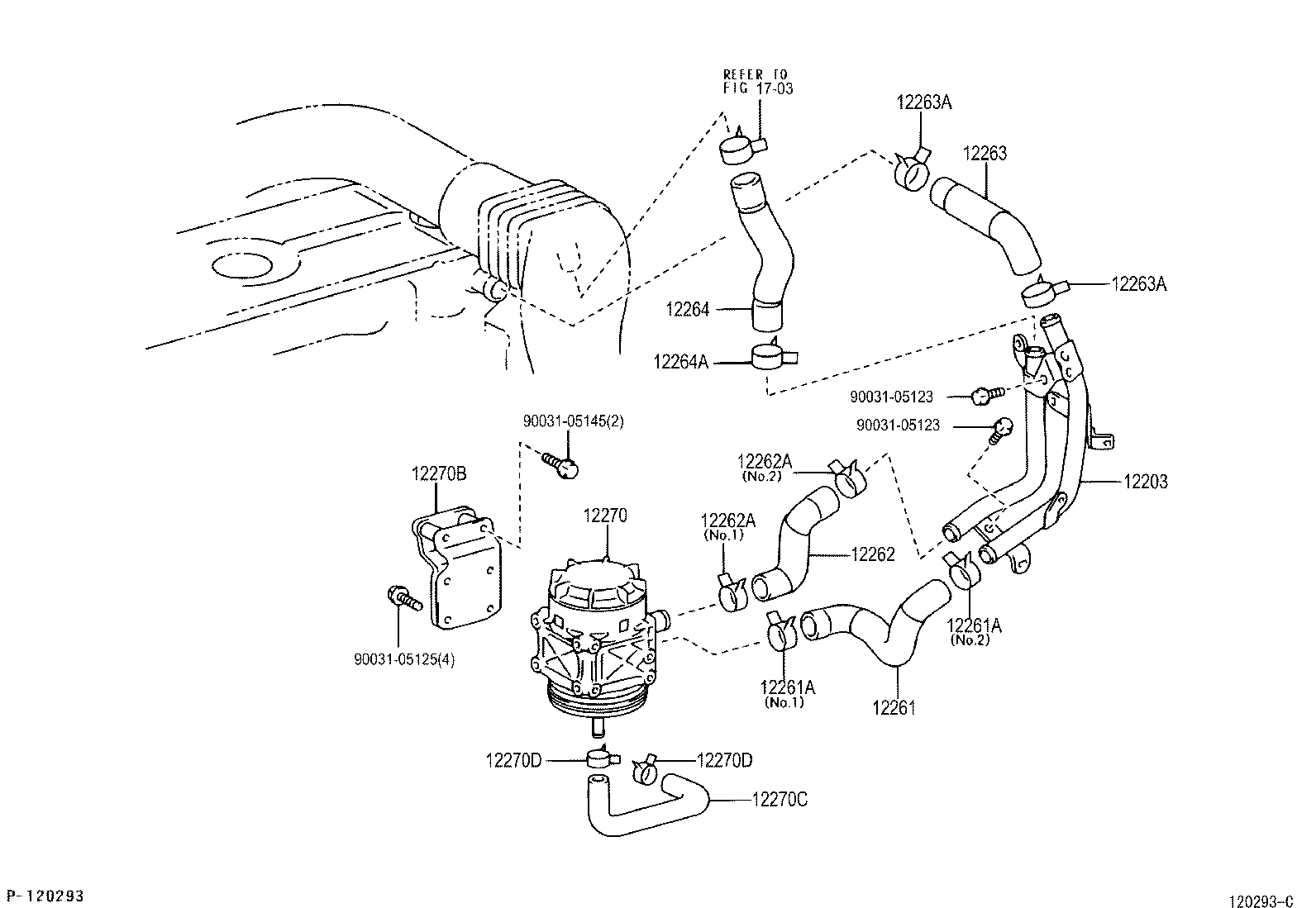

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12203 - PIPE SUB-ASSY, VENTILATION | ||||
| 12203-78050 |
N04C..XZU414,415 |
1 | ||
| 12203-78050 |
N04C..XZU388,404,414,415,424..DCRL,DSLL |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-78180 |
N04C..XZU388,404,414,415,424..DCRL,DSLL |
1 | ||
| 12261-78020 |
N04C..XZU414,415 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90034-67018 |
N04C..XZU414,415 NO.2 |
1 | ||
| 90034-67029 |
N04C..XZU388,404,414,415,424..DCRL,DSLL NO.1 |
1 | ||
| 90034-67018 |
N04C..XZU388,404,414,415,424..DCRL,DSLL NO.2 |
1 | ||
| 90034-67029 |
N04C..XZU414,415 NO.1 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90034-67018 |
N04C..XZU414,415 NO.2 |
1 | ||
| 90034-67029 |
N04C..XZU388,404,414,415,424..DCRL,DSLL NO.1 |
1 | ||
| 90034-67018 |
N04C..XZU388,404,414,415,424..DCRL,DSLL NO.2 |
1 | ||
| 90034-67029 |
N04C..XZU414,415 NO.1 |
1 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12261-78030 |
N04C..XZU414,415 |
1 | ||
| 12261-78030 |
N04C..XZU388,404,414,415,424..DCRL,DSLL |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90034-67018 |
N04C..XZU414,415 NO.2 |
1 | ||
| 90034-67018 |
N04C..XZU388,404,414,415,424..DCRL,DSLL NO.2 |
1 | ||
| 90034-67029 |
N04C..XZU414,415 NO.1 |
1 | ||
| 90034-67029 |
N04C..XZU388,404,414,415,424..DCRL,DSLL NO.1 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90034-67018 |
N04C..XZU414,415 NO.2 |
1 | ||
| 90034-67018 |
N04C..XZU388,404,414,415,424..DCRL,DSLL NO.2 |
1 | ||
| 90034-67029 |
N04C..XZU414,415 NO.1 |
1 | ||
| 90034-67029 |
N04C..XZU388,404,414,415,424..DCRL,DSLL NO.1 |
1 | ||
| 12263 - HOSE, VENTILATION, NO.3 | ||||
| 12261-78040 |
N04C..XZU414,415 |
1 | ||
| 12261-78040 |
N04C..XZU388,404,414,415,424..DCRL,DSLL |
1 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90034-67018 |
N04C..XZU414,415 |
2 | ||
| 90034-67018 |
N04C..XZU388,404,414,415,424..DCRL,DSLL |
2 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90034-67018 |
N04C..XZU414,415 |
2 | ||
| 90034-67018 |
N04C..XZU388,404,414,415,424..DCRL,DSLL |
2 | ||
| 12264 - HOSE, VENTILATION, NO.4 | ||||
| 12261-78080 |
N04C..XZU414,415 |
1 | ||
| 12261-78080 |
N04C..XZU388,404,414,415,424..DCRL,DSLL |
1 | ||
| 12264A - CLIP(FOR VENTILATION HOSE) | ||||
| 90034-67018 |
N04C..XZU414,415 |
1 | ||
| 90034-67018 |
N04C..XZU388,404,414,415,424..DCRL,DSLL |
1 | ||
| 12270 - SEPARATOR ASSY, OIL | ||||
| 12270-78011 |
N04C..XZU414,415 |
1 | ||
| 12270-78011 |
J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 12270B - BRACKET(FOR OIL SEPARATOR) | ||||
| 15609-78010 |
N04C..XZU414,415 |
1 | ||
| 15609-78010 |
N04C..XZU388,404,414,415,424..DCRL,DSLL |
1 | ||
| 12270C - HOSE, OIL(FOR OIL SEPARATOR) | ||||
| 29603-78020 |
N04C..XZU414,415 |
1 | ||
| 29603-78020 |
N04C..XZU388,404,414,415,424..DCRL,DSLL |
1 | ||
| 12270D - CLIP(FOR OIL SEPARATOR HOSE) | ||||
| 90034-67028 |
N04C..XZU414,415 |
2 | ||
| 90034-67028 |
N04C..XZU388,404,414,415,424..DCRL,DSLL |
2 | ||
| 12270D - CLIP(FOR OIL SEPARATOR HOSE) | ||||
| 90034-67028 |
N04C..XZU414,415 |
2 | ||
| 90034-67028 |
N04C..XZU388,404,414,415,424..DCRL,DSLL |
2 | ||
| Common parts | ||||
| 90031-05123 | ||||
| 90031-05125 | ||||
| 90031-05145 | ||||
| Linked diagrams | ||||
| 1703 | ||||
