XZU414-TQTMB (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )XZU414,454..SCB..T4..20T..DCRTJ,DCRUE..CBU

Click highlighted areas on diagram

ﾚﾝﾀｶ- ｼﾖｳ

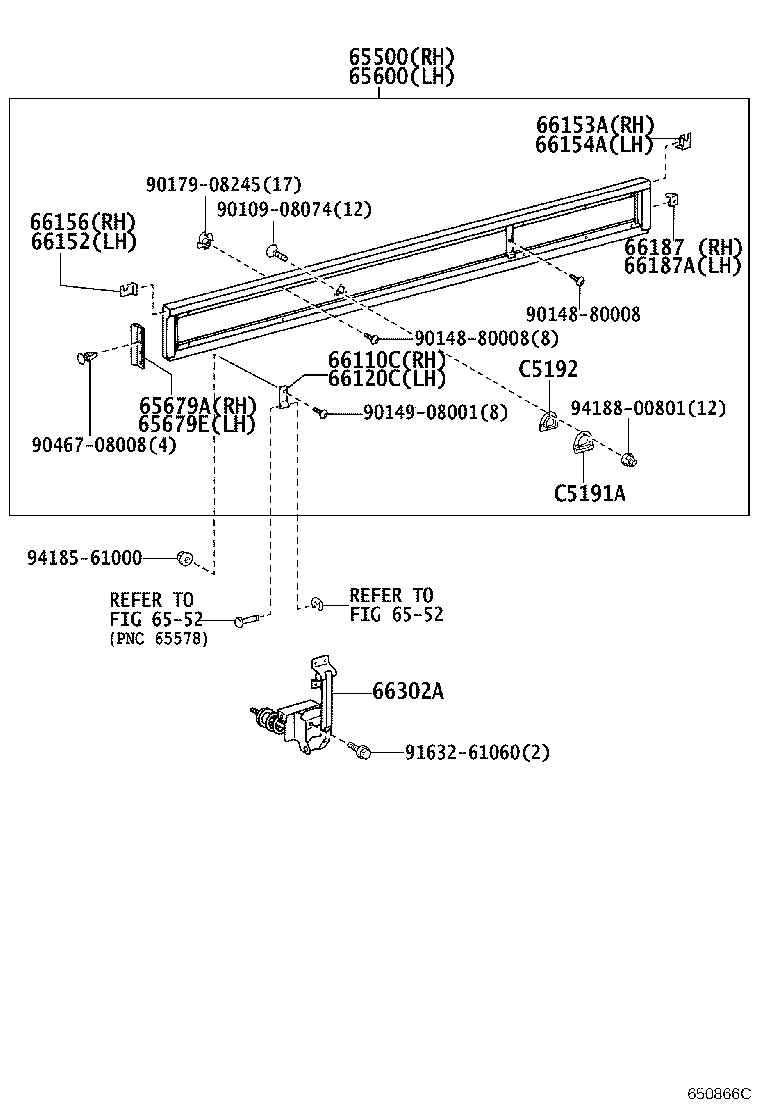

diagram 65500 6552 6552 65600 65679A 65679E 66110C 66120C 66152 66153A 66154A 66156 66187 66187A 66302A 9010908074 9014880008 9014880008 9014908001 9017908245 9046708008 9163261060 9418561000 9418800801 C5191A C5192
Part # Description Qty Price
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-3V500

BU410,XZU41#..SCB..(20T,295T,30T,35T)..CBU

 1
65500-3V820

XZU414,454,488..SCB..(20T,30T,35T)..CBU

 1
65500-37D10

XZU414,454..SCB..T4..20T..(DCRTJ,DCRUE)..CBU

ﾚﾝﾀｶ- ｼﾖｳ

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-3V500

BU410,XZU41#..SCB..(20T,295T,30T,35T)..CBU

 1
65600-37C70

XZU414,454..SCB..T4..20T..(DCRTJ,DCRUE)..CBU

ﾚﾝﾀｶ- ｼﾖｳ

 1
65600-3V820

XZU414,454,488..SCB..(20T,30T,35T)..CBU

 1
65679A - SEAL, SIDE GATE
65679-37010

XZU404,414,424,434,454,488..(T2,T3,T4,T5)..CBU

 1
65679-37011

XZU404,414,424,434,454,488..(T2,T3,T4,T5)..CBU

 1
65679E - SEAL, SIDE GATE
65679-37011

XZU404,414,424,434,454,488..(T2,T3,T4,T5)..CBU

 1
65679-37010

XZU404,414,424,434,454,488..(T2,T3,T4,T5)..CBU

 1
66110C - HINGE ASSY, SIDE GATE, NO.1 RH
65010-37040

XZU454,488..CBU;XZU414..T2..5F..CBU;XZU414..20T..DCRTL..CBU;XZU414..6FC..30T..DCRTK..CBU;XZU414..(30T,35T)..(DCRTJ,DCRTL,DCRUE)..CBU;XZU414..SCB..(6F,6FC)..(20T,35T)..(DCRTJ,DCRTK)..CBU

 7
65010-37041

XZU414,454,488..SCB..(20T,30T,35T)..CBU

TECS=ﾊﾟﾜ- ｹﾞ-ﾄ

 7
65535-37080

XZU414,454..SCB..T4..20T..(DCRTJ,DCRUE)..CBU

ﾚﾝﾀｶ- ｼﾖｳ

 8
66120C - HINGE ASSY, SIDE GATE, NO.1 LH
65010-37040

XZU454,488..CBU;XZU414..T2..5F..CBU;XZU414..20T..DCRTL..CBU;XZU414..6FC..30T..DCRTK..CBU;XZU414..(30T,35T)..(DCRTJ,DCRTL,DCRUE)..CBU;XZU414..SCB..(6F,6FC)..(20T,35T)..(DCRTJ,DCRTK)..CBU

 5
65010-37040

XZU454,488..CBU;XZU414..T2..5F..CBU;XZU414..20T..DCRTL..CBU;XZU414..6FC..30T..DCRTK..CBU;XZU414..(30T,35T)..(DCRTJ,DCRTL,DCRUE)..CBU;XZU414..SCB..(6F,6FC)..(20T,35T)..(DCRTJ,DCRTK)..CBU

 7
65010-37041

XZU414,454,488..SCB..(20T,30T,35T)..CBU

TECS=ﾊﾟﾜ- ｹﾞ-ﾄ

 7
65535-37080

XZU414,454..SCB..T4..20T..(DCRTJ,DCRUE)..CBU

ﾚﾝﾀｶ- ｼﾖｳ

 8
66152 - LATCH, SIDE GATE FEMALE, LH
66152-92703

BU400,410,XZU382,40#,41#..(20T,295T,30T,35T)..(CBU,IV5)

 1
66152-92703

XZU404,414,454,488..(20T,30T,35T)..CBU

 1
66152-37020

XZU414,454..SCB..T4..20T..(DCRTJ,DCRUE)..CBU

ﾚﾝﾀｶ- ｼﾖｳ

 1
66153A - LATCH, TAIL GATE FEMALE, RH
66153-37010

BU410..6F..CBU;BU400,XZU382,40#,41#..(T2,T3,T4,T5)..(CBU,IV5)

 1
66153-37010

XZU404,414,424,434,454,488..(T2,T3,T4,T5)..CBU

 1
66154A - LATCH, TAIL GATE FEMALE, LH
66154-37010

BU410..6F..CBU;BU400,XZU382,40#,41#..(T2,T3,T4,T5)..(CBU,IV5)

 1
66154-37010

XZU404,414,424,434,454,488..(T2,T3,T4,T5)..CBU

 1
66156 - LATCH, SEMISTAKE FEMALE, RH
66151-92703

BU400,410,XZU382,40#,41#..(20T,295T,30T,35T)..(CBU,IV5)

 1
66151-92703

XZU404,414,454,488..(20T,30T,35T)..CBU

 1
66151-37010

XZU414,454..SCB..T4..20T..(DCRTJ,DCRUE)..CBU

ﾚﾝﾀｶ- ｼﾖｳ

 1
66187 - HANDLE, SIDE GATE LATCH, CENTER NO.2
66187-37010

XZU404,414,454,488..(20T,30T,35T)..CBU

 1
66187-37020

XZU414,454..SCB..T4..20T..(DCRTJ,DCRUE)..CBU

ﾚﾝﾀｶ- ｼﾖｳ

 1
66187A - LATCH, SIDE GATE SUPPORT
66187-37010

XZU404,414,454,488..(20T,30T,35T)..CBU

 1
66187-37030

XZU414,454..SCB..T4..20T..(DCRTJ,DCRUE)..CBU

ﾚﾝﾀｶ- ｼﾖｳ

 1
66302A - LINK SUB-ASSY, GATE HELPER
66302-37010

BU400,410,XZU382,40#,41#..SCB..(20T,295T,30T,35T)..(CBU,IV5)

 2
66302-37011

XZU404,414,454,488..SCB..(20T,30T,35T)..CBU

 2
66302-37040

XZU414,454..SCB..T4..20T..(DCRTJ,DCRUE)..CBU

ﾚﾝﾀｶ- ｼﾖｳ

 2
C5191A - PLATE, GATE ROPE THROUGH, OUTER
C5191-37010

XZU454..DCRUE..CBU;XZU414..SCB..T4..20T..(DCRTJ,DCRUE)..CBU

 4
C5192 - PLATE, GATE ROPE THROUGH, INNER
C5192-37010

XZU454..DCRUE..CBU;XZU414..SCB..T4..20T..(DCRTJ,DCRUE)..CBU

 4
Common parts
90109-08074
90148-80008
90149-08001
90179-08245
90467-08008
91632-61060
94185-61000
94188-00801
Linked diagrams
6552
