XZU414-TQFME3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

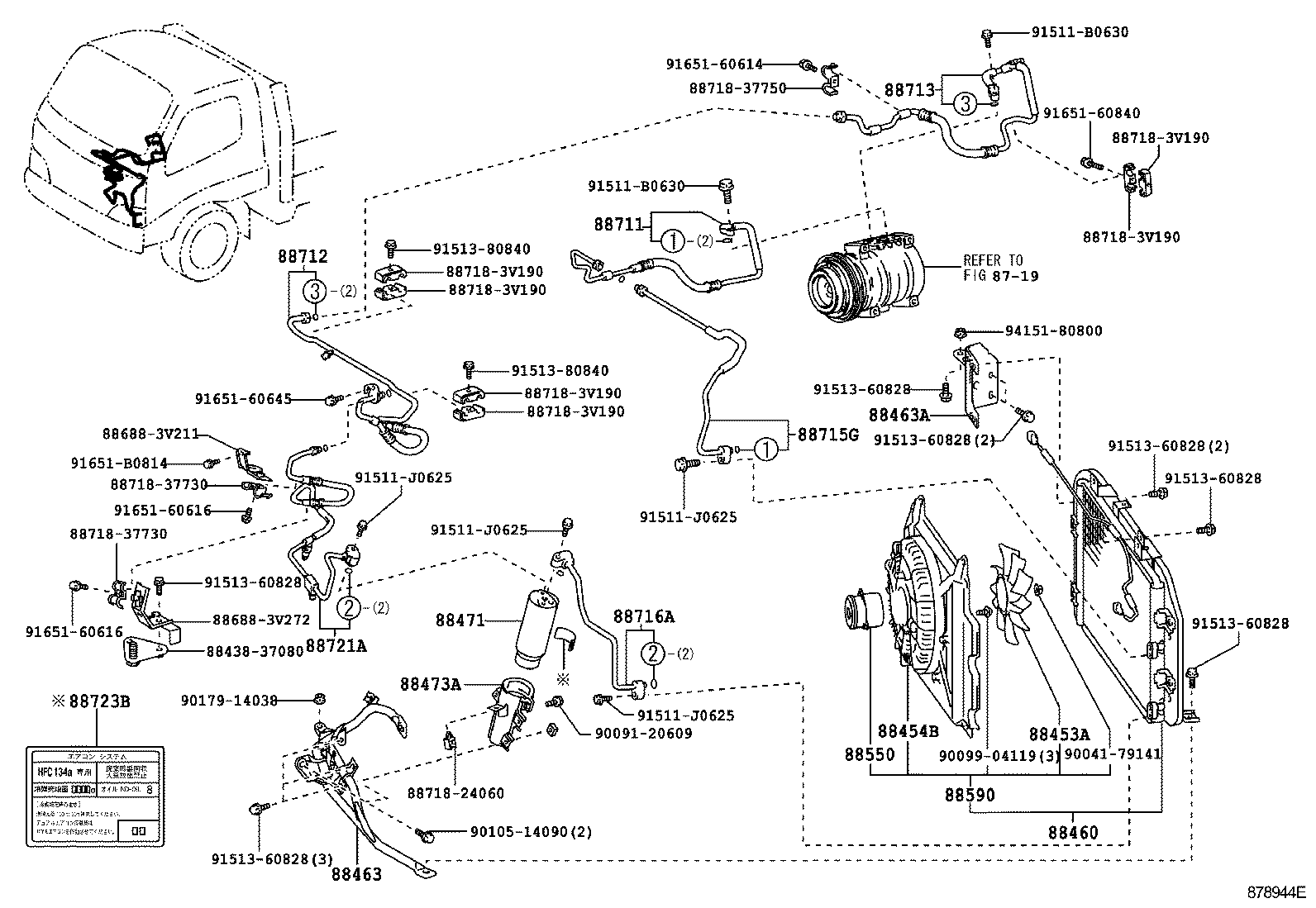

ILLUST NO. 1 OF 3(0610- )DCRTL

Click highlighted areas on diagram

diagram 8719 8843837080 88453A 88454B 88460 88463 88463A 88471 88473A 88550 88590 886883V211 886883V272 88711 88712 88713 88715G 88716A 8871824060 8871837730 8871837730 8871837750 887183V190 887183V190 887183V190 887183V190 887183V190 887183V190 88721A 88723B 9004179141 9009120609 9009904119 9010514090 9017914038 91511B0630 91511B0630 91511J0625 91511J0625 91511J0625 91511J0625 9151360828 9151360828 9151360828 9151360828 9151360828 9151360828 9151360828 9151380840 9151380840 9165160614 9165160616 9165160616 9165160645 9165160840 91651B0814 9415180800
Part # Description Qty Price
88453A - FAN, COOLING
88453-37010

XZU414..DCB;XZU414,424,434..DCRTL

 1
88454B - SHROUD, FAN
88454-37040

XZU414..DCB;XZU414,424,434..DCRTL

 1
88460 - CONDENSER ASSY, COOLER
88460-37381

XZU414..DCB;XZU414,424,434..DCRTL

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37260

BU400,410,420,430,XZU40#,41#,42#,430

 1
88463-37261

XZU414..DCB;XZU414,424,434..DCRTL

 1
88463-37262

XZU414..DCB;XZU414,424,434..DCRTL

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37440

XZU414..DCB;XZU414,424,434..DCRTL

 1
88463-37280

BU400,410,420,430,XZU40#,41#,42#,430

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010

XZU488;XZU414..DCB;XZU414,424,434..DCRTL

 1
88473A - HOLDER, RECEIVER
88473-37040

XZU414..DCB;XZU414,424,434..DCRTL

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37060

XZU414..DCB;XZU414,424,434..DCRTL

 1
88590 - BLOWER ASSY, W/SHROUD
88590-37070

XZU414..DCB;XZU414,424,434..DCRTL

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-3V070

XZU414,424,434..DCRTL

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37890

BU400,410,420,430,XZU40#,41#,42#,430

 1
88712-3V680

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88712-3V660

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
88715G - TUBE, DISCHARGE, G
88715-37430

XZU414,424,434..DCRTL

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37780

XZU414..DCB;XZU414,424,434..DCRTL

 1
88721A - HOSE, LIQUID, A
88721-3V040

XZU414..DCB;XZU414,424,434..DCRTL

 1
88723B - LABEL, COOLER SERVICE CAUTION
88733-22040

XZU488;XZU414,424,434..DCRTL

 1
Common parts
88438-37080
88688-3V211
88688-3V272
88718-24060
88718-37730
88718-37750
88718-3V190
90041-79141
90091-20609
90099-04119
90105-14090
90179-14038
91511-B0630
91511-J0625
91513-60828
91513-80840
91651-60614
91651-60616
91651-60645
91651-60840
91651-B0814
94151-80800
Linked diagrams
8719
