XZU414-TQFME3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

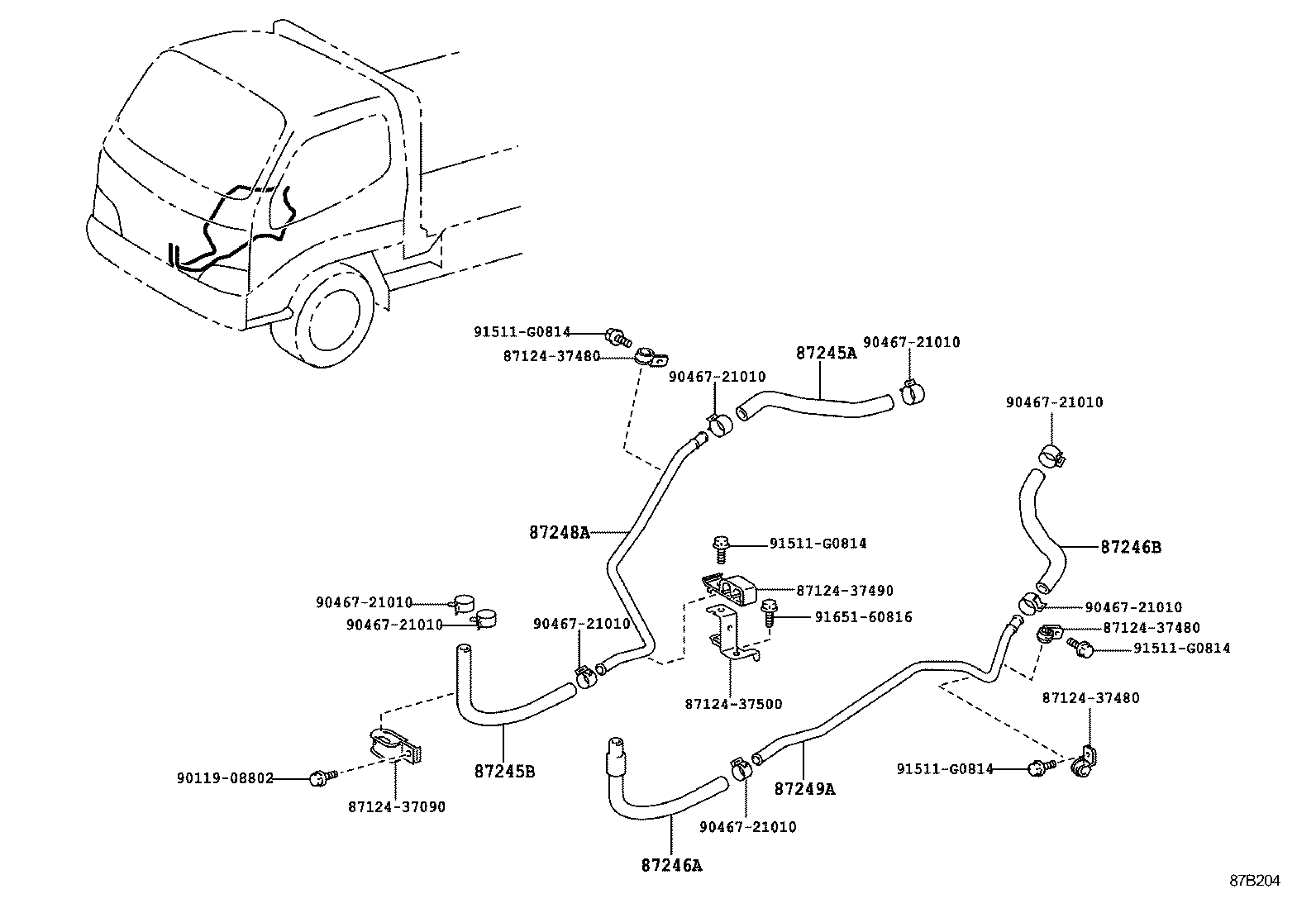

Click highlighted areas on diagram

diagram 8712437090 8712437480 8712437480 8712437480 8712437480 8712437490 8712437500 87245A 87245B 87246A 87246B 87248A 87249A 9011908802 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 91511G0814 91511G0814 91511G0814 91511G0814 91511G0814 9165160816
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-37A10

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30500

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

*H,L=450

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30500

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

長さ=500

 1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37680

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
87248A - PIPE, HEATER WATER INLET, A
87248-37540

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
87248-37B91

XZU404,414,424,434,454

 1
87248-37B92

XZU404,414,424,434,454

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37820

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
Common parts
87124-37090
87124-37480
87124-37490
87124-37500
90119-08802
90467-21010
91511-G0814
91651-60816

(1006- )DCB..6FC ; (1006- )XZU414,424,434,454..SCB ; (1006- )XZU404..6F,6F

Click highlighted areas on diagram

diagram 8712437090 8712437480 8712437480 8712437480 8712437490 8712437500 87245A 87245B 87246A 87246B 87248A 87249A 9011908802 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 91511G0814 91511G0814 91511G0814 91511G0814 9165160816
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-37A10

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30500

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

*H,L=450

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30500

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

長さ=500

 1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37680

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
87248A - PIPE, HEATER WATER INLET, A
87248-37540

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
87248-37B91

XZU404,414,424,434,454

 1
87248-37B92

XZU404,414,424,434,454

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37820

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
Common parts
87124-37090
87124-37480
87124-37490
87124-37500
90119-08802
90467-21010
91511-G0814
91651-60816
