XZU414-TQFME3 (2006)
Toyota Dyna/Toyoace
ILLUST NO. 5 OF 6(0610- )DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-37340 | ||||
| 82711-26070 | ||||
| 82712-37210 | ||||
| 82715-37760 | ||||
| 82715-37B00 | ||||
| 82715-37B40 | ||||
| 82715-37B60 | ||||
| 82715-37B70 | ||||
| 82715-37B80 | ||||
| 82715-37B90 | ||||
| 82715-37C50 | ||||
| 82715-37D20 | ||||
| 82715-37D50 | ||||
| 82715-37E50 | ||||
| 82715-37J50 | ||||
| 82715-37L60 | ||||
| 82715-37M10 | ||||
| 82715-37M50 | ||||
| 82715-37M70 | ||||
| 82715-37P40 | ||||
| 82715-37P50 | ||||
| 82715-37P60 | ||||
| 82715-37P73 | ||||
| 82715-37Q50 | ||||
| 82715-3V090 | ||||
| 82715-3V160 | ||||
| 82715-3V340 | ||||
| 82716-37310 | ||||
| 82729-37060 | ||||
| 82729-37090 | ||||
| 82729-37340 | ||||
| 88688-37790 | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90119-08103 | ||||
| 90119-08676 | ||||
| 91651-60816 | ||||
| 91651-B0814 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94130-00802 | ||||
ILLUST NO. 5 OF 6(0610- )DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 42141-37010 | ||||
| 82711-24420 | ||||
| 82711-37050 | ||||
| 82715-37750 | ||||
| 82715-37C30 | ||||
| 82715-3V690 | ||||
| 82716-37200 | ||||
| 90129-08007 | ||||
| 91651-60816 | ||||
| 91671-80816 | ||||
| 94130-00802 | ||||
ILLUST NO. 1 OF 6(0610- )DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE
ｴﾝｼﾞﾝ ﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82050 - WIRE ASSY, ENGINE | ||||
| 82050-37010 |
XZU404..40T..IV3;XZU404,414,424,434,454,488..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRUE) |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-3VU00 |
XZU414,424,434..DCRTL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-3VU00 |
1 | ||
| 82111-3VU10 |
XZU414,424,434..DCRTL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-3VU10 |
1 | ||
| 82111-3VU01 |
XZU414,424,434..DCRTL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-3VU01 |
1 | ||
| 82111-3VU11 |
XZU414,424,434..DCRTL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-3VU11 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-37100 |
XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-37B30 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82121-37D04 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL |
1 | ||
| 82121-37D05 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 82121-37B42 |
XZU414..DCR |
1 | ||
| 82121-37D06 |
XZU404,414,424,434,454,488 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82121-37D13 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRUE |
1 | ||
| 82121-37D12 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRUE |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82121-37B82 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 82121-37B83 |
XZU404,414,424,434,454,488 |
1 | ||
| 82121-37B82 |
XZU414..DCR |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-37070 |
XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRUE |
1 | ||
| 82281 - WIRE, GAGE | ||||
| 82281-37030 |
XZU404,414,424,434,454..SCB..(DCRTJ,DCRTK,DCRTL,DCRUE) |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| Common parts | ||||
| 90119-08375 | ||||
| 91551-80814 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 6(0610- )DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82135-37M80 |
XZU414,424,434..DCRTL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82135-37M80 |
1 | ||
| 82135-37M90 |
XZU414,424,434..DCRTL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82135-37M90 |
1 | ||
| 82135-37X10 |
XZU414,424,434..DCRTL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82135-37X10 |
1 | ||
| 82129-37B30 |
XZU414,424,434..DCRTL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82129-37B30 |
1 | ||
| 82135-37X20 |
XZU414,424,434..DCRTL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82135-37X20 |
1 | ||
| 82129-37B40 |
XZU414,424,434..DCRTL ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82129-37B40 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-37010 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-37080 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 82821-37080 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 89794 - WIRE, TRANSPONDER KEY | ||||
| 89794-25010 |
XZU404..DM7,T4;XZU404..T3..6F;XZU414..DCB..T4;XZU414..DCB..T5..DCRUE;XZU414,424,434,454,488..SCB |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||

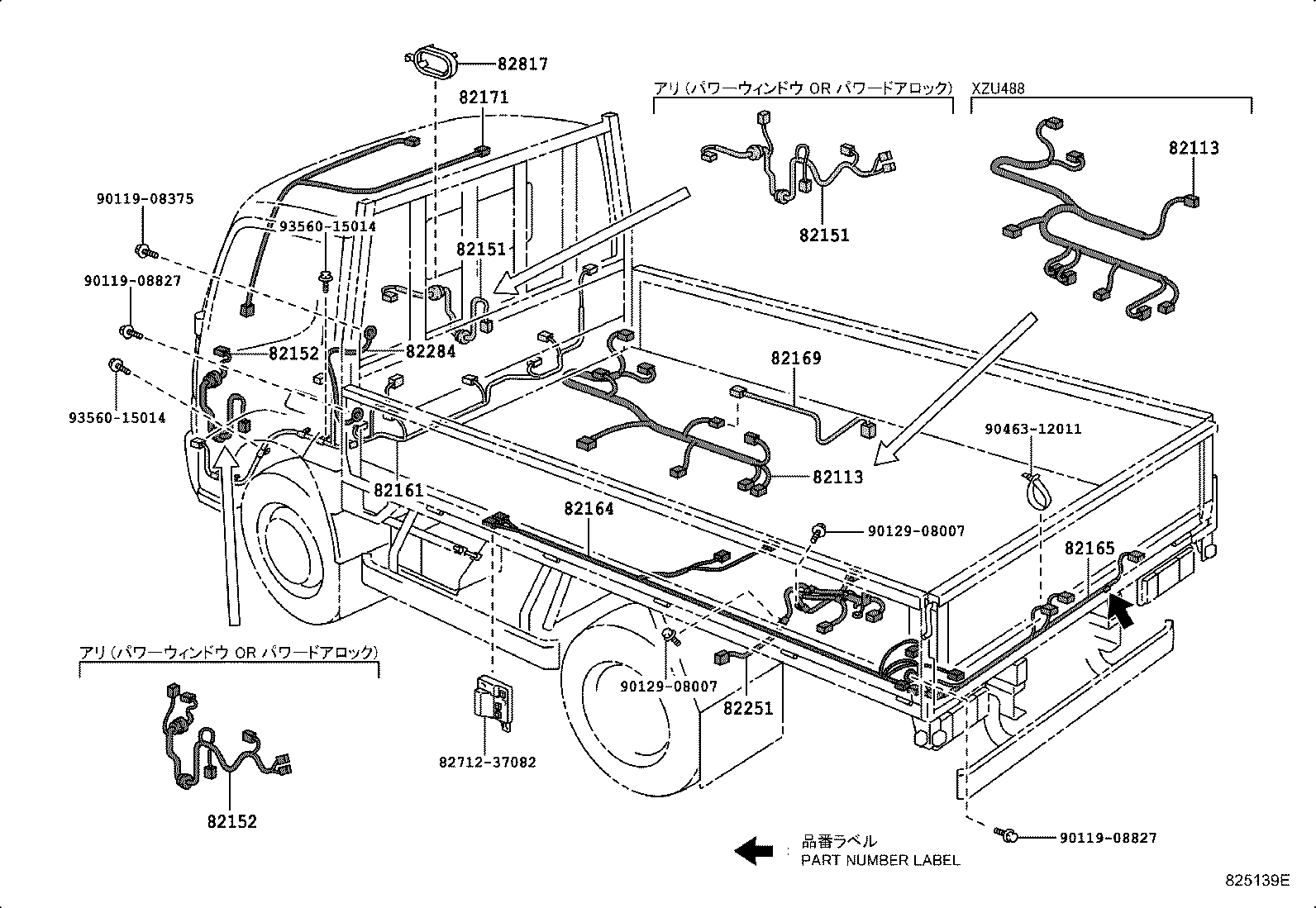

ILLUST NO. 4 OF 6(0610- )XZU488 ; (0610- )XZU404,414,424,454..SCB..20T
ﾎﾞﾃﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-37470 |
XZU404,414,424,434..SCB..6F..(DCRTK,DCRTL,DCRUE) |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-37470 |
XZU404,414,424,434..SCB..6F..(DCRTK,DCRTL,DCRUE) |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-37140 |
BU400,410,420,430,XZU382,40#,41#,42#,430 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82151-37150 |
BU400,410,420,430,XZU382,40#,41#,42#,430..(T2,T3,T4,T5)..(CBU,IV3,IV5) ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-37120 |
BU400,410,420,430,XZU382,40#,41#,42#,430 |
1 | ||
| 82151-37780 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-37790 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRUE ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-37550 |
XZU404,414,424,434,454,488..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL) ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 82151-37710 |
XZU404,414,424,434,454,488..T2,T3,T4,T5 ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ = ｼﾞﾖｼﾕｾｷ ﾉﾐ & ﾊﾟﾜｰｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-37700 |
XZU404,414,424,434,454,488..T2,T3,T4,T5 |
1 | ||
| 82151-37720 |
XZU454..DCRUE;XZU404,414,424,434,488..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRUE) ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-37140 |
BU400,410,420,430,XZU382,40#,41#,42#,430 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82151-37150 |
BU400,410,420,430,XZU382,40#,41#,42#,430..(T2,T3,T4,T5)..(CBU,IV3,IV5) ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-37120 |
BU400,410,420,430,XZU382,40#,41#,42#,430 |
1 | ||
| 82151-37780 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-37790 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRUE ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-37550 |
XZU404,414,424,434,454,488..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL) ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 82151-37710 |
XZU404,414,424,434,454,488..T2,T3,T4,T5 ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ = ｼﾞﾖｼﾕｾｷ ﾉﾐ & ﾊﾟﾜｰｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-37700 |
XZU404,414,424,434,454,488..T2,T3,T4,T5 |
1 | ||
| 82151-37720 |
XZU454..DCRUE;XZU404,414,424,434,488..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRUE) ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-37120 |
BU400,410,420,430,XZU382,40#,41#,42#,430..SCB ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-37110 |
BU400,410,420,430,XZU382,40#,41#,42#,430 |
1 | ||
| 82152-37160 |
BU400,410,420,430,XZU382,40#,41#,42#,430..(T2,T3,T4,T5)..(CBU,IV3,IV5) ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-37210 |
BU400,410,420,430,XZU382,40#,41#,42#,430 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82152-37620 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-37600 |
XZU404,414,424,434,454,488..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL) ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 82152-37670 |
XZU404,414,424,434,454,488..T2,T3,T4,T5 |
1 | ||
| 82152-37680 |
XZU454..DCRUE;XZU404,414,424,434,488..T2,T3,T4,T5 ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ = ｼﾞｮｼｭｾｷ ﾉﾐ OR ﾜｲﾔﾚｽ ﾄﾞｱﾛｯｸ) & ｱﾘ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-37120 |
BU400,410,420,430,XZU382,40#,41#,42#,430..SCB ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-37110 |
BU400,410,420,430,XZU382,40#,41#,42#,430 |
1 | ||
| 82152-37160 |
BU400,410,420,430,XZU382,40#,41#,42#,430..(T2,T3,T4,T5)..(CBU,IV3,IV5) ﾅｼ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-37210 |
BU400,410,420,430,XZU382,40#,41#,42#,430 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82152-37620 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-37600 |
XZU404,414,424,434,454,488..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL) ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 82152-37670 |
XZU404,414,424,434,454,488..T2,T3,T4,T5 |
1 | ||
| 82152-37680 |
XZU454..DCRUE;XZU404,414,424,434,488..T2,T3,T4,T5 ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛｯｸ = ｼﾞｮｼｭｾｷ ﾉﾐ OR ﾜｲﾔﾚｽ ﾄﾞｱﾛｯｸ) & ｱﾘ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-37680 |
XZU404,414,424,434,454,488..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ/SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 82161-37670 |
XZU404,414,424,434,454,488..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 82161-37J50 |
XZU404,414,424,434,454,488..SCB |
1 | ||
| 82161-37J40 |
XZU404,414,424,434,454,488..SCB ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ/SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-37L10 |
XZU414,454..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 82164-37L20 |
XZU454..5F;XZU414..SCB..(DCRTJ,DCRTK,DCRTL,DCRUE) ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞ ﾗﾝﾌﾟ OR ﾊﾟﾜ- ﾃｲｸ ｵﾌ OR ﾌﾞﾚ-ｷ ﾛﾂｸ) |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-37530 |
XZU404..40T..CBU;XZU404,414,424,434,454,488..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)..IV3 |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-37090 |
BU410,XZU41#..SCB..(4FC,6F) L=810 |
1 | ||
| 82169-37490 |
XZU414,454..SCB..(T2,T4);XZU414..(T3,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)..IV3 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-89160 |
XZU434,488;XZU404..40T..IV3;XZU414,424..(DCRTL,DCRTM)..IV3;XZU404,414,424..SCB..(DCRTJ,DCRTK,DCRTL)..CBU ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ |
1 | ||
| 82171-89170 |
XZU434,488;XZU404..40T..IV3;XZU414,424..(DCRTL,DCRTM)..IV3;XZU404,414,424..SCB..(DCRTJ,DCRTK,DCRTL)..CBU ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｾｯﾁｬｸﾀｲﾌﾟ & ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 82171-37870 |
XZU454..5F..DCRTJ;XZU404,414,424,434,488..SCB..(DCRTJ,DCRTK,DCRTL) ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ |
1 | ||
| 82171-37880 |
XZU404,434,488;XZU454..5F..DCRTJ;XZU414,424..SCB..(DCRTJ,DCRTK,DCRTL) ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ = ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹﾀｲﾌﾟ & ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 82251 - WIRE, SPEED SENSOR | ||||
| 82251-37420 |
XZU454..DCRUE;XZU404,414,424..(T4,T5)..20T |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-37121 |
XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-37110 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| Common parts | ||||
| 82712-37082 | ||||
| 90119-08375 | ||||
| 90119-08827 | ||||
| 90129-08007 | ||||
| 90463-12011 | ||||
| 93560-15014 | ||||
ILLUST NO. 3 OF 6(0610- )DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE
ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-37420 |
BU400,410,420,430,XZU382,40#,41#,42#,430..MTM ｱﾘ(ES ｽﾀ-ﾄ) |
1 | ||
| 82141-37430 |
BU400,410,420,430,XZU382,40#,41#,42#,430 |
1 | ||
| 82141-37D70 |
XZU414,424,434..DCRTL;XZU404,414..(DM7,T3)..(35T,40T)..DCRTK..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-37D70 |
1 | ||
| 82141-37C70 |
XZU404..40T..IV3;XZU404,414,424,434,454,488..(T2,T3,T4,T5)..MTM..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-37C70 |
1 | ||
| 82141-37E00 |
XZU404,414,424,434,454,488..MTM..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-37E00 |
1 | ||
| 82141-37D90 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-37D90 |
1 | ||
| 82141-37K30 |
XZU404..40T..IV3;XZU404,414,424,434,454,488..T2,T3,T4,T5 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-37K30 |
1 | ||
| 82141-37D80 |
XZU414,424,434..DCRTL;XZU404,414..(DM7,T3)..(35T,40T)..DCRTK..IV3 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-37D80 |
1 | ||
| 82413 - WIRE, BUZZER | ||||
| 82974-37010 |
XZU414..DCR |
1 | ||
| 82974-37010 |
XZU404,414,424,434,454,488..MTM..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
