XZU414-TQFME3 (2006)
Toyota Dyna/Toyoace

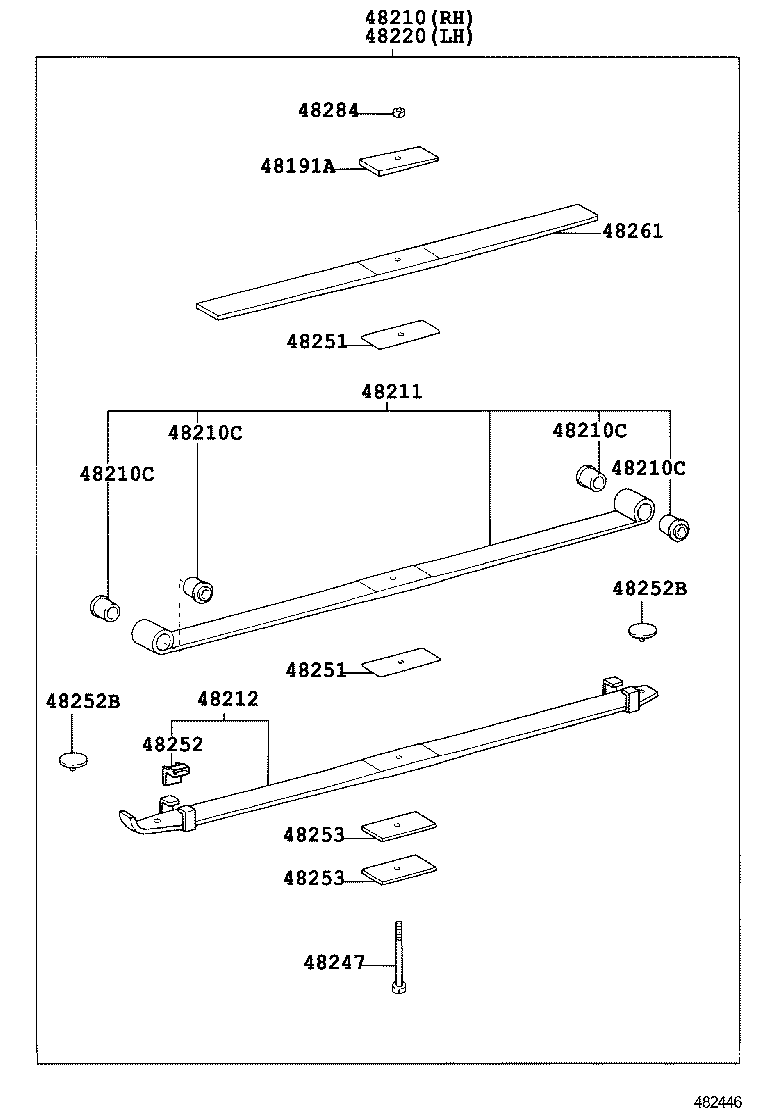

ILLUST NO. 2 OF 2(0610- )XZU454..DCRUE..IV3 ; (0610- )XZU404,414,424..T4,T5..20T..IV3
MAIN 2+HELPER 2-LEAF,TYPE:D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 48192-37100 |
XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 48192-37100 |
XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 48192-37100 |
XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37C30 |
XZU454..DCRUE;XZU404,414,424..T4..20T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ |
1 | ||
| 48210-37C30 |
XZU454..DCRUE;XZU404,414,424..T4..20T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ |
1 | ||
| 48210-37C30 |
XZU454..DCRUE;XZU404,414,424..T4..20T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ |
1 | ||
| 48210-37C30 |
XZU454..DCRUE;XZU404,414,424..T4..20T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ |
1 | ||
| 48210-3V470 |
XZU424..T5..CBU;XZU454..DCRUE..IV3;XZU404..20T..DCRTJ..IV3;XZU414..DCB..DCRTJ..IV3;XZU414..SCB..T5..DCRUE..CBU;XZU414,424..SCB..(T4,T5)..20T..IV3;XZU414..T5..(DCRTJ,DCRTK,DCRTL)..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V470 |
XZU424..T5..CBU;XZU454..DCRUE..IV3;XZU404..20T..DCRTJ..IV3;XZU414..DCB..DCRTJ..IV3;XZU414..SCB..T5..DCRUE..CBU;XZU414,424..SCB..(T4,T5)..20T..IV3;XZU414..T5..(DCRTJ,DCRTK,DCRTL)..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V470 |
XZU424..T5..CBU;XZU454..DCRUE..IV3;XZU404..20T..DCRTJ..IV3;XZU414..DCB..DCRTJ..IV3;XZU414..SCB..T5..DCRUE..CBU;XZU414,424..SCB..(T4,T5)..20T..IV3;XZU414..T5..(DCRTJ,DCRTK,DCRTL)..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V470 |
XZU424..T5..CBU;XZU454..DCRUE..IV3;XZU404..20T..DCRTJ..IV3;XZU414..DCB..DCRTJ..IV3;XZU414..SCB..T5..DCRUE..CBU;XZU414,424..SCB..(T4,T5)..20T..IV3;XZU414..T5..(DCRTJ,DCRTK,DCRTL)..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU488;XZU404,414,424,454..20T |
8 | ||
| 90389-16026 |
XZU488;XZU404,414,424,454..20T |
8 | ||
| 90389-16026 |
XZU488;XZU404,414,424,454..20T |
8 | ||
| 90389-16026 |
XZU488;XZU404,414,424,454..20T |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU488;XZU404,414,424,454..20T |
8 | ||
| 90389-16026 |
XZU488;XZU404,414,424,454..20T |
8 | ||
| 90389-16026 |
XZU488;XZU404,414,424,454..20T |
8 | ||
| 90389-16026 |
XZU488;XZU404,414,424,454..20T |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37C30 |
XZU454..DCRUE;XZU404..20T..DCRTJ;XZU414..DCB..T4..DCRTJ;XZU414,424..SCB..T4..20T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48201-37C30 |
XZU454..DCRUE;XZU404..20T..DCRTJ;XZU414..DCB..T4..DCRTJ;XZU414,424..SCB..T4..20T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48201-37C30 |
XZU454..DCRUE;XZU404..20T..DCRTJ;XZU414..DCB..T4..DCRTJ;XZU414,424..SCB..T4..20T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48201-37C30 |
XZU454..DCRUE;XZU404..20T..DCRTJ;XZU414..DCB..T4..DCRTJ;XZU414,424..SCB..T4..20T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48201-3V470 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48201-3V470 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48201-3V470 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48201-3V470 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3V470 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48202-3V470 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48202-3V470 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48202-3V470 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48202-37C30 |
XZU454..DCRUE;XZU404..20T..DCRTJ;XZU414..DCB..T4..DCRTJ;XZU414,424..SCB..T4..20T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48202-37C30 |
XZU454..DCRUE;XZU404..20T..DCRTJ;XZU414..DCB..T4..DCRTJ;XZU414,424..SCB..T4..20T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48202-37C30 |
XZU454..DCRUE;XZU404..20T..DCRTJ;XZU414..DCB..T4..DCRTJ;XZU414,424..SCB..T4..20T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48202-37C30 |
XZU454..DCRUE;XZU404..20T..DCRTJ;XZU414..DCB..T4..DCRTJ;XZU414,424..SCB..T4..20T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37C30 |
XZU454..DCRUE;XZU404,414,424..T4..20T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ |
1 | ||
| 48210-37C30 |
XZU454..DCRUE;XZU404,414,424..T4..20T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ |
1 | ||
| 48210-37C30 |
XZU454..DCRUE;XZU404,414,424..T4..20T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ |
1 | ||
| 48210-37C30 |
XZU454..DCRUE;XZU404,414,424..T4..20T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ |
1 | ||
| 48210-3V470 |
XZU424..T5..CBU;XZU454..DCRUE..IV3;XZU404..20T..DCRTJ..IV3;XZU414..DCB..DCRTJ..IV3;XZU414..SCB..T5..DCRUE..CBU;XZU414,424..SCB..(T4,T5)..20T..IV3;XZU414..T5..(DCRTJ,DCRTK,DCRTL)..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V470 |
XZU424..T5..CBU;XZU454..DCRUE..IV3;XZU404..20T..DCRTJ..IV3;XZU414..DCB..DCRTJ..IV3;XZU414..SCB..T5..DCRUE..CBU;XZU414,424..SCB..(T4,T5)..20T..IV3;XZU414..T5..(DCRTJ,DCRTK,DCRTL)..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V470 |
XZU424..T5..CBU;XZU454..DCRUE..IV3;XZU404..20T..DCRTJ..IV3;XZU414..DCB..DCRTJ..IV3;XZU414..SCB..T5..DCRUE..CBU;XZU414,424..SCB..(T4,T5)..20T..IV3;XZU414..T5..(DCRTJ,DCRTK,DCRTL)..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V470 |
XZU424..T5..CBU;XZU454..DCRUE..IV3;XZU404..20T..DCRTJ..IV3;XZU414..DCB..DCRTJ..IV3;XZU414..SCB..T5..DCRUE..CBU;XZU414,424..SCB..(T4,T5)..20T..IV3;XZU414..T5..(DCRTJ,DCRTK,DCRTL)..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V031 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48247-3V031 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48247-3V031 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48247-3V031 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48247-3V050 |
XZU404,414,424..T4..(20T,30T)..(DCRTJ,DCRTK,DCRTL) TYPE A:ｲﾗｽﾄｻﾝｼｮｳ,2.95ﾄﾝ |
2 | ||
| 48247-3V050 |
XZU404,414,424..T4..(20T,30T)..(DCRTJ,DCRTK,DCRTL) TYPE A:ｲﾗｽﾄｻﾝｼｮｳ,2.95ﾄﾝ |
2 | ||
| 48247-3V050 |
XZU404,414,424..T4..(20T,30T)..(DCRTJ,DCRTK,DCRTL) TYPE A:ｲﾗｽﾄｻﾝｼｮｳ,2.95ﾄﾝ |
2 | ||
| 48247-3V050 |
XZU404,414,424..T4..(20T,30T)..(DCRTJ,DCRTK,DCRTL) TYPE A:ｲﾗｽﾄｻﾝｼｮｳ,2.95ﾄﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU454..DCRUE;XZU404,414,424,434..(T3,T4,T5)..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48253-3V020 |
XZU454..DCRUE;XZU404,414,424,434..(T3,T4,T5)..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48253-3V020 |
XZU454..DCRUE;XZU404,414,424,434..(T3,T4,T5)..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48253-3V020 |
XZU454..DCRUE;XZU404,414,424,434..(T3,T4,T5)..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU454..DCRUE;XZU404,414,424,434..(T3,T4,T5)..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48253-3V020 |
XZU454..DCRUE;XZU404,414,424,434..(T3,T4,T5)..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48253-3V020 |
XZU454..DCRUE;XZU404,414,424,434..(T3,T4,T5)..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48253-3V020 |
XZU454..DCRUE;XZU404,414,424,434..(T3,T4,T5)..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU488..20T;XZU404..40T..IV3;XZU404,414,424,434,454..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
8 | ||
| 48252-37380 |
XZU488..20T;XZU404..40T..IV3;XZU404,414,424,434,454..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
8 | ||
| 48252-37380 |
XZU488..20T;XZU404..40T..IV3;XZU404,414,424,434,454..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
8 | ||
| 48252-37380 |
XZU488..20T;XZU404..40T..IV3;XZU404,414,424,434,454..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37670 |
XZU488..20T;XZU404..40T..IV3;XZU404,414,424,434,454..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48252-37670 |
XZU488..20T;XZU404..40T..IV3;XZU404,414,424,434,454..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48252-37670 |
XZU488..20T;XZU404..40T..IV3;XZU404,414,424,434,454..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48252-37670 |
XZU488..20T;XZU404..40T..IV3;XZU404,414,424,434,454..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37670 |
XZU488..20T;XZU404..40T..IV3;XZU404,414,424,434,454..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48252-37670 |
XZU488..20T;XZU404..40T..IV3;XZU404,414,424,434,454..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48252-37670 |
XZU488..20T;XZU404..40T..IV3;XZU404,414,424,434,454..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48252-37670 |
XZU488..20T;XZU404..40T..IV3;XZU404,414,424,434,454..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU454..DCRUE;XZU404,414,424..T4..20T |
4 | ||
| 48254-3V020 |
XZU454..DCRUE;XZU404,414,424..T4..20T |
4 | ||
| 48254-3V020 |
XZU454..DCRUE;XZU404,414,424..T4..20T |
4 | ||
| 48254-3V020 |
XZU454..DCRUE;XZU404,414,424..T4..20T |
4 | ||
| 48254-3V080 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254-3V080 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254-3V080 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254-3V080 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU454..DCRUE;XZU404,414,424..T4..20T |
4 | ||
| 48254-3V020 |
XZU454..DCRUE;XZU404,414,424..T4..20T |
4 | ||
| 48254-3V020 |
XZU454..DCRUE;XZU404,414,424..T4..20T |
4 | ||
| 48254-3V020 |
XZU454..DCRUE;XZU404,414,424..T4..20T |
4 | ||
| 48254-3V080 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254-3V080 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254-3V080 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254-3V080 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU454..DCRUE;XZU404,414,424..T4..20T |
4 | ||
| 48254-3V020 |
XZU454..DCRUE;XZU404,414,424..T4..20T |
4 | ||
| 48254-3V020 |
XZU454..DCRUE;XZU404,414,424..T4..20T |
4 | ||
| 48254-3V020 |
XZU454..DCRUE;XZU404,414,424..T4..20T |
4 | ||
| 48254-3V080 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254-3V080 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254-3V080 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254-3V080 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU454..DCRUE;XZU404,414,424..T4..20T |
4 | ||
| 48254-3V020 |
XZU454..DCRUE;XZU404,414,424..T4..20T |
4 | ||
| 48254-3V020 |
XZU454..DCRUE;XZU404,414,424..T4..20T |
4 | ||
| 48254-3V020 |
XZU454..DCRUE;XZU404,414,424..T4..20T |
4 | ||
| 48254-3V080 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254-3V080 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254-3V080 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254-3V080 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU454..DCRUE;XZU404,414,424..T4..20T |
4 | ||
| 48254-3V020 |
XZU454..DCRUE;XZU404,414,424..T4..20T |
4 | ||
| 48254-3V020 |
XZU454..DCRUE;XZU404,414,424..T4..20T |
4 | ||
| 48254-3V020 |
XZU454..DCRUE;XZU404,414,424..T4..20T |
4 | ||
| 48254-3V080 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254-3V080 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254-3V080 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254-3V080 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-3V070 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404..(T3,T4)..IV3;XZU404..(30T,35T)..CBU;XZU414,424..(T4,T5)..20T..IV3;XZU414,424,434..(30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48254-3V070 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404..(T3,T4)..IV3;XZU404..(30T,35T)..CBU;XZU414,424..(T4,T5)..20T..IV3;XZU414,424,434..(30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48254-3V070 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404..(T3,T4)..IV3;XZU404..(30T,35T)..CBU;XZU414,424..(T4,T5)..20T..IV3;XZU414,424,434..(30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48254-3V070 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404..(T3,T4)..IV3;XZU404..(30T,35T)..CBU;XZU414,424..(T4,T5)..20T..IV3;XZU414,424,434..(30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-3V070 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404..(T3,T4)..IV3;XZU404..(30T,35T)..CBU;XZU414,424..(T4,T5)..20T..IV3;XZU414,424,434..(30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48254-3V070 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404..(T3,T4)..IV3;XZU404..(30T,35T)..CBU;XZU414,424..(T4,T5)..20T..IV3;XZU414,424,434..(30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48254-3V070 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404..(T3,T4)..IV3;XZU404..(30T,35T)..CBU;XZU414,424..(T4,T5)..20T..IV3;XZU414,424,434..(30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48254-3V070 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404..(T3,T4)..IV3;XZU404..(30T,35T)..CBU;XZU414,424..(T4,T5)..20T..IV3;XZU414,424,434..(30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48213-37C30 |
XZU454..DCRUE;XZU404..20T..DCRTJ;XZU414..DCB..T4..DCRTJ;XZU414,424..SCB..T4..20T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48213-37C30 |
XZU454..DCRUE;XZU404..20T..DCRTJ;XZU414..DCB..T4..DCRTJ;XZU414,424..SCB..T4..20T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48213-37C30 |
XZU454..DCRUE;XZU404..20T..DCRTJ;XZU414..DCB..T4..DCRTJ;XZU414,424..SCB..T4..20T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48213-37C30 |
XZU454..DCRUE;XZU404..20T..DCRTJ;XZU414..DCB..T4..DCRTJ;XZU414,424..SCB..T4..20T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48213-3V470 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V470 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V470 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V470 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48214-3V470 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 |
2 | ||
| 48214-3V470 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 |
2 | ||
| 48214-3V470 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 |
2 | ||
| 48214-3V470 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3B750 |
XZU404,414,424,434,454..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
2 | ||
| 48284-3B750 |
XZU404,414,424,434,454..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
2 | ||
| 48284-3B750 |
XZU404,414,424,434,454..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
2 | ||
| 48284-3B750 |
XZU404,414,424,434,454..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
2 | ||
ILLUST NO. 1 OF 2(0610- )XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE
ﾒﾀﾙﾌﾞｯｼｭﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
XZU488;XZU404,414,424,454..20T |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37110 |
XZU412..DCB..T5;XZU412..T3..CBU;XZU411..(T3,T5)..DSLL;BU400,410,420,430,XZU401,402,41#,42#..T4;XZU400,401,410,411,420,430..T3..(295T,35T)..IV3;BU410,420,XZU401,410,411,421..(T3,T5)..(20T,295T,30T)..CBU |
1 | ||
| 48473-37110 |
XZU424..T4,T5;XZU424..T3..DCRTK;XZU434,454..T4..(DCRTL,DCRUE);XZU404,414..(T3,T4,T5)..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 48473-37111 |
XZU424..T4,T5;XZU424..T3..DCRTK;XZU434,454..T4..MTM;XZU404,414..(T3,T4,T5)..(20T,30T,35T) |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90031-17015 |
XZU404,414,424..T4;XZU434,454..T4..(DCRTL,DCRUE);XZU404,414,424..T3..30T..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) 長さ=310 |
4 | ||
| 90031-17026 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 長さ=350 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90031-17015 |
XZU404,414,424..T4;XZU434,454..T4..(DCRTL,DCRUE);XZU404,414,424..T3..30T..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) 長さ=310 |
4 | ||
| 90031-17026 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 長さ=350 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37110 |
XZU412..DCB..T5;XZU412..T3..CBU;XZU411..(T3,T5)..DSLL;BU400,410,420,430,XZU401,402,41#,42#..T4;XZU400,401,410,411,420,430..T3..(295T,35T)..IV3;BU410,420,XZU401,410,411,421..(T3,T5)..(20T,295T,30T)..CBU |
1 | ||
| 48473-37110 |
XZU424..T4,T5;XZU424..T3..DCRTK;XZU434,454..T4..(DCRTL,DCRUE);XZU404,414..(T3,T4,T5)..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 48473-37111 |
XZU424..T4,T5;XZU424..T3..DCRTK;XZU434,454..T4..MTM;XZU404,414..(T3,T4,T5)..(20T,30T,35T) |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XZU488;XZU404,414,424,454..20T |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37200 |
XZU404,414,424,454..T4..20T;XZU404,414,424,434..T3..(30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37020 |
XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37020 |
XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
4 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-37090 |
XZU404,414,424,434,454..SCB..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)..IV3 |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37090 |
XZU454..DCRUE;XZU404,414,424,434..(DM7,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37051 |
XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-37051 |
XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80685 |
BU420,430..T4,T5;BU400,410,XZU40#,41#,42#,430..20T,295T,30T,35T ﾏｰｸ 48531−37080 |
1 | ||
| 48531-37290 |
XZU424,434..T4,T5;XZU424..T3..DCRTK;XZU404,414,454..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) ﾏｰｸ 48531−37290 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80685 |
BU420,430..T4,T5;BU400,410,XZU40#,41#,42#,430..20T,295T,30T,35T ﾏｰｸ 48531−37080 |
1 | ||
| 48531-37290 |
XZU424,434..T4,T5;XZU424..T3..DCRTK;XZU404,414,454..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) ﾏｰｸ 48531−37290 |
1 | ||
| Common parts | ||||
| 90031-79042 | ||||
| 90032-01143 | ||||
| 90032-04031 | ||||
| 90101-10081 | ||||
| 90119-12088 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91112-81025 | ||||
| 94130-01002 | ||||
| 94184-61001 | ||||
ILLUST NO. 2 OF 2(0610- )XZU454..DCRUE ; (0610- )XZU404,414,424..T4..20T
MAIN 2+HELPER 1-LEAF 48210-37C30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37C30 |
XZU454..DCRUE;XZU404,414,424..T4..20T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ |
1 | ||
| 48210-3V470 |
XZU424..T5..CBU;XZU454..DCRUE..IV3;XZU404..20T..DCRTJ..IV3;XZU414..DCB..DCRTJ..IV3;XZU414..SCB..T5..DCRUE..CBU;XZU414,424..SCB..(T4,T5)..20T..IV3;XZU414..T5..(DCRTJ,DCRTK,DCRTL)..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU488;XZU404,414,424,454..20T |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU488;XZU404,414,424,454..20T |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU488;XZU404,414,424,454..20T |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU488;XZU404,414,424,454..20T |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37C30 |
XZU454..DCRUE;XZU404..20T..DCRTJ;XZU414..DCB..T4..DCRTJ;XZU414,424..SCB..T4..20T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48201-3V470 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3V470 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48202-37C30 |
XZU454..DCRUE;XZU404..20T..DCRTJ;XZU414..DCB..T4..DCRTJ;XZU414,424..SCB..T4..20T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37C30 |
XZU454..DCRUE;XZU404,414,424..T4..20T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ |
1 | ||
| 48210-3V470 |
XZU424..T5..CBU;XZU454..DCRUE..IV3;XZU404..20T..DCRTJ..IV3;XZU414..DCB..DCRTJ..IV3;XZU414..SCB..T5..DCRUE..CBU;XZU414,424..SCB..(T4,T5)..20T..IV3;XZU414..T5..(DCRTJ,DCRTK,DCRTL)..CBU ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V031 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48247-3V050 |
XZU404,414,424..T4..(20T,30T)..(DCRTJ,DCRTK,DCRTL) TYPE A:ｲﾗｽﾄｻﾝｼｮｳ,2.95ﾄﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU454..DCRUE;XZU404,414,424,434..(T3,T4,T5)..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU454..DCRUE;XZU404,414,424,434..(T3,T4,T5)..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU488..20T;XZU404..40T..IV3;XZU404,414,424,434,454..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37670 |
XZU488..20T;XZU404..40T..IV3;XZU404,414,424,434,454..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37670 |
XZU488..20T;XZU404..40T..IV3;XZU404,414,424,434,454..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU454..DCRUE;XZU404,414,424..T4..20T |
4 | ||
| 48254-3V080 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU454..DCRUE;XZU404,414,424..T4..20T |
4 | ||
| 48254-3V080 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48213-37C30 |
XZU454..DCRUE;XZU404..20T..DCRTJ;XZU414..DCB..T4..DCRTJ;XZU414,424..SCB..T4..20T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 48213-3V470 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3B750 |
XZU404,414,424,434,454..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
2 | ||
ILLUST NO. 1 OF 2(0610- )XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE
ﾗﾊﾞｰﾌﾞｯｼｭﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
XZU488;XZU404,414,424,454..20T |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37110 |
XZU412..DCB..T5;XZU412..T3..CBU;XZU411..(T3,T5)..DSLL;BU400,410,420,430,XZU401,402,41#,42#..T4;XZU400,401,410,411,420,430..T3..(295T,35T)..IV3;BU410,420,XZU401,410,411,421..(T3,T5)..(20T,295T,30T)..CBU |
1 | ||
| 48473-37110 |
XZU424..T4,T5;XZU424..T3..DCRTK;XZU434,454..T4..(DCRTL,DCRUE);XZU404,414..(T3,T4,T5)..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 48473-37111 |
XZU424..T4,T5;XZU424..T3..DCRTK;XZU434,454..T4..MTM;XZU404,414..(T3,T4,T5)..(20T,30T,35T) |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90031-17015 |
XZU404,414,424..T4;XZU434,454..T4..(DCRTL,DCRUE);XZU404,414,424..T3..30T..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) 長さ=310 |
4 | ||
| 90031-17026 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 長さ=350 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90031-17015 |
XZU404,414,424..T4;XZU434,454..T4..(DCRTL,DCRUE);XZU404,414,424..T3..30T..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) 長さ=310 |
4 | ||
| 90031-17026 |
XZU454..DCRUE..IV3;XZU414,424..T5..CBU;XZU404,414,424..(T4,T5)..20T..IV3 長さ=350 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37110 |
XZU412..DCB..T5;XZU412..T3..CBU;XZU411..(T3,T5)..DSLL;BU400,410,420,430,XZU401,402,41#,42#..T4;XZU400,401,410,411,420,430..T3..(295T,35T)..IV3;BU410,420,XZU401,410,411,421..(T3,T5)..(20T,295T,30T)..CBU |
1 | ||
| 48473-37110 |
XZU424..T4,T5;XZU424..T3..DCRTK;XZU434,454..T4..(DCRTL,DCRUE);XZU404,414..(T3,T4,T5)..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 48473-37111 |
XZU424..T4,T5;XZU424..T3..DCRTK;XZU434,454..T4..MTM;XZU404,414..(T3,T4,T5)..(20T,30T,35T) |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XZU488;XZU404,414,424,454..20T |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XZU488;XZU404,414,424,454..20T |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37200 |
XZU404,414,424,454..T4..20T;XZU404,414,424,434..T3..(30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-37010 |
XZU488;XZU404,414,424,454..20T |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37020 |
XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37020 |
XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
4 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-37090 |
XZU404,414,424,434,454..SCB..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)..IV3 |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37090 |
XZU454..DCRUE;XZU404,414,424,434..(DM7,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37051 |
XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-37051 |
XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80685 |
BU420,430..T4,T5;BU400,410,XZU40#,41#,42#,430..20T,295T,30T,35T ﾏｰｸ 48531−37080 |
1 | ||
| 48531-37290 |
XZU424,434..T4,T5;XZU424..T3..DCRTK;XZU404,414,454..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) ﾏｰｸ 48531−37290 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80685 |
BU420,430..T4,T5;BU400,410,XZU40#,41#,42#,430..20T,295T,30T,35T ﾏｰｸ 48531−37080 |
1 | ||
| 48531-37290 |
XZU424,434..T4,T5;XZU424..T3..DCRTK;XZU404,414,454..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) ﾏｰｸ 48531−37290 |
1 | ||
| Common parts | ||||
| 90031-79042 | ||||
| 90032-01143 | ||||
| 90032-04031 | ||||
| 90105-16021 | ||||
| 90105-16070 | ||||
| 90105-16075 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91112-81025 | ||||
| 91651-B0820 | ||||
| 94130-01002 | ||||
| 94184-61001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
