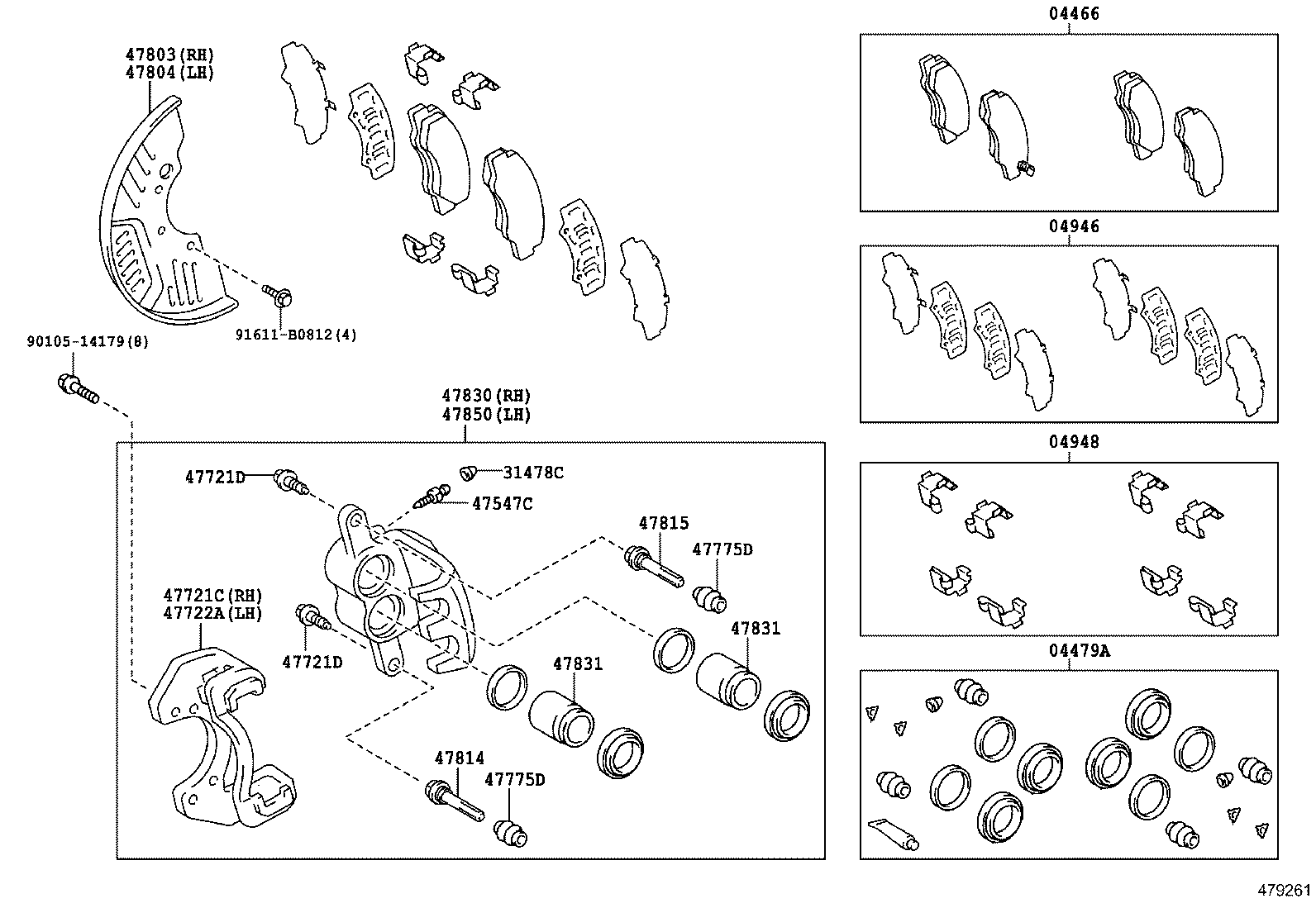

XZU414-TQFME3 (2006)
Toyota Dyna/Toyoace
(0610- )XZU488 ; (0610- )BZU410,XZU404,414,424,454..20T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-37100 |
XZU488;XZU404,414,424,454..20T ﾏｰｸ NS174 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-37220 |
XZU488;XZU404,414,424,454..20T |
1 | ||
| 04479-37290 |
XZU488;XZU404,414,424,454..20T |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-37031 |
XZU488;XZU404,414,424,454..20T |
1 | ||
| 04946-37030 |
XZU488;XZU404,414,424,454..20T |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-37010 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-37030 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47847-37030 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-37030 |
XZU488;XZU404,414,424,454..20T |
1 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90105-37120 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
4 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90105-37120 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
4 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47822-37030 |
XZU488;XZU404,414,424,454..20T |
1 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-37121 |
XZU404,414,424,434,454,488 |
4 | ||
| 47775-37120 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-37121 |
XZU404,414,424,434,454,488 |
4 | ||
| 47775-37120 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
4 | ||
| 47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH | ||||
| 47803-37020 |
XZU488;XZU404,414,424,454..20T |
1 | ||
| 47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH | ||||
| 47804-37020 |
XZU488;XZU404,414,424,454..20T |
1 | ||
| 47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47814-37030 |
XZU488;XZU404,414,424,454..20T |
2 | ||
| 47814-37031 |
XZU488;XZU404,414,424,454..20T |
2 | ||
| 47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47815-37030 |
XZU488;XZU404,414,424,454..20T |
2 | ||
| 47815-37031 |
XZU488;XZU404,414,424,454..20T |
2 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-37031 |
XZU488;XZU404,414,424,454..20T |
1 | ||
| 47830-37030 |
XZU488;XZU404,414,424,454..20T |
1 | ||
| 47831 - PISTON, REAR DISC BRAKE | ||||
| 47831-37030 |
XZU488;XZU404,414,424,454..20T |
4 | ||
| 47831 - PISTON, REAR DISC BRAKE | ||||
| 47831-37030 |
XZU488;XZU404,414,424,454..20T |
4 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-37030 |
XZU488;XZU404,414,424,454..20T |
1 | ||
| 47850-37031 |
XZU488;XZU404,414,424,454..20T |
1 | ||
| Common parts | ||||
| 90105-14179 | ||||
| 91611-B0812 | ||||
