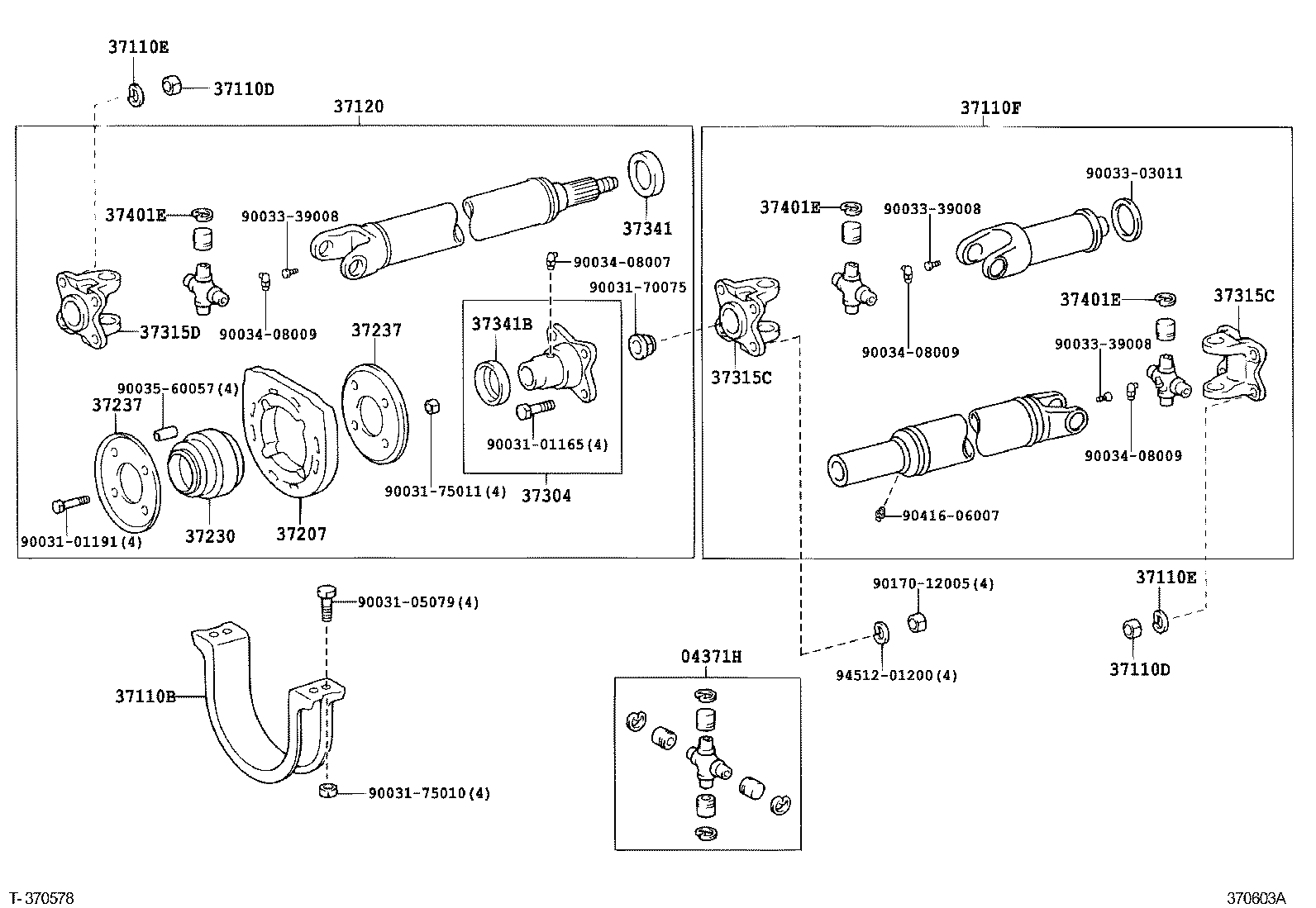

XZU414-TQFME3 (2006)
Toyota Dyna/Toyoace
(0610- )XZU454..DCRUE ; (0610- )XZU414..T3,T4,T5..DCRTJ,DCRTK,DCRTL,DCRTM,DCR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37080 |
XZU414,424,454,488 |
3 | ||
| 04371-37080 |
XZU404,414,424,488..DCRTJ,DCRTK,DCRTL,DCRTM |
4 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 37231-37020 |
XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
8 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-37B70 |
XZU434..T4;XZU414..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM) |
1 | ||
| 37110-37F40 |
XZU434,454..T4..(6F,6FC);XZU414..(20T,30T,35T)..(DCRTJ,DCRTK,DCRTL,DCRTM) |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-37650 |
XZU414,434..DCRTL |
1 | ||
| 37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1 | ||||
| 37235-37030 |
XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37201-37020 |
XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-37020 |
XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=3.0 |
2 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-37020 |
XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=3.0 |
2 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-37040 |
XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
XZU454..5F..DCRTJ;XZU414..DCB..T5..DCRTJ;XZU414,424,488..MTM..(DCRTK,DCRTL,DCRTM,DCRUE) |
2 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
XZU454..5F..DCRTJ;XZU414..DCB..T5..DCRTJ;XZU414,424,488..MTM..(DCRTK,DCRTL,DCRTM,DCRUE) |
2 | ||
| 37315D - YOKE, NO.2, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37060 |
XZU414,424,434..DCRTL |
1 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-37030 |
XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 37341B - DEFLECTOR, PROPELLER SHAFT DUST, NO.5 | ||||
| 37341-37030 |
XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XZU404,434..DCRTJ,DCRTL;XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=1.65 |
8 | ||
| 90035-21038 |
XZU404,434..DCRTJ,DCRTL;XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=1.68 |
8 | ||
| 90035-21041 |
XZU404,434..DCRTJ,DCRTL;XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=1.59 |
8 | ||
| 90035-21040 |
XZU404,434..DCRTJ,DCRTL;XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=1.62 |
8 | ||
| 90035-21042 |
XZU404,434..DCRTJ,DCRTL;XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=1.56 |
8 | ||
| 90035-21043 |
XZU404,434..DCRTJ,DCRTL;XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=1.53 |
8 | ||
| 90035-21044 |
XZU404,434..DCRTJ,DCRTL;XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=1.50 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XZU404,434..DCRTJ,DCRTL;XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=1.65 |
8 | ||
| 90035-21038 |
XZU404,434..DCRTJ,DCRTL;XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=1.68 |
8 | ||
| 90035-21041 |
XZU404,434..DCRTJ,DCRTL;XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=1.59 |
8 | ||
| 90035-21040 |
XZU404,434..DCRTJ,DCRTL;XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=1.62 |
8 | ||
| 90035-21042 |
XZU404,434..DCRTJ,DCRTL;XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=1.56 |
8 | ||
| 90035-21043 |
XZU404,434..DCRTJ,DCRTL;XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=1.53 |
8 | ||
| 90035-21044 |
XZU404,434..DCRTJ,DCRTL;XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=1.50 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XZU404,434..DCRTJ,DCRTL;XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=1.65 |
8 | ||
| 90035-21038 |
XZU404,434..DCRTJ,DCRTL;XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=1.68 |
8 | ||
| 90035-21041 |
XZU404,434..DCRTJ,DCRTL;XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=1.59 |
8 | ||
| 90035-21040 |
XZU404,434..DCRTJ,DCRTL;XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=1.62 |
8 | ||
| 90035-21042 |
XZU404,434..DCRTJ,DCRTL;XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=1.56 |
8 | ||
| 90035-21043 |
XZU404,434..DCRTJ,DCRTL;XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=1.53 |
8 | ||
| 90035-21044 |
XZU404,434..DCRTJ,DCRTL;XZU414,424,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 厚さ=1.50 |
8 | ||
| Common parts | ||||
| 90031-01165 | ||||
| 90031-01191 | ||||
| 90031-05079 | ||||
| 90031-70075 | ||||
| 90031-75010 | ||||
| 90031-75011 | ||||
| 90033-03011 | ||||
| 90033-39008 | ||||
| 90034-08007 | ||||
| 90034-08009 | ||||
| 90035-60057 | ||||
| 90170-12005 | ||||
| 90416-06007 | ||||
| 94512-01200 | ||||
