Toyota Dyna/toyoace XZU414 POWER TAKE-OFF LEVER & LINK

Part #	Description	Period	Qty
38901D - LEVER SUB-ASSY, VALVE CONTROL
38901-37110B0	XZU414,424,434..DCRTL;XZU404,414..(DM7,T3)..(35T,40T)..DCRTK..IV3 ｱﾘ(ﾊﾟﾜｰﾃｰｸｵﾌｲﾝｼﾞｹﾞｰﾀｽｲｯﾁ),MD.CHARCOAL,TRIM1#	10/2006 - 06/2011	1
38901H - KNOB, VALVE CONTROL LEVER
46217-20020B1	XZU488..IV3;XZU404..40T;XZU424,434..DCRTL;XZU414..DCRTL..CBU;XZU414..T4..20T..DCRTL..IV3;XZU414..T3..(30T,40T)..DCRTK..IV3;XZU404,414..(T3,T5)..(20T,35T)..IV3;XZU414..MTM..(30T,35T,40T)..(DCRTJ,DCRTL,DCRUE)..IV3 MD.CHARCOAL,TRIM1#	10/2006 - 06/2011	1
38901J - LEVER SUB-ASSY, VALVE CONTROL
38901-37120	XZU414,424,434..DCRTL	10/2006 - 12/2999	1
38902B - BRACKET SUB-ASSY, VALVE CONTROL LEVER
38902-37120	XZU414,424,434..DCRTL;XZU404,414..(DM7,T3)..(35T,40T)..DCRTK..IV3 ｱﾘ(ﾊﾟﾜｰﾃｰｸｵﾌｲﾝｼﾞｹﾞｰﾀｽｲｯﾁ)	10/2006 - 12/2999	1
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034	XZU488..IV3;XZU404..40T;XZU424,434..DCRTL;XZU414..DCRTL..CBU;XZU414..T4..20T..DCRTL..IV3;XZU414..T3..(30T,40T)..DCRTK..IV3;XZU404,414..(T3,T5)..(20T,35T)..IV3;XZU414..MTM..(30T,35T,40T)..(DCRTJ,DCRTL,DCRUE)..IV3	10/2006 - 12/2999	2
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034	XZU488..IV3;XZU404..40T;XZU424,434..DCRTL;XZU414..DCRTL..CBU;XZU414..T4..20T..DCRTL..IV3;XZU414..T3..(30T,40T)..DCRTK..IV3;XZU404,414..(T3,T5)..(20T,35T)..IV3;XZU414..MTM..(30T,35T,40T)..(DCRTJ,DCRTL,DCRUE)..IV3	10/2006 - 12/2999	2
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034	XZU488..IV3;XZU404..40T;XZU424,434..DCRTL;XZU414..DCRTL..CBU;XZU414..T4..20T..DCRTL..IV3;XZU414..T3..(30T,40T)..DCRTK..IV3;XZU404,414..(T3,T5)..(20T,35T)..IV3;XZU414..MTM..(30T,35T,40T)..(DCRTJ,DCRTL,DCRUE)..IV3	10/2006 - 12/2999	2
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034	XZU488..IV3;XZU404..40T;XZU424,434..DCRTL;XZU414..DCRTL..CBU;XZU414..T4..20T..DCRTL..IV3;XZU414..T3..(30T,40T)..DCRTK..IV3;XZU404,414..(T3,T5)..(20T,35T)..IV3;XZU414..MTM..(30T,35T,40T)..(DCRTJ,DCRTL,DCRUE)..IV3	10/2006 - 12/2999	2
38907E - STAY SUB-ASSY, POWER TEKE-OFF CONTROL
38907-37060	XZU414,424,434..DCRTL	10/2006 - 12/2999	1
38914A - PIPE, VALVE CONTROL LEVER
38914-37010	XZU488..IV3;XZU404..40T;XZU424,434..DCRTL;XZU414..DCRTL..CBU;XZU414..T4..20T..DCRTL..IV3;XZU414..T3..(30T,40T)..DCRTK..IV3;XZU404,414..(T3,T5)..(20T,35T)..IV3;XZU414..MTM..(30T,35T,40T)..(DCRTJ,DCRTL,DCRUE)..IV3	10/2006 - 12/2999	1
38914B - PIPE, VALVE CONTROL LEVER, NO.2
38914-37030	XZU414,424,434..DCRTL;XZU404,414..(DM7,T3)..(35T,40T)..DCRTK..IV3	10/2006 - 12/2999	1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-37050	XZU414,424,434..DCRTL	10/2006 - 12/2999	1
38930A - CABLE ASSY, PUSH PULL
38930-37540	XZU414,424,434..DCRTL	10/2006 - 12/2999	1
38961 - BRACKET, CABLE CLAMP, NO.1
38962-37090	XZU414,424,434..DCRTL;XZU404,414..(DM7,T3)..(35T,40T)..DCRTK..IV3	10/2006 - 12/2999	1
38963 - BRACKET, CABLE CLAMP, NO.3
38962-37450	XZU414,424,434..DCRTL;XZU404,414..(DM7,T3)..(35T,40T)..DCRTK..IV3	10/2006 - 12/2999	1
38964A - BRACKET, CABLE CLAMP, NO.4
38962-37471	XZU414,424,434..DCRTL;XZU404,414..(DM7,T3)..(35T,40T)..DCRTK..IV3	10/2006 - 12/2999	1
38976C - CLAMP, PUSH PULL CABLE
38976-37030	XZU414,424,434..DCRTL;XZU404,414..(DM7,T3)..(35T,40T)..DCRTK..IV3	10/2006 - 12/2999	2
38976C - CLAMP, PUSH PULL CABLE
38976-37030	XZU414,424,434..DCRTL;XZU404,414..(DM7,T3)..(35T,40T)..DCRTK..IV3	10/2006 - 12/2999	2
38976C - CLAMP, PUSH PULL CABLE
38976-37030	XZU414,424,434..DCRTL;XZU404,414..(DM7,T3)..(35T,40T)..DCRTK..IV3	10/2006 - 12/2999	2
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302	XZU414,424,434..DCRTL;XZU404,414..(DM7,T3)..(35T,40T)..DCRTK..IV3	10/2006 - 12/2999	1
38987 - CLAMP, CABLE PUSH PULL
38976-37080	XZU414,424,434..DCRTL;XZU404,414..(DM7,T3)..(35T,40T)..DCRTK..IV3	10/2006 - 12/2999	1
Common parts
90034-61053
90119-10883
90179-08241
90240-12045
90468-12029
90468-14024
90560-12053
90949-01B95
91511-B0845
91511-B0855
91551-80814
91651-60616
91651-60818
91651-B0825
94130-60800
94150-10801
94150-80600

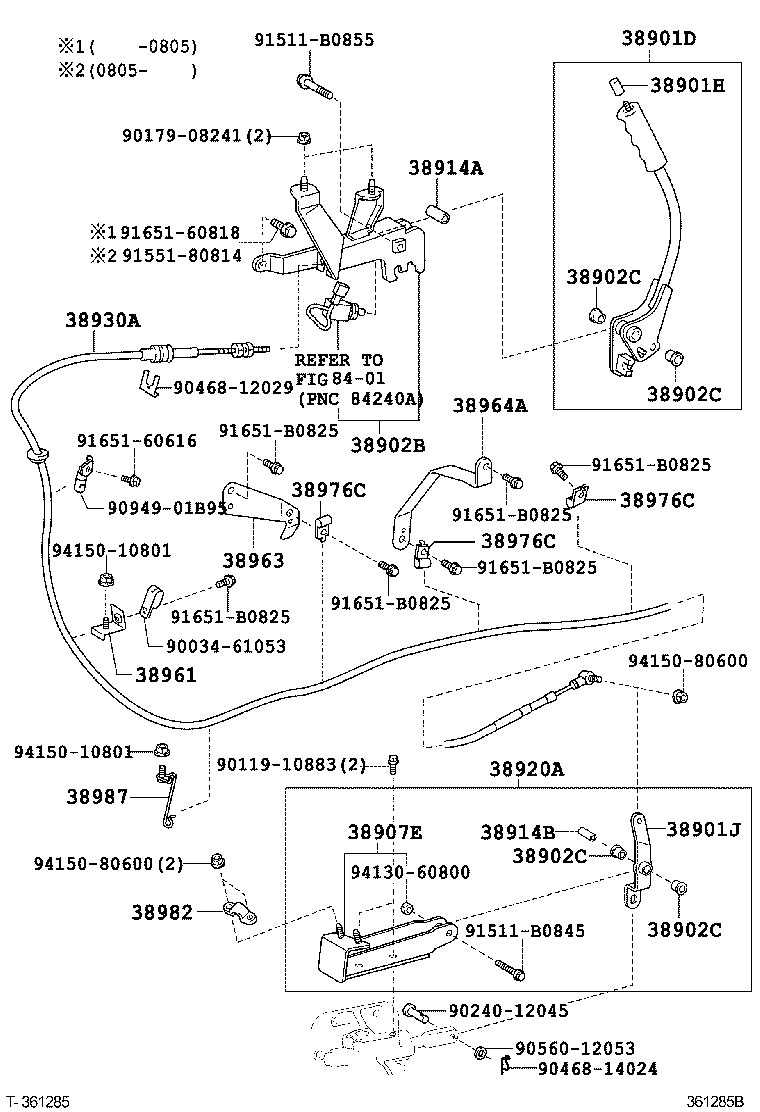

Linked diagrams
8401

XZU414-TQFME3 (2006)

(0610- )DCRTL ; (0610- )XZU424..T3..35T..DCRTK..IV3
