XZU414-TQFME3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )DCRTL

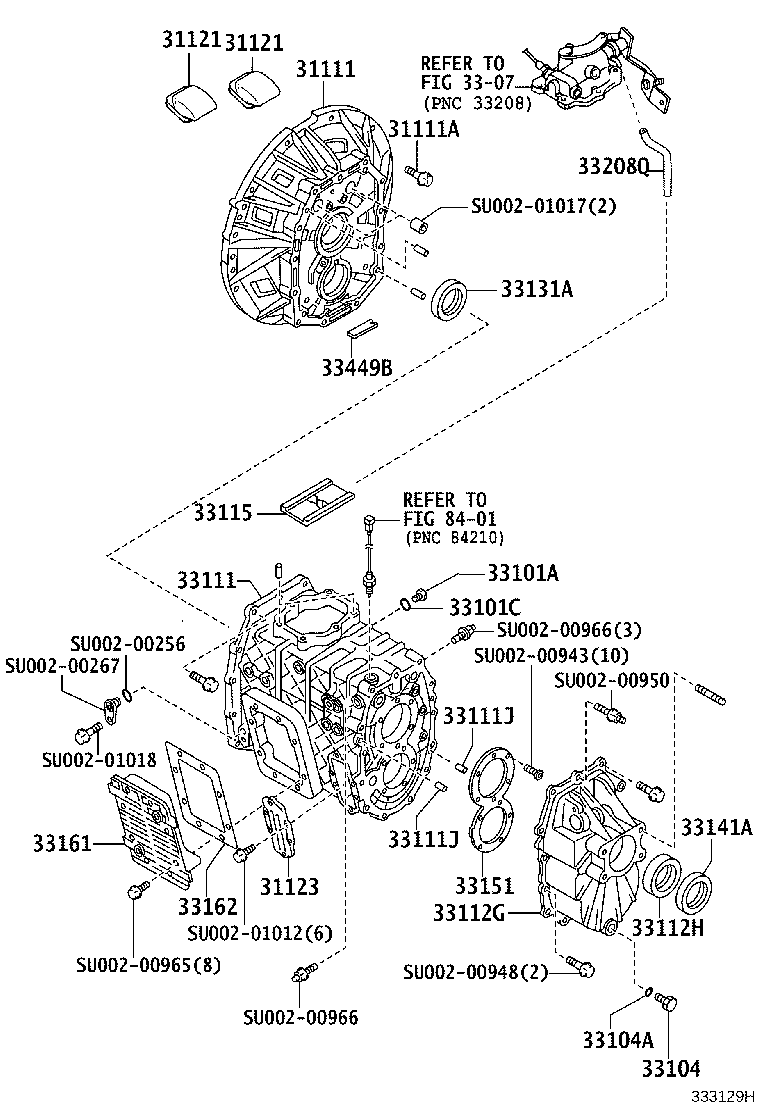

Click highlighted areas on diagram

MZZ6R

diagram 31111 31111A 31121 31121 31123 3307 33101A 33101C 33104 33104A 33111 33111J 33111J 33112G 33112H 33115 33131A 33141A 33151 33161 33162 33208Q 33449B 8401 SU00200256 SU00200267 SU00200943 SU00200948 SU00200950 SU00200965 SU00200966 SU00200966 SU00201012 SU00201017 SU00201018
Part # Description Qty Price
31111 - HOUSING, CLUTCH
SU002-00534

XZU414,424,434..DCRTL

 1
31111A - BOLT(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING)
90119-10898

XZU404,414,424,434,454..MTM..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)

 12
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041

XZU414,424,434..DCRTL

 4
31121-28041

BU400,410,420,430,XZU382,40#,41#,42#,430..MTM

 2
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041

XZU414,424,434..DCRTL

 4
31121-28041

BU400,410,420,430,XZU382,40#,41#,42#,430..MTM

 2
31123 - COVER, CLUTCH HOUSING, NO.2
SU002-00158

XZU404,414,424,434,488..MTM..(DCRTK,DCRTL,DCRTM,DCRUE)

 1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
SU002-00944

XZU404,414,424,434..6F..(DCRTK,DCRTL,DCRTM,DCRUE)

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
SU002-00149

XZU404,414,424,434,488..MTM..(DCRTK,DCRTL,DCRTM,DCRUE)

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
SU002-00945

XZU404,414,424,434..6F..(DCRTK,DCRTL,DCRTM,DCRUE)

 1
33104A - GASKET, DRAIN PLUG(MTM)
SU002-00149

XZU404,414,424,434,488..MTM..(DCRTK,DCRTL,DCRTM,DCRUE)

 1
33111 - CASE, MANUAL TRANSMISSION
SU002-00959

XZU414,424,434..DCRTL

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
SU002-00156

XZU404,414,424,434..6F..(DCRTK,DCRTL,DCRTM,DCRUE)

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
SU002-00156

XZU404,414,424,434..6F..(DCRTK,DCRTL,DCRTM,DCRUE)

 2
33112G - CASE, TRANSMISSION, REAR
SU002-00926

XZU414,424,434..DCRTL

 1
33112H - BEARING, TRANSMISSION CASE NEEDLE
SU002-00428

XZU414,424,434..DCRTL

 1
33115 - PLATE, TRANSMISSION OIL FILTER
SU002-00474

XZU404,414,424,434..6F..(DCRTK,DCRTL,DCRTM,DCRUE)

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
SU002-00148

XZU404,414,424,434,488..MTM..(DCRTK,DCRTL,DCRTM,DCRUE)

 1
33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)
SU002-00434

XZU414,424,434..DCRTL

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
SU002-00400

XZU414,424,434..DCRTL

 1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
SU002-00407

XZU414,424,434..DCRTL

 1
33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
SU002-00537

XZU414,424,434..DCRTL

 1
33208Q - HOSE, BREATHER
SU002-00265

XZU404,414,424,434,488..MTM..(DCRTK,DCRTL,DCRTM,DCRUE)

 1
33449B - MAGNET, TRANSMISSION
SU002-00157

XZU404,414,424,434,488..MTM..(DCRTK,DCRTL,DCRTM,DCRUE)

 1
Common parts
SU002-00256
SU002-00267
SU002-00943
SU002-00948
SU002-00950
SU002-00965
SU002-00966
SU002-01012
SU002-01017
SU002-01018
Linked diagrams
3307
8401
