XZU414-TQFME3 (2006)
Toyota Dyna/Toyoace
(0610- )N04C..XZU414,424,434..DCRTL

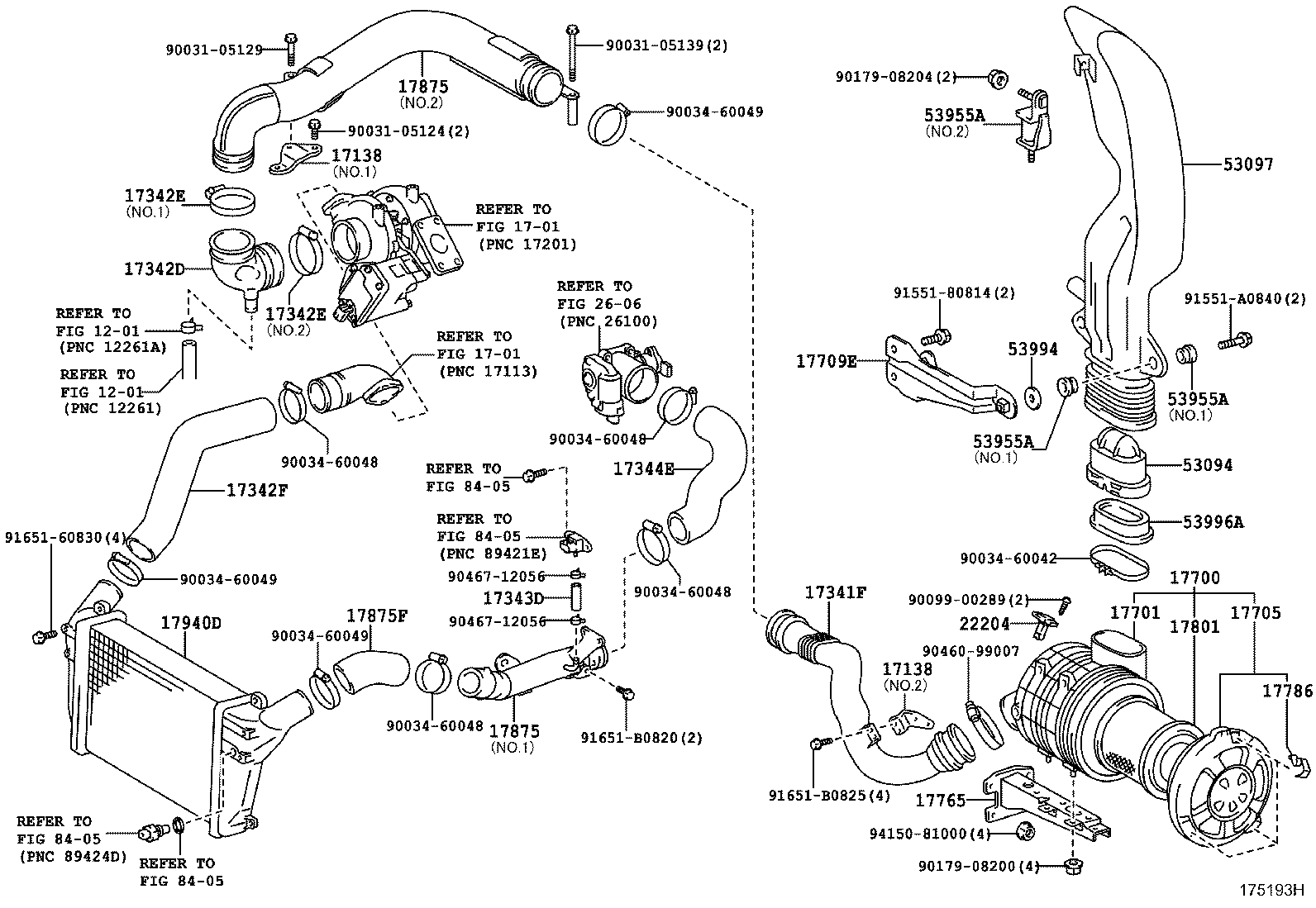

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-78230 |
N04C..XZU414,424,434..DCRTL NO.1 |
1 | ||
| 17138-78200 |
N04C..XZU404,414,424,454..SCB..(DCR,DCRTJ,DCRTK,DCRTM,DCRUE) NO.1 |
1 | ||
| 17138-78030 |
N04C..XZU404,414,424,434,454..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) NO.2 |
1 | ||
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-78230 |
N04C..XZU414,424,434..DCRTL NO.1 |
1 | ||
| 17138-78200 |
N04C..XZU404,414,424,454..SCB..(DCR,DCRTJ,DCRTK,DCRTM,DCRUE) NO.1 |
1 | ||
| 17138-78030 |
N04C..XZU404,414,424,434,454..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) NO.2 |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17030-78410 |
N04C..XZU404,414,424,434,454..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17341-78220 |
N04C..XZU414,424,434..DCRTL |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90034-67025 |
N04C..XZU414,424,434..DCRTL NO.2 |
1 | ||
| 90034-60050 |
N04C..XZU414,424,434..DCRTL NO.2 |
1 | ||
| 90034-61061 |
N04C..XZU414,424,434..DCRTL NO.1 |
1 | ||
| 90034-60044 |
N04C..XZU414,424,434..DCRTL NO.1 |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90034-67025 |
N04C..XZU414,424,434..DCRTL NO.2 |
1 | ||
| 90034-60050 |
N04C..XZU414,424,434..DCRTL NO.2 |
1 | ||
| 90034-61061 |
N04C..XZU414,424,434..DCRTL NO.1 |
1 | ||
| 90034-60044 |
N04C..XZU414,424,434..DCRTL NO.1 |
1 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-78090 |
N04C..XZU414,424,434..DCRTL |
1 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-78020 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-78130 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-78200 |
N04C..XZU404,414,424,434,454,488..SCB..(DCRTJ,DCRTK,DCRTL) |
1 | ||
| 17700-78201 |
N04C..XZU414..DCR |
1 | ||
| 17700-78201 |
N04C..XZU404,414,424,434,454,488..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-78160 |
N04C..XZU414..DCR |
1 | ||
| 17701-78160 |
N04C..XZU404,414,424,434,454,488..SCB..(DCRTJ,DCRTK,DCRTL) |
1 | ||
| 17701-78161 |
N04C..XZU404,414,424,434,454,488..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-78020 |
N04C..XZU414..DCR |
1 | ||
| 17705-78020 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-37080 |
N04C..XZU404,414,424,434,454,488..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 17765 - STAY, AIR CLEANER, NO.1 | ||||
| 17706-78150 |
N04C..XZU404,414,424,434,454,488..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 17786 - CLAMP, AIR CLEANER | ||||
| 17786-78010 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
3 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-78020 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 17801-78020 |
N04C..XZU414..DCR |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17103-78052 |
N04C..XZU414..DCR |
1 | ||
| 17113-78322 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.2 |
1 | ||
| 17116-78050 |
N04C..XZU414,424,434..DCRTL NO.1 |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17103-78052 |
N04C..XZU414..DCR |
1 | ||
| 17113-78322 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.2 |
1 | ||
| 17116-78050 |
N04C..XZU414,424,434..DCRTL NO.1 |
1 | ||
| 17875F - HOSE, NO.3(FOR INTAKE AIR CONNECTOR, PIPE) | ||||
| 17343-78090 |
N04C..XZU414,424,434..DCRTL |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-78140 |
N04C..XZU414,424,434..DCRTL |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-21010 |
N04C..XZU414..DCR |
1 | ||
| 22204-21010 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 53094 - INLET, AIR CLEANER PIPE, NO.3 | ||||
| 53094-37010 |
XZU404,414,424,434,454,488..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-37330 |
XZU414..DCR |
1 | ||
| 53097-37330 |
XZU404,414,424,434,454,488..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 53955A - CUSHION, AIR CLEANER INLET NO.1 | ||||
| 53955-37020 |
XZU404,414,424,434,454,488..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) NO.1 |
4 | ||
| 53955-37040 |
XZU404,414,424,434,454,488..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) NO.2 |
1 | ||
| 53955A - CUSHION, AIR CLEANER INLET NO.1 | ||||
| 53955-37020 |
XZU404,414,424,434,454,488..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) NO.1 |
4 | ||
| 53955-37040 |
XZU404,414,424,434,454,488..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) NO.2 |
1 | ||
| 53955A - CUSHION, AIR CLEANER INLET NO.1 | ||||
| 53955-37020 |
XZU404,414,424,434,454,488..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) NO.1 |
4 | ||
| 53955-37040 |
XZU404,414,424,434,454,488..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) NO.2 |
1 | ||
| 53994 - RETAINER, AIR CLEANER INLET PIPE | ||||
| 53994-37020 |
XZU404,414,424,434,454,488..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
2 | ||
| 53996A - PACKING, AIR CLEANER INLET PIPE | ||||
| 53996-37040 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| Common parts | ||||
| 90031-05124 | ||||
| 90031-05129 | ||||
| 90031-05139 | ||||
| 90034-60042 | ||||
| 90034-60048 | ||||
| 90034-60049 | ||||
| 90099-00289 | ||||
| 90179-08200 | ||||
| 90179-08204 | ||||
| 90460-99007 | ||||
| 90467-12056 | ||||
| 91551-80814 | ||||
| 91551-A0840 | ||||
| 91651-60830 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94150-81000 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1701 | ||||
| 2606 | ||||
| 8405 | ||||
