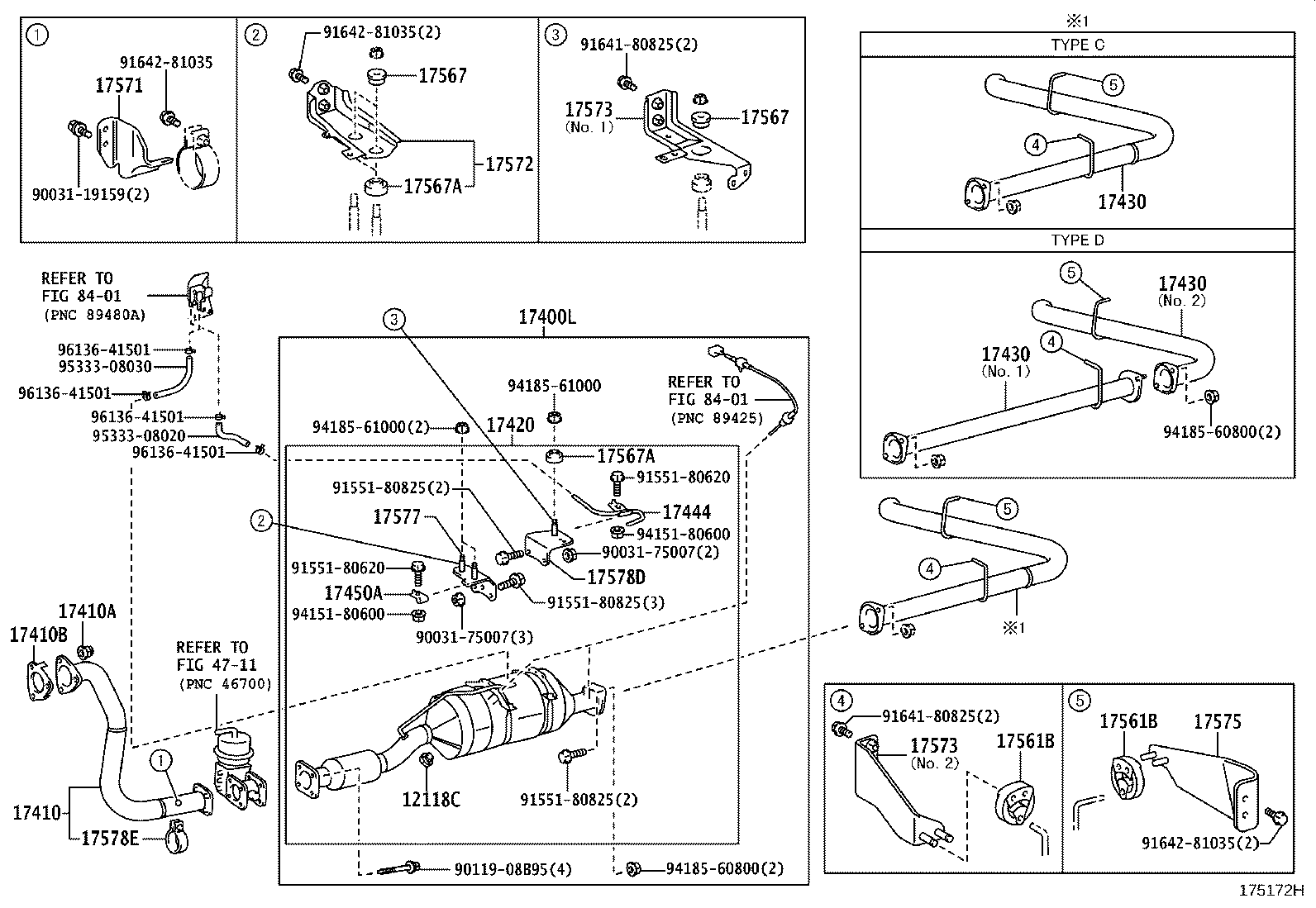

XZU414-TQFME3 (2006)
Toyota Dyna/Toyoace
(0610- )N04C..XZU414,424,434..DCRTL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12118C - PLUG, DRAIN | ||||
| 12118-78010 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRUE |
1 | ||
| 17400L - PIPE ASSY, EXHAUST | ||||
| 17400-78090 |
N04C..XZU414,424,434..DCRTL |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-78090 |
N04C..XZU414,424,434..DCRTL |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRUE |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06087 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-78490 |
N04C..XZU414,424,434..DCRTL |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78D70 |
N04C..XZU454..DCRTJ..IV3;N04C..XZU414..(20T,30T)..DCRTL..CBU;N04C..XZU414..SCB..(T4,T5)..20T..IV3 ｴｷｿﾞ-ｽﾄﾃ-ﾙﾊﾟｲﾌﾟ=ﾖｺﾀﾞｼ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78D70 |
N04C..XZU454..DCRTJ..IV3;N04C..XZU414..(20T,30T)..DCRTL..CBU;N04C..XZU414..SCB..(T4,T5)..20T..IV3 ｴｷｿﾞ-ｽﾄﾃ-ﾙﾊﾟｲﾌﾟ=ﾖｺﾀﾞｼ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78D70 |
N04C..XZU454..DCRTJ..IV3;N04C..XZU414..(20T,30T)..DCRTL..CBU;N04C..XZU414..SCB..(T4,T5)..20T..IV3 ｴｷｿﾞ-ｽﾄﾃ-ﾙﾊﾟｲﾌﾟ=ﾖｺﾀﾞｼ,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 17444 - PIPE, EXHAUST, NO.4 | ||||
| 17444-78090 |
N04C..XZU414,424,434..DCRTL |
1 | ||
| 17450A - CLAMP, EXHAUST PIPE, NO.5 | ||||
| 17589-78021 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRUE |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-73020 |
N04C..XZU434,488;N04C..XZU404..40T;N04C..XZU454..DCRTJ..IV3;N04C..XZU414,424..DCRTL,DCRTM;N04C..XZU424..(DCRTJ,DCRTK,DCRUE)..IV3;N04C..XZU404,414..T3..(30T,35T)..(DCRTJ,DCRTK,DCRUE)..IV3;N04C..XZU414..SCB..(T3,T4,T5)..(20T,40T)..(DCRTJ,DCRTK,DCRUE)..IV3 |
2 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-73020 |
N04C..XZU434,488;N04C..XZU404..40T;N04C..XZU454..DCRTJ..IV3;N04C..XZU414,424..DCRTL,DCRTM;N04C..XZU424..(DCRTJ,DCRTK,DCRUE)..IV3;N04C..XZU404,414..T3..(30T,35T)..(DCRTJ,DCRTK,DCRUE)..IV3;N04C..XZU414..SCB..(T3,T4,T5)..(20T,40T)..(DCRTJ,DCRTK,DCRUE)..IV3 |
2 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78030 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78030 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78040 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78040 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-78050 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRUE |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-78210 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78230 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.1 |
1 | ||
| 17573-78240 |
N04C..XZU454..DCRTJ..IV3;N04C..XZU414,424,434..DCRTL,DCRTM;N04C..XZU424..(DCRTJ,DCRTK,DCRUE)..IV3;N04C..XZU414..T3..(30T,35T)..(DCRTJ,DCRTK,DCRUE)..IV3;N04C..XZU414..SCB..(T3,T4,T5)..(20T,40T)..(DCRTJ,DCRTK,DCRUE)..IV3 NO.2 |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78230 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.1 |
1 | ||
| 17573-78240 |
N04C..XZU454..DCRTJ..IV3;N04C..XZU414,424,434..DCRTL,DCRTM;N04C..XZU424..(DCRTJ,DCRTK,DCRUE)..IV3;N04C..XZU414..T3..(30T,35T)..(DCRTJ,DCRTK,DCRUE)..IV3;N04C..XZU414..SCB..(T3,T4,T5)..(20T,40T)..(DCRTJ,DCRTK,DCRUE)..IV3 NO.2 |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-78231 |
N04C..XZU404..40T;N04C..XZU454..DCRTJ..IV3;N04C..XZU414,424,434..DCRTL,DCRTM;N04C..XZU424..(DCRTJ,DCRTK,DCRUE)..IV3;N04C..XZU404,414..T3..(30T,35T)..(DCRTJ,DCRTK,DCRUE)..IV3;N04C..XZU414..SCB..(T3,T4,T5)..(20T,40T)..(DCRTJ,DCRTK,DCRUE)..IV3 |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 17577-78080 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRUE |
1 | ||
| 17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8 | ||||
| 17578-78250 |
N04C..XZU414,424,434..DCRTL |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRUE |
1 | ||
| Common parts | ||||
| 90031-19159 | ||||
| 90031-75007 | ||||
| 90119-08B95 | ||||
| 91551-80620 | ||||
| 91551-80825 | ||||
| 91641-80825 | ||||
| 91642-81035 | ||||
| 94151-80600 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| 95333-08020 | ||||
| 95333-08030 | ||||
| 96136-41501 | ||||
| Linked diagrams | ||||
| 4711 | ||||
| 8401 | ||||
