XZU414-TQFME3 (2006)
Toyota Dyna/Toyoace
ILLUST NO. 2 OF 2(0610- )N04C..DCRTJ,DCRTK,DCRTL,DCRUE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16895-78080 |
N04C..XZU414,424,434..DCRTL |
1 | ||
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| 90034-01010 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRUE |
2 | ||
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| 90034-01010 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRUE |
2 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRUE |
4 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRUE |
4 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRUE |
4 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRUE |
4 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16895-78090 |
N04C..XZU414,424,434..DCRTL |
1 | ||
| 16028A - BOLT, UNION(FOR TURBO WATER PIPE NO.2) | ||||
| 90034-01010 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16028B - GASKET(FOR TURBO WATER PIPE NO.2) | ||||
| 90202-14004 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 16028B - GASKET(FOR TURBO WATER PIPE NO.2) | ||||
| 90202-14004 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 16028C - RING, O(FOR TURBO WATER PIPE) | ||||
| 90301-09006 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-78221 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16206-78021 |
N04C..XZU414..DCR |
1 | ||
| 16206-78400 |
N04C..XZU404,414,424,434,454,488 |
1 | ||
| 16206A - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16206-78030 |
N04C..XZU454..DCRUE;N04C..XZU404,414,424,434..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-78170 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE 長さ=59 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90034-67027 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90034-67027 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-78150 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90034-67033 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90034-67033 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 90034-45083 |
N04C..XZU454..DCRUE;N04C..XZU404,414,424,434..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-78160 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90034-67033 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90034-67033 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-78070 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16304-78071 |
N04C..XZU404,414,424,434,454 |
1 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-78070 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16304-78071 |
N04C..XZU404,414,424,434,454 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90038-33015 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE *WAX 82−95 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16545-78012 |
N04C..XZU404,414,424,434,454,488 |
1 | ||
| 16545-78010 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16545-78011 |
N04C..XZU404,414,424,434,454,488 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-E0213 |
N04C..XZU404,414,424,434,454,488 |
1 | ||
| 16303-78131 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16303-78132 |
N04C..XZU404,414,424,434,454,488 |
1 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90033-01101 |
N04C..XZU404,414,424,434,454,488 NO.2 |
3 | ||
| 90301-19005 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.2 |
3 | ||
| 90033-01068 |
N04C..XZU404,414,424,434,454,488 NO.1 |
3 | ||
| 90033-01068 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.1 |
1 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90033-01101 |
N04C..XZU404,414,424,434,454,488 NO.2 |
3 | ||
| 90301-19005 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.2 |
3 | ||
| 90033-01068 |
N04C..XZU404,414,424,434,454,488 NO.1 |
3 | ||
| 90033-01068 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.1 |
1 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90033-01101 |
N04C..XZU404,414,424,434,454,488 NO.2 |
3 | ||
| 90301-19005 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.2 |
3 | ||
| 90033-01068 |
N04C..XZU404,414,424,434,454,488 NO.1 |
3 | ||
| 90033-01068 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.1 |
1 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90033-01101 |
N04C..XZU404,414,424,434,454,488 NO.2 |
3 | ||
| 90301-19005 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.2 |
3 | ||
| 90033-01068 |
N04C..XZU404,414,424,434,454,488 NO.1 |
3 | ||
| 90033-01068 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.1 |
1 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90033-01101 |
N04C..XZU404,414,424,434,454,488 NO.2 |
3 | ||
| 90301-19005 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.2 |
3 | ||
| 90033-01068 |
N04C..XZU404,414,424,434,454,488 NO.1 |
3 | ||
| 90033-01068 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.1 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-78030 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-78060 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| Common parts | ||||
| 90031-05048 | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05132 | ||||
| 90031-05134 | ||||
| 90031-75001 | ||||
| 90034-68028 | ||||
| 91651-B0825 | ||||
| 96732-31040 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1701 | ||||
| 2501 | ||||
| 8716 | ||||

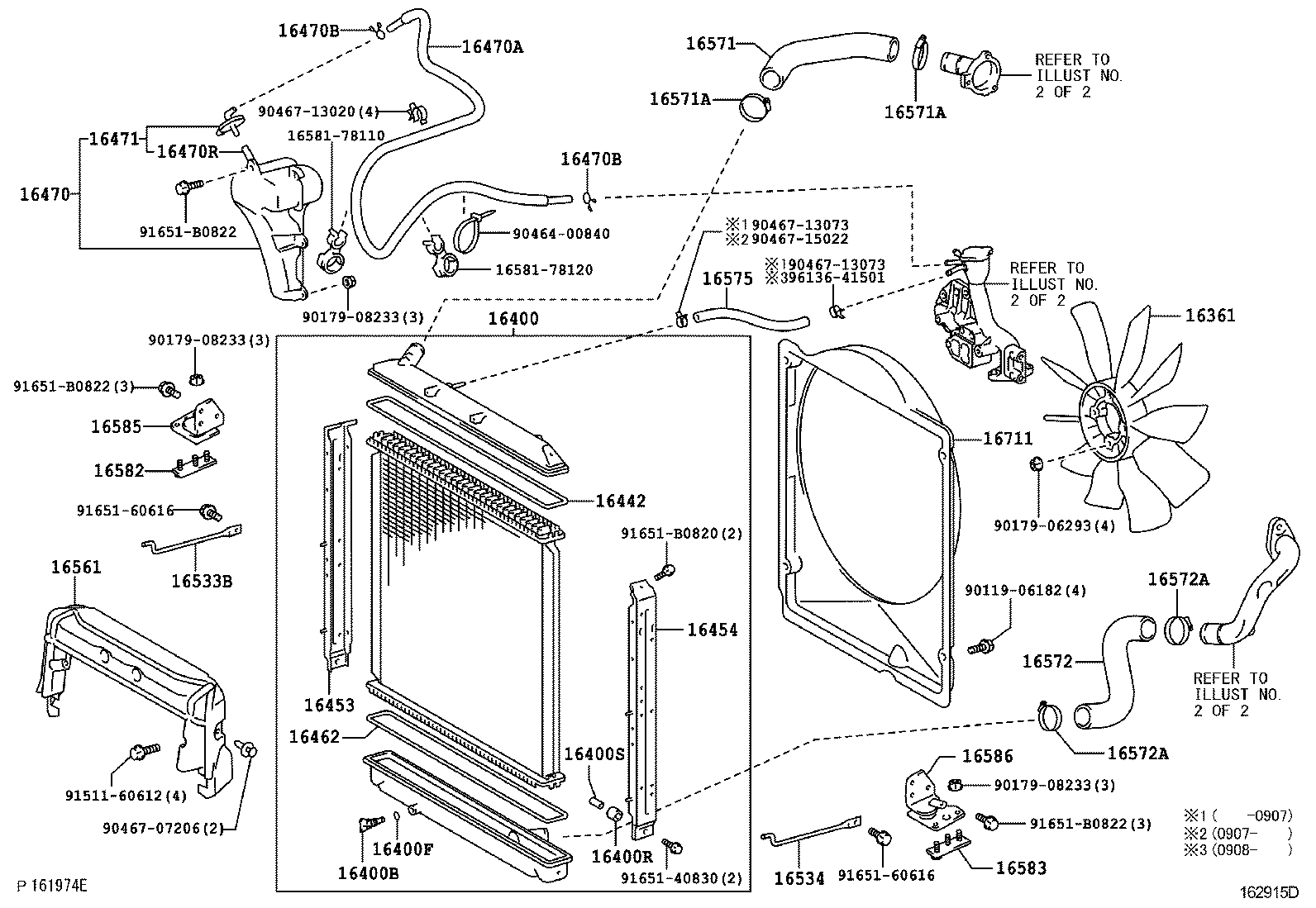

ILLUST NO. 1 OF 2(0610- )N04C..XZU414,424,434..DCRTL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-78120 |
N04C..XZU404,414,424,434,454,488..SCB..(T2,T3,T4,T5)..IV3 ﾚｲﾄｳｼﾔ |
1 | ||
| 16361-78100 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78610 |
N04C..XZU414,424,434..DCRTL |
1 | ||
| 16400-78611 |
N04C..XZU414,424,434..DCRTL |
1 | ||
| 16400-78612 |
N04C..XZU414,424,434..DCRTL |
1 | ||
| 16400-78613 |
N04C..XZU414,424,434..DCRTL |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
N04C..XZU404,414,424,434,454..MTM..(DCRTJ,DCRTK,DCRTL) |
1 | ||
| 96711-19007 |
N04C..XZU404,414,424,434,454..MTM..(DCRTJ,DCRTK,DCRTL) |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-78100 |
N04C..XZU414,424,434..DCRTL |
2 | ||
| 16464-78100 |
N04C..XZU414,424,434..DCRTL |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-78100 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-78100 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-78600 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL |
1 | ||
| 16453-78601 |
N04C..XZU414,424,434..DCRTL |
1 | ||
| 16453-78610 |
N04C..XZU414,424,434..DCRTL |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-78600 |
N04C..XZU414,424,434..DCRTL |
1 | ||
| 16454-78610 |
N04C..XZU414,424,434..DCRTL |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-78100 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78010 |
N04C..XZU404,414,424,434,454,488..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78550 |
N04C..XZU414,424,434..DCRTL |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C..XZU404,414,424,434,454,488..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) 長さ=315 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78010 |
N04C..XZU404,414,424,434,454,488..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-78041 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16533-78041 |
N04C..XZU414..DCR |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-78041 |
N04C..XZU414..DCR |
1 | ||
| 16534-78041 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-78070 |
N04C..XZU414..DCB;N04C..XZU414,424,434..DCRTL |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-78130 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 16581-78140 |
N04C..XZU454..DCRUE;N04C..XZU404,414,424,434..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 16581-78190 |
N04C..XZU404,414,424,434,454,488 |
2 | ||
| 16581-78191 |
N04C..XZU404,414,424,434,454,488 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 16581-78140 |
N04C..XZU454..DCRUE;N04C..XZU404,414,424,434..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 16581-78190 |
N04C..XZU404,414,424,434,454,488 |
2 | ||
| 16581-78191 |
N04C..XZU404,414,424,434,454,488 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-78171 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16572-78171 |
N04C..XZU414..DCR |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 16581-78140 |
N04C..XZU454..DCRUE;N04C..XZU404,414,424,434..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 16581-78191 |
N04C..XZU404,414,424,434,454,488 |
2 | ||
| 16581-78190 |
N04C..XZU404,414,424,434,454,488 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 16581-78140 |
N04C..XZU454..DCRUE;N04C..XZU404,414,424,434..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 16581-78191 |
N04C..XZU404,414,424,434,454,488 |
2 | ||
| 16581-78190 |
N04C..XZU404,414,424,434,454,488 |
2 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-78051 |
N04C..XZU404,414,424,434,454 |
1 | ||
| 16575-78050 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-78040 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78040 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-78040 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16586 - BRACKET, RADIATOR, NO.4 | ||||
| 16586-78030 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16586-78080 |
N04C..XZU404,414,424,434,454 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-78121 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 16711-78250 |
N04C..XZU404,414,424,434,454 |
1 | ||
| Common parts | ||||
| 16581-78110 | ||||
| 16581-78120 | ||||
| 90119-06182 | ||||
| 90179-06293 | ||||
| 90179-08233 | ||||
| 90464-00840 | ||||
| 90467-07206 | ||||
| 90467-13020 | ||||
| 90467-13073 | ||||
| 90467-15022 | ||||
| 91511-60612 | ||||
| 91651-40830 | ||||
| 91651-60616 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 96136-41501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
