XZU414-TPFMW3 (2003)
Toyota Dyna/Toyoace
(0310-0406)XZU414,415

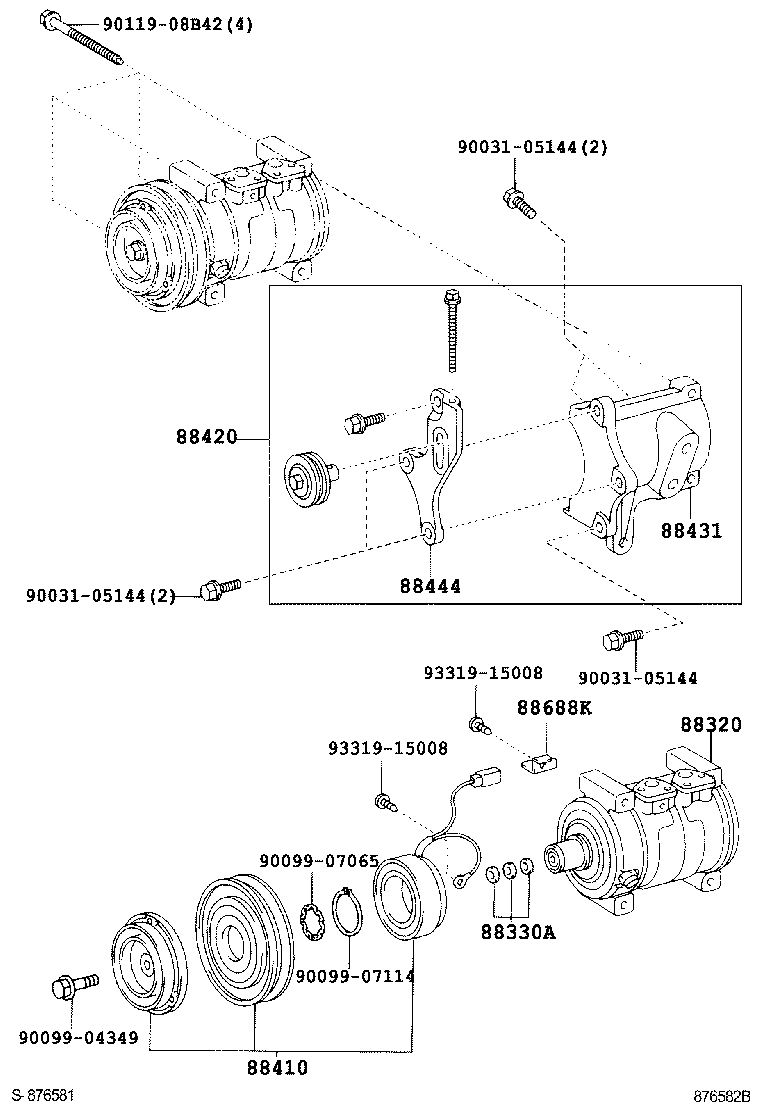

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-37110 |
XZU404,414,415,424..DCRL,DSLL |
1 | ||
| 88320-37110 |
XZU414,415 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
XZU414,415 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-17100 |
XZU404,414,415,424..DCRL,DSLL |
1 | ||
| 88410-17100 |
XZU414,415 |
1 | ||
| 88420 - PULLEY ASSY, IDLE, W/BRACKET | ||||
| 88420-37230 |
XZU404,414,415,424..DCRL,DSLL |
1 | ||
| 88420-37230 |
XZU414,415 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-37130 |
XZU414,415 |
1 | ||
| 88431-37130 |
XZU404,414,415,424..DCRL,DSLL |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-37160 |
XZU388,404,414,415,424..DCRL,DSLL |
1 | ||
| 88444-37160 |
XZU414,415 |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-3V580 |
XZU404,414,415,424..DCRL,DSLL |
1 | ||
| 88688-3V580 |
XZU414,415 |
1 | ||
| Common parts | ||||
| 90031-05144 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-08B42 | ||||
| 93319-15008 | ||||
(0406-0610)XZU404,414,415,424 ; (0610- )XZU404,414,424,434,454..DCRTJ,DCRTK,DCRT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-37110 |
XZU404,414,415,424..DCRL,DSLL |
1 | ||
| 88320-37110 |
XZU414,415 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
XZU414,415 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-17100 |
XZU404,414,415,424..DCRL,DSLL |
1 | ||
| 88410-17100 |
XZU414,415 |
1 | ||
| 88420 - PULLEY ASSY, IDLE, W/BRACKET | ||||
| 88420-37230 |
XZU404,414,415,424..DCRL,DSLL |
1 | ||
| 88420-37230 |
XZU414,415 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-37130 |
XZU414,415 |
1 | ||
| 88431-37130 |
XZU404,414,415,424..DCRL,DSLL |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-37160 |
XZU388,404,414,415,424..DCRL,DSLL |
1 | ||
| 88444-37160 |
XZU414,415 |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-3V580 |
XZU404,414,415,424..DCRL,DSLL |
1 | ||
| 88688-3V580 |
XZU414,415 |
1 | ||
| Common parts | ||||
| 90031-05144 | ||||
| 90099-04306 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-08B42 | ||||
| 93319-15008 | ||||
(0310-0406)XZU414,415
ﾚｲﾄｳｼｬ

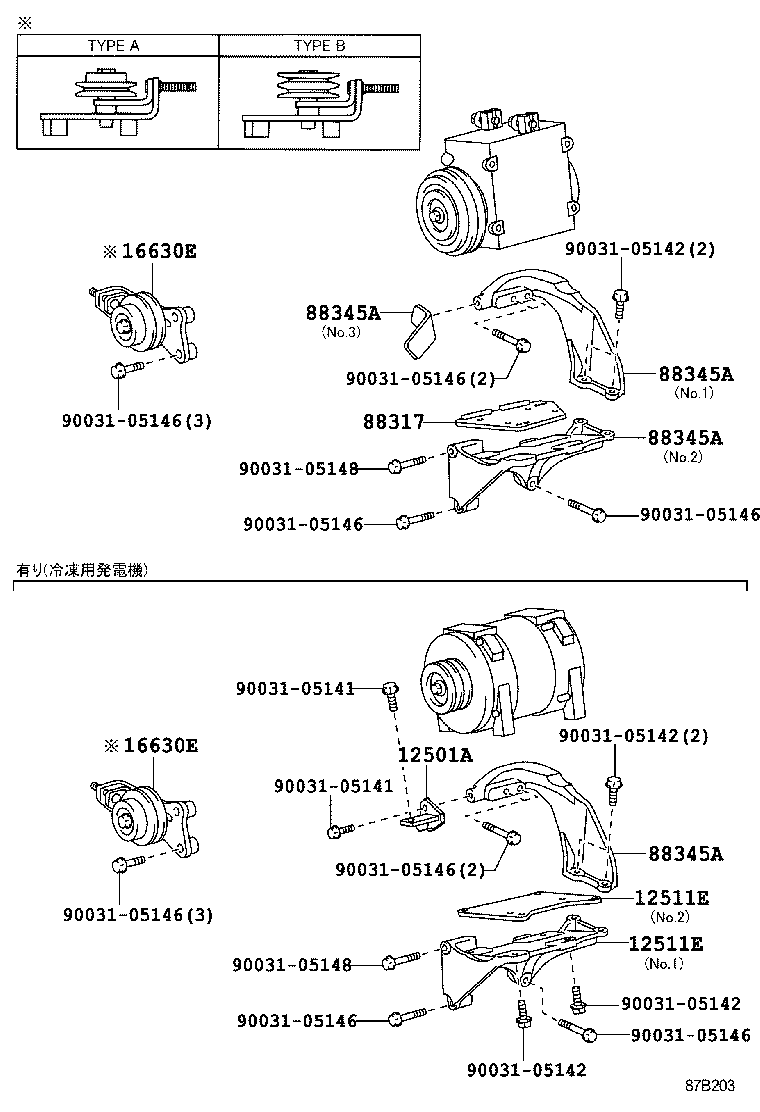

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12501A - BRACKET SUB-ASSY, ALTERNATOR | ||||
| 12501-78111 |
N04C..XZU388,404,414,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) |
1 | ||
| 12501-78110 |
N04C..XZU388,404,414,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) |
1 | ||
| 12511E - BRACKET, ALTERNATOR | ||||
| 12511-78080 |
N04C..XZU388,404,414,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) NO.1 |
1 | ||
| 12511-78090 |
N04C..XZU388,404,414,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) NO.2 |
1 | ||
| 12511E - BRACKET, ALTERNATOR | ||||
| 12511-78080 |
N04C..XZU388,404,414,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) NO.1 |
1 | ||
| 12511-78090 |
N04C..XZU388,404,414,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) NO.2 |
1 | ||
| 16630E - PULLEY ASSY, IDLER | ||||
| 16630-78081 |
N04C..XZU388,404,414,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) ﾊﾂﾃﾞﾝｼｷﾚｲﾄｳｼｬ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 16630-78071 |
N04C..XZU414,415 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 16630-78081 |
N04C..XZU414..DCRL,DSLL TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 16630E - PULLEY ASSY, IDLER | ||||
| 16630-78081 |
N04C..XZU388,404,414,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) ﾊﾂﾃﾞﾝｼｷﾚｲﾄｳｼｬ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 16630-78071 |
N04C..XZU414,415 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 16630-78081 |
N04C..XZU414..DCRL,DSLL TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 88317 - SPACER, COOLER COMPRESSOR | ||||
| 88317-37030 |
XZU388,404,414,415,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) |
1 | ||
| 88345A - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37170 |
XZU388,404,414,415,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) NO.1 |
1 | ||
| 88345-37170 |
XZU388,404,414,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) |
1 | ||
| 88345-37180 |
XZU388,404,414,415,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) NO.2 |
1 | ||
| 88345-37190 |
XZU388,404,414,415,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) NO.3 |
1 | ||
| 88345A - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37170 |
XZU388,404,414,415,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) NO.1 |
1 | ||
| 88345-37170 |
XZU388,404,414,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) |
1 | ||
| 88345-37180 |
XZU388,404,414,415,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) NO.2 |
1 | ||
| 88345-37190 |
XZU388,404,414,415,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) NO.3 |
1 | ||
| 88345A - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37170 |
XZU388,404,414,415,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) NO.1 |
1 | ||
| 88345-37170 |
XZU388,404,414,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) |
1 | ||
| 88345-37180 |
XZU388,404,414,415,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) NO.2 |
1 | ||
| 88345-37190 |
XZU388,404,414,415,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) NO.3 |
1 | ||
| 88345A - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37170 |
XZU388,404,414,415,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) NO.1 |
1 | ||
| 88345-37170 |
XZU388,404,414,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) |
1 | ||
| 88345-37180 |
XZU388,404,414,415,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) NO.2 |
1 | ||
| 88345-37190 |
XZU388,404,414,415,424..(T3,T4,T5)..(DCRL,DSLL)..(IV3,IV5) NO.3 |
1 | ||
| Common parts | ||||
| 90031-05141 | ||||
| 90031-05142 | ||||
| 90031-05146 | ||||
| 90031-05148 | ||||
