XZU414-TPFMW3 (2003)

Toyota Dyna/Toyoace

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )N04C..XZU388,404,414,415,424..DCR,DCRL,DSLL

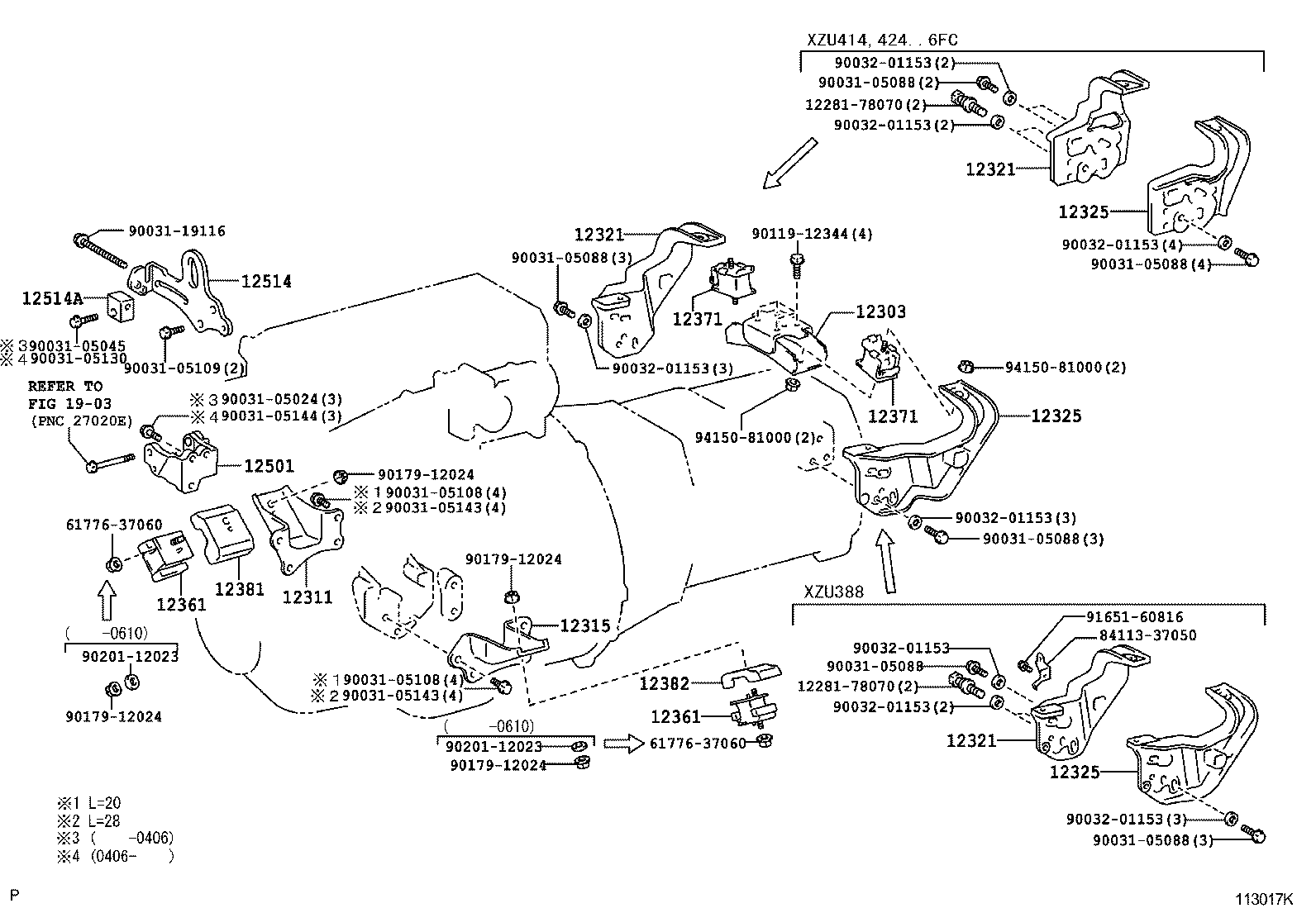

Click highlighted areas on diagram

diagram 1228178070 1228178070 12303 12311 12315 12321 12321 12321 12325 12325 12325 12361 12361 12371 12371 12381 12382 12501 12514 12514A 1903 6177637060 6177637060 8411337050 9003105024 9003105045 9003105088 9003105088 9003105088 9003105088 9003105088 9003105088 9003105108 9003105108 9003105109 9003105130 9003105143 9003105143 9003105144 9003119116 9003201153 9003201153 9003201153 9003201153 9003201153 9003201153 9003201153 9003201153 9011912344 9017912024 9017912024 9017912024 9017912024 9020112023 9020112023 9165160816 9415081000 9415081000
Part # Description Qty Price
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-78010

J05D,N04C..XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)

 1
12303-78010

N04C..XZU414,415

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-78060

N04C..XZU414,415

 1
12311-78060

N04C..XZU404,414,415,424..DCRL,DSLL

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-78040

N04C..XZU404,414,415,424..DCRL,DSLL

 1
12315-78040

N04C..XZU414,415

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78230

N04C..XZU414,415

 1
12321-78230

N04C..XZU404,414,415,424..6F..(DCRL,DSLL)

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78230

N04C..XZU414,415

 1
12321-78230

N04C..XZU404,414,415,424..6F..(DCRL,DSLL)

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78230

N04C..XZU414,415

 1
12321-78230

N04C..XZU404,414,415,424..6F..(DCRL,DSLL)

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78210

N04C..XZU414,415

 1
12325-78210

N04C..XZU404,414,415,424..6F..(DCRL,DSLL)

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78210

N04C..XZU414,415

 1
12325-78210

N04C..XZU404,414,415,424..6F..(DCRL,DSLL)

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78210

N04C..XZU414,415

 1
12325-78210

N04C..XZU404,414,415,424..6F..(DCRL,DSLL)

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-58130

N04C..XZU414,415

 2
12361-58130

N04C..XZU388,404,414,415,424..DCRL,DSLL

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-58130

N04C..XZU414,415

 2
12361-58130

N04C..XZU388,404,414,415,424..DCRL,DSLL

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-78010

N04C..XZU414,415

 2
12371-78010

J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-78010

N04C..XZU414,415

 2
12371-78010

J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-78030

N04C..XZU388,404,414,415,424..DCRL,DSLL

 1
12381-78030

N04C..XZU414,415

 1
12382 - STABILIZER, ENGINE MOUNTING, LH
12381-78030

N04C..XZU414,415

 1
12381-78030

N04C..XZU388,404,414,415,424..DCRL,DSLL

 1
12501 - BRACKET SUB-ASSY, ALTERNATOR
12501-78120

N04C..XZU388,404,414,415,424..DCRL,DSLL

 1
12501-78062

N04C..XZU414,415

 1
12501-78071

N04C..XZU414,415

ｵﾙﾀﾈ-ﾀ 24V 80A

 1
12501-78130

N04C..XZU388,404,414,415,424..(DCRL,DSLL)..(IV3,IV5)

ｵﾙﾀﾈ-ﾀ 24V 80A

 1
12514 - BAR, ALTERNATOR BELT ADJUSTING
12514-78082

N04C..XZU414,415

ｵﾙﾀﾈ-ﾀ 24V 80A

 1
12514-78082

N04C..XZU404,414,415,424..(DCRL,DSLL)..IV3

ｵﾙﾀﾈ-ﾀ 24V 80A

 1
12514-78072

N04C..XZU414,415

 1
12514-78072

N04C..XZU404,414,415,424..DCRL,DSLL

 1
12514A - SLIDER, FAN BELT ADJUSTING
12519-78020

N04C..XZU388,404,414,415,424..DCRL,DSLL

 1
12519-78020

N04C..XZU414,415

 1
Common parts
12281-78070
61776-37060
84113-37050
90031-05024
90031-05045
90031-05088
90031-05108
90031-05109
90031-05130
90031-05143
90031-05144
90031-19116
90032-01153
90119-12344
90179-12024
90201-12023
91651-60816
94150-81000
Linked diagrams
1903
