XZU414-TPFML3 (2003)
Toyota Dyna/Toyoace
(9905-0406)DCB..T5 ; (9905-0406)XZU412..T2,T3,T4; (9905-0406)BU410,BZU410,XZU410,4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37011 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
3 | ||
| 04371-37011 |
XZU414,415 |
3 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90039-13001 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 6G |
1 | ||
| 90039-13003 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 25G |
1 | ||
| 90039-13005 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 75G |
1 | ||
| 90039-13002 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 12G |
1 | ||
| 90039-13004 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 50G |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90039-13001 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 6G |
1 | ||
| 90039-13003 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 25G |
1 | ||
| 90039-13005 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 75G |
1 | ||
| 90039-13002 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 12G |
1 | ||
| 90039-13004 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 50G |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-37580 |
XZU414,415 |
1 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 37231-37020 |
XZU388,41#,42#..DCRL,DSL,DSLL |
1 | ||
| 37231-37020 |
XZU414,415 |
1 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU414,415 NO.1 |
8 | ||
| 90170-12005 |
XZU414,415 NO.2 |
4 | ||
| 90170-12005 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU414,415 NO.1 |
8 | ||
| 90170-12005 |
XZU414,415 NO.2 |
4 | ||
| 90170-12005 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU414,415 NO.2 |
4 | ||
| 94512-01200 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
8 | ||
| 94512-01200 |
XZU414,415 NO.1 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU414,415 NO.2 |
4 | ||
| 94512-01200 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
8 | ||
| 94512-01200 |
XZU414,415 NO.1 |
8 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-37320 |
XZU414,415 |
1 | ||
| 37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1 | ||||
| 37235-37020 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,413,414,415,42#..DCRL,DSL,DSLL |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37201-37010 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,413,414,415,42#..DCRL,DSL,DSLL |
1 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-37010 |
XZU388,41#,42#..DCRL,DSL,DSLL 厚さ=3.0 |
2 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-37010 |
XZU388,41#,42#..DCRL,DSL,DSLL 厚さ=3.0 |
2 | ||
| 37302B - YOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-37021 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-37020 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,413,414,415,42#..DCRL,DSL,DSLL |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37021 |
XZU388,401,413,415,423;XZU414,424..6F..(DCRL,DSLL) |
2 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37021 |
XZU388,401,413,415,423;XZU414,424..6F..(DCRL,DSLL) |
2 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37021 |
XZU388,401,413,415,423;XZU414,424..6F..(DCRL,DSLL) |
2 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-37020 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,413,414,415,42#..DCRL,DSL,DSLL |
1 | ||
| 37341B - DEFLECTOR, PROPELLER SHAFT DUST, NO.5 | ||||
| 37341-37020 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,413,414,415,42#..DCRL,DSL,DSLL |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21022 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.50 |
8 | ||
| 90035-21023 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.55 |
8 | ||
| 90035-21024 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.60 |
8 | ||
| 90035-21025 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.65 |
8 | ||
| 90035-21026 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.70 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21022 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.50 |
8 | ||
| 90035-21023 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.55 |
8 | ||
| 90035-21024 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.60 |
8 | ||
| 90035-21025 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.65 |
8 | ||
| 90035-21026 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.70 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21022 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.50 |
8 | ||
| 90035-21023 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.55 |
8 | ||
| 90035-21024 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.60 |
8 | ||
| 90035-21025 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.65 |
8 | ||
| 90035-21026 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.70 |
8 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,413,414,415,42#..DCRL,DSL,DSLL |
12 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,413,414,415,42#..DCRL,DSL,DSLL |
12 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,413,414,415,42#..DCRL,DSL,DSLL |
12 | ||
| Common parts | ||||
| 90031-01164 | ||||
| 90031-01165 | ||||
| 90031-01177 | ||||
| 90031-01191 | ||||
| 90031-70075 | ||||
| 90031-75011 | ||||
| 90032-01069 | ||||
| 90032-04005 | ||||
| 90032-04031 | ||||
| 90034-08006 | ||||
| 90035-60057 | ||||
| 90170-10028 | ||||
| 90170-12005 | ||||
| 90170-12018 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||

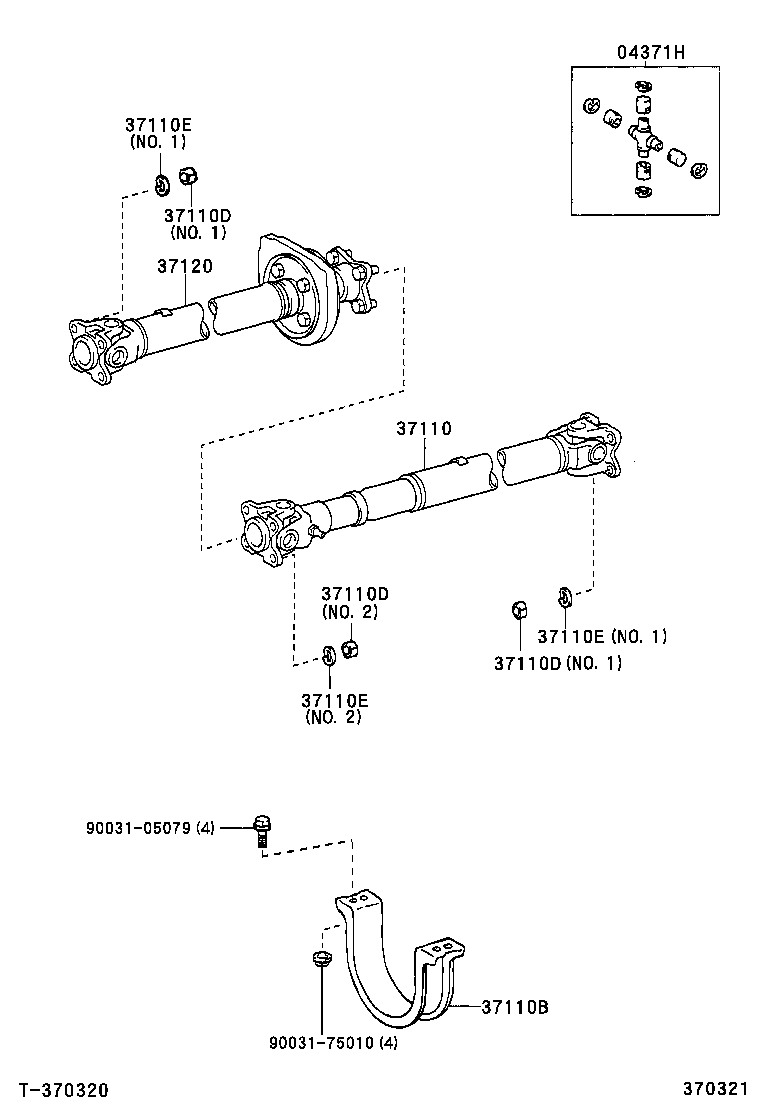

(0310-0406)XZU414,415
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37011 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
3 | ||
| 04371-37011 |
XZU414,415 |
3 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-37580 |
XZU414,415 |
1 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 37231-37020 |
XZU388,41#,42#..DCRL,DSL,DSLL |
1 | ||
| 37231-37020 |
XZU414,415 |
1 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU414,415 NO.1 |
8 | ||
| 90170-12005 |
XZU414,415 NO.2 |
4 | ||
| 90170-12005 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU414,415 NO.1 |
8 | ||
| 90170-12005 |
XZU414,415 NO.2 |
4 | ||
| 90170-12005 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU414,415 NO.1 |
8 | ||
| 90170-12005 |
XZU414,415 NO.2 |
4 | ||
| 90170-12005 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU414,415 NO.2 |
4 | ||
| 94512-01200 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
8 | ||
| 94512-01200 |
XZU414,415 NO.1 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU414,415 NO.2 |
4 | ||
| 94512-01200 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
8 | ||
| 94512-01200 |
XZU414,415 NO.1 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU414,415 NO.2 |
4 | ||
| 94512-01200 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
8 | ||
| 94512-01200 |
XZU414,415 NO.1 |
8 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-37320 |
XZU414,415 |
1 | ||
| Common parts | ||||
| 90031-05079 | ||||
| 90031-75010 | ||||
(0406- )BZU410,XZU41#..T3,T4,T5..CNG,DCR,DCRL,DSL,DSLL,LPG
12ｲﾝﾁ ﾃﾞｨﾌｧﾚﾝｼｬﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37011 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
3 | ||
| 04371-37011 |
XZU414,415 |
3 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90039-13001 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 6G |
1 | ||
| 90039-13003 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 25G |
1 | ||
| 90039-13005 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 75G |
1 | ||
| 90039-13002 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 12G |
1 | ||
| 90039-13004 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 50G |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90039-13001 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 6G |
1 | ||
| 90039-13003 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 25G |
1 | ||
| 90039-13005 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 75G |
1 | ||
| 90039-13002 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 12G |
1 | ||
| 90039-13004 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 50G |
1 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 37231-37020 |
XZU388,41#,42#..DCRL,DSL,DSLL |
1 | ||
| 37231-37020 |
XZU414,415 |
1 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU414,415 NO.1 |
8 | ||
| 90170-12005 |
XZU414,415 NO.2 |
4 | ||
| 90170-12005 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU414,415 NO.1 |
8 | ||
| 90170-12005 |
XZU414,415 NO.2 |
4 | ||
| 90170-12005 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU414,415 NO.2 |
4 | ||
| 94512-01200 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
8 | ||
| 94512-01200 |
XZU414,415 NO.1 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU414,415 NO.2 |
4 | ||
| 94512-01200 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
8 | ||
| 94512-01200 |
XZU414,415 NO.1 |
8 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-37320 |
XZU414,415 |
1 | ||
| 37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1 | ||||
| 37235-37020 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,413,414,415,42#..DCRL,DSL,DSLL |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37201-37010 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,413,414,415,42#..DCRL,DSL,DSLL |
1 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-37010 |
XZU388,41#,42#..DCRL,DSL,DSLL 厚さ=3.0 |
2 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-37010 |
XZU388,41#,42#..DCRL,DSL,DSLL 厚さ=3.0 |
2 | ||
| 37302B - YOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-37021 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-37020 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,413,414,415,42#..DCRL,DSL,DSLL |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37021 |
XZU388,401,413,415,423;XZU414,424..6F..(DCRL,DSLL) |
2 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37021 |
XZU388,401,413,415,423;XZU414,424..6F..(DCRL,DSLL) |
2 | ||
| 37315D - YOKE, NO.2, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37031 |
XZU388,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-37020 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,413,414,415,42#..DCRL,DSL,DSLL |
1 | ||
| 37341B - DEFLECTOR, PROPELLER SHAFT DUST, NO.5 | ||||
| 37341-37020 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,413,414,415,42#..DCRL,DSL,DSLL |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21022 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.50 |
8 | ||
| 90035-21023 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.55 |
8 | ||
| 90035-21024 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.60 |
8 | ||
| 90035-21025 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.65 |
8 | ||
| 90035-21026 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.70 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21022 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.50 |
8 | ||
| 90035-21023 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.55 |
8 | ||
| 90035-21024 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.60 |
8 | ||
| 90035-21025 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.65 |
8 | ||
| 90035-21026 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.70 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21022 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.50 |
8 | ||
| 90035-21023 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.55 |
8 | ||
| 90035-21024 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.60 |
8 | ||
| 90035-21025 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.65 |
8 | ||
| 90035-21026 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.70 |
8 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,413,414,415,42#..DCRL,DSL,DSLL |
12 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,413,414,415,42#..DCRL,DSL,DSLL |
12 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,413,414,415,42#..DCRL,DSL,DSLL |
12 | ||
| Common parts | ||||
| 90031-01165 | ||||
| 90031-01191 | ||||
| 90031-05079 | ||||
| 90031-70075 | ||||
| 90031-75010 | ||||
| 90031-75011 | ||||
| 90034-08006 | ||||
| 90035-60057 | ||||
| 90170-12005 | ||||
| 94512-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
