XZU414-TKFQX3 (2003)
Toyota Dyna/Toyoace
Production
Oct 2003
-
May 2007
Engine
N04C
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0310- )N04C..XZU388,404,414,415,424..DCR,DCRL,DSLL

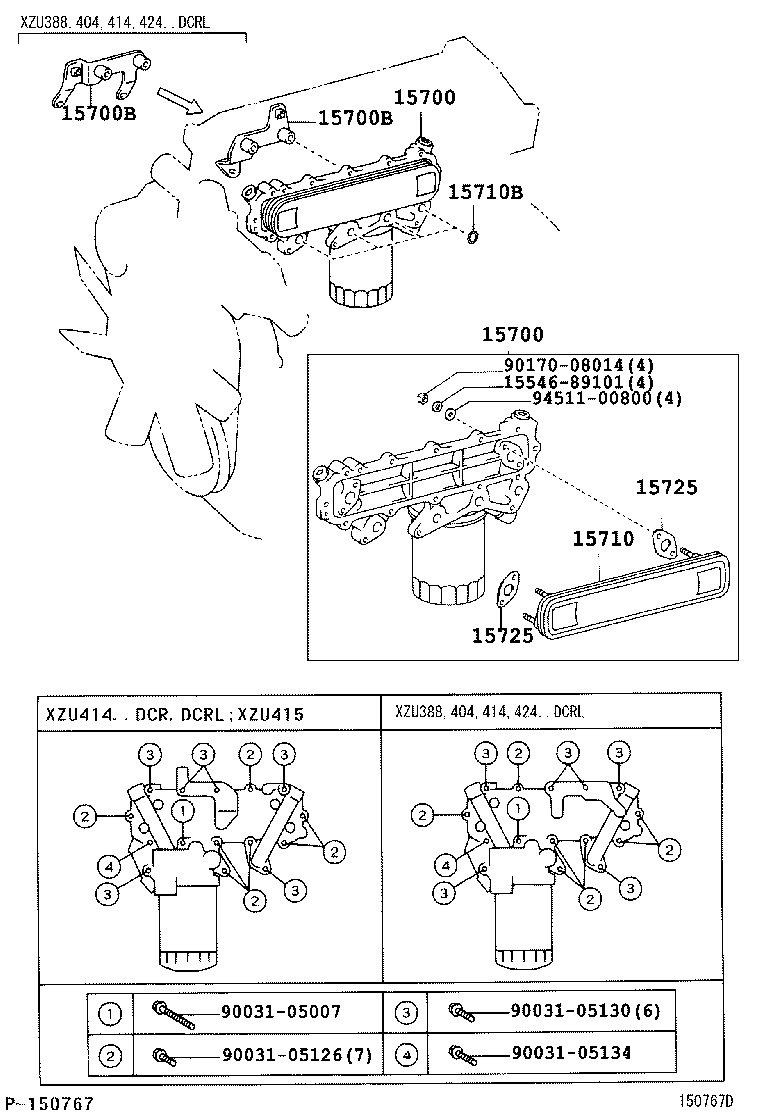

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15700 - COOLER ASSY, OIL W/BRACKET | ||||
| 15700-78130 |
N04C..XZU414,415 |
1 | ||
| 15700-78131 |
N04C..XZU414..DCR |
1 | ||
| 15700 - COOLER ASSY, OIL W/BRACKET | ||||
| 15700-78130 |
N04C..XZU414,415 |
1 | ||
| 15700-78131 |
N04C..XZU414..DCR |
1 | ||
| 15700B - BRACKET(FOR OIL COOLER) | ||||
| 82702-37420 |
N04C..XZU415;N04C..XZU414..DCR,DSLL |
1 | ||
| 82702-37420 |
N04C..XZU414..DCR |
1 | ||
| 15700B - BRACKET(FOR OIL COOLER) | ||||
| 82702-37420 |
N04C..XZU415;N04C..XZU414..DCR,DSLL |
1 | ||
| 82702-37420 |
N04C..XZU414..DCR |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-89104 |
N04C..XZU414,415 |
1 | ||
| 15710-89104 |
N04C..XZU414..DCR |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| 90301-19005 |
N04C..XZU414,415 |
4 | ||
| 90301-19005 |
N04C..XZU414..DCR |
4 | ||
| 15725 - GASKET, OIL COOLER COVER | ||||
| 15725-78020 |
N04C..XZU414,415 |
2 | ||
| 15725-78020 |
N04C..XZU414..DCR |
2 | ||
| 15725 - GASKET, OIL COOLER COVER | ||||
| 15725-78020 |
N04C..XZU414,415 |
2 | ||
| 15725-78020 |
N04C..XZU414..DCR |
2 | ||
| Common parts | ||||
| 15546-89101 | ||||
| 90031-05007 | ||||
| 90031-05126 | ||||
| 90031-05130 | ||||
| 90031-05134 | ||||
| 90170-08014 | ||||
| 94511-00800 | ||||
