XZU414-PQMMB (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

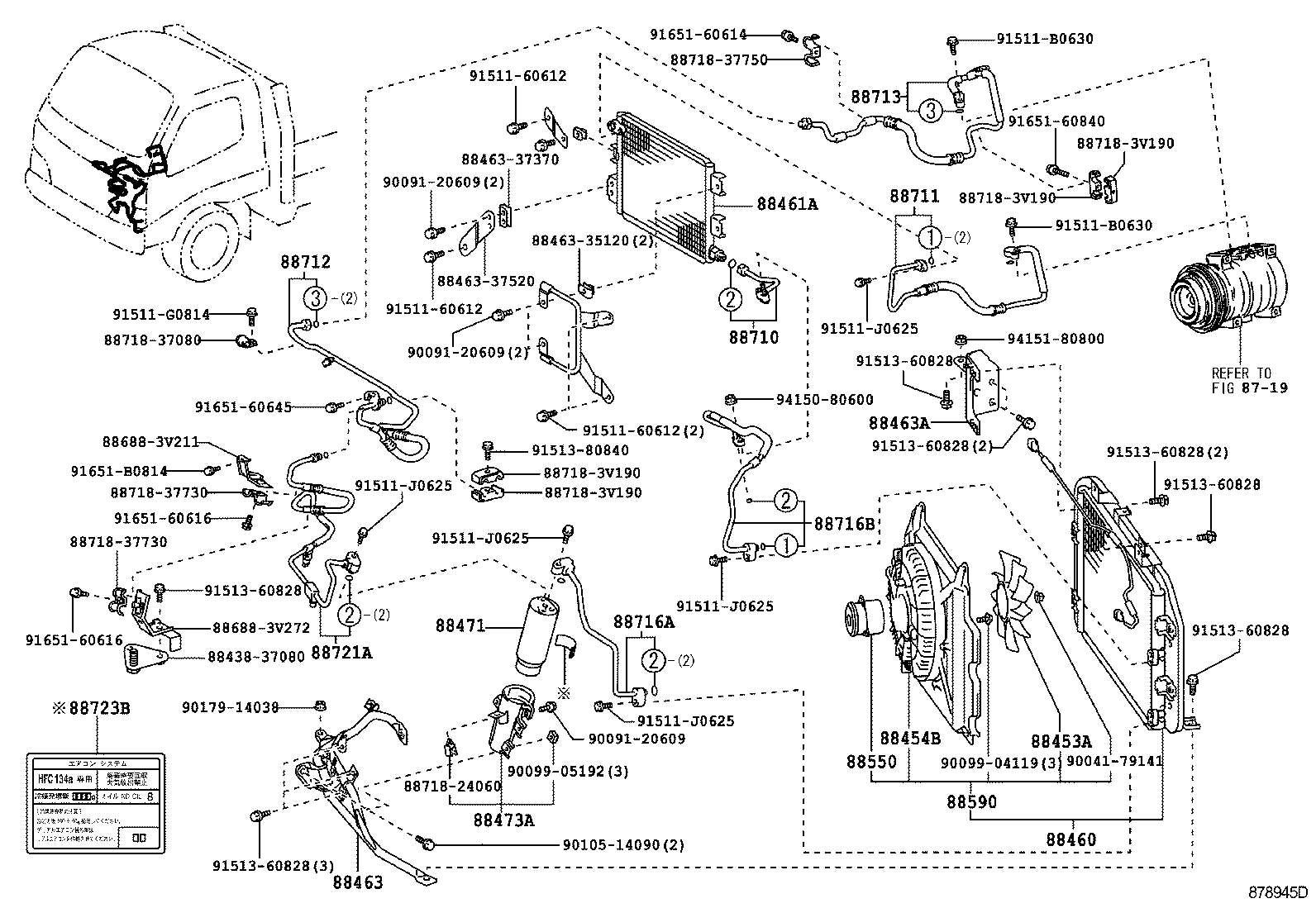

ILLUST NO. 1 OF 3(0610- )DCB

Click highlighted areas on diagram

diagram 8719 8843837080 88453A 88454B 88460 88461A 88463 8846335120 8846337370 8846337520 88463A 88471 88473A 88550 88590 886883V211 886883V272 88710 88711 88712 88713 88716A 88716B 8871824060 8871837080 8871837730 8871837730 8871837750 887183V190 887183V190 887183V190 887183V190 88721A 88723B 9004179141 9009120609 9009120609 9009120609 9009904119 9009905192 9010514090 9017914038 9151160612 9151160612 9151160612 91511B0630 91511B0630 91511G0814 91511J0625 91511J0625 91511J0625 91511J0625 91511J0625 9151360828 9151360828 9151360828 9151360828 9151360828 9151360828 9151360828 9151380840 9165160614 9165160616 9165160616 9165160645 9165160840 91651B0814 9415080600 9415180800
Part # Description Qty Price
88453A - FAN, COOLING
88453-37010

XZU414..DCB;XZU414,424,434..DCRTL

 1
88454B - SHROUD, FAN
88454-37040

XZU414..DCB;XZU414,424,434..DCRTL

 1
88460 - CONDENSER ASSY, COOLER
88460-37381

XZU414..DCB;XZU414,424,434..DCRTL

 1
88461A - CORE, COOLER CONDENSER
88461-37110

XZU414..DCB

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37260

BU400,410,420,430,XZU40#,41#,42#,430

 1
88463-37261

XZU414..DCB;XZU414,424,434..DCRTL

 1
88463-37262

XZU414..DCB;XZU414,424,434..DCRTL

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37440

XZU414..DCB;XZU414,424,434..DCRTL

 1
88463-37280

BU400,410,420,430,XZU40#,41#,42#,430

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-28100

XZU414..DCB

ｱﾘ(ﾘﾔ ｸ-ﾗ)

 1
88471-34010

XZU488;XZU414..DCB;XZU414,424,434..DCRTL

 1
88473A - HOLDER, RECEIVER
88473-37050

XZU414..DCB

ｱﾘ(ﾘﾔ ｸ-ﾗ)

 1
88473-37040

XZU414..DCB;XZU414,424,434..DCRTL

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37060

XZU414..DCB;XZU414,424,434..DCRTL

 1
88590 - BLOWER ASSY, W/SHROUD
88590-37070

XZU414..DCB;XZU414,424,434..DCRTL

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-37510

XZU414..DCB

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-3V160

XZU414..DCB

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37890

BU400,410,420,430,XZU40#,41#,42#,430

 1
88712-3V680

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
88712-3V710

XZU414..DCB

ｱﾘ(ﾘﾔ ｸ-ﾗ)

 1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88712-3V660

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37780

XZU414..DCB;XZU414,424,434..DCRTL

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-3V800

XZU414..DCB

 1
88721A - HOSE, LIQUID, A
88721-3V040

XZU414..DCB;XZU414,424,434..DCRTL

 1
88723B - LABEL, COOLER SERVICE CAUTION
88733-27010

XZU414..DCB

 1
88733-30050

XZU414..DCB

ｱﾘ(ﾘﾔ ｸ-ﾗ)

 1
Common parts
88438-37080
88463-35120
88463-37370
88463-37520
88688-3V211
88688-3V272
88718-24060
88718-37080
88718-37730
88718-37750
88718-3V190
90041-79141
90091-20609
90099-04119
90099-05192
90105-14090
90179-14038
91511-60612
91511-B0630
91511-G0814
91511-J0625
91513-60828
91513-80840
91651-60614
91651-60616
91651-60645
91651-60840
91651-B0814
94150-80600
94151-80800
Linked diagrams
8719

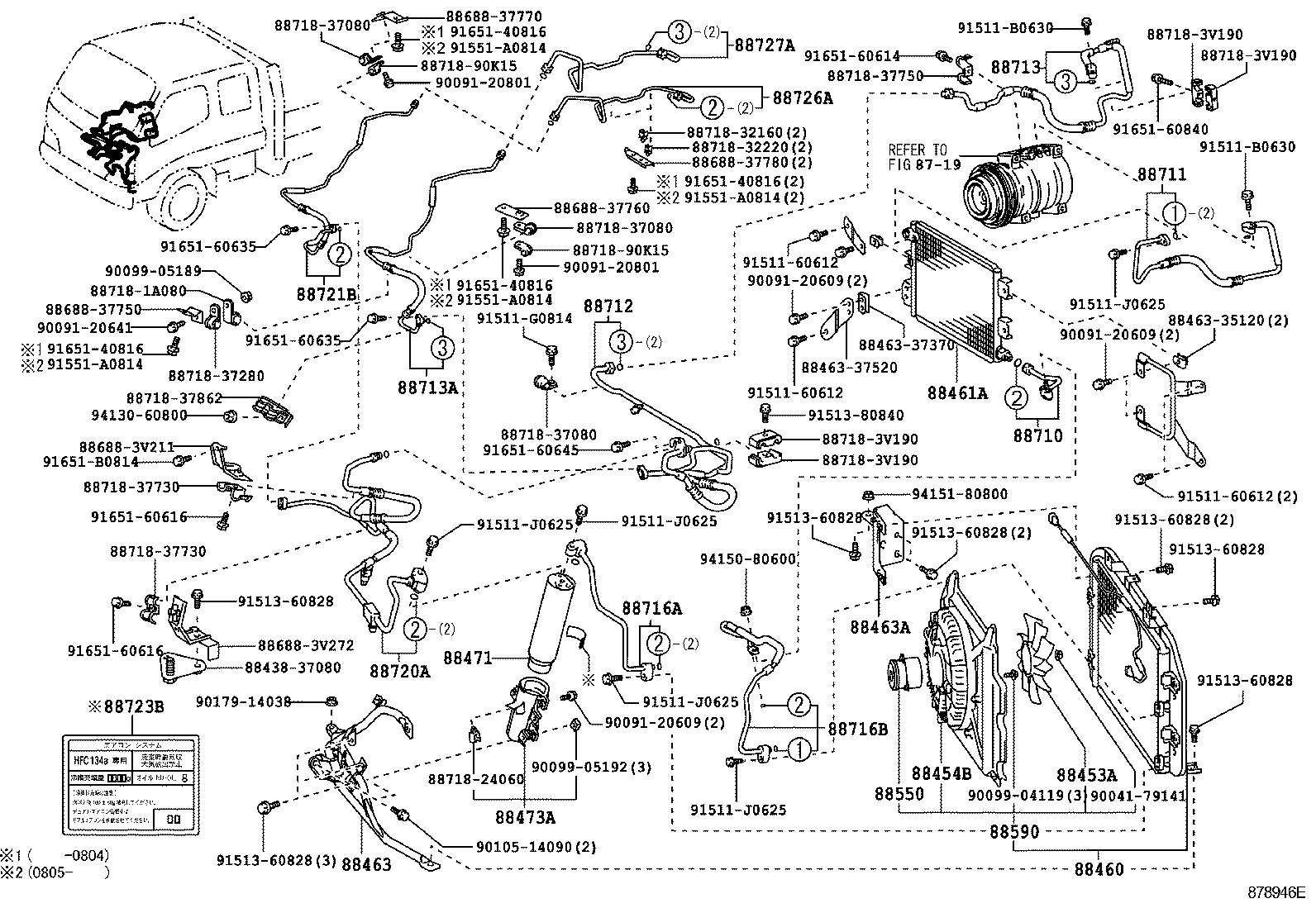

ILLUST NO. 1 OF 3(0610- )DCB

Click highlighted areas on diagram

ｱﾘ(ﾘﾔ ｸｰﾗ)

diagram 8719 8843837080 88453A 88454B 88460 88461A 88463 8846335120 8846337370 8846337520 88463A 88471 88473A 88550 88590 8868837750 8868837760 8868837770 8868837780 886883V211 886883V272 88710 88711 88712 88713 88713A 88716A 88716B 887181A080 8871824060 8871832160 8871832220 8871837080 8871837080 8871837080 8871837280 8871837730 8871837730 8871837750 8871837862 887183V190 887183V190 887183V190 887183V190 8871890K15 8871890K15 88720A 88721B 88723B 88726A 88727A 9004179141 9009120609 9009120609 9009120609 9009120641 9009120801 9009120801 9009904119 9009905189 9009905192 9010514090 9017914038 9151160612 9151160612 9151160612 91511B0630 91511B0630 91511G0814 91511J0625 91511J0625 91511J0625 91511J0625 91511J0625 9151360828 9151360828 9151360828 9151360828 9151360828 9151360828 9151360828 9151380840 91551A0814 91551A0814 91551A0814 91551A0814 9165140816 9165140816 9165140816 9165140816 9165160614 9165160616 9165160616 9165160635 9165160635 9165160645 9165160840 91651B0814 9413060800 9415080600 9415180800
Part # Description Qty Price
88453A - FAN, COOLING
88453-37010

XZU414..DCB;XZU414,424,434..DCRTL

 1
88454B - SHROUD, FAN
88454-37040

XZU414..DCB;XZU414,424,434..DCRTL

 1
88460 - CONDENSER ASSY, COOLER
88460-37381

XZU414..DCB;XZU414,424,434..DCRTL

 1
88461A - CORE, COOLER CONDENSER
88461-37110

XZU414..DCB

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37260

BU400,410,420,430,XZU40#,41#,42#,430

 1
88463-37261

XZU414..DCB;XZU414,424,434..DCRTL

 1
88463-37262

XZU414..DCB;XZU414,424,434..DCRTL

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37440

XZU414..DCB;XZU414,424,434..DCRTL

 1
88463-37280

BU400,410,420,430,XZU40#,41#,42#,430

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-28100

XZU414..DCB

ｱﾘ(ﾘﾔ ｸ-ﾗ)

 1
88471-34010

XZU488;XZU414..DCB;XZU414,424,434..DCRTL

 1
88473A - HOLDER, RECEIVER
88473-37050

XZU414..DCB

ｱﾘ(ﾘﾔ ｸ-ﾗ)

 1
88473-37040

XZU414..DCB;XZU414,424,434..DCRTL

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37060

XZU414..DCB;XZU414,424,434..DCRTL

 1
88590 - BLOWER ASSY, W/SHROUD
88590-37070

XZU414..DCB;XZU414,424,434..DCRTL

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-37510

XZU414..DCB

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-3V160

XZU414..DCB

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37890

BU400,410,420,430,XZU40#,41#,42#,430

 1
88712-3V680

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
88712-3V710

XZU414..DCB

ｱﾘ(ﾘﾔ ｸ-ﾗ)

 1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88712-3V660

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
88713A - HOSE, COOLER REFRIGERANT SUCTION, NO.3
88712-3V730

XZU414..DCB

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37780

XZU414..DCB;XZU414,424,434..DCRTL

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-3V800

XZU414..DCB

 1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-37130

XZU414..DCB

 1
88721B - HOSE, LIQUID, B
88721-3V060

XZU414..DCB

 1
88723B - LABEL, COOLER SERVICE CAUTION
88733-27010

XZU414..DCB

 1
88733-30050

XZU414..DCB

ｱﾘ(ﾘﾔ ｸ-ﾗ)

 1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37A10

XZU414..DCB

 1
88727A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-37410

XZU414..DCB

 1
Common parts
88438-37080
88463-35120
88463-37370
88463-37520
88688-37750
88688-37760
88688-37770
88688-37780
88688-3V211
88688-3V272
88718-1A080
88718-24060
88718-32160
88718-32220
88718-37080
88718-37280
88718-37730
88718-37750
88718-37862
88718-3V190
88718-90K15
90041-79141
90091-20609
90091-20641
90091-20801
90099-04119
90099-05189
90099-05192
90105-14090
90179-14038
91511-60612
91511-B0630
91511-G0814
91511-J0625
91513-60828
91513-80840
91551-A0814
91651-40816
91651-60614
91651-60616
91651-60635
91651-60645
91651-60840
91651-B0814
94130-60800
94150-80600
94151-80800
Linked diagrams
8719
