XZU414-PQMMB (2006)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(0610- )XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37151 |
XZU488;XZU404,414,424,454..20T |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36070 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37010 |
BU400,410,420,430,XZU382,40#,41#,42#,430 |
1 | ||
| 44597-37021 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90414-10043 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 44734B - BRACKET, BOOSTER SUPPORT | ||||
| 44734-37010 |
BU400,410,420,430,XZU382,40#,41#,42#,430 |
1 | ||
| 44734-37011 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44764-37810 |
XZU414..DCB |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44764-37810 |
XZU414..DCB |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 44776-37090 |
BU400,410,420,430,XZU382,40#,41#,42#,430 |
1 | ||
| 44776-37251 |
XZU404,414,424,434,454,488 |
1 | ||
| 44776-37240 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 44776-37250 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37170 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 44768-37151 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 44775C - HOSE, CONNECTOR TO WAY | ||||
| 44775-37020 |
XZU404,414,424,434,454,488..MTM..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 44775-37020 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44776-37250 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 44776-37240 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37260 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 44776-37260 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-37160 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37170 |
XZU404,414,424,434,454,488..MTM..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 44778-37171 |
XZU404,414,424,434,454,488..MTM |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37170 |
XZU404,414,424,434,454,488..MTM..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 44778-37171 |
XZU404,414,424,434,454,488..MTM |
1 | ||
| 44799 - WAY, BRAKE VACUUM HOSE | ||||
| 44799-37010 |
XZU404,414,424,434,454,488..MTM..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90464-00549 | ||||
| 90466-15003 | ||||
| 90480-22022 | ||||
| 91551-80814 | ||||
| 91611-B0816 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8414 | ||||

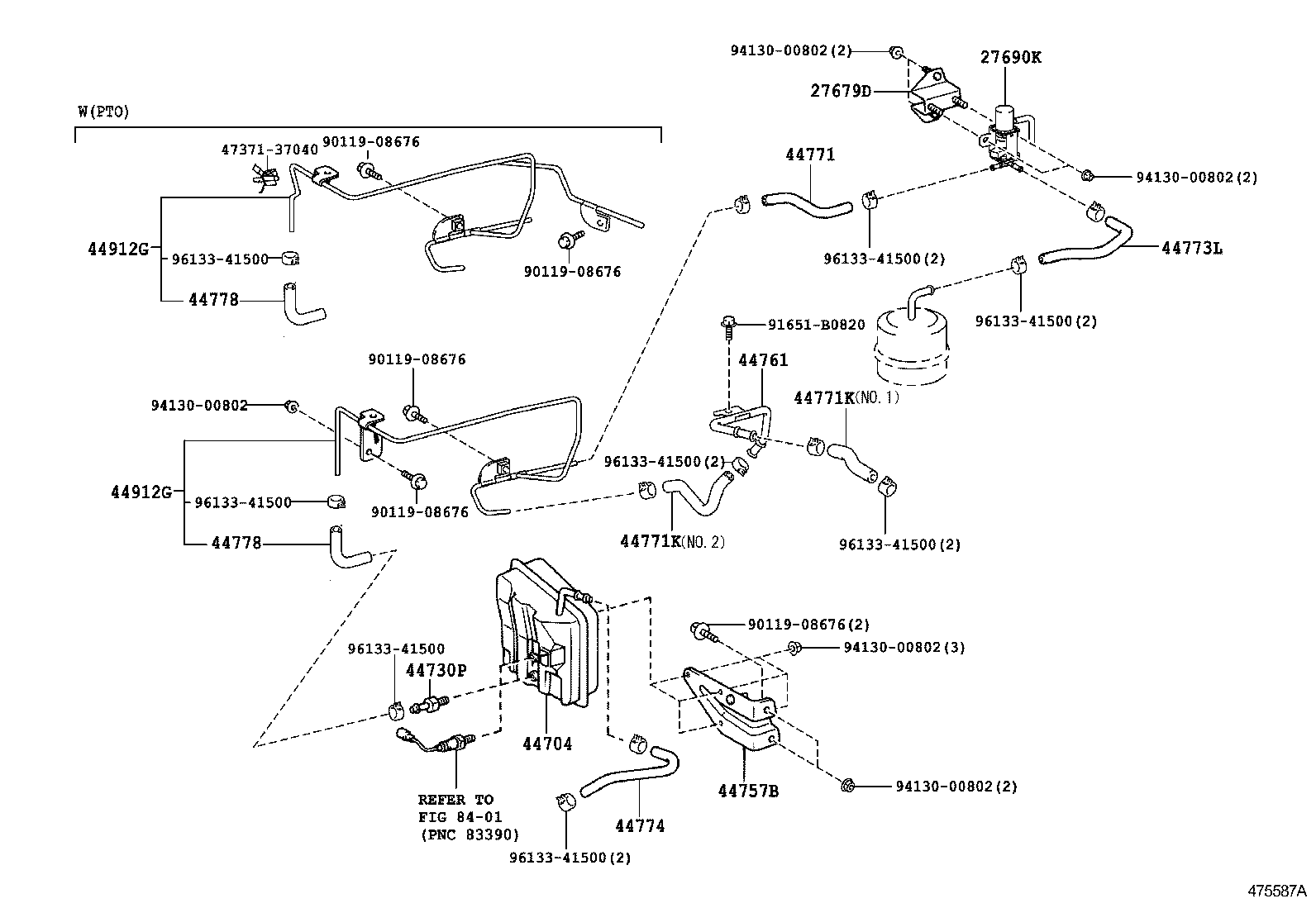

ILLUST NO. 2 OF 2(0610- )DCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679D - BRACKET, EXHAUST BRAKE SOLENOID | ||||
| 27679-78210 |
N04C..XZU414..DCB |
1 | ||
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78130 |
N04C..XZU414..DCR |
1 | ||
| 27690-78150 |
N04C..XZU414..DCB |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37100 |
XZU414..DCB |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
XZU488;XZU414..DCB |
1 | ||
| 44757B - BRACKET, VACUUM TANK CLAMP, NO.2 | ||||
| 44757-37040 |
XZU414..DCB |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37540 |
XZU414..DCR |
1 | ||
| 44761-37540 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 95446-09180 |
XZU414..DCB |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37A30 |
XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 44771-37A30 |
XZU414..DCR NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95446-09120 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37A30 |
XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 44771-37A30 |
XZU414..DCR NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95446-09120 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44773-37131 |
XZU414..DCB |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37320 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 95446-09260 |
XZU414..DCB |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 95446-09200 |
XZU414..DCB |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 95446-09200 |
XZU414..DCB |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-37A70 |
XZU414..DCB..5F ｱﾘ(PTO) |
1 | ||
| 44912-37A60 |
XZU414..DCB |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-37A70 |
XZU414..DCB..5F ｱﾘ(PTO) |
1 | ||
| 44912-37A60 |
XZU414..DCB |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0610- )DCB..DCRTJ ; (0610- )XZU424..40T..IV3 ; (0610- )XZU414..40T..DCRTK
TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679D - BRACKET, EXHAUST BRAKE SOLENOID | ||||
| 27679-78210 |
N04C..XZU414..DCB |
1 | ||
| 27679-78210 |
N04C..XZU414..DCB |
1 | ||
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78130 |
N04C..XZU414..DCR |
1 | ||
| 27690-78130 |
N04C..XZU414..DCR |
1 | ||
| 27690-78150 |
N04C..XZU414..DCB |
1 | ||
| 27690-78150 |
N04C..XZU414..DCB |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37100 |
XZU414..DCB |
1 | ||
| 44704-37100 |
XZU414..DCB |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
XZU488;XZU414..DCB |
1 | ||
| 44730-60050 |
XZU488;XZU414..DCB |
1 | ||
| 44757B - BRACKET, VACUUM TANK CLAMP, NO.2 | ||||
| 44757-37040 |
XZU414..DCB |
1 | ||
| 44757-37040 |
XZU414..DCB |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37540 |
XZU414..DCR |
1 | ||
| 44761-37540 |
XZU414..DCR |
1 | ||
| 44761-37540 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 44761-37540 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37A30 |
XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 44771-37A30 |
XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 44771-37A30 |
XZU414..DCR NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 44771-37A30 |
XZU414..DCR NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95446-09120 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95446-09120 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37A30 |
XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 44771-37A30 |
XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 44771-37A30 |
XZU414..DCR NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 44771-37A30 |
XZU414..DCR NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95446-09120 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95446-09120 |
XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44773-37131 |
XZU414..DCB |
1 | ||
| 44773-37131 |
XZU414..DCB |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37320 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 44774-37320 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 95446-09260 |
XZU414..DCB |
1 | ||
| 95446-09260 |
XZU414..DCB |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 95446-09200 |
XZU414..DCB |
1 | ||
| 95446-09200 |
XZU414..DCB |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 95446-09200 |
XZU414..DCB |
1 | ||
| 95446-09200 |
XZU414..DCB |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 91645-80825 | ||||
| 91651-B0820 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
