XZU414-PQMMB (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )N04C..XZU414..DCB

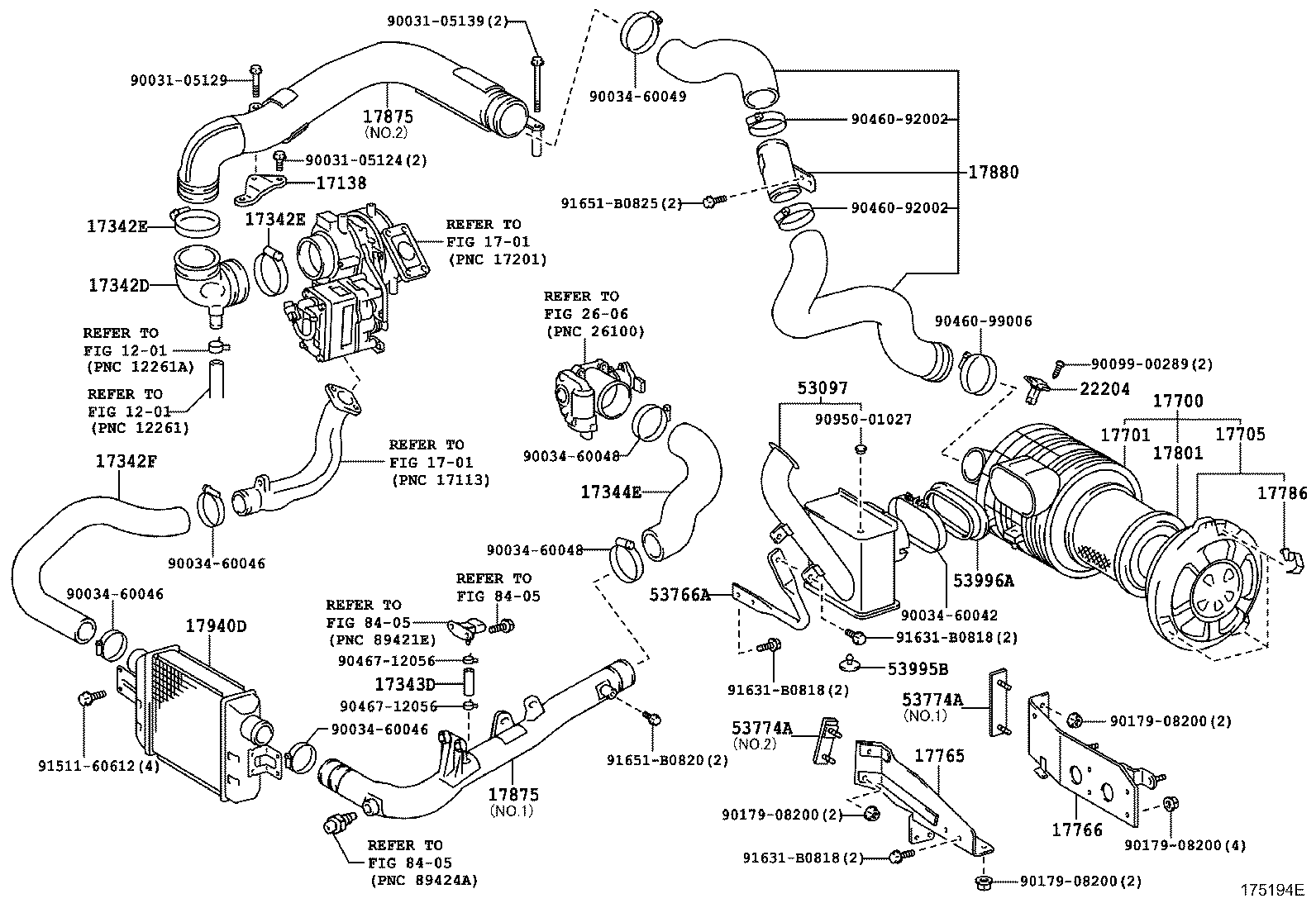

Click highlighted areas on diagram

diagram 1201 1201 1701 1701 17138 17342D 17342E 17342E 17342F 17343D 17344E 17700 17701 17705 17765 17766 17786 17801 17875 17875 17880 17940D 22204 2606 53097 53766A 53774A 53774A 53995B 53996A 8405 8405 8405 9003105124 9003105129 9003105139 9003460042 9003460046 9003460046 9003460046 9003460048 9003460048 9003460049 9009900289 9017908200 9017908200 9017908200 9017908200 9046092002 9046092002 9046099006 9046712056 9046712056 9095001027 9151160612 91631B0818 91631B0818 91631B0818 91651B0820 91651B0825
Part # Description Qty Price
17138 - STAY, INTAKE PIPE OR HOSE
17138-78200

N04C..XZU414..DCB

 1
17342D - HOSE, AIR, NO.2
17341-78200

N04C..XZU404,414,424,454..DCRTJ,DCRTK,DCRTM,DCRUE

 1
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90034-67025

N04C..XZU404,414,424,454,488..DCRTJ,DCRTK,DCRTM,DCRUE

 2
90034-60050

N04C..XZU404,414,424,454,488..DCRTJ,DCRTK,DCRTM,DCRUE

 2
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90034-67025

N04C..XZU404,414,424,454,488..DCRTJ,DCRTK,DCRTM,DCRUE

 2
90034-60050

N04C..XZU404,414,424,454,488..DCRTJ,DCRTK,DCRTM,DCRUE

 2
17342F - HOSE, AIR, NO.2(FOR INTERCOOLER)
17342-78011

N04C..XZU404,414,424,454..DCRTJ,DCRTK,DCRTM,DCRUE

 1
17343D - HOSE, AIR, NO.3
17343-78020

N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
17344E - HOSE, AIR, NO.4
17344-78130

N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
17700 - CLEANER ASSY, AIR
17700-78210

N04C..XZU414..DCB

 1
17700-78201

N04C..XZU414..DCR

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-78160

N04C..XZU414..DCR

 1
17701-78170

N04C..XZU414..DCB

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-78020

N04C..XZU414..DCR

 1
17705-78020

N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
17765 - STAY, AIR CLEANER, NO.1
17706-78140

N04C..XZU414..DCB

 1
17766 - STAY, AIR CLEANER, NO.2
17706-78050

N04C..XZU414..DCB

 1
17786 - CLAMP, AIR CLEANER
17786-78010

N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 3
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-78020

N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
17801-78020

N04C..XZU414..DCR

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17103-78052

N04C..XZU414..DCR

 1
17113-78322

N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

NO.2

 1
17103-78052

N04C..XZU404,414,424,454..DCRTJ,DCRTK,DCRTM,DCRUE

NO.1

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17103-78052

N04C..XZU414..DCR

 1
17113-78322

N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

NO.2

 1
17103-78052

N04C..XZU404,414,424,454..DCRTJ,DCRTK,DCRTM,DCRUE

NO.1

 1
17880 - HOSE ASSY, AIR CLEANER
17880-78010

N04C..XZU414..DCB

 1
17940D - INTERCOOLER ASSY
17940-78050

N04C..XZU404,414,424,454..DCRTJ,DCRTK,DCRTM,DCRUE

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-21010

N04C..XZU414..DCR

 1
22204-21010

N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
53097 - INLET SUB-ASSY
53097-37330

XZU414..DCR

 1
53097-37340

XZU414..DCB

 1
53766A - BRACKET, AIR CLEANER INLET PIPE
53766-37020

XZU414..DCB

 1
53774A - BRACKET, AIR CLEANER MOUNTING, NO.2
53774-37040

XZU414..DCB

NO.2

 1
53774-37030

XZU414..DCB

NO.1

 1
53774A - BRACKET, AIR CLEANER MOUNTING, NO.2
53774-37040

XZU414..DCB

NO.2

 1
53774-37030

XZU414..DCB

NO.1

 1
53995B - PLUG, AIR CLEANER INLET
53995-37020

XZU414..DCB

 1
53996A - PACKING, AIR CLEANER INLET PIPE
53996-37040

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
Common parts
90031-05124
90031-05129
90031-05139
90034-60042
90034-60046
90034-60048
90034-60049
90099-00289
90179-08200
90460-92002
90460-99006
90467-12056
90950-01027
91511-60612
91631-B0818
91651-B0820
91651-B0825
