XZU413-TKFSW3 (2004)
Toyota Dyna/Toyoace
(7708- )HU30,40,50,RU3#,WU40,50..T3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90250-03021 | ||||
| 90250-03031 | ||||
| 90339-07016 | ||||
| 90386-08164 | ||||
| 90461-07033 | ||||
| 90480-10205 | ||||
| 90480-14006 | ||||
| 91611-40820 | ||||
| 91611-41030 | ||||
| 91651-40616 | ||||
| 93319-14010 | ||||
| 93319-15010 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| 96132-31000 | ||||
| 96221-10910 | ||||
| 96713-19019 | ||||

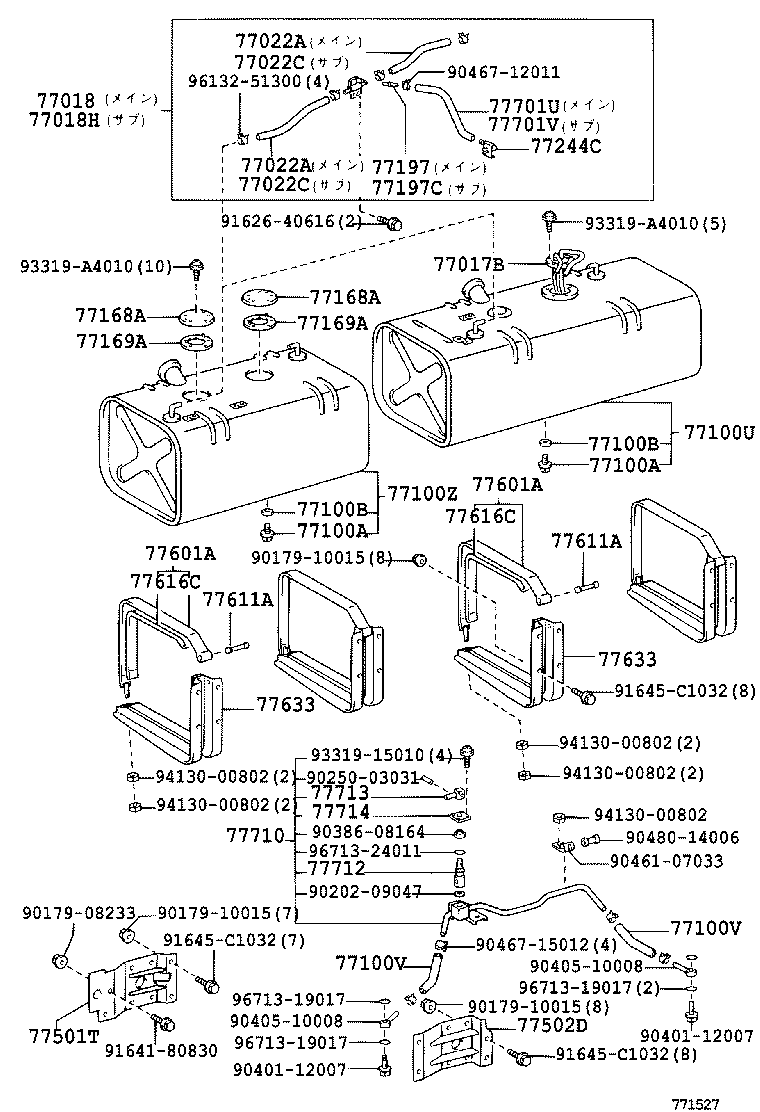

ILLUST NO. 1 OF 2(0406-0610)DCR ; (0406- )DCRL,DSL,DSLL
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37010 |
XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL) |
1 | ||
| 77017-37010 |
XZU382;XZU412..DCB..T4;BU410,420,430,XZU400,401,41#,42#,430..DM7,T3,T5 |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-37050 |
XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL) |
1 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08028 |
XZU411..DCB..T5;XZU411..T3..6FC;XZU388,40#,415,421..(DM7,T3,T4)..(DCRL,DSL);XZU411,413,414,423,424,433..T4..(DCRL,DSL,DSLL) |
2 | ||
| 95333-08030 |
XZU388,40#,41#,42#,433 |
2 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08028 |
XZU411..DCB..T5;XZU411..T3..6FC;XZU388,40#,415,421..(DM7,T3,T4)..(DCRL,DSL);XZU411,413,414,423,424,433..T4..(DCRL,DSL,DSLL) |
2 | ||
| 95333-08030 |
XZU388,40#,41#,42#,433 |
2 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
2 | ||
| 90105-12116 |
XZU388,40#,41#,42#,433 |
1 | ||
| 90105-12116 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 90105-12116 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
2 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
2 | ||
| 90430-12245 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 90430-12245 |
XZU388,40#,41#,42#,433 |
1 | ||
| 90430-12245 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
2 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37221 |
XZU388,40#,41#,42#,433..DM7,T3,T4,T5 960X310X385,ﾌﾕ-ｴﾙ ﾀﾝｸ=100L |
1 | ||
| 77001-37222 |
XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL) 960X310X385,ﾌﾕ-ｴﾙ ﾀﾝｸ=100L |
1 | ||
| 77135A - PROTECTOR, FUEL TANK SIDE | ||||
| 77135-37110 |
XZU41#,42#..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 77135A - PROTECTOR, FUEL TANK SIDE | ||||
| 77135-37110 |
XZU41#,42#..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 90977-02001 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37010 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 77244-37010 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
XZU412..DCB..T4;XZU412..DCB..T5..CBU;XZU382,400,430..IV3,IV5,IV6;BU410,420,430,XZU401,41#,42#..(T3,T5)..(IV3,IV6) |
2 | ||
| 77601-36140 |
XZU400,401..(DM7,T3)..CBU;BU410,420,430,XZU41#,42#,430..SCB..(T3,T5) ｱﾘ(ｻﾌﾞ ﾌﾕ-ｴﾙﾀﾝｸ) |
2 | ||
| 77601-36150 |
XZU411..DCB..T5;XZU411,433..T4..CBU;XZU40#,413,414,42#..T4;XZU40#,413,414,42#..(DM7,T3,T5)..IV3;XZU388,411,415,433..(T3,T4,T5)..(IV3,IV5) |
2 | ||
| 77601-36140 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 77629-36010 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
4 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
4 | ||
| 77616-36030 |
XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37080 |
XZU412..DCB..T4;XZU412..DCB..T5..CBU;XZU382,400,430..IV3,IV5,IV6;BU410,420,430,XZU401,41#,42#..(T3,T5)..(IV3,IV6) |
2 | ||
| 77633-37100 |
XZU400,401..(DM7,T3)..CBU;BU410,420,430,XZU41#,42#,430..SCB..(T3,T5) ｱﾘ(ｻﾌﾞ ﾌﾕ-ｴﾙﾀﾝｸ) |
2 | ||
| 77633-37100 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
4 | ||
| 77501-37080 |
XZU411..DCB..T5;XZU411,433..T4..CBU;XZU40#,413,414,42#..T4;XZU388,411,415,433..(T3,T4,T5)..(IV3,IV5);XZU40#,413,414,42#..(DM7,T3,T5)..(DCRL,DSL,DSLL)..IV3 |
2 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06040 |
XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL) *H,L=400 |
1 | ||
| Common parts | ||||
| 90179-08249 | ||||
| 90179-10015 | ||||
| 91611-B0616 | ||||
| 91626-40616 | ||||
| 91641-80825 | ||||
| 91642-81030 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
ILLUST NO. 1 OF 2(0406- )XZU411,413,414..SCB..T3,T5..MTM..DCRL,DSL,DSLL
ﾌｭｰｴﾙ ﾀﾝｸ(ｻﾌﾞ ﾀﾝｸｱﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37010 |
XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL) |
1 | ||
| 77017-37010 |
XZU382;XZU412..DCB..T4;BU410,420,430,XZU400,401,41#,42#,430..DM7,T3,T5 |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-37050 |
XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL) |
1 | ||
| 77018H - VALVE SUB-ASSY, FUEL VAPOR SEPARATE | ||||
| 77018-37061 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) *H,L=280,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) *H,L=280,内径=7.6 |
2 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08028 |
XZU411..DCB..T5;XZU411..T3..6FC;XZU388,40#,415,421..(DM7,T3,T4)..(DCRL,DSL);XZU411,413,414,423,424,433..T4..(DCRL,DSL,DSLL) |
2 | ||
| 95333-08030 |
XZU388,40#,41#,42#,433 |
2 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08028 |
XZU411..DCB..T5;XZU411..T3..6FC;XZU388,40#,415,421..(DM7,T3,T4)..(DCRL,DSL);XZU411,413,414,423,424,433..T4..(DCRL,DSL,DSLL) |
2 | ||
| 95333-08030 |
XZU388,40#,41#,42#,433 |
2 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
2 | ||
| 90105-12116 |
XZU388,40#,41#,42#,433 |
1 | ||
| 90105-12116 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 90105-12116 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
2 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
2 | ||
| 90105-12116 |
XZU388,40#,41#,42#,433 |
1 | ||
| 90105-12116 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 90105-12116 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
2 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
2 | ||
| 90430-12245 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 90430-12245 |
XZU388,40#,41#,42#,433 |
1 | ||
| 90430-12245 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
2 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
2 | ||
| 90430-12245 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 90430-12245 |
XZU388,40#,41#,42#,433 |
1 | ||
| 90430-12245 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
2 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37221 |
XZU388,40#,41#,42#,433..DM7,T3,T4,T5 960X310X385,ﾌﾕ-ｴﾙ ﾀﾝｸ=100L |
1 | ||
| 77001-37222 |
XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL) 960X310X385,ﾌﾕ-ｴﾙ ﾀﾝｸ=100L |
1 | ||
| 77100V - HOSE, FUEL | ||||
| 95332-10014 |
XZU41#..T3,T5 |
2 | ||
| 95332-10014 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) |
2 | ||
| 77100V - HOSE, FUEL | ||||
| 95332-10014 |
XZU41#..T3,T5 |
2 | ||
| 95332-10014 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) |
2 | ||
| 77100Z - TANK SUB-ASSY, FUEL SUB | ||||
| 77001-37232 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) 690X310X385 |
1 | ||
| 77001-37231 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) 690X310X385 |
1 | ||
| 77001-37230 |
BU410,420,430,XZU41#,42#,430..SCB..(T3,T5) 690X310X385 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-36050 |
BU410,420,430,XZU41#,42#,430..SCB..(T3,T5) |
2 | ||
| 77168-36050 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) |
2 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-36050 |
BU410,420,430,XZU41#,42#,430..SCB..(T3,T5) |
2 | ||
| 77168-36050 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
BU410,420,430,XZU41#,42#,430..SCB..(T3,T5) |
2 | ||
| 83361-20030 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
BU410,420,430,XZU41#,42#,430..SCB..(T3,T5) |
2 | ||
| 83361-20030 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) |
2 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 90977-02001 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 77197C - ORIFICE | ||||
| 90977-02001 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37010 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 77244-37010 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
2 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37130 |
XZU411,413,414..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) |
1 | ||
| 77501-37130 |
BU420,430..(T3,T5)..6F..(20T,35T);BU410,XZU41#,42#,430..SCB..(T3,T5)..(20T,295T,30T,35T,40T) |
1 | ||
| 77502D - BRACKET SUB-ASSY, FUEL TANK, REAR | ||||
| 77502-37080 |
BU410,XZU41#..SCB..(T3,T5) |
1 | ||
| 77502-37080 |
XZU411,413,414..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
XZU412..DCB..T4;XZU412..DCB..T5..CBU;XZU382,400,430..IV3,IV5,IV6;BU410,420,430,XZU401,41#,42#..(T3,T5)..(IV3,IV6) |
2 | ||
| 77601-36140 |
XZU400,401..(DM7,T3)..CBU;BU410,420,430,XZU41#,42#,430..SCB..(T3,T5) ｱﾘ(ｻﾌﾞ ﾌﾕ-ｴﾙﾀﾝｸ) |
2 | ||
| 77601-36150 |
XZU411..DCB..T5;XZU411,433..T4..CBU;XZU40#,413,414,42#..T4;XZU40#,413,414,42#..(DM7,T3,T5)..IV3;XZU388,411,415,433..(T3,T4,T5)..(IV3,IV5) |
2 | ||
| 77601-36140 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
4 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
XZU412..DCB..T4;XZU412..DCB..T5..CBU;XZU382,400,430..IV3,IV5,IV6;BU410,420,430,XZU401,41#,42#..(T3,T5)..(IV3,IV6) |
2 | ||
| 77601-36140 |
XZU400,401..(DM7,T3)..CBU;BU410,420,430,XZU41#,42#,430..SCB..(T3,T5) ｱﾘ(ｻﾌﾞ ﾌﾕ-ｴﾙﾀﾝｸ) |
2 | ||
| 77601-36150 |
XZU411..DCB..T5;XZU411,433..T4..CBU;XZU40#,413,414,42#..T4;XZU40#,413,414,42#..(DM7,T3,T5)..IV3;XZU388,411,415,433..(T3,T4,T5)..(IV3,IV5) |
2 | ||
| 77601-36140 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 77629-36010 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 77629-36010 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
4 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
4 | ||
| 77616-36030 |
XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL) |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
4 | ||
| 77616-36030 |
XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37080 |
XZU412..DCB..T4;XZU412..DCB..T5..CBU;XZU382,400,430..IV3,IV5,IV6;BU410,420,430,XZU401,41#,42#..(T3,T5)..(IV3,IV6) |
2 | ||
| 77633-37100 |
XZU400,401..(DM7,T3)..CBU;BU410,420,430,XZU41#,42#,430..SCB..(T3,T5) ｱﾘ(ｻﾌﾞ ﾌﾕ-ｴﾙﾀﾝｸ) |
2 | ||
| 77633-37100 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
4 | ||
| 77501-37080 |
XZU411..DCB..T5;XZU411,433..T4..CBU;XZU40#,413,414,42#..T4;XZU388,411,415,433..(T3,T4,T5)..(IV3,IV5);XZU40#,413,414,42#..(DM7,T3,T5)..(DCRL,DSL,DSLL)..IV3 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37080 |
XZU412..DCB..T4;XZU412..DCB..T5..CBU;XZU382,400,430..IV3,IV5,IV6;BU410,420,430,XZU401,41#,42#..(T3,T5)..(IV3,IV6) |
2 | ||
| 77633-37100 |
XZU400,401..(DM7,T3)..CBU;BU410,420,430,XZU41#,42#,430..SCB..(T3,T5) ｱﾘ(ｻﾌﾞ ﾌﾕ-ｴﾙﾀﾝｸ) |
2 | ||
| 77633-37100 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ) |
4 | ||
| 77501-37080 |
XZU411..DCB..T5;XZU411,433..T4..CBU;XZU40#,413,414,42#..T4;XZU388,411,415,433..(T3,T4,T5)..(IV3,IV5);XZU40#,413,414,42#..(DM7,T3,T5)..(DCRL,DSL,DSLL)..IV3 |
2 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06040 |
XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL) *H,L=400 |
1 | ||
| 77701V - VALVE, CHECK (FOR SUB-FUEL TANK) | ||||
| 95333-06060 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) |
1 | ||
| 77710 - COCK ASSY, FUEL CHANGE | ||||
| 77710-37050 |
BU410,XZU41#..SCB..(T3,T5) |
1 | ||
| 77710-37050 |
XZU411,413,414..SCB..(T3,T5)..(DCRL,DSL,DSLL) |
1 | ||
| 77710-37051 |
XZU411,413,414..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) |
1 | ||
| 77712 - VALVE, FUEL CHANGE COCK | ||||
| 77712-36011 |
BU410,420,430,XZU41#,42#,430..SCB..(T3,T5) |
1 | ||
| 77712-36011 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) |
1 | ||
| 77713 - LEVER, FUEL CHANGE COCK | ||||
| 77713-36010 |
BU410,420,430,XZU41#,42#,430..SCB..(T3,T5) |
1 | ||
| 77713-36010 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) |
1 | ||
| 77714 - CAP, FUEL CHANGE COCK | ||||
| 77714-36010 |
XZU411,413,414,42#,433..SCB..(T3,T5)..MTM..(DCRL,DSL,DSLL) |
1 | ||
| 77714-36010 |
BU410,420,430,XZU41#,42#,430..SCB..(T3,T5) |
1 | ||
| Common parts | ||||
| 90179-08233 | ||||
| 90179-10015 | ||||
| 90202-09047 | ||||
| 90250-03031 | ||||
| 90386-08164 | ||||
| 90401-12007 | ||||
| 90405-10008 | ||||
| 90461-07033 | ||||
| 90467-12011 | ||||
| 90467-15012 | ||||
| 90480-14006 | ||||
| 91626-40616 | ||||
| 91641-80830 | ||||
| 91645-C1032 | ||||
| 93319-15010 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 96132-51300 | ||||
| 96713-19017 | ||||
| 96713-24011 | ||||

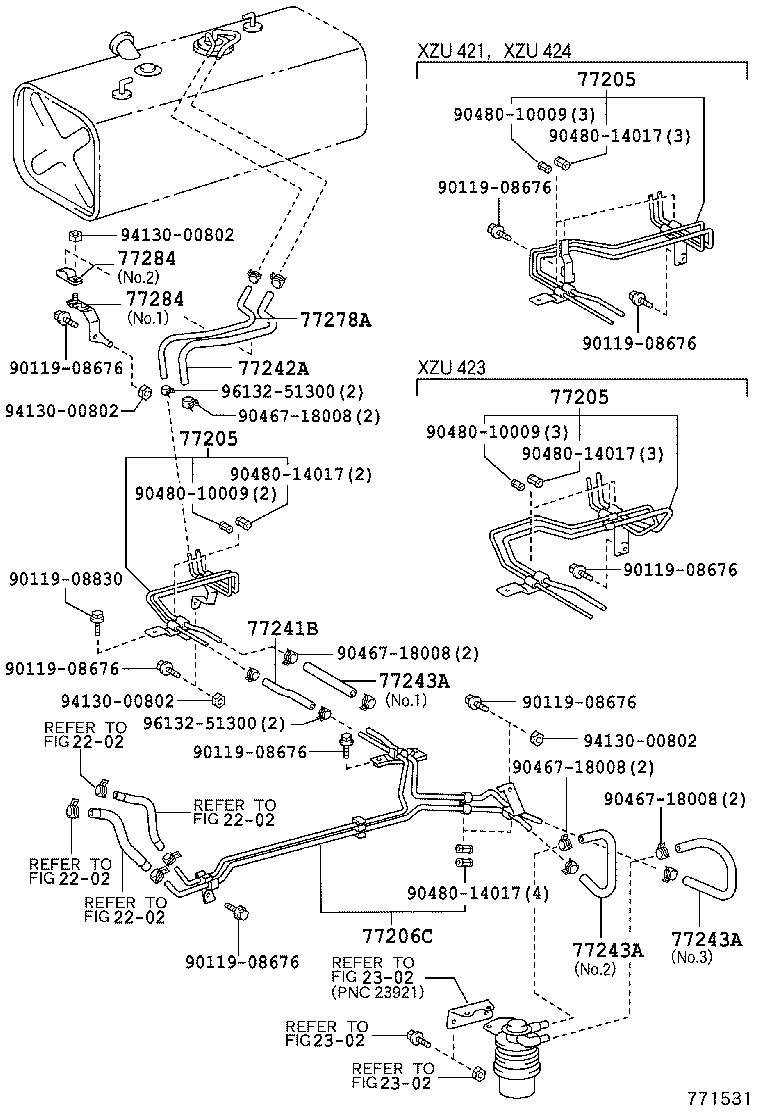

ILLUST NO. 2 OF 2(0406- )XZU41#,42#,454..SCB
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37560 |
XZU41# |
1 | ||
| 77205-37840 |
XZU413..T3,T5 |
1 | ||
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37560 |
XZU41# |
1 | ||
| 77205-37840 |
XZU413..T3,T5 |
1 | ||
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37560 |
XZU41# |
1 | ||
| 77205-37840 |
XZU413..T3,T5 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37A90 |
XZU413,423,433 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08020 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL *H,L=160,内径=7.6 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12055 |
BU410,420,XZU41#,42#..SCB..(4FC,6F) *H,L=550,内径=12 |
1 | ||
| 95332-12055 |
XZU41#,42#..SCB..(DCRL,DSL,DSLL) *H,L=550,内径=12 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12026 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL *H,L=260,内径=12,NO.2 |
1 | ||
| 95332-12032 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) *H,L=320,内径=12,NO.3 |
1 | ||
| 95332-12016 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL *H,L=160,内径=12,NO.1 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12026 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL *H,L=260,内径=12,NO.2 |
1 | ||
| 95332-12032 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) *H,L=320,内径=12,NO.3 |
1 | ||
| 95332-12016 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL *H,L=160,内径=12,NO.1 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12026 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL *H,L=260,内径=12,NO.2 |
1 | ||
| 95332-12032 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) *H,L=320,内径=12,NO.3 |
1 | ||
| 95332-12016 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL *H,L=160,内径=12,NO.1 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08060 |
BU410,420,XZU41#,42#..SCB..(4FC,6F) *H,L=550,内径=7.6 |
1 | ||
| 95333-08060 |
XZU41#,42#..SCB..(DCRL,DSL,DSLL) *H,L=550,内径=7.6 |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 77286-37290 |
BU410,420,XZU41#,42#..SCB..(T3,T5) TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90034-61051 |
BU410,420,XZU41#,42#..4FC,6F TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77286-37310 |
XZU411..DCB..T5;XZU413,414,42#..T4;XZU411,415,433..IV3;XZU411,433..(T2,T4)..CBU;XZU413,414,42#..(T3,T5)..(DCRL,DSL,DSLL)..IV3 NO.1 |
1 | ||
| 90034-61051 |
XZU41#,42#..DCRL,DSL,DSLL NO.2 |
1 | ||
| 77286-37290 |
XZU411,413,414,42#..(T3,T5)..MTM..(DCRL,DSL,DSLL)..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ),NO.1 |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 77286-37290 |
BU410,420,XZU41#,42#..SCB..(T3,T5) TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90034-61051 |
BU410,420,XZU41#,42#..4FC,6F TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77286-37310 |
XZU411..DCB..T5;XZU413,414,42#..T4;XZU411,415,433..IV3;XZU411,433..(T2,T4)..CBU;XZU413,414,42#..(T3,T5)..(DCRL,DSL,DSLL)..IV3 NO.1 |
1 | ||
| 90034-61051 |
XZU41#,42#..DCRL,DSL,DSLL NO.2 |
1 | ||
| 77286-37290 |
XZU411,413,414,42#..(T3,T5)..MTM..(DCRL,DSL,DSLL)..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞ ﾀﾝｸ),NO.1 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90467-18008 | ||||
| 90480-10009 | ||||
| 90480-14017 | ||||
| 94130-00802 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
