XZU413-TKFSW3 (2004)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(7708- )HU30,JU20,RU2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-12002 | ||||
| 90119-10065 | ||||
| 90201-12002 | ||||
| 90201-15005 | ||||
| 90240-10009 | ||||
| 90468-16012 | ||||
| 91112-51460 | ||||
| 91161-71230 | ||||
| 94115-51200 | ||||
| 94512-01400 | ||||
| 94611-11001 | ||||
| Linked diagrams | ||||
| 5151 | ||||

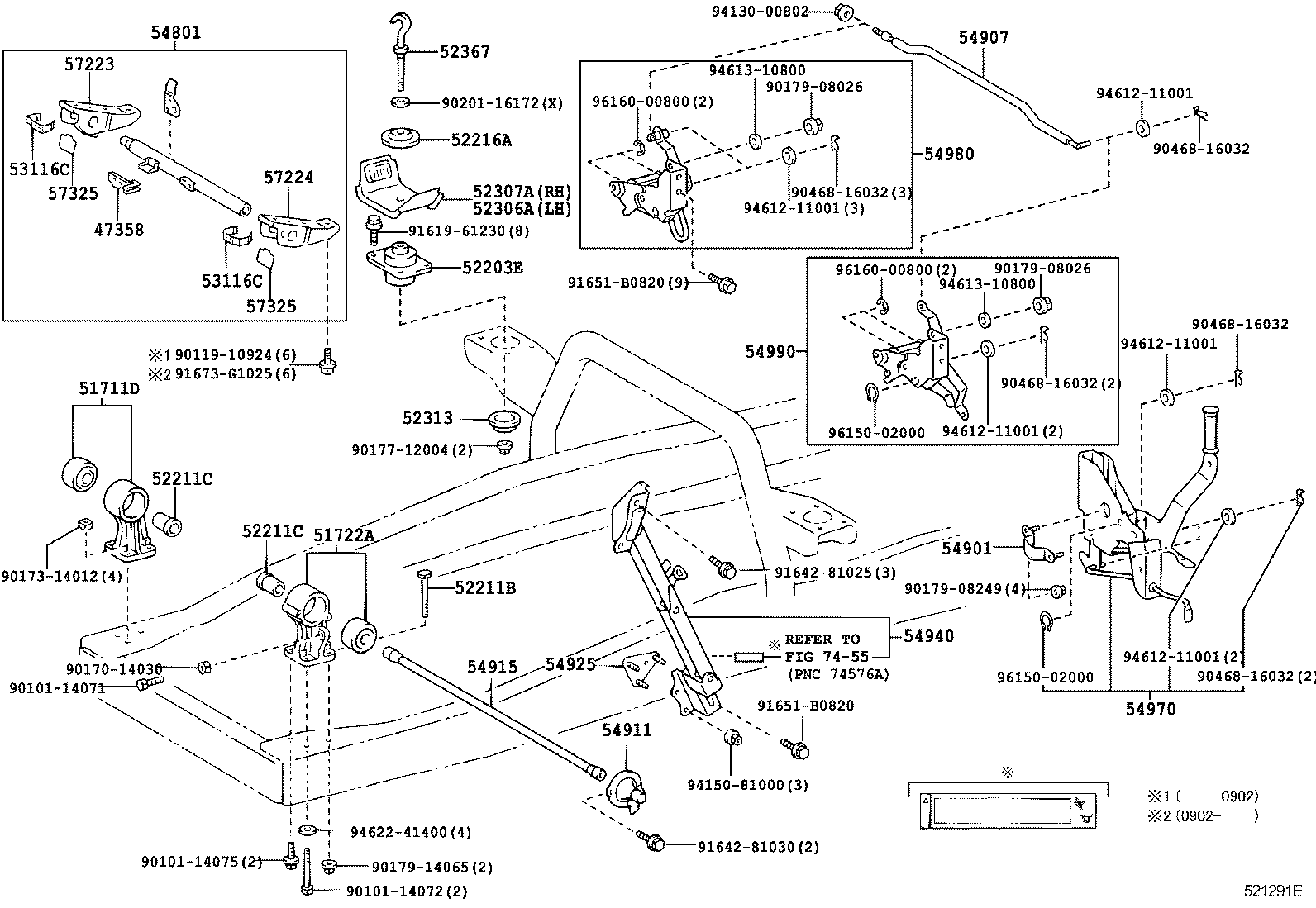

(0406- )BZU410,XZU40#,41#,42#,43#,454..SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47358 - TUBE, BOOSTER TO RESERVOIR, NO.2 | ||||
| 47358-37010 |
BZU410,XZU388,40#,41#,42#,433 |
1 | ||
| 47358-37010 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 51711D - BRACKET, CAB FRONT MOUNTING | ||||
| 51701-37180 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 51722A - BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH | ||||
| 51702-37181 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 51702-37180 |
BU400,410,420,430,XZU40#,41#,42#,430 |
1 | ||
| 52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 | ||||
| 52203-37030 |
XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
2 | ||
| 52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90109-14011 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-37010 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-37010 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 52216A - STOPPER, CAB MOUNTING CUSHION | ||||
| 52216-37030 |
XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
2 | ||
| 52306A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1 | ||||
| 52306-37030 |
XZU40#,41#,42#,430 |
1 | ||
| 52306-37032 |
XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 52307A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2 | ||||
| 52307-37010 |
XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 52313 - STOPPER, CAB REAR MOUNTING REBOUND | ||||
| 52313-37030 |
XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
2 | ||
| 52367 - HOOK, CAB REAR MOUNTING | ||||
| 52367-37020 |
XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
2 | ||
| 53116C - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53116-37030 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 53116-37030 |
BZU410,XZU388,40#,41#,42#,433 |
2 | ||
| 53116C - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53116-37030 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 53116-37030 |
BZU410,XZU388,40#,41#,42#,433 |
2 | ||
| 54801 - TUBE SUB-ASSY, TILT CAB, NO.1 | ||||
| 54801-37063 |
BZU410,XZU388,40#,41#,42#,433 |
1 | ||
| 54801-37060 |
BU400,410,420,430,XZU382,40#,41#,42#,430..SCB |
1 | ||
| 54801-37064 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 54901 - BRACKET SUB-ASSY, TILT CAB LOCK | ||||
| 54901-37030 |
XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 54907 - PIPE SUB-ASSY, TILT CAB LOCK CONNECTING | ||||
| 54907-37010 |
XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 54911 - ARM, TILT CAB SPRING SUPPORT, NO.1 | ||||
| 54911-37030 |
XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 54915 - SPRING, TILT CAB, NO.1 | ||||
| 54915-37120 |
XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 54925 - RETAINER, TILT CAB SPRING | ||||
| 54925-37040 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 54940 - STAY ASSY, TILT CAB | ||||
| 54940-37070 |
BU400,410,420,430,XZU40#,41#,42#,430..SCB |
1 | ||
| 54940-37130 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 54970 - LATCH ASSY, TILT CAB STOPPER | ||||
| 54970-37040 |
BU400,410,420,430,XZU382,40#,41#,42#,430..SCB |
1 | ||
| 54970-37043 |
BZU410,XZU388,40#,41#,42#,433..SCB |
1 | ||
| 54980 - LOCK ASSY, TILT CAB MOUNTING, RH | ||||
| 54980-37010 |
BU400,410,420,430,XZU382,40#,41#,42#,430..SCB |
1 | ||
| 54980-37011 |
XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 54990 - LOCK ASSY, TILT CAB MOUNTING, LH | ||||
| 54990-37052 |
XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 54990-37050 |
BU400,410,420,430,XZU382,40#,41#,42#,430..SCB |
1 | ||
| 57223 - BRACKET, FRONT MOUNTING, RH | ||||
| 57223-37011 |
BZU410,XZU388,40#,41#,42#,433 |
1 | ||
| 57223-37011 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 57223-37010 |
BU400,410,420,430,XZU382,40#,41#,42#,430 |
1 | ||
| 57224 - BRACKET, FRONT MOUNTING, LH | ||||
| 57224-37011 |
BZU410,XZU388,40#,41#,42#,433 |
1 | ||
| 57224-37010 |
BU400,410,420,430,XZU382,40#,41#,42#,430 |
1 | ||
| 57224-37011 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 57325 - REINFORCEMENT, FRONT MOUNTING | ||||
| 57325-37010 |
BZU410,XZU388,40#,41#,42#,433 |
2 | ||
| 57325-37010 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 57325 - REINFORCEMENT, FRONT MOUNTING | ||||
| 57325-37010 |
BZU410,XZU388,40#,41#,42#,433 |
2 | ||
| 57325-37010 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| Common parts | ||||
| 90101-14071 | ||||
| 90101-14072 | ||||
| 90101-14075 | ||||
| 90119-10924 | ||||
| 90170-14030 | ||||
| 90173-14012 | ||||
| 90177-12004 | ||||
| 90179-08026 | ||||
| 90179-08249 | ||||
| 90179-14065 | ||||
| 90201-16172 | ||||
| 90468-16032 | ||||
| 91619-61230 | ||||
| 91642-81025 | ||||
| 91642-81030 | ||||
| 91651-B0820 | ||||
| 91673-G1025 | ||||
| 94130-00802 | ||||
| 94150-81000 | ||||
| 94612-11001 | ||||
| 94613-10800 | ||||
| 94622-41400 | ||||
| 96150-02000 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7455 | ||||
