XZU413-TKFSW3 (2004)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(0406-0610)MTM
ｶﾄｳｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-37070 |
BU410,420,430,XZU41#,42#,430..6F |
1 | ||
| 33055-37080 |
BU410,420,430,XZU41#,42#,430..6F ﾅｼ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 33055-37050 |
BZU410,XZU388,40#,41#,42#,433..MTM |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-37030B0 |
BU410,420,430,XZU41#,42#,430..6F DK.CHARCOAL,TRIM1# |
1 | ||
| 33504-37060B0 |
XZU404,413,414,415,423,424,433..6F..(DCRL,DSLL) DK.CHARCOAL,TRIM1# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-37030 |
BU400,410,420,430,XZU382,40#,41#,42#,430..MTM |
1 | ||
| 33506-37031 |
BZU410,XZU388,40#,41#,42#,433..MTM |
1 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 90386-12056 |
BZU410,XZU388,40#,41#,42#,433 |
4 | ||
| 33546-37010 |
XZU388,40#,41#,42#,433..MTM..(DCRL,DSL,DSLL) |
4 | ||
| 33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33577-37060 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
4 | ||
| 33534 - BELLCRANK, SELECTING | ||||
| 33534-37060 |
BZU410,XZU388,40#,41#,42#,433..MTM |
1 | ||
| 33534-37060 |
BU420..6F..(20T,35T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,BZU410,XZU382,40#,410,420..MTM;XZU411,412,421,430..6F..(295T,30T,35T,40T) |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-12010 |
BU420..6F..(20T,35T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,BZU410,XZU382,40#,410,420..MTM;XZU411,412,421,430..6F..(295T,30T,35T,40T) |
1 | ||
| 33539-12010 |
BZU410,XZU388,40#,41#,42#,433..MTM |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12040 |
BZU410,XZU388,40#,41#,42#,433..MTM |
1 | ||
| 33548-12040 |
BU420..6F..(20T,35T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,BZU410,XZU382,40#,410,420..MTM;XZU411,412,421,430..6F..(295T,30T,35T,40T) |
1 | ||
| 33586A - STOPPER, CONTROL LEVER (FOR FLOOR SHIFT) | ||||
| 33586-37020 |
XZU411..T3..6F..DSL;XZU411..(T2,T4,T5)..MTM;BU400,410,420,430,BZU410,XZU382,40#,410,412,42#,430..MTM |
1 | ||
| 33586-37010 |
BZU410,XZU388,40#,41#,42#,433..MTM |
1 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
BU420..6F..(20T,35T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,BZU410,XZU382,40#,410,420..MTM;XZU411,412,421,430..6F..(295T,30T,35T,40T) |
2 | ||
| 90386-13007 |
BZU410,XZU388,40#,41#,42#,433..MTM |
2 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
BU420..6F..(20T,35T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,BZU410,XZU382,40#,410,420..MTM;XZU411,412,421,430..6F..(295T,30T,35T,40T) |
2 | ||
| 90386-13007 |
BZU410,XZU388,40#,41#,42#,433..MTM |
2 | ||
| 33602D - COLLAR (FOR SELECT LEVER) | ||||
| 90387-08063 |
BU420..6F..(20T,35T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,BZU410,XZU382,40#,410,420..MTM;XZU411,412,421,430..6F..(295T,30T,35T,40T) |
1 | ||
| 90387-08063 |
BZU410,XZU388,40#,41#,42#,433..MTM |
1 | ||
| 33602E - SPRING, TORSION (FOR SELECT LEVER) | ||||
| 90949-03034 |
XZU411,412,421..5F;BU420..6F..(20T,35T);BU410,430,XZU382,40#,410,420..MTM;XZU411,412,421,430..6F..(295T,30T,35T,40T) |
1 | ||
| 33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT) | ||||
| 33602-37020 |
BZU410,XZU388,40#,41#,42#,433..MTM |
1 | ||
| 33602-37020 |
BU420..6F..(20T,35T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,BZU410,XZU382,40#,410,420..MTM;XZU411,412,421,430..6F..(295T,30T,35T,40T) |
1 | ||
| 36385A - SPRING, FLOOR SHIFT LEVER TORSION, NO.1 | ||||
| 36385-37010 |
XZU404,413,414,415,423,424,433..6F |
1 | ||
| Common parts | ||||
| 33529-37020 | ||||
| 90119-08190 | ||||
| 90179-08054 | ||||
| 90387-08159 | ||||
| 90389-11006 | ||||
| 91111-50840 | ||||
| 91611-B0614 | ||||
| 94613-10601 | ||||
| 96151-01700 | ||||
| Linked diagrams | ||||
| 5855 | ||||
ILLUST NO. 1 OF 2(0406- )MTM..CNG,DCR,DCRL,DSL,DSLL,LPG
ｺﾃｲｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-37030B0 |
BU410,420,430,XZU41#,42#,430..6F DK.CHARCOAL,TRIM1# |
1 | ||
| 33504-37060B0 |
XZU404,413,414,415,423,424,433..6F..(DCRL,DSLL) DK.CHARCOAL,TRIM1# |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-37160 |
XZU404,413,414,415,423,424,433..6F |
1 | ||
| 33550-37161 |
XZU404,413,414,415,423,424,433..6F..(DCRL,DSLL) |
1 | ||
| Common parts | ||||
| 90119-08190 | ||||
| Linked diagrams | ||||
| 5855 | ||||

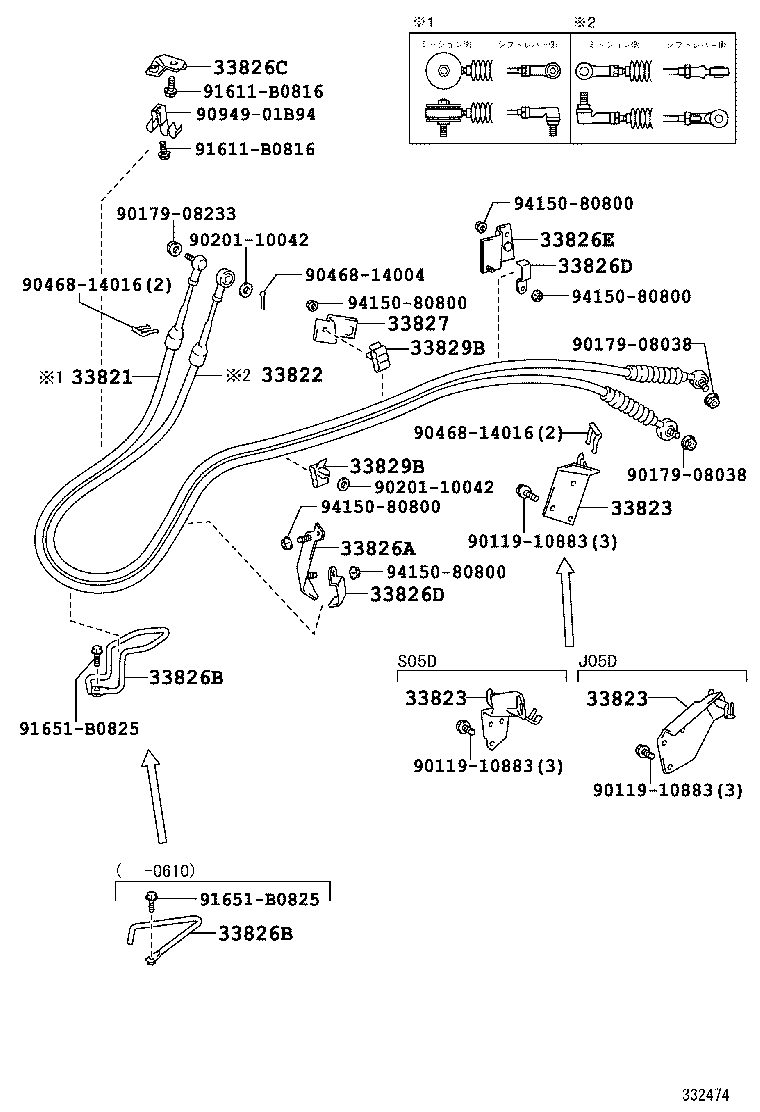

ILLUST NO. 2 OF 2(0406- )XZU40#,41#,42#,433..MTM..DCR,DCRL,DSL,DSLL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33820-3V100 |
XZU40#,41#,42#,430..MTM |
1 | ||
| 33820-3V540 |
XZU413,423,433 |
1 | ||
| 33820-3V541 |
XZU413,423,433 |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33820-3V110 |
XZU40#,41#,42#,430..MTM |
1 | ||
| 33830-37150 |
XZU413,423,433 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37720 |
XZU413,423,433 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37720 |
XZU413,423,433 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37720 |
XZU413,423,433 |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37A50 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37320 |
BU400,410,420,430,XZU40#,41#,42#,430 |
1 | ||
| 33826-37A40 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 33826-37890 |
XZU40#,41#,42#,433 |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37320 |
BU400,410,420,430,XZU40#,41#,42#,430 |
1 | ||
| 33826-37A40 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 33826-37890 |
XZU40#,41#,42#,433 |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33826-37680 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33826-37580 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33826-37580 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| Common parts | ||||
| 90119-10883 | ||||
| 90179-08038 | ||||
| 90179-08233 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90949-01B94 | ||||
| 91611-B0816 | ||||
| 91651-B0825 | ||||
| 94150-80800 | ||||
