XZU413-TKFSW3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006
Engine J05D
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0406-0610)XZU413,423,433

Click highlighted areas on diagram

MZZ6R

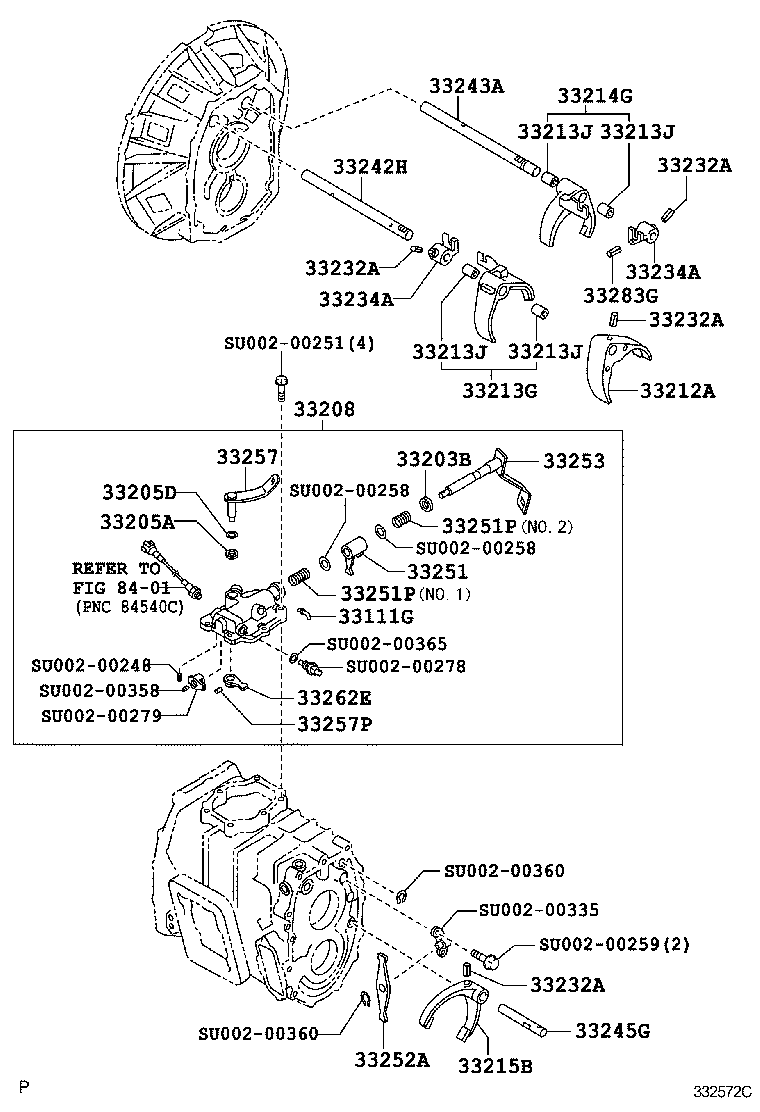

diagram 33111G 33203B 33205A 33205D 33208 33212A 33213G 33213J 33213J 33213J 33213J 33214G 33215B 33232A 33232A 33232A 33232A 33234A 33234A 33242H 33243A 33245G 33251 33251P 33251P 33252A 33253 33257 33257P 33262E 33283G 8401 SU00200248 SU00200251 SU00200258 SU00200258 SU00200259 SU00200278 SU00200279 SU00200335 SU00200358 SU00200360 SU00200360 SU00200365
Part # Description Qty Price
33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
SU002-00274

XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)

 1
33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT)
SU002-00355

XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)

 1
33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
SU002-00264

XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)

 1
33205D - WASHER(FOR OUTER LEVER OIL SETTING)
SU002-00357

XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)

 1
33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT
SU002-00536

XZU413,423,433

 1
SU002-01025

XZU413,423,433

 1
33212A - FORK, GEAR SHIFT, NO.1
SU002-00401

XZU413,423,433

 1
33213G - FORK, GEAR SHIFT, NO.2
SU002-00443

XZU413,423,433

 1
33213J - BUSHING, SHIFT ARM
SU002-00161

XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)

 4
33213J - BUSHING, SHIFT ARM
SU002-00161

XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)

 4
33213J - BUSHING, SHIFT ARM
SU002-00161

XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)

 4
33213J - BUSHING, SHIFT ARM
SU002-00161

XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)

 4
33214G - FORK, GEAR SHIFT, NO.3
SU002-00444

XZU413,423,433

 1
33215B - FORK, GEAR SHIFT, NO.4
SU002-00402

XZU413,423,433

 1
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
SU002-00127

XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)

 4
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
SU002-00127

XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)

 4
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
SU002-00127

XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)

 4
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
SU002-00127

XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)

 4
33234A - HEAD, GEAR SHIFT, NO.3
SU002-00281

XZU413,423,433

 2
33234A - HEAD, GEAR SHIFT, NO.3
SU002-00281

XZU413,423,433

 2
33242H - SHAFT, GEAR SHIFT FORK, NO.1
SU002-00403

XZU413,423,433

 1
33243A - SHAFT, GEAR SHIFT FORK, NO.2
SU002-00404

XZU413,423,433

 1
33245G - SHAFT, GEAR SHIFT FORK, NO.4
SU002-00333

XZU404,413,414,415,423,424,433..6F..(DCRL,DSLL)

 1
33251 - LEVER, SHIFT & SELECT
SU002-00249

XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)

 1
33251P - SPRING (FOR SHIFT & SELECT LEVER)
SU002-00352

XZU404,413,414,415,423,424,433..6F..(DCRL,DSLL)

NO.1

 1
SU002-00353

XZU404,413,414,415,423,424,433..6F..(DCRL,DSLL)

NO.2

 1
33251P - SPRING (FOR SHIFT & SELECT LEVER)
SU002-00352

XZU404,413,414,415,423,424,433..6F..(DCRL,DSLL)

NO.1

 1
SU002-00353

XZU404,413,414,415,423,424,433..6F..(DCRL,DSLL)

NO.2

 1
33252A - LEVER, SHIFT, INNER NO.2
SU002-00405

XZU413,423,433

 1
33253 - LEVER, SHIFT OUTER, NO.1
SU002-00540

XZU413,423,433

 1
33257 - LEVER, SELECT OUTER
SU002-00541

XZU413,423,433

 1
33257P - PIN, SELECT OUTER LEVER LOCK
SU002-00271

XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)

 1
33262E - SHAFT, SELECT LEVER
SU002-00252

XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)

 1
33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
SU002-00272

XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)

 1
Common parts
SU002-00248
SU002-00251
SU002-00258
SU002-00259
SU002-00278
SU002-00279
SU002-00335
SU002-00358
SU002-00360
SU002-00365
Linked diagrams
8401
