Toyota Dyna/toyoace XZU413 AIR CLEANER

XZU413-TKFSW3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006

Engine J05D

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

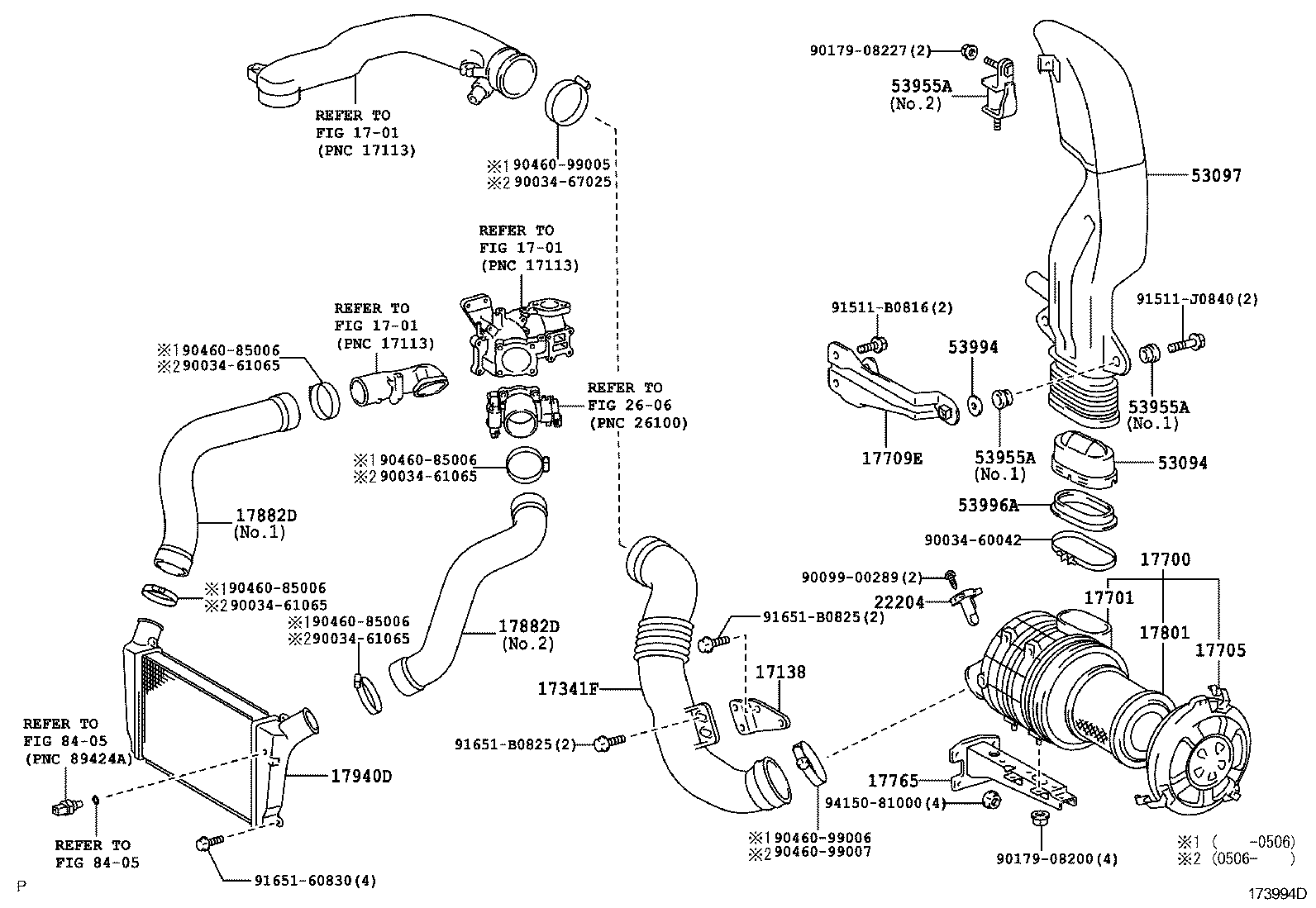

(0406-0511)J05D

Click highlighted areas on diagram

Part #	Description	Period	Qty
17138 - STAY, INTAKE PIPE OR HOSE
17138-78030	J05D..XZU413,423,433	06/2004 - 10/2006	1
17341F - HOSE, AIR, NO.1
17030-78341	J05D..XZU413,423,433	06/2004 - 10/2006	1
17700 - CLEANER ASSY, AIR
17700-78200	J05D,N04C,S05D..XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-78160	J05D,N04C,S05D..XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-78020	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	1
17709E - BRACKET, AIR CLEANER INLET, NO.2
53773-37080	J05D,N04C,S05D..XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
17765 - STAY, AIR CLEANER, NO.1
17706-78150	J05D,N04C,S05D..XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-78020	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	1
17882D - HOSE, COOL AIR INTAKE
17882-78120	J05D..XZU413,423,433 NO.2	06/2004 - 11/2005	1
17343-78050	J05D..XZU413,423,433 NO.2	11/2005 - 08/2006	1
17882-78110	J05D..XZU413,423,433 NO.1	06/2004 - 10/2006	1
17343-78051	J05D..XZU413,423,433 NO.2	09/2006 - 10/2006	1
17882D - HOSE, COOL AIR INTAKE
17882-78120	J05D..XZU413,423,433 NO.2	06/2004 - 11/2005	1
17343-78050	J05D..XZU413,423,433 NO.2	11/2005 - 08/2006	1
17882-78110	J05D..XZU413,423,433 NO.1	06/2004 - 10/2006	1
17343-78051	J05D..XZU413,423,433 NO.2	09/2006 - 10/2006	1
17940D - INTERCOOLER ASSY
17940-78060	J05D..XZU413,423,433	06/2004 - 11/2005	1
17940-78061	J05D..XZU413,423,433	11/2005 - 10/2006	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-21010	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	1
53094 - INLET, AIR CLEANER PIPE, NO.3
53094-37010	XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
53094-37010	XZU421..T5..5F;XZU421..6F..30T;XZU411..T3..DSLL;XZU382,40#,410,420;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..DSL;XZU411,412,430..(295T,30T,35T,40T)..DSL	05/1999 - 06/2004	1
53097 - INLET SUB-ASSY
53097-37280	XZU388,404,413,414,415,423,424,433	06/2004 - 09/2006	1
53097-37240	XZU421..T5..5F;XZU421..6F..30T;XZU411..T3..DSLL;XZU382,40#,410,420;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..DSL;XZU411,412,430..(295T,30T,35T,40T)..DSL	05/1999 - 06/2004	1
53955A - CUSHION, AIR CLEANER INLET NO.1
53955-37020	XZU421..T5..5F;XZU421..6F..30T;XZU382,40#,410,420;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) NO.1	05/1999 - 06/2004	6
53955-37040	XZU421..T5..5F;XZU421..6F..30T;XZU382,40#,410,420;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) NO.2	05/1999 - 06/2004	1
53955-37020	XZU388,404,413,414,415,423,424,433..DCRL,DSLL NO.1	06/2004 - 10/2006	4
53955-37040	XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) NO.2	06/2004 - 10/2006	1
53955A - CUSHION, AIR CLEANER INLET NO.1
53955-37020	XZU421..T5..5F;XZU421..6F..30T;XZU382,40#,410,420;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) NO.1	05/1999 - 06/2004	6
53955-37040	XZU421..T5..5F;XZU421..6F..30T;XZU382,40#,410,420;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) NO.2	05/1999 - 06/2004	1
53955-37020	XZU388,404,413,414,415,423,424,433..DCRL,DSLL NO.1	06/2004 - 10/2006	4
53955-37040	XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) NO.2	06/2004 - 10/2006	1
53955A - CUSHION, AIR CLEANER INLET NO.1
53955-37020	XZU421..T5..5F;XZU421..6F..30T;XZU382,40#,410,420;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) NO.1	05/1999 - 06/2004	6
53955-37040	XZU421..T5..5F;XZU421..6F..30T;XZU382,40#,410,420;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) NO.2	05/1999 - 06/2004	1
53955-37020	XZU388,404,413,414,415,423,424,433..DCRL,DSLL NO.1	06/2004 - 10/2006	4
53955-37040	XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) NO.2	06/2004 - 10/2006	1
53994 - RETAINER, AIR CLEANER INLET PIPE
53994-37020	XZU421..T5..5F;XZU421..6F..30T;XZU411..T3..DSLL;XZU382,40#,410,420;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..DSL;XZU411,412,430..(295T,30T,35T,40T)..DSL	05/1999 - 06/2004	3
53994-37020	XZU388,404,413,414,415,423,424,433..DCRL,DSLL	06/2004 - 10/2006	2
53996A - PACKING, AIR CLEANER INLET PIPE
53996-37040	XZU421..T5..5F;XZU421..6F..30T;XZU411..T3..DSLL;XZU382,40#,410,420;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..DSL;XZU411,412,430..(295T,30T,35T,40T)..DSL	05/1999 - 06/2004	1
53996-37040	XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	1
Common parts
90034-60042
90034-61065
90034-67025
90099-00289
90179-08200
90179-08227
90460-85006
90460-99005
90460-99006
90460-99007
91511-B0816
91511-J0840
91651-60830
91651-B0825
94150-81000
Linked diagrams
1701
2606
8405

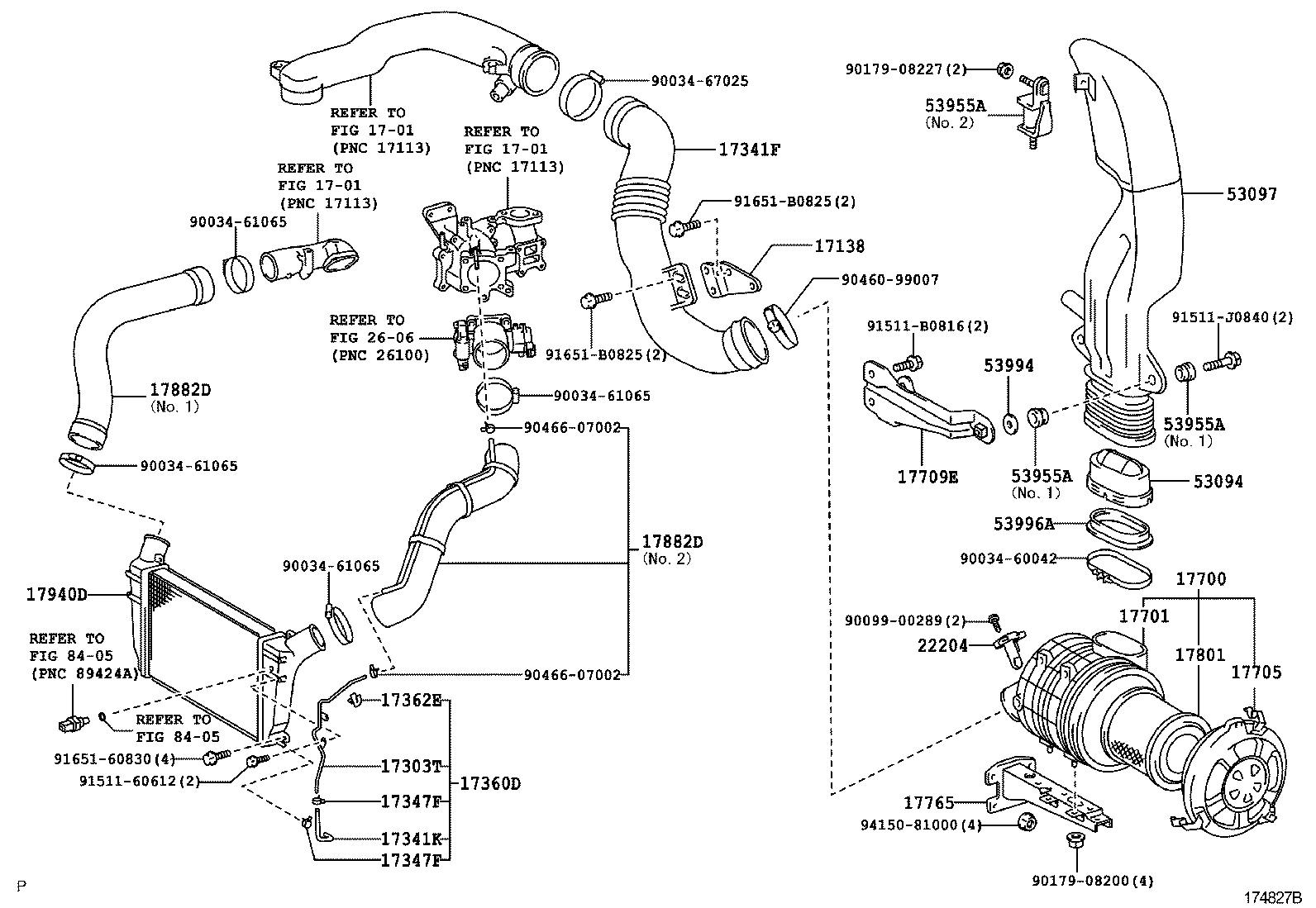

(0511- )J05D

Click highlighted areas on diagram

Part #	Description	Period	Qty
17138 - STAY, INTAKE PIPE OR HOSE
17138-78030	J05D..XZU413,423,433	06/2004 - 10/2006	1
17303T - PIPE SUB-ASSY, AIR
17303-78050	J05D..XZU413,423,433	11/2005 - 10/2006	1
17341F - HOSE, AIR, NO.1
17030-78341	J05D..XZU413,423,433	06/2004 - 10/2006	1
17341K - HOSE, AIR, NO.1(FOR INTERCOOLER)
17341-78130	J05D..XZU413,423,433	11/2005 - 10/2006	1
17347F - CLAMP OR CLIP(FOR AIR HOSE)
90466-07002	J05D..XZU413,423,433	11/2005 - 10/2006	2
17347F - CLAMP OR CLIP(FOR AIR HOSE)
90466-07002	J05D..XZU413,423,433	11/2005 - 10/2006	2
17360D - PIPE ASSY, AIR
17360-78060	J05D..XZU413,423,433	11/2005 - 10/2006	1
17362E - CLAMP, NO.2(FOR AIR TUBE, NO.2)
90469-05010	J05D..XZU413,423,433	11/2005 - 10/2006	1
17700 - CLEANER ASSY, AIR
17700-78200	J05D,N04C,S05D..XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-78160	J05D,N04C,S05D..XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-78020	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	1
17709E - BRACKET, AIR CLEANER INLET, NO.2
53773-37080	J05D,N04C,S05D..XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
17765 - STAY, AIR CLEANER, NO.1
17706-78150	J05D,N04C,S05D..XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-78020	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	1
17882D - HOSE, COOL AIR INTAKE
17882-78120	J05D..XZU413,423,433 NO.2	06/2004 - 11/2005	1
17343-78050	J05D..XZU413,423,433 NO.2	11/2005 - 08/2006	1
17882-78110	J05D..XZU413,423,433 NO.1	06/2004 - 10/2006	1
17343-78051	J05D..XZU413,423,433 NO.2	09/2006 - 10/2006	1
17882D - HOSE, COOL AIR INTAKE
17882-78120	J05D..XZU413,423,433 NO.2	06/2004 - 11/2005	1
17343-78050	J05D..XZU413,423,433 NO.2	11/2005 - 08/2006	1
17882-78110	J05D..XZU413,423,433 NO.1	06/2004 - 10/2006	1
17343-78051	J05D..XZU413,423,433 NO.2	09/2006 - 10/2006	1
17940D - INTERCOOLER ASSY
17940-78060	J05D..XZU413,423,433	06/2004 - 11/2005	1
17940-78061	J05D..XZU413,423,433	11/2005 - 10/2006	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-21010	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	1
53094 - INLET, AIR CLEANER PIPE, NO.3
53094-37010	XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
53094-37010	XZU421..T5..5F;XZU421..6F..30T;XZU411..T3..DSLL;XZU382,40#,410,420;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..DSL;XZU411,412,430..(295T,30T,35T,40T)..DSL	05/1999 - 06/2004	1
53097 - INLET SUB-ASSY
53097-37280	XZU388,404,413,414,415,423,424,433	06/2004 - 09/2006	1
53097-37240	XZU421..T5..5F;XZU421..6F..30T;XZU411..T3..DSLL;XZU382,40#,410,420;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..DSL;XZU411,412,430..(295T,30T,35T,40T)..DSL	05/1999 - 06/2004	1
53955A - CUSHION, AIR CLEANER INLET NO.1
53955-37020	XZU421..T5..5F;XZU421..6F..30T;XZU382,40#,410,420;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) NO.1	05/1999 - 06/2004	6
53955-37040	XZU421..T5..5F;XZU421..6F..30T;XZU382,40#,410,420;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) NO.2	05/1999 - 06/2004	1
53955-37020	XZU388,404,413,414,415,423,424,433..DCRL,DSLL NO.1	06/2004 - 10/2006	4
53955-37040	XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) NO.2	06/2004 - 10/2006	1
53955A - CUSHION, AIR CLEANER INLET NO.1
53955-37020	XZU421..T5..5F;XZU421..6F..30T;XZU382,40#,410,420;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) NO.1	05/1999 - 06/2004	6
53955-37040	XZU421..T5..5F;XZU421..6F..30T;XZU382,40#,410,420;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) NO.2	05/1999 - 06/2004	1
53955-37020	XZU388,404,413,414,415,423,424,433..DCRL,DSLL NO.1	06/2004 - 10/2006	4
53955-37040	XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) NO.2	06/2004 - 10/2006	1
53955A - CUSHION, AIR CLEANER INLET NO.1
53955-37020	XZU421..T5..5F;XZU421..6F..30T;XZU382,40#,410,420;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) NO.1	05/1999 - 06/2004	6
53955-37040	XZU421..T5..5F;XZU421..6F..30T;XZU382,40#,410,420;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) NO.2	05/1999 - 06/2004	1
53955-37020	XZU388,404,413,414,415,423,424,433..DCRL,DSLL NO.1	06/2004 - 10/2006	4
53955-37040	XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) NO.2	06/2004 - 10/2006	1
53994 - RETAINER, AIR CLEANER INLET PIPE
53994-37020	XZU421..T5..5F;XZU421..6F..30T;XZU411..T3..DSLL;XZU382,40#,410,420;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..DSL;XZU411,412,430..(295T,30T,35T,40T)..DSL	05/1999 - 06/2004	3
53994-37020	XZU388,404,413,414,415,423,424,433..DCRL,DSLL	06/2004 - 10/2006	2
53996A - PACKING, AIR CLEANER INLET PIPE
53996-37040	XZU421..T5..5F;XZU421..6F..30T;XZU411..T3..DSLL;XZU382,40#,410,420;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..DSL;XZU411,412,430..(295T,30T,35T,40T)..DSL	05/1999 - 06/2004	1
53996-37040	XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	1
Common parts
90034-60042
90034-61065
90034-67025
90099-00289
90179-08200
90179-08227
90460-99007
90466-07002
91511-60612
91511-B0816
91511-J0840
91651-60830
91651-B0825
94150-81000
Linked diagrams
1701
2606
8405

XZU413-TKFSW3 (2004)

(0406-0511)J05D

(0511- )J05D
