Toyota Dyna/toyoace XZU412 REAR BODY SIDE PANEL

XZU412-TQPQS (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004

Engine S05C

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9905- )BU400,410,BZU410,XZU38#,40#,410,411,412,413,414,454,488..SCB..20T,295T,3

Click highlighted areas on diagram

ｶﾙｶﾞﾙｹﾞ-ﾄ

Part #	Description	Period	Qty
66033 - BRACKET SUB-ASSY, GATE HELPER, NO.3
66033-37090	BU400,410,XZU382,40#,41#..SCB..(20T,295T,30T,35T)..(CBU,IV5)	05/1999 - 06/2002	1
66033-37090	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..SCB..(20T,295T,30T,35T)..(CBU,IV5)	06/2002 - 06/2004	1
66033C - ROD SUB-ASSY, GATE HELPER TENSION
66033-37100	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..SCB..(20T,295T,30T,35T)..(CBU,IV5)	06/2002 - 06/2004	2
66033-37100	BU400,410,XZU382,40#,41#..SCB..(20T,295T,30T,35T)..(CBU,IV5)	05/1999 - 06/2002	2
66034 - BRACKET SUB-ASSY, GATE HELPER, NO.3 LH
66034-37020	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..SCB..(20T,295T,30T,35T)..(CBU,IV5)	06/2002 - 06/2004	1
66034-37020	BU400,410,XZU382,40#,41#..SCB..(20T,295T,30T,35T)..(CBU,IV5)	05/1999 - 06/2002	1
66035B - BELLCRANK SUB-ASSY, GATE HELPER
66035-37020	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..SCB..(20T,295T,30T,35T)..(CBU,IV5)	06/2002 - 06/2004	2
66035-37020	BU400,410,XZU382,40#,41#..SCB..(20T,295T,30T,35T)..(CBU,IV5)	05/1999 - 06/2002	2
66302A - LINK SUB-ASSY, GATE HELPER
66302-37010	BU400,410,XZU382,40#,41#..SCB..(20T,295T,30T,35T)..(CBU,IV5)	05/1999 - 12/2000	2
66302-37011	BU400,410,XZU382,40#,41#..SCB..(20T,295T,30T,35T)..(CBU,IV5)	12/2000 - 06/2002	2
66302-37011	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..SCB..(20T,295T,30T,35T)..(CBU,IV5)	06/2002 - 06/2004	2
66308A - END SUB-ASSY, GATE HELPER ROD, NO.2
66308-37010	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..SCB..(20T,295T,30T,35T)..(CBU,IV5)	06/2002 - 06/2004	2
66308-37010	BU400,410,XZU382,40#,41#..SCB..(20T,295T,30T,35T)..(CBU,IV5)	05/1999 - 06/2002	2
66326 - SLIDER, ROD CONTROL
66326-37010	BU400,410,XZU382,40#,41#..SCB..(20T,295T,30T,35T)..(CBU,IV5)	05/1999 - 06/2002	4
66326-37010	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..SCB..(20T,295T,30T,35T)..(CBU,IV5)	06/2002 - 06/2004	4
66326 - SLIDER, ROD CONTROL
66326-37010	BU400,410,XZU382,40#,41#..SCB..(20T,295T,30T,35T)..(CBU,IV5)	05/1999 - 06/2002	4
66326-37010	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..SCB..(20T,295T,30T,35T)..(CBU,IV5)	06/2002 - 06/2004	4
66330 - HELPER ASSY, GATE, RH
66330-37040	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..SCB..(20T,295T,30T,35T)..(CBU,IV5) ***	06/2002 - 06/2004	1
66330-37040	BU400,410,XZU382,40#,41#..SCB..(20T,295T,30T,35T)..(CBU,IV5) ***	05/1999 - 06/2002	1
66340 - HELPER ASSY, GATE, LH
66340-37050	BU400,410,XZU382,40#,41#..SCB..(20T,295T,30T,35T)..(CBU,IV5) ***	05/1999 - 06/2002	1
66340-37050	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..SCB..(20T,295T,30T,35T)..(CBU,IV5) ***	06/2002 - 06/2004	1
66341A - STAY, GATE HELPER
66341-37060	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..SCB..(20T,295T,30T,35T)..(CBU,IV5)	06/2002 - 06/2004	4
66341-37060	BU400,410,XZU382,40#,41#..SCB..(20T,295T,30T,35T)..(CBU,IV5)	05/1999 - 06/2002	4
66341A - STAY, GATE HELPER
66341-37060	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..SCB..(20T,295T,30T,35T)..(CBU,IV5)	06/2002 - 06/2004	4
66341-37060	BU400,410,XZU382,40#,41#..SCB..(20T,295T,30T,35T)..(CBU,IV5)	05/1999 - 06/2002	4
66347B - BOLT, GATE HELPER BELLCRANK ADJUST
66347-37020	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..SCB..(20T,295T,30T,35T)..(CBU,IV5)	06/2002 - 06/2004	2
66347-37020	BU400,410,XZU382,40#,41#..SCB..(20T,295T,30T,35T)..(CBU,IV5)	05/1999 - 06/2002	2
66348 - RETAINER, GATE HELPER BELLCRANK ADJUST BOLT
66348-37010	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..SCB..(20T,295T,30T,35T)..(CBU,IV5)	06/2002 - 06/2004	2
66348-37010	BU400,410,XZU382,40#,41#..SCB..(20T,295T,30T,35T)..(CBU,IV5)	05/1999 - 06/2002	2
Common parts
90149-08001
90170-10035
90179-08245
90201-10046
90249-10098
90249-10185
90249-10195
90249-10196
90250-10029
91651-41020
94130-61000
94185-61000
96160-00800

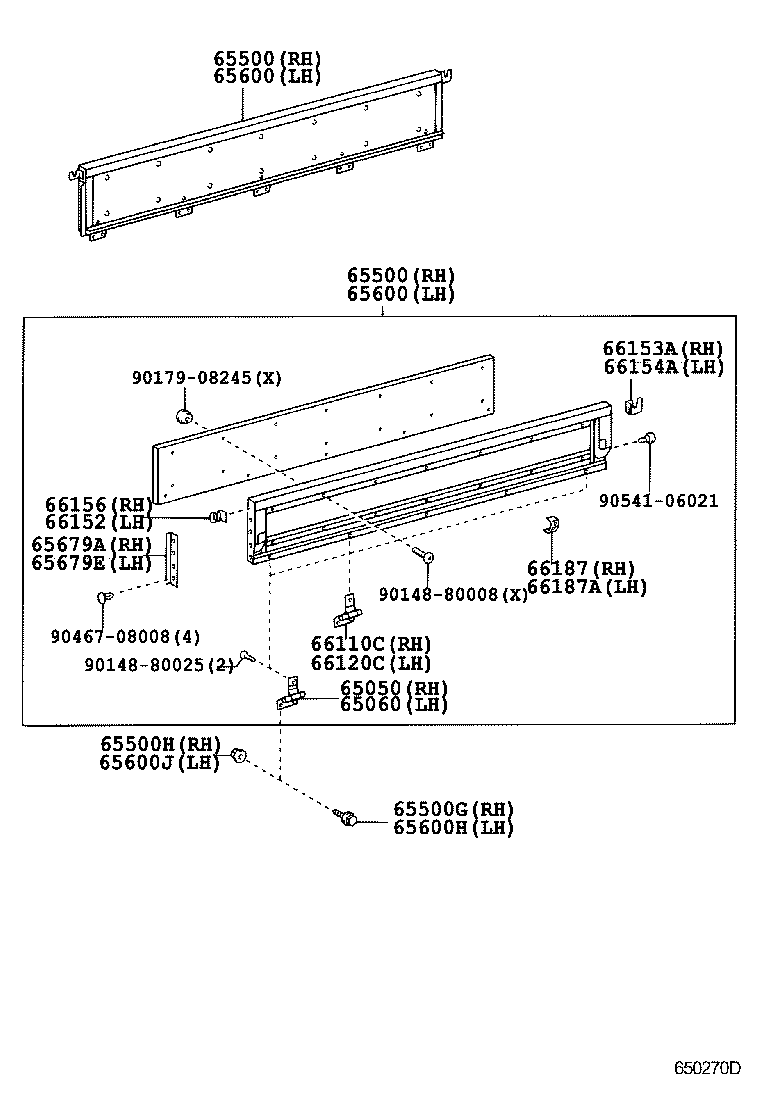

(9905-0206)XZU410..6F..30T,35T ; (9905-0206)BU400,410,XZU382,40#,411,412..20T,295T,

Click highlighted areas on diagram

Part #	Description	Period	Qty
65050 - HINGE ASSY, SIDE GATE, N0.2 RH
65050-37080	BZU410..30T..CNG;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;BU410,BZU410,XZU382,40#,410..(20T,30T,35T)..(CBU,IV5)	05/1999 - 06/2004	2
65060 - HINGE ASSY, SIDE GATE, N0.2 LH
65050-37080	BZU410..30T..CNG;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;BU410,BZU410,XZU382,40#,410..(20T,30T,35T)..(CBU,IV5)	05/1999 - 06/2004	2
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-3V500	BU410,XZU41#..SCB..(20T,295T,30T,35T)..CBU	05/1999 - 06/2002	1
65500-3V820	BU410,BZU410,XZU410,411,412..SCB..(20T,295T,30T,35T)..CBU	06/2002 - 06/2004	1
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-3V500	BU410,XZU41#..SCB..(20T,295T,30T,35T)..CBU	05/1999 - 06/2002	1
65500-3V820	BU410,BZU410,XZU410,411,412..SCB..(20T,295T,30T,35T)..CBU	06/2002 - 06/2004	1
65500G - BOLT, W/WASHER(FOR SIDE GATE, RH)
90119-08464	BU400,410,XZU382,40#,41#..SCB..(20T,295T,30T,35T)..(CBU,IV5)	05/1999 - 06/2002	1
90119-08464	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..SCB..(20T,295T,30T,35T)..(CBU,IV5)	06/2002 - 06/2004	1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-3V500	BU410,XZU41#..SCB..(20T,295T,30T,35T)..CBU	05/1999 - 06/2002	1
65600-3V820	BU410,BZU410,XZU410,411,412..SCB..(20T,295T,30T,35T)..CBU	06/2002 - 06/2004	1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-3V500	BU410,XZU41#..SCB..(20T,295T,30T,35T)..CBU	05/1999 - 06/2002	1
65600-3V820	BU410,BZU410,XZU410,411,412..SCB..(20T,295T,30T,35T)..CBU	06/2002 - 06/2004	1
65600H - BOLT, W/WASHER(FOR SIDE GATE, LH)
90119-08464	BU400,410,XZU382,40#,41#..(20T,295T,30T,35T)..(CBU,IV5)	05/1999 - 06/2002	1
90119-08464	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..(20T,295T,30T,35T)..(CBU,IV5)	06/2002 - 06/2004	1
65679A - SEAL, SIDE GATE
65679-37010	BZU410..30T..CNG;XZU421..T5..5F..CBU;XZU421..6F..30T..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412,430..(295T,30T,35T,40T)..CBU;BU410,430,BZU410,XZU382,40#,410,420..(T2,T3,T4,T5)..(CBU,IV5)	05/1999 - 06/2004	1
65679E - SEAL, SIDE GATE
65679-37010	BZU410..30T..CNG;XZU421..T5..5F..CBU;XZU421..6F..30T..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412,430..(295T,30T,35T,40T)..CBU;BU410,430,BZU410,XZU382,40#,410,420..(T2,T3,T4,T5)..(CBU,IV5)	05/1999 - 06/2004	1
66110C - HINGE ASSY, SIDE GATE, NO.1 RH
65010-37040	BZU410..30T..CNG;XZU410..(20T,35T)..CBU;XZU411,412..T2..5F..CBU;BU410,BZU410,XZU382..CBU,IV5;XZU411,412..SCB..4FC..20T..CBU;XZU411,412..(295T,30T,35T)..CBU	05/1999 - 06/2004	5
66120C - HINGE ASSY, SIDE GATE, NO.1 LH
65010-37040	BZU410..30T..CNG;XZU410..(20T,35T)..CBU;XZU411,412..T2..5F..CBU;BU410,BZU410,XZU382..CBU,IV5;XZU411,412..SCB..4FC..20T..CBU;XZU411,412..(295T,30T,35T)..CBU	05/1999 - 06/2004	5
66152 - LATCH, SIDE GATE FEMALE, LH
66152-92703	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..(20T,295T,30T,35T)..(CBU,IV5)	06/2002 - 06/2004	1
66152-92703	BU400,410,XZU382,40#,41#..(20T,295T,30T,35T)..(CBU,IV5)	05/1999 - 06/2002	1
66153A - LATCH, TAIL GATE FEMALE, RH
66153-37010	BU410..6F..CBU;BU400,XZU382,40#,41#..(T2,T3,T4,T5)..(CBU,IV5)	05/1999 - 06/2002	1
66153-37010	BU410..6F..CBU;BZU410..30T..CNG;BZU410,XZU382,40#,410,411,412..(T2,T3,T4,T5)..(CBU,IV5)	06/2002 - 06/2004	1
66154A - LATCH, TAIL GATE FEMALE, LH
66154-37010	BU410..6F..CBU;BU400,XZU382,40#,41#..(T2,T3,T4,T5)..(CBU,IV5)	05/1999 - 06/2002	1
66154-37010	BU410..6F..CBU;BZU410..30T..CNG;BZU410,XZU382,40#,410,411,412..(T2,T3,T4,T5)..(CBU,IV5)	06/2002 - 06/2004	1
66156 - LATCH, SEMISTAKE FEMALE, RH
66151-92703	BU400,410,XZU382,40#,41#..(20T,295T,30T,35T)..(CBU,IV5)	05/1999 - 06/2002	1
66151-92703	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..(20T,295T,30T,35T)..(CBU,IV5)	06/2002 - 06/2004	1
66187 - HANDLE, SIDE GATE LATCH, CENTER NO.2
66187-37010	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..(20T,295T,30T,35T)..(CBU,IV5)	09/2003 - 06/2004	1
66187A - LATCH, SIDE GATE SUPPORT
66187-37010	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..(20T,295T,30T,35T)..(CBU,IV5)	09/2003 - 06/2004	1
Common parts
90148-80008
90148-80025
90179-08245
90467-08008
90541-06021

(0206- )CNG ; (0206- )XZU410,414..20T,30T,35T..CBU ; (0206- )BU410,BZU410,

Click highlighted areas on diagram

Part #	Description	Period	Qty
58271E - PLATE, FLOOR SIDE, NO.1
58271-37120	BZU410..30T..CNG;BU410,BZU410,XZU40#,410,411,412..SCB..(20T,295T,30T,35T)..CBU	06/2002 - 06/2004	1
58272D - PLATE, FLOOR SIDE, NO.2
58272-37160	BZU410..30T..CNG;BU410,BZU410,XZU382,410,411,412..SCB..(T3,T4,T5)..(20T,295T,30T,35T)..(CBU,IV5)	06/2002 - 06/2004	1
65050 - HINGE ASSY, SIDE GATE, N0.2 RH
65050-37080	BZU410..30T..CNG;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;BU410,BZU410,XZU382,40#,410..(20T,30T,35T)..(CBU,IV5)	05/1999 - 06/2004	2
65060 - HINGE ASSY, SIDE GATE, N0.2 LH
65050-37080	BZU410..30T..CNG;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;BU410,BZU410,XZU382,40#,410..(20T,30T,35T)..(CBU,IV5)	05/1999 - 06/2004	2
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-3V500	BU410,XZU41#..SCB..(20T,295T,30T,35T)..CBU	05/1999 - 06/2002	1
65500-3V820	BU410,BZU410,XZU410,411,412..SCB..(20T,295T,30T,35T)..CBU	06/2002 - 06/2004	1
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-3V500	BU410,XZU41#..SCB..(20T,295T,30T,35T)..CBU	05/1999 - 06/2002	1
65500-3V820	BU410,BZU410,XZU410,411,412..SCB..(20T,295T,30T,35T)..CBU	06/2002 - 06/2004	1
65500G - BOLT, W/WASHER(FOR SIDE GATE, RH)
90119-08464	BU400,410,XZU382,40#,41#..SCB..(20T,295T,30T,35T)..(CBU,IV5)	05/1999 - 06/2002	1
90119-08464	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..SCB..(20T,295T,30T,35T)..(CBU,IV5)	06/2002 - 06/2004	1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-3V500	BU410,XZU41#..SCB..(20T,295T,30T,35T)..CBU	05/1999 - 06/2002	1
65600-3V820	BU410,BZU410,XZU410,411,412..SCB..(20T,295T,30T,35T)..CBU	06/2002 - 06/2004	1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-3V500	BU410,XZU41#..SCB..(20T,295T,30T,35T)..CBU	05/1999 - 06/2002	1
65600-3V820	BU410,BZU410,XZU410,411,412..SCB..(20T,295T,30T,35T)..CBU	06/2002 - 06/2004	1
65600H - BOLT, W/WASHER(FOR SIDE GATE, LH)
90119-08464	BU400,410,XZU382,40#,41#..(20T,295T,30T,35T)..(CBU,IV5)	05/1999 - 06/2002	1
90119-08464	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..(20T,295T,30T,35T)..(CBU,IV5)	06/2002 - 06/2004	1
65679A - SEAL, SIDE GATE
65679-37010	BZU410..30T..CNG;XZU421..T5..5F..CBU;XZU421..6F..30T..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412,430..(295T,30T,35T,40T)..CBU;BU410,430,BZU410,XZU382,40#,410,420..(T2,T3,T4,T5)..(CBU,IV5)	05/1999 - 06/2004	1
65679E - SEAL, SIDE GATE
65679-37010	BZU410..30T..CNG;XZU421..T5..5F..CBU;XZU421..6F..30T..CBU;BU420..(20T,35T)..CBU;XZU421..T4..(4FC,5F)..CBU;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412,430..(295T,30T,35T,40T)..CBU;BU410,430,BZU410,XZU382,40#,410,420..(T2,T3,T4,T5)..(CBU,IV5)	05/1999 - 06/2004	1
66110C - HINGE ASSY, SIDE GATE, NO.1 RH
65010-37040	BZU410..30T..CNG;XZU410..(20T,35T)..CBU;XZU411,412..T2..5F..CBU;BU410,BZU410,XZU382..CBU,IV5;XZU411,412..SCB..4FC..20T..CBU;XZU411,412..(295T,30T,35T)..CBU	05/1999 - 06/2004	5
66120C - HINGE ASSY, SIDE GATE, NO.1 LH
65010-37040	BZU410..30T..CNG;XZU410..(20T,35T)..CBU;XZU411,412..T2..5F..CBU;BU410,BZU410,XZU382..CBU,IV5;XZU411,412..SCB..4FC..20T..CBU;XZU411,412..(295T,30T,35T)..CBU	05/1999 - 06/2004	5
66152 - LATCH, SIDE GATE FEMALE, LH
66152-92703	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..(20T,295T,30T,35T)..(CBU,IV5)	06/2002 - 06/2004	1
66152-92703	BU400,410,XZU382,40#,41#..(20T,295T,30T,35T)..(CBU,IV5)	05/1999 - 06/2002	1
66153A - LATCH, TAIL GATE FEMALE, RH
66153-37010	BU410..6F..CBU;BU400,XZU382,40#,41#..(T2,T3,T4,T5)..(CBU,IV5)	05/1999 - 06/2002	1
66153-37010	BU410..6F..CBU;BZU410..30T..CNG;BZU410,XZU382,40#,410,411,412..(T2,T3,T4,T5)..(CBU,IV5)	06/2002 - 06/2004	1
66154A - LATCH, TAIL GATE FEMALE, LH
66154-37010	BU410..6F..CBU;BU400,XZU382,40#,41#..(T2,T3,T4,T5)..(CBU,IV5)	05/1999 - 06/2002	1
66154-37010	BU410..6F..CBU;BZU410..30T..CNG;BZU410,XZU382,40#,410,411,412..(T2,T3,T4,T5)..(CBU,IV5)	06/2002 - 06/2004	1
66156 - LATCH, SEMISTAKE FEMALE, RH
66151-92703	BU400,410,XZU382,40#,41#..(20T,295T,30T,35T)..(CBU,IV5)	05/1999 - 06/2002	1
66151-92703	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..(20T,295T,30T,35T)..(CBU,IV5)	06/2002 - 06/2004	1
66187 - HANDLE, SIDE GATE LATCH, CENTER NO.2
66187-37010	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..(20T,295T,30T,35T)..(CBU,IV5)	09/2003 - 06/2004	1
66187A - LATCH, SIDE GATE SUPPORT
66187-37010	BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..(20T,295T,30T,35T)..(CBU,IV5)	09/2003 - 06/2004	1
66248B - PROTECTOR, REAR BODY SIDE PANEL, RH
66248-37030	BZU410..30T..CNG;BU410,BZU410,XZU40#,410,411,412..SCB..(20T,295T,30T,35T)..CBU	06/2002 - 06/2004	1
66249B - PROTECTOR, REAR BODY SIDE PANEL, LH
66249-37030	BZU410..30T..CNG;BU410,BZU410,XZU382,410,411,412..SCB..(T3,T4,T5)..(20T,295T,30T,35T)..(CBU,IV5)	06/2002 - 06/2004	1
Common parts
90148-80008
90148-80025
90179-08245
90467-06038
90467-08008
90541-06021
93590-16014

XZU412-TQPQS (1999)

(9905- )BU400,410,BZU410,XZU38#,40#,410,411,412,413,414,454,488..SCB..20T,295T,3

(9905-0206)XZU410..6F..30T,35T ; (9905-0206)BU400,410,XZU382,40#,411,412..20T,295T,

(0206- )CNG ; (0206- )XZU410,414..20T,30T,35T..CBU ; (0206- )BU410,BZU410,
