XZU412-TKFQS (1999)
Toyota Dyna/Toyoace
(9905-0206)BU400,410,XZU382,402,41#..SCB..T3,T4,T5..20T,295T,30T,35T..CBU,IV5 ; (99

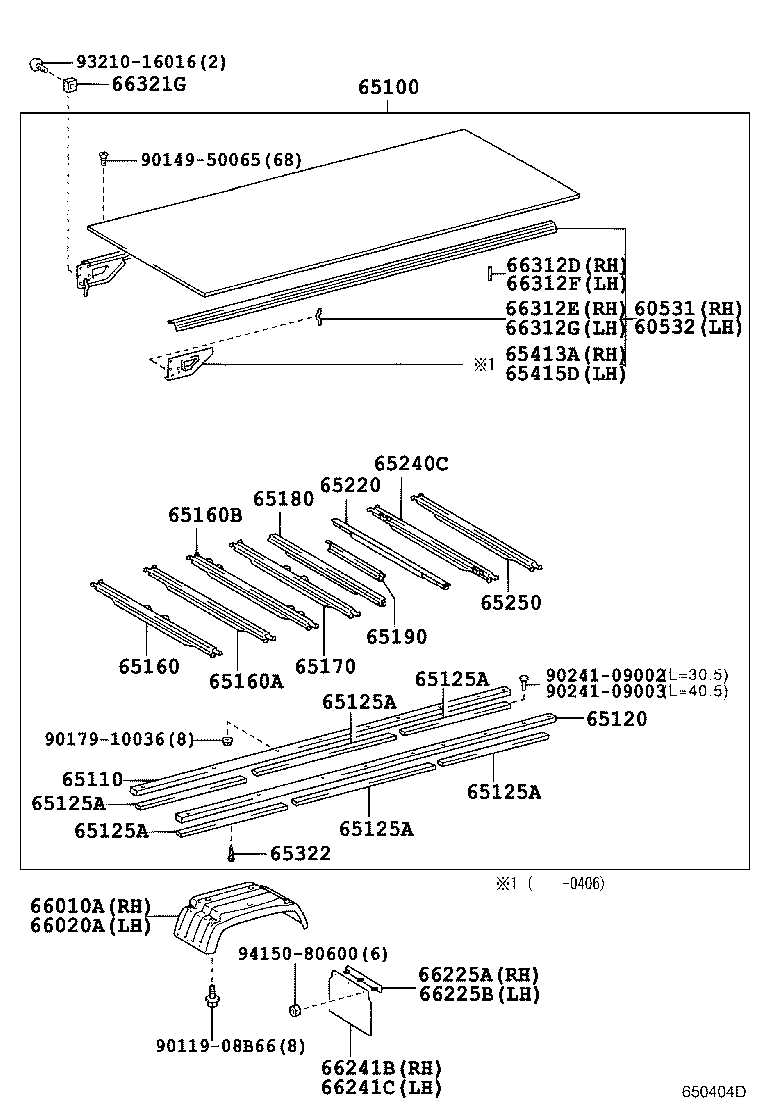

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60531 - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 60531-37390 |
BU410,XZU41#..SCB..(20T,295T,30T,35T)..CBU |
1 | ||
| 65303-3V180 |
BU410,BZU410,XZU410,411,412..SCB..(20T,295T,30T,35T)..CBU |
1 | ||
| 60532 - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 60532-37380 |
BU410,XZU41#..SCB..(20T,295T,30T,35T)..CBU |
1 | ||
| 65304-3V180 |
BU410,BZU410,XZU410,411,412..SCB..(20T,295T,30T,35T)..CBU |
1 | ||
| 65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH | ||||
| 65026-37030 |
BZU410..30T..CNG;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;BU410,BZU410,XZU382,410..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH | ||||
| 65027-37030 |
BZU410..30T..CNG;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;BU410,BZU410,XZU382,410..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-3V790 |
XZU410..T3..35T..CBU;BU410,XZU411,412..T3..CBU *** |
1 | ||
| 60530-3V830 |
BU410,XZU410,411,412..T3..(295T,30T,35T)..CBU *** |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-3V200 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-3V200 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37310 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37460 |
BU410,XZU410,411,412..(T3,T5)..(20T,295T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 65127-37570 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ｾﾝﾀ |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37310 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37460 |
BU410,XZU410,411,412..(T3,T5)..(20T,295T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 65127-37570 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ｾﾝﾀ |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37310 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37460 |
BU410,XZU410,411,412..(T3,T5)..(20T,295T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 65127-37570 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ｾﾝﾀ |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37310 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37460 |
BU410,XZU410,411,412..(T3,T5)..(20T,295T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 65127-37570 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ｾﾝﾀ |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37310 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37460 |
BU410,XZU410,411,412..(T3,T5)..(20T,295T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 65127-37570 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ｾﾝﾀ |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37310 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37460 |
BU410,XZU410,411,412..(T3,T5)..(20T,295T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 65127-37570 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ｾﾝﾀ |
2 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37030 |
XZU411,412..(T3,T5)..(4FC,6F)..CBU;BU410,XZU382,410..(T3,T5)..(20T,30T,35T)..(CBU,IV5) |
2 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65250-37340 |
BZU410..30T..CNG;BU410,BZU410,XZU400,401,410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 65160A - SILL ASSY, CROSS, NO.2 | ||||
| 65240-37340 |
BU410,BZU410,XZU400,401,410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 65160B - SILL ASSY, CROSS, NO.2 | ||||
| 65240-37340 |
BZU410..CBU;BU410,XZU410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65220-37290 |
BZU410..CBU;BU410,XZU410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37320 |
BU410,XZU400,401,41#..(295T,30T,35T)..CBU |
1 | ||
| 65180-37500 |
BZU410..30T..CNG;BZU410,XZU411..(DSLL,LPG)..CBU;BU410,XZU400,401,410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37050 |
BZU410..30T..CNG;BU400,410,BZU410,XZU40#,410,411,412..(T3,T4,T5)..(20T,295T,30T,35T)..CBU |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37350 |
BU410,XZU400,401,41#..(295T,30T,35T)..CBU |
1 | ||
| 65180-37560 |
BZU410,XZU400,401..(T3,T4)..CBU;BU410,XZU410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65240-37340 |
BZU410..30T..CNG;XZU411..(T4,T5)..5F..CBU;BZU410,XZU410..(20T,30T,35T)..CBU;BU410,XZU400,401,411,412..(295T,30T,35T)..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
1 | ||
| 65250 - SILL ASSY, CROSS, NO.2 | ||||
| 65250-37340 |
BZU410,XZU400,401..(T3,T4)..CBU;BU410,XZU410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37340 |
BZU410..30T..CNG;XZU410..35T..CBU;BZU410,XZU411..(DSLL,LPG)..CBU;BU410,XZU400,401,411,412..(295T,30T,35T)..CBU ﾊﾊﾞﾋﾛ ﾃﾞﾂｷ ﾀｲﾌﾟ |
1 | ||
| 65322 - NAIL | ||||
| 65322-92820 |
BU410,XZU410,411,412..(T3,T5)..(4FC,6F)..(20T,295T,30T,35T)..CBU |
15 | ||
| 65413A - BRACKET, GUARD FRAME, RH | ||||
| 65413-37030 |
XZU401..5F..CBU;XZU410..35T..CBU;XZU411,412..(4FC,6F)..CBU;BU410,XZU400,402..(20T,30T,35T)..CBU |
1 | ||
| 65415D - BRACKET, GUARD FRAME, LH | ||||
| 65415-37010 |
XZU401..5F..CBU;XZU410..35T..CBU;XZU411,412..(4FC,6F)..CBU;BU410,XZU400,402..(20T,30T,35T)..CBU |
1 | ||
| 66010A - FENDER ASSY, REAR NO.2 RH | ||||
| 66010-37010 |
BU410,XZU400,401,41#..(295T,30T,35T)..CBU ﾖｺﾊﾊﾞ = 558 MM |
1 | ||
| 65349-37010 |
BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..(20T,295T,30T,35T)..(CBU,IV5) |
1 | ||
| 66020A - FENDER ASSY, REAR NO.2 LH | ||||
| 66020-37010 |
BU410,XZU400,401,41#..(295T,30T,35T)..CBU ﾖｺﾊﾊﾞ = 558 MM |
1 | ||
| 65349-37010 |
BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..(20T,295T,30T,35T)..(CBU,IV5) |
1 | ||
| 66210A - FENDER ASSY, REAR NO.1 RH | ||||
| 66210-37210 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU ﾖｺﾊﾊﾞ = 558 MM |
1 | ||
| 66213B - PLATE, REAR FENDER, UPPER | ||||
| 66213-37130 |
BU410,XZU382,400,401,41#..(295T,30T,35T)..(CBU,IV5) |
2 | ||
| 66213-37200 |
BU410,XZU382,400,401,41#..(295T,30T,35T)..(CBU,IV5) |
2 | ||
| 66213B - PLATE, REAR FENDER, UPPER | ||||
| 66213-37130 |
BU410,XZU382,400,401,41#..(295T,30T,35T)..(CBU,IV5) |
2 | ||
| 66213-37200 |
BU410,XZU382,400,401,41#..(295T,30T,35T)..(CBU,IV5) |
2 | ||
| 66220A - FENDER ASSY, REAR NO.1 LH | ||||
| 66220-37170 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU ﾖｺﾊﾊﾞ = 558 MM |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37160 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU |
1 | ||
| 66242-37230 |
BZU410,XZU400,401..(T3,T4)..CBU;BU410,XZU410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37160 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU |
1 | ||
| 66242-37230 |
BZU410,XZU382,400,401..(T3,T4)..(CBU,IV5);BU410,XZU410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37560 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU DAIHATSU |
1 | ||
| 66241-37550 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU HINO |
1 | ||
| 66241-37510 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU TOYOTA |
1 | ||
| 66241-3V570 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU DAIHATSU |
1 | ||
| 66241-3V250 |
BU410,XZU400,401,410,411,412..T3..(295T,30T,35T)..CBU TOYOTA |
1 | ||
| 66241-3V410 |
BU410,XZU400,401,410,411,412..T3..(295T,30T,35T)..CBU HINO |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37530 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU HINO |
1 | ||
| 66241-37540 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU DAIHATSU |
1 | ||
| 66241-37520 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU TOYOTA |
1 | ||
| 66241-3V570 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU DAIHATSU |
1 | ||
| 66241-3V250 |
BU410,XZU400,401,410,411,412..T3..(295T,30T,35T)..CBU TOYOTA |
1 | ||
| 66241-3V410 |
BU410,XZU400,401,410,411,412..T3..(295T,30T,35T)..CBU HINO |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
XZU411,412..4FC..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;XZU401,410..MTM..(30T,35T)..CBU;BU410,XZU382,400,402..(20T,30T,35T)..(CBU,IV5) |
6 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BZU410..30T..CNG;BU410,BZU410,XZU382,410,411,412..SCB..(20T,295T,30T,35T)..(CBU,IV5) |
9 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU401..5F..CBU;XZU410..35T..CBU;XZU411,412..(4FC,6F)..CBU;BU410,XZU382,400,402..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BZU410..30T..CNG;BU410,BZU410,XZU382,410,411,412..SCB..(20T,295T,30T,35T)..(CBU,IV5) |
9 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU401..5F..CBU;XZU410..35T..CBU;XZU411,412..(4FC,6F)..CBU;BU410,XZU382,400,402..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-37090 |
BU410,XZU400,401,41#..(T3,T5)..(20T,295T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 66236-37010 |
BU400,410,XZU382,40#,41#..(20T,295T,30T,35T)..(CBU,IV5) |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-37090 |
BU410,XZU400,401,41#..(T3,T5)..(20T,295T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 66236-37010 |
BU400,410,XZU382,40#,41#..(20T,295T,30T,35T)..(CBU,IV5) |
2 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
BU410..CBU;XZU411,412..4FC..20T..CBU;XZU410,411,412..(295T,30T,35T)..CBU |
4 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92803 |
XZU411,412..(4FC,5F)..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;BU410,BZU410,XZU382,40#,410..(20T,30T,35T)..(CBU,IV5) ﾃｰﾙ |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BU410..6F..20T..CBU;XZU411..T4..5F..CBU;XZU410..T3..35T..CBU;XZU411,412..T3..6F..CBU;XZU412..DCB..T5..5F..CBU;XZU401,410..MTM..30T..CBU;XZU412..SCB..(T4,T5)..5F..CBU;BZU410,XZU382..30T..(CNG,DSL);XZU411..(T3,T5)..(4FC,5F)..CBU TECS=ﾊﾟﾜ- ﾘﾌﾄ |
2 | ||
| 66321-92805 |
BZU410..30T..CNG;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;BU410,BZU410,XZU382,40#,410..(20T,30T,35T)..(CBU,IV5) |
4 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BU410..6F..20T..CBU;XZU411..T4..5F..CBU;XZU410..T3..35T..CBU;XZU411,412..T3..6F..CBU;XZU412..DCB..T5..5F..CBU;XZU401,410..MTM..30T..CBU;XZU412..SCB..(T4,T5)..5F..CBU;BZU410,XZU382..30T..(CNG,DSL);XZU411..(T3,T5)..(4FC,5F)..CBU TECS=ﾊﾟﾜ- ﾘﾌﾄ |
2 | ||
| 66321-92805 |
BZU410..30T..CNG;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;BU410,BZU410,XZU382,40#,410..(20T,30T,35T)..(CBU,IV5) |
4 | ||
| 75139A - BRACKET, REFLEX REFLECTOR, RH | ||||
| 75139-37020 |
BU410,XZU382,41#..(20T,295T,30T,35T)..(CBU,IV5) |
1 | ||
| 75139-37040 |
BZU410..30T..CNG;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;BU410,BZU410,XZU382,410..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 75149 - BRACKET, REFLEX REFLECTOR, LH | ||||
| 75149-37020 |
BZU410..30T..CNG;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;BU410,BZU410,XZU382,410..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 75149-37010 |
BU410,XZU382,41#..(20T,295T,30T,35T)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 90241-09002 | ||||
| 90241-09003 | ||||
| 91621-J0612 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 93540-15016 | ||||
| 93590-16014 | ||||
| 94185-61000 | ||||
(0206- )XZU410,414..6F..30T..DCRL,DCRTK,DSL..CBU ; (0206- )XZU411,412,414..SC
TECS=ﾊﾟﾜ- ﾘﾌﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60531 - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 60531-37390 |
BU410,XZU41#..SCB..(20T,295T,30T,35T)..CBU |
1 | ||
| 65303-3V180 |
BU410,BZU410,XZU410,411,412..SCB..(20T,295T,30T,35T)..CBU |
1 | ||
| 60532 - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 60532-37380 |
BU410,XZU41#..SCB..(20T,295T,30T,35T)..CBU |
1 | ||
| 65304-3V180 |
BU410,BZU410,XZU410,411,412..SCB..(20T,295T,30T,35T)..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-3V790 |
XZU410..T3..35T..CBU;BU410,XZU411,412..T3..CBU *** |
1 | ||
| 60530-3V830 |
BU410,XZU410,411,412..T3..(295T,30T,35T)..CBU *** |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-3V200 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-3V200 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37310 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37460 |
BU410,XZU410,411,412..(T3,T5)..(20T,295T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 65127-37570 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ｾﾝﾀ |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37310 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37460 |
BU410,XZU410,411,412..(T3,T5)..(20T,295T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 65127-37570 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ｾﾝﾀ |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37310 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37460 |
BU410,XZU410,411,412..(T3,T5)..(20T,295T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 65127-37570 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ｾﾝﾀ |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37310 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37460 |
BU410,XZU410,411,412..(T3,T5)..(20T,295T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 65127-37570 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ｾﾝﾀ |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37310 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37460 |
BU410,XZU410,411,412..(T3,T5)..(20T,295T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 65127-37570 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ｾﾝﾀ |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37310 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37460 |
BU410,XZU410,411,412..(T3,T5)..(20T,295T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 65127-37570 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ｾﾝﾀ |
2 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65250-37340 |
BZU410..30T..CNG;BU410,BZU410,XZU400,401,410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 65160A - SILL ASSY, CROSS, NO.2 | ||||
| 65240-37340 |
BU410,BZU410,XZU400,401,410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 65160B - SILL ASSY, CROSS, NO.2 | ||||
| 65240-37340 |
BZU410..CBU;BU410,XZU410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65220-37290 |
BZU410..CBU;BU410,XZU410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37320 |
BU410,XZU400,401,41#..(295T,30T,35T)..CBU |
1 | ||
| 65180-37500 |
BZU410..30T..CNG;BZU410,XZU411..(DSLL,LPG)..CBU;BU410,XZU400,401,410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37050 |
BZU410..30T..CNG;BU400,410,BZU410,XZU40#,410,411,412..(T3,T4,T5)..(20T,295T,30T,35T)..CBU |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37350 |
BU410,XZU400,401,41#..(295T,30T,35T)..CBU |
1 | ||
| 65180-37560 |
BZU410,XZU400,401..(T3,T4)..CBU;BU410,XZU410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65240-37340 |
BZU410..30T..CNG;XZU411..(T4,T5)..5F..CBU;BZU410,XZU410..(20T,30T,35T)..CBU;BU410,XZU400,401,411,412..(295T,30T,35T)..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
1 | ||
| 65250 - SILL ASSY, CROSS, NO.2 | ||||
| 65250-37340 |
BZU410,XZU400,401..(T3,T4)..CBU;BU410,XZU410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 65322 - NAIL | ||||
| 65322-92820 |
BU410,XZU410,411,412..(T3,T5)..(4FC,6F)..(20T,295T,30T,35T)..CBU |
15 | ||
| 65413A - BRACKET, GUARD FRAME, RH | ||||
| 65413-37030 |
XZU401..5F..CBU;XZU410..35T..CBU;XZU411,412..(4FC,6F)..CBU;BU410,XZU400,402..(20T,30T,35T)..CBU |
1 | ||
| 65415D - BRACKET, GUARD FRAME, LH | ||||
| 65415-37010 |
XZU401..5F..CBU;XZU410..35T..CBU;XZU411,412..(4FC,6F)..CBU;BU410,XZU400,402..(20T,30T,35T)..CBU |
1 | ||
| 66010A - FENDER ASSY, REAR NO.2 RH | ||||
| 66010-37010 |
BU410,XZU400,401,41#..(295T,30T,35T)..CBU ﾖｺﾊﾊﾞ = 558 MM |
1 | ||
| 65349-37010 |
BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..(20T,295T,30T,35T)..(CBU,IV5) |
1 | ||
| 66020A - FENDER ASSY, REAR NO.2 LH | ||||
| 66020-37010 |
BU410,XZU400,401,41#..(295T,30T,35T)..CBU ﾖｺﾊﾊﾞ = 558 MM |
1 | ||
| 65349-37010 |
BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..(20T,295T,30T,35T)..(CBU,IV5) |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37160 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU |
1 | ||
| 66242-37230 |
BZU410,XZU400,401..(T3,T4)..CBU;BU410,XZU410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37160 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU |
1 | ||
| 66242-37230 |
BZU410,XZU382,400,401..(T3,T4)..(CBU,IV5);BU410,XZU410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37560 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU DAIHATSU |
1 | ||
| 66241-37550 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU HINO |
1 | ||
| 66241-37510 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU TOYOTA |
1 | ||
| 66241-3V570 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU DAIHATSU |
1 | ||
| 66241-3V250 |
BU410,XZU400,401,410,411,412..T3..(295T,30T,35T)..CBU TOYOTA |
1 | ||
| 66241-3V410 |
BU410,XZU400,401,410,411,412..T3..(295T,30T,35T)..CBU HINO |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37530 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU HINO |
1 | ||
| 66241-37540 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU DAIHATSU |
1 | ||
| 66241-37520 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU TOYOTA |
1 | ||
| 66241-3V570 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU DAIHATSU |
1 | ||
| 66241-3V250 |
BU410,XZU400,401,410,411,412..T3..(295T,30T,35T)..CBU TOYOTA |
1 | ||
| 66241-3V410 |
BU410,XZU400,401,410,411,412..T3..(295T,30T,35T)..CBU HINO |
1 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BZU410..30T..CNG;BU410,BZU410,XZU382,410,411,412..SCB..(20T,295T,30T,35T)..(CBU,IV5) |
9 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU401..5F..CBU;XZU410..35T..CBU;XZU411,412..(4FC,6F)..CBU;BU410,XZU382,400,402..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BZU410..30T..CNG;BU410,BZU410,XZU382,410,411,412..SCB..(20T,295T,30T,35T)..(CBU,IV5) |
9 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU401..5F..CBU;XZU410..35T..CBU;XZU411,412..(4FC,6F)..CBU;BU410,XZU382,400,402..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BU410..6F..20T..CBU;XZU411..T4..5F..CBU;XZU410..T3..35T..CBU;XZU411,412..T3..6F..CBU;XZU412..DCB..T5..5F..CBU;XZU401,410..MTM..30T..CBU;XZU412..SCB..(T4,T5)..5F..CBU;BZU410,XZU382..30T..(CNG,DSL);XZU411..(T3,T5)..(4FC,5F)..CBU TECS=ﾊﾟﾜ- ﾘﾌﾄ |
2 | ||
| 66321-92805 |
BZU410..30T..CNG;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;BU410,BZU410,XZU382,40#,410..(20T,30T,35T)..(CBU,IV5) |
4 | ||
| Common parts | ||||
| 90119-08B66 | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 90241-09002 | ||||
| 90241-09003 | ||||
| 93210-16016 | ||||
| 94150-80600 | ||||
(0206-0406)XZU412..CNG ; (0206-0406)BZU410,XZU382..T4..CNG,DSL ; (0206-0406)BU410,B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60531 - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 60531-37390 |
BU410,XZU41#..SCB..(20T,295T,30T,35T)..CBU |
1 | ||
| 65303-3V180 |
BU410,BZU410,XZU410,411,412..SCB..(20T,295T,30T,35T)..CBU |
1 | ||
| 60532 - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 60532-37380 |
BU410,XZU41#..SCB..(20T,295T,30T,35T)..CBU |
1 | ||
| 65304-3V180 |
BU410,BZU410,XZU410,411,412..SCB..(20T,295T,30T,35T)..CBU |
1 | ||
| 65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH | ||||
| 65026-37030 |
BZU410..30T..CNG;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;BU410,BZU410,XZU382,410..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH | ||||
| 65027-37030 |
BZU410..30T..CNG;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;BU410,BZU410,XZU382,410..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-3V790 |
XZU410..T3..35T..CBU;BU410,XZU411,412..T3..CBU *** |
1 | ||
| 60530-3V830 |
BU410,XZU410,411,412..T3..(295T,30T,35T)..CBU *** |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-3V200 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-3V200 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37310 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37460 |
BU410,XZU410,411,412..(T3,T5)..(20T,295T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 65127-37570 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ｾﾝﾀ |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37310 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37460 |
BU410,XZU410,411,412..(T3,T5)..(20T,295T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 65127-37570 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ｾﾝﾀ |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37310 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37460 |
BU410,XZU410,411,412..(T3,T5)..(20T,295T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 65127-37570 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ｾﾝﾀ |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37310 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37460 |
BU410,XZU410,411,412..(T3,T5)..(20T,295T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 65127-37570 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ｾﾝﾀ |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37310 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37460 |
BU410,XZU410,411,412..(T3,T5)..(20T,295T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 65127-37570 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ｾﾝﾀ |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37310 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37460 |
BU410,XZU410,411,412..(T3,T5)..(20T,295T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 65127-37570 |
BU410,XZU410,411,412..SCB..(T3,T5)..(20T,295T,30T,35T)..CBU ｾﾝﾀ |
2 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37030 |
XZU411,412..(T3,T5)..(4FC,6F)..CBU;BU410,XZU382,410..(T3,T5)..(20T,30T,35T)..(CBU,IV5) |
2 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65250-37340 |
BZU410..30T..CNG;BU410,BZU410,XZU400,401,410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 65160A - SILL ASSY, CROSS, NO.2 | ||||
| 65240-37340 |
BU410,BZU410,XZU400,401,410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 65160B - SILL ASSY, CROSS, NO.2 | ||||
| 65240-37340 |
BZU410..CBU;BU410,XZU410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65220-37290 |
BZU410..CBU;BU410,XZU410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37320 |
BU410,XZU400,401,41#..(295T,30T,35T)..CBU |
1 | ||
| 65180-37500 |
BZU410..30T..CNG;BZU410,XZU411..(DSLL,LPG)..CBU;BU410,XZU400,401,410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37050 |
BZU410..30T..CNG;BU400,410,BZU410,XZU40#,410,411,412..(T3,T4,T5)..(20T,295T,30T,35T)..CBU |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37350 |
BU410,XZU400,401,41#..(295T,30T,35T)..CBU |
1 | ||
| 65180-37560 |
BZU410,XZU400,401..(T3,T4)..CBU;BU410,XZU410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65240-37340 |
BZU410..30T..CNG;XZU411..(T4,T5)..5F..CBU;BZU410,XZU410..(20T,30T,35T)..CBU;BU410,XZU400,401,411,412..(295T,30T,35T)..CBU ﾃﾞｯｷ = 幅広ﾀｲﾌﾟ |
1 | ||
| 65250 - SILL ASSY, CROSS, NO.2 | ||||
| 65250-37340 |
BZU410,XZU400,401..(T3,T4)..CBU;BU410,XZU410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37340 |
BZU410..30T..CNG;XZU410..35T..CBU;BZU410,XZU411..(DSLL,LPG)..CBU;BU410,XZU400,401,411,412..(295T,30T,35T)..CBU ﾊﾊﾞﾋﾛ ﾃﾞﾂｷ ﾀｲﾌﾟ |
1 | ||
| 65322 - NAIL | ||||
| 65322-92820 |
BU410,XZU410,411,412..(T3,T5)..(4FC,6F)..(20T,295T,30T,35T)..CBU |
15 | ||
| 65413A - BRACKET, GUARD FRAME, RH | ||||
| 65413-37030 |
XZU401..5F..CBU;XZU410..35T..CBU;XZU411,412..(4FC,6F)..CBU;BU410,XZU400,402..(20T,30T,35T)..CBU |
1 | ||
| 65415D - BRACKET, GUARD FRAME, LH | ||||
| 65415-37010 |
XZU401..5F..CBU;XZU410..35T..CBU;XZU411,412..(4FC,6F)..CBU;BU410,XZU400,402..(20T,30T,35T)..CBU |
1 | ||
| 66010A - FENDER ASSY, REAR NO.2 RH | ||||
| 66010-37010 |
BU410,XZU400,401,41#..(295T,30T,35T)..CBU ﾖｺﾊﾊﾞ = 558 MM |
1 | ||
| 65349-37010 |
BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..(20T,295T,30T,35T)..(CBU,IV5) |
1 | ||
| 66020A - FENDER ASSY, REAR NO.2 LH | ||||
| 66020-37010 |
BU410,XZU400,401,41#..(295T,30T,35T)..CBU ﾖｺﾊﾊﾞ = 558 MM |
1 | ||
| 65349-37010 |
BZU410..30T..CNG;BU410,BZU410,XZU382,40#,410,411,412..(20T,295T,30T,35T)..(CBU,IV5) |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37160 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU |
1 | ||
| 66242-37230 |
BZU410,XZU400,401..(T3,T4)..CBU;BU410,XZU410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37160 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU |
1 | ||
| 66242-37230 |
BZU410,XZU382,400,401..(T3,T4)..(CBU,IV5);BU410,XZU410,411,412..(295T,30T,35T)..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37560 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU DAIHATSU |
1 | ||
| 66241-37550 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU HINO |
1 | ||
| 66241-37510 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU TOYOTA |
1 | ||
| 66241-3V570 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU DAIHATSU |
1 | ||
| 66241-3V250 |
BU410,XZU400,401,410,411,412..T3..(295T,30T,35T)..CBU TOYOTA |
1 | ||
| 66241-3V410 |
BU410,XZU400,401,410,411,412..T3..(295T,30T,35T)..CBU HINO |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37530 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU HINO |
1 | ||
| 66241-37540 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU DAIHATSU |
1 | ||
| 66241-37520 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU TOYOTA |
1 | ||
| 66241-3V570 |
BU410,XZU400,401,41#..T3..(295T,30T,35T)..CBU DAIHATSU |
1 | ||
| 66241-3V250 |
BU410,XZU400,401,410,411,412..T3..(295T,30T,35T)..CBU TOYOTA |
1 | ||
| 66241-3V410 |
BU410,XZU400,401,410,411,412..T3..(295T,30T,35T)..CBU HINO |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
XZU411,412..4FC..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;XZU401,410..MTM..(30T,35T)..CBU;BU410,XZU382,400,402..(20T,30T,35T)..(CBU,IV5) |
6 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BZU410..30T..CNG;BU410,BZU410,XZU382,410,411,412..SCB..(20T,295T,30T,35T)..(CBU,IV5) |
9 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU401..5F..CBU;XZU410..35T..CBU;XZU411,412..(4FC,6F)..CBU;BU410,XZU382,400,402..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BZU410..30T..CNG;BU410,BZU410,XZU382,410,411,412..SCB..(20T,295T,30T,35T)..(CBU,IV5) |
9 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU401..5F..CBU;XZU410..35T..CBU;XZU411,412..(4FC,6F)..CBU;BU410,XZU382,400,402..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
BU410..CBU;XZU411,412..4FC..20T..CBU;XZU410,411,412..(295T,30T,35T)..CBU |
4 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92803 |
XZU411,412..(4FC,5F)..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;BU410,BZU410,XZU382,40#,410..(20T,30T,35T)..(CBU,IV5) ﾃｰﾙ |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BU410..6F..20T..CBU;XZU411..T4..5F..CBU;XZU410..T3..35T..CBU;XZU411,412..T3..6F..CBU;XZU412..DCB..T5..5F..CBU;XZU401,410..MTM..30T..CBU;XZU412..SCB..(T4,T5)..5F..CBU;BZU410,XZU382..30T..(CNG,DSL);XZU411..(T3,T5)..(4FC,5F)..CBU TECS=ﾊﾟﾜ- ﾘﾌﾄ |
2 | ||
| 66321-92805 |
BZU410..30T..CNG;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;BU410,BZU410,XZU382,40#,410..(20T,30T,35T)..(CBU,IV5) |
4 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BU410..6F..20T..CBU;XZU411..T4..5F..CBU;XZU410..T3..35T..CBU;XZU411,412..T3..6F..CBU;XZU412..DCB..T5..5F..CBU;XZU401,410..MTM..30T..CBU;XZU412..SCB..(T4,T5)..5F..CBU;BZU410,XZU382..30T..(CNG,DSL);XZU411..(T3,T5)..(4FC,5F)..CBU TECS=ﾊﾟﾜ- ﾘﾌﾄ |
2 | ||
| 66321-92805 |
BZU410..30T..CNG;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;BU410,BZU410,XZU382,40#,410..(20T,30T,35T)..(CBU,IV5) |
4 | ||
| 75139A - BRACKET, REFLEX REFLECTOR, RH | ||||
| 75139-37020 |
BU410,XZU382,41#..(20T,295T,30T,35T)..(CBU,IV5) |
1 | ||
| 75139-37040 |
BZU410..30T..CNG;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;BU410,BZU410,XZU382,410..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 75149 - BRACKET, REFLEX REFLECTOR, LH | ||||
| 75149-37020 |
BZU410..30T..CNG;XZU411,412..(4FC,5F)..20T..CBU;XZU411,412..(295T,30T,35T)..CBU;BU410,BZU410,XZU382,410..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 75149-37010 |
BU410,XZU382,41#..(20T,295T,30T,35T)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 90119-08B66 | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 90241-09002 | ||||
| 90241-09003 | ||||
| 90241-09004 | ||||
| 91611-G0820 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 93540-15016 | ||||
| 94150-80600 | ||||
| 94185-61000 | ||||
(0206-0406)BU420,430,XZU410,42#,430..CBU ; (0406- )XZU413,42#,43#..CBU ; (0406-
ﾒｲﾝ ｼﾙ ｴﾝﾄﾞ ｶﾊﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90467-06038 | ||||
| 90467-0603801 | ||||
| 93560-14010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
