XZU412-TGPMS (1999)
Toyota Dyna/Toyoace
Production
May 1999
-
Jun 2004
Engine
S05C
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905- )CNG ; (9905- )XZU412,413,414..20T,30T,35T..CBU ; (9905- )BU400,410

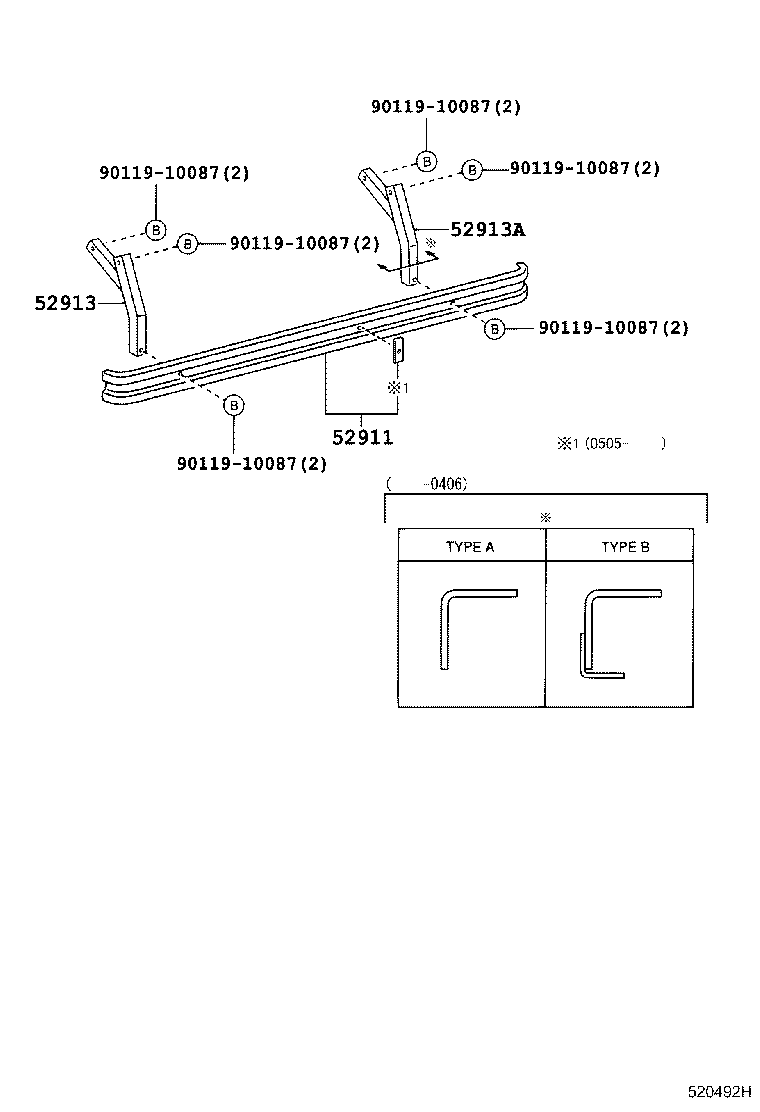

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52911 - BAR, SIDE BUMPER | ||||
| 52911-37700 |
BU410,XZU41#..SCB..(20T,295T,30T,35T)..CBU |
2 | ||
| 52911-37700 |
BU410,XZU410,411,412..SCB..(20T,295T,30T,35T)..CBU |
2 | ||
| 52913 - STAY, SIDE BUMPER, NO.1 | ||||
| 52092-37440 |
XZU402,411,412..T2..CBU 左側 |
1 | ||
| 52091-37470 |
XZU411,412..T2..CBU 右側 |
1 | ||
| 52094-37030 |
XZU411,412..T2..(4FC,5F)..CBU 右側 |
1 | ||
| 52093-37070 |
XZU402,411,412..T2..(4FC,5F)..CBU 左側 |
1 | ||
| 52913A - STAY, SIDE BUMPER, NO.1 | ||||
| 52093-37070 |
XZU411,412..T2..CBU 右側 |
1 | ||
| 52094-37030 |
XZU411,412..T2..CBU 左側 |
1 | ||
| 52094-37030 |
XZU402,411,412..T2..(4FC,5F)..CBU 左側 |
1 | ||
| 52093-37070 |
XZU402,411,412..T2..(4FC,5F)..CBU 右側 |
1 | ||
| Common parts | ||||
| 90119-10087 | ||||
