XZU412-TGPMS (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004
Engine S05C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905-0505)XZU411,412..T2

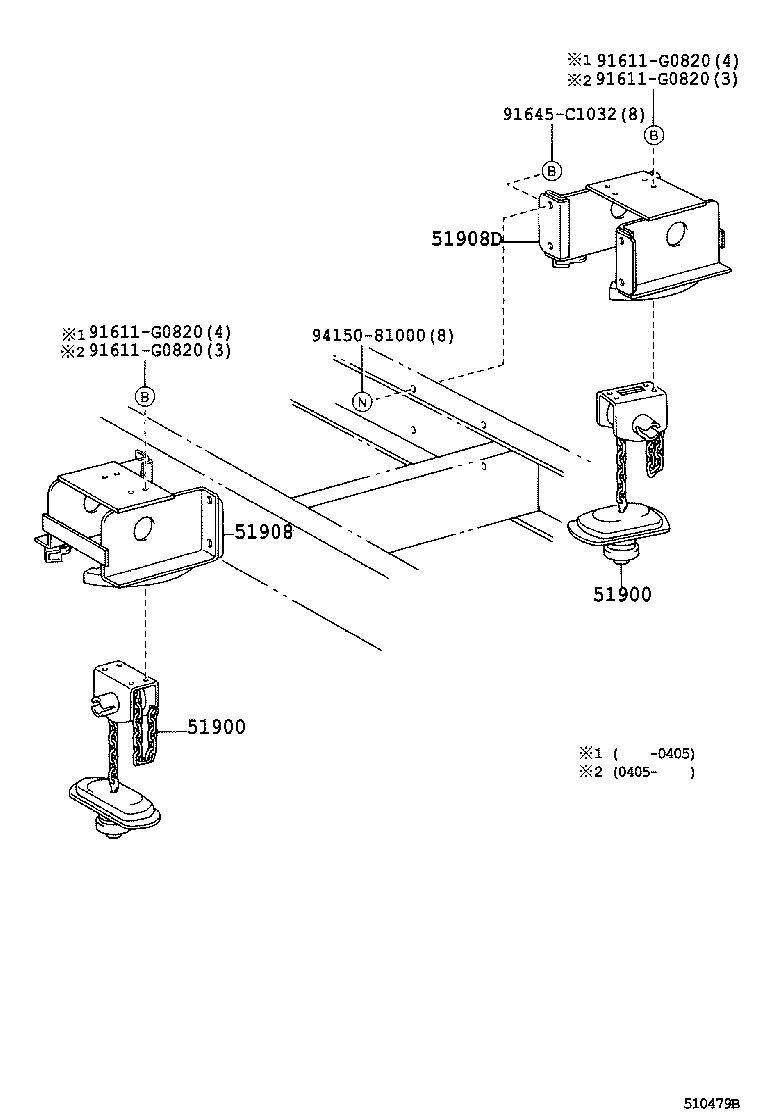

Click highlighted areas on diagram

diagram 51900 51900 51908 51908D 91611G0820 91611G0820 91611G0820 91611G0820 91645C1032 9415081000
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-37030

XZU402,411,412..T2..(4FC,5F)

 2
51900 - CARRIER ASSY, SPARE WHEEL
51900-37030

XZU402,411,412..T2..(4FC,5F)

 2
51908 - BRACKET SUB-ASSY, SPARE WHEEL CARRIER
51908-37160

XZU411,412..T2..(4FC,5F)

 1
51908D - BRACKET SUB-ASSY, SPARE WHEEL CARRIER, RH
51908-37170

XZU411,412..T2..(4FC,5F)

 1
Common parts
91611-G0820
91645-C1032
94150-81000
