XZU412-TGPMS (1999)
Toyota Dyna/Toyoace

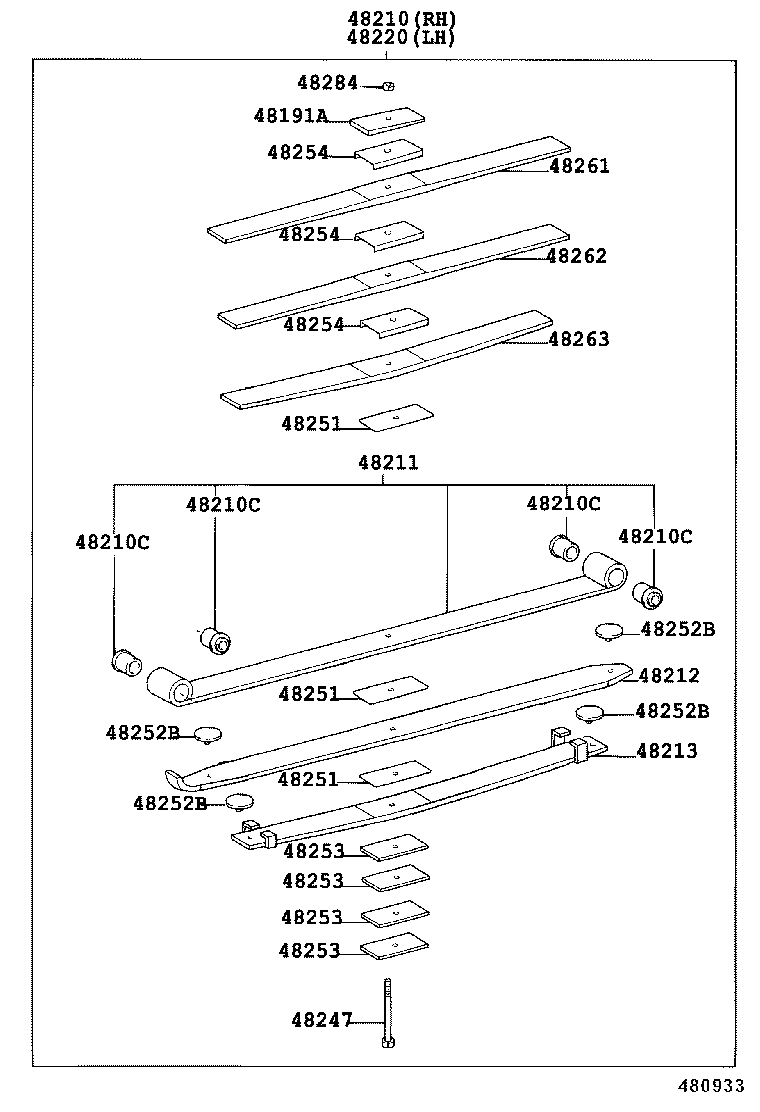

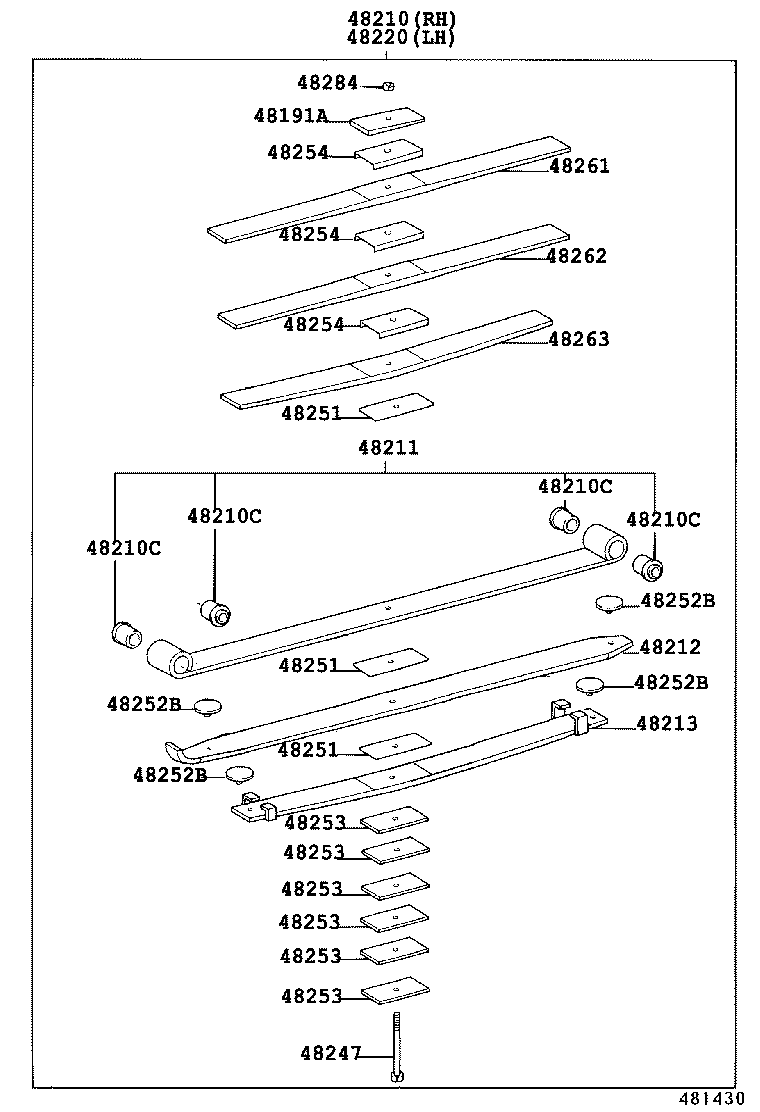

ILLUST NO. 2 OF 2(9905-0406)XZU412..T2..4FC ; (9905-0406)XZU411..T3..DSLL ; (9905-0406)BU410,420..4F
MAIN 3+HELPER 3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48212-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48202-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48202-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48202-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48214-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48215-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48215-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48216-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48216-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3B750 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T |
2 | ||
| 48284-3B750 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T |
2 | ||
ILLUST NO. 1 OF 2(9905-0406)BU400,410,420,430,BZU410,XZU40#,41#,42#,430
ﾒﾀﾙﾌﾞｯｼｭﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37170 |
XZU402,411,412..T2 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16040 |
XZU402,411..T2;XZU412..SCB..(T2,T5) 長さ=320 |
4 | ||
| 90117-16018 |
XZU402..T2;XZU411,412..T2..4FC 長さ=300 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16040 |
XZU402,411..T2;XZU412..SCB..(T2,T5) 長さ=320 |
4 | ||
| 90117-16018 |
XZU402..T2;XZU411,412..T2..4FC 長さ=300 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37170 |
XZU402,411,412..T2 |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37280 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48344-37280 |
XZU412..SCB..(T2,T5);XZU402,410,411,420,430..(T2,T3)..(20T,40T)..(CBU,IV3) |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37020 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37020 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
4 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37071 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48481-37070 |
XZU402,411..T2..(4FC,5F);XZU412..SCB..(T2,T5)..(4FC,5F) |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37050 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-37050 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80685 |
BU420,430..T4,T5;BU400,410,XZU40#,41#,42#,430..20T,295T,30T,35T ﾏｰｸ 48531−37080 |
1 | ||
| 48531-37150 |
XZU411..T3..DSL;BU420,430,XZU411..T2,T4,T5;BU410,BZU410,XZU40#,410,412,42#,430..20T,30T,35T ﾏｰｸ 48531−37150 |
1 | ||
| 48531-37080 |
BU420,430..T4,T5;BU400,410,XZU40#,41#,42#,430..20T,295T,30T,35T ﾏｰｸ 48531−37080 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU411..4FC..20T;XZU412,421..(T2,T4)..(4FC,5F);XZU412,421,430..6F..(30T,35T,40T);BU410,420,430,XZU401,402..20T,30T,35T;XZU400,410,411,420..295T,30T,35T,40T,40TOV |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU411..4FC..20T;XZU412,421..(T2,T4)..(4FC,5F);XZU412,421,430..6F..(30T,35T,40T);BU410,420,430,XZU401,402..20T,30T,35T;XZU400,410,411,420..295T,30T,35T,40T,40TOV |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU382,40#,410,412,42#,430 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU382,40#,410,412,42#,430 |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-37080 |
BU420,430..T4,T5;BU400,410,XZU40#,41#,42#,430..20T,295T,30T,35T ﾏｰｸ 48531−37080 |
1 | ||
| 48531-80685 |
BU420,430..T4,T5;BU400,410,XZU40#,41#,42#,430..20T,295T,30T,35T ﾏｰｸ 48531−37080 |
1 | ||
| 48531-37150 |
XZU411..T3..DSL;BU420,430,XZU411..T2,T4,T5;BU410,BZU410,XZU40#,410,412,42#,430..20T,30T,35T ﾏｰｸ 48531−37150 |
1 | ||
| Common parts | ||||
| 90031-01172 | ||||
| 90031-79042 | ||||
| 90032-01143 | ||||
| 90032-04031 | ||||
| 90101-10081 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91112-81025 | ||||
| 94130-01002 | ||||
| 94184-61001 | ||||
| Linked diagrams | ||||
| 5151 | ||||
ILLUST NO. 2 OF 2(9905-0406)XZU400..40T ; (9905-0406)XZU410..IV6; (0005-0406)40TOV ; (0406-0505)XZU
MAIN 7+HELPER 6-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48202-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48214-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48215-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48216-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3B750 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T |
2 | ||
ILLUST NO. 2 OF 2(9905-0406)XZU400..40T ; (9905-0406)XZU410..IV6; (0005-0406)40TOV ; (0406-0505)XZU
MAIN 7+HELPER 6-LEAF,ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48212-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48202-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48202-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48202-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48214-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48215-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48215-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48216-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48216-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3B750 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T |
2 | ||
| 48284-3B750 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T |
2 | ||
ILLUST NO. 2 OF 2(9905-0406)XZU402..T2 ; (9905-0406)XZU411..T2..4FC,6F ; (9905-0406)XZU412..SCB..T2,
MAIN 3+HELPER 3-LEAF ｼﾞﾔｽﾄﾛｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48202-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48214-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48215-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48216-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3B750 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T |
2 | ||
ILLUST NO. 2 OF 2(0206-0406)BU410,420,BZU410,XZU402,410,412,414,421..T4,T5..20T..IV3 ; (0406-0610)XZ
MAIN 2+HELPER 2-LEAF,TYPE:D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48212-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48212-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48212-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48202-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48202-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48202-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48202-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48214-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48215-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48215-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48215-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48215-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3B750 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T |
2 | ||
| 48284-3B750 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T |
2 | ||
| 48284-3B750 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T |
2 | ||
| 48284-3B750 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T |
2 | ||
ILLUST NO. 2 OF 2(0206-0406)XZU411..T5 ; (0206-0406)XZU411..T4..20T..IV3 ; (0206-0406)BU410,420,XZU4
MAIN 2+HELPER 2-LEAF,TYPE:D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48212-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48212-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48212-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48202-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48202-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48202-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48202-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48214-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48215-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48215-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48215-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48215-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3B750 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T |
2 | ||
| 48284-3B750 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T |
2 | ||
| 48284-3B750 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T |
2 | ||
| 48284-3B750 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T |
2 | ||
ILLUST NO. 2 OF 2(0206-0406)XZU402,411..T2 ; (0206-0406)XZU412..SCB..T2,T5 ; (0406-0610)XZU401,411..
MAIN 2+HELPER 2-LEAF,TYPE:E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48202-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48214-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48215-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3B750 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T |
2 | ||
ILLUST NO. 2 OF 2(9905-0406)BU410,420,430,BZU410,XZU401,410,411,412,42#..30T,35T..IV3 ; (0406-0705)X
MAIN 2+HELPER 2-LEAF,TYPE:B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 90389-16026 |
XZU382;BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48201-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48212-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48212-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48212-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48202-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48202-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48202-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48202-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｼﾞﾔｽﾄﾛ- |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48247-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48253-3V020 |
XZU402..T2;XZU411..T2..(4FC,6F);XZU412..SCB..(T2,T5)..(4FC,6F) |
6 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48252-3B800 |
BU400,410,420,XZU402,411,412,421..20T |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
12 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254-3V020 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
16 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48254-37380 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
6 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48214-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48213-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48215-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48215-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48215-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48215-3V021 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48214-3V510 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3B750 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T |
2 | ||
| 48284-3B750 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T |
2 | ||
| 48284-3B750 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T |
2 | ||
| 48284-3B750 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T |
2 | ||
ILLUST NO. 1 OF 2(9905-0406)BU400,410,420,430,BZU410,XZU40#,41#,42#,430
ﾗﾊﾞｰﾌﾞｯｼｭﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37170 |
XZU402,411,412..T2 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16040 |
XZU402,411..T2;XZU412..SCB..(T2,T5) 長さ=320 |
4 | ||
| 90117-16018 |
XZU402..T2;XZU411,412..T2..4FC 長さ=300 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16040 |
XZU402,411..T2;XZU412..SCB..(T2,T5) 長さ=320 |
4 | ||
| 90117-16018 |
XZU402..T2;XZU411,412..T2..4FC 長さ=300 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37170 |
XZU402,411,412..T2 |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37280 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48344-37280 |
XZU412..SCB..(T2,T5);XZU402,410,411,420,430..(T2,T3)..(20T,40T)..(CBU,IV3) |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-37010 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37020 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37020 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
4 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37071 |
XZU402,411..T2;XZU412..SCB..(T2,T5) |
2 | ||
| 48481-37070 |
XZU402,411..T2..(4FC,5F);XZU412..SCB..(T2,T5)..(4FC,5F) |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37050 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-37050 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80685 |
BU420,430..T4,T5;BU400,410,XZU40#,41#,42#,430..20T,295T,30T,35T ﾏｰｸ 48531−37080 |
1 | ||
| 48531-37150 |
XZU411..T3..DSL;BU420,430,XZU411..T2,T4,T5;BU410,BZU410,XZU40#,410,412,42#,430..20T,30T,35T ﾏｰｸ 48531−37150 |
1 | ||
| 48531-37080 |
BU420,430..T4,T5;BU400,410,XZU40#,41#,42#,430..20T,295T,30T,35T ﾏｰｸ 48531−37080 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU411..4FC..20T;XZU412,421..(T2,T4)..(4FC,5F);XZU412,421,430..6F..(30T,35T,40T);BU410,420,430,XZU401,402..20T,30T,35T;XZU400,410,411,420..295T,30T,35T,40T,40TOV |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU411..4FC..20T;XZU412,421..(T2,T4)..(4FC,5F);XZU412,421,430..6F..(30T,35T,40T);BU410,420,430,XZU401,402..20T,30T,35T;XZU400,410,411,420..295T,30T,35T,40T,40TOV |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU382,40#,410,412,42#,430 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU382,40#,410,412,42#,430 |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-37080 |
BU420,430..T4,T5;BU400,410,XZU40#,41#,42#,430..20T,295T,30T,35T ﾏｰｸ 48531−37080 |
1 | ||
| 48531-80685 |
BU420,430..T4,T5;BU400,410,XZU40#,41#,42#,430..20T,295T,30T,35T ﾏｰｸ 48531−37080 |
1 | ||
| 48531-37150 |
XZU411..T3..DSL;BU420,430,XZU411..T2,T4,T5;BU410,BZU410,XZU40#,410,412,42#,430..20T,30T,35T ﾏｰｸ 48531−37150 |
1 | ||
| Common parts | ||||
| 90031-79042 | ||||
| 90032-01143 | ||||
| 90032-04031 | ||||
| 90105-16021 | ||||
| 90105-16070 | ||||
| 90105-16075 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91112-81025 | ||||
| 91651-B0820 | ||||
| 94130-01002 | ||||
| 94184-61001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
