XZU412-PPFMS (1999)

Toyota Dyna/Toyoace

Production Aug 1999 - Jun 2002
Engine S05C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

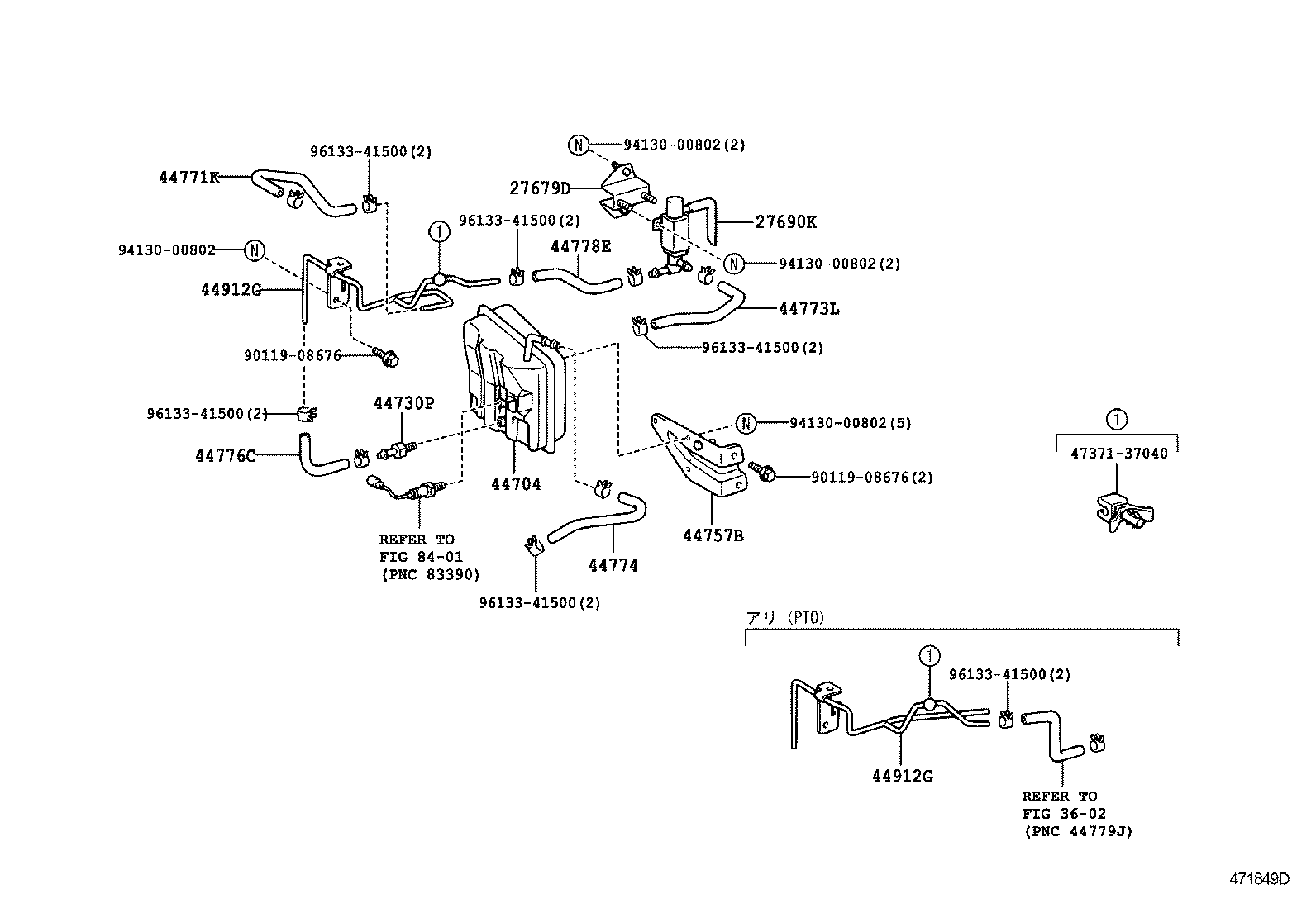

ILLUST NO. 2 OF 2(9908- )XZU412..DCB

Click highlighted areas on diagram

diagram 27679D 27690K 3602 44704 44730P 44757B 44771K 44773L 44774 44776C 44778E 44912G 44912G 4737137040 8401 9011908676 9011908676 9413000802 9413000802 9413000802 9413000802 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
27679D - BRACKET, EXHAUST BRAKE SOLENOID
27679-78210

S05C..XZU412..DCB..6F

 1
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78030

S05C..XZU412..DCB;J05C..XZU400,410..IV6

 1
27690-78031

S05C..XZU412..DCB..6F

ﾎﾞﾄﾙｶｰ

 1
27690-78030

S05C..XZU412..DCB

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37100

XZU412..DCB..6F

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050

BU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)

 1
44757B - BRACKET, VACUUM TANK CLAMP, NO.2
44757-37040

XZU412..DCB..6F

 1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37310

XZU412..DCB..6F

 1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44773-37130

XZU412..DCB..6F

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
95446-09260

XZU412..DCB..6F

 1
44776C - HOSE, VACUUM RESERVOIR TO CONNECTOR
95446-09200

XZU412..DCB..6F

 1
44778E - HOSE, CONNECTOR TUBE TO SOLENOID
95446-09170

XZU412..DCB..6F

 1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37460

XZU412..DCB..6F

ｱﾘ(PTO)

 1
44912-37450

XZU412..DCB..6F

ﾅｼ(PTO)

 1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37460

XZU412..DCB..6F

ｱﾘ(PTO)

 1
44912-37450

XZU412..DCB..6F

ﾅｼ(PTO)

 1
Common parts
47371-37040
90119-08676
94130-00802
96133-41500
Linked diagrams
3602
8401
