XZU411-TQPQS3 (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004
Engine S05D
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9905-0406)BU400,410,420,430,BZU410,XZU40#,41#,42#,430

Click highlighted areas on diagram

ﾒﾀﾙﾌﾞｯｼｭﾀｲﾌﾟ

diagram 48042 48046 48046A 48046A 48047 48210Q 48323D 48323D 48323D 48323E 48323E 48323E 48344 48435 48435 48475R 48481 48516 48517 48530 48530A 48530A 48530B 48530B 48540 5151 9003101172 9003101172 9003179042 9003201143 9003204031 9003204031 9003204031 9010110081 9010110081 9011912088 9011912088 9017016016 9017916030 9020116035 9020116035 9111281025 9413001002 9413001002 9413001002 9418461001 9418461001 9418461001
Part # Description Qty Price
48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2
48042-37050

XZU421..T4..30T;XZU421,430..T3..6F..(30T,35T,40T);XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL;BU410,420,430,BZU410,XZU401,411..295T,30T,35T

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48473-37110

XZU412..DCB..T5;XZU412..T3..CBU;XZU411..(T3,T5)..DSLL;BU400,410,420,430,XZU401,402,41#,42#..T4;XZU400,401,410,411,420,430..T3..(295T,35T)..IV3;BU410,420,XZU401,410,411,421..(T3,T5)..(20T,295T,30T)..CBU

 1
48473-37110

XZU412..T4,T5;XZU412..T3..CBU;XZU411..(T3,T5)..DSLL;BU400,410,420,430,XZU401,402,410,411,42#..T4;XZU400,401,410,411,420,430..T3..(295T,35T)..IV3;BU410,420,XZU401,410,411,421..(T3,T5)..(20T,295T,30T)..CBU

 1
48473-37110

XZU411..T3..295T;XZU411..T3..DSLL;XZU412..(T4,T5)..DSL;XZU400,401,410,411,420,430..T3..35T..IV3;BU410,XZU401,410,411,412,421..T3..30T..CBU;BU410,420,430,BZU410,XZU401,402,410,411,42#..T4,T5

 1
48473-37110

XZU411..T3..295T;BU410,XZU401,41#,421..T3..30T..CBU;BU410,420,430,XZU401,402,41#,42#..T4,T5;XZU400,401,410,411,420,430..T3..35T..IV3

 1
48046A - BOLT, U(FOR REAR SPRING)
90031-17015

XZU411..295T;XZU401,410..T4..35T..CBU;BU410,XZU412,421..T3..CBU;XZU401,410,411..T3..30T..DSL;BU410,420,430,XZU420..T4..35T;BU410,BZU410,XZU412,421..30T..IV3;XZU401,410,411..T4..(30T,35T)..IV3

長さ=310

 4
90031-17014

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)

長さ=300

 4
48046A - BOLT, U(FOR REAR SPRING)
90031-17015

XZU411..295T;XZU401,410..T4..35T..CBU;BU410,XZU412,421..T3..CBU;XZU401,410,411..T3..30T..DSL;BU410,420,430,XZU420..T4..35T;BU410,BZU410,XZU412,421..30T..IV3;XZU401,410,411..T4..(30T,35T)..IV3

長さ=310

 4
90031-17014

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)

長さ=300

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48473-37110

XZU412..DCB..T5;XZU412..T3..CBU;XZU411..(T3,T5)..DSLL;BU400,410,420,430,XZU401,402,41#,42#..T4;XZU400,401,410,411,420,430..T3..(295T,35T)..IV3;BU410,420,XZU401,410,411,421..(T3,T5)..(20T,295T,30T)..CBU

 1
48473-37110

XZU411..T3..295T;XZU411..T3..DSLL;XZU412..(T4,T5)..DSL;XZU400,401,410,411,420,430..T3..35T..IV3;BU410,XZU401,410,411,412,421..T3..30T..CBU;BU410,420,430,BZU410,XZU401,402,410,411,42#..T4,T5

 1
48473-37110

XZU411..T3..295T;BU410,XZU401,41#,421..T3..30T..CBU;BU410,420,430,XZU401,402,41#,42#..T4,T5;XZU400,401,410,411,420,430..T3..35T..IV3

 1
48473-37110

XZU412..T4,T5;XZU412..T3..CBU;XZU411..(T3,T5)..DSLL;BU400,410,420,430,XZU401,402,410,411,42#..T4;XZU400,401,410,411,420,430..T3..(295T,35T)..IV3;BU410,420,XZU401,410,411,421..(T3,T5)..(20T,295T,30T)..CBU

 1
48210Q - BUSH(FOR REAR SPRING SHACKLE)
90033-84013

BU420..6F..35T;XZU421..T3..6F;XZU421..T4..30T;XZU401,420..35T,40T;XZU410,411,412..(30T,35T,40T)..DSL;BU410,430,XZU400,430..MTM..(30T,35T,40T)

 2
48323D - PIN, REAR SPRING BRACKET
48323-37040

XZU421..T4..30T;XZU421,430..T3..6F..(30T,35T,40T);XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL;BU410,420,430,BZU410,XZU401,411..295T,30T,35T

 6
48323D - PIN, REAR SPRING BRACKET
48323-37040

XZU421..T4..30T;XZU421,430..T3..6F..(30T,35T,40T);XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL;BU410,420,430,BZU410,XZU401,411..295T,30T,35T

 6
48323D - PIN, REAR SPRING BRACKET
48323-37040

XZU421..T4..30T;XZU421,430..T3..6F..(30T,35T,40T);XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL;BU410,420,430,BZU410,XZU401,411..295T,30T,35T

 6
48323E - NIPPLE, GREASE(FOR REAR SPRING BRACKET PIN)
90034-08006

XZU421..T4..30T;XZU421,430..T3..6F..(30T,35T,40T);XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL;BU410,420,430,BZU410,XZU401,411..295T,30T,35T

 6
48323E - NIPPLE, GREASE(FOR REAR SPRING BRACKET PIN)
90034-08006

XZU421..T4..30T;XZU421,430..T3..6F..(30T,35T,40T);XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL;BU410,420,430,BZU410,XZU401,411..295T,30T,35T

 6
48323E - NIPPLE, GREASE(FOR REAR SPRING BRACKET PIN)
90034-08006

XZU421..T4..30T;XZU421,430..T3..6F..(30T,35T,40T);XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL;BU410,420,430,BZU410,XZU401,411..295T,30T,35T

 6
48344 - STOPPER, BUMPER, REAR
48344-37090

XZU412..T4..30T..DSL;BU410,420,430,BZU410,XZU401,410,411,42#..T4..(295T,30T,35T)

 2
48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1
48435-37020

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 4
48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1
48435-37020

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 4
48475R - PLATE, DISTANCE(FOR REAR)
48475-37090

XZU421..T3..6F..IV3;XZU421..T5..5F..IV3;XZU412..6F..30T..IV3;XZU421..T4..30T..IV3;BU420..(20T,35T)..IV3;XZU411..(4FC,5F)..20T..IV3;XZU421..T4..(4FC,5F)..20T..IV3;XZU412..SCB..(4FC,5F)..DSL..IV3;XZU411,430..(295T,30T,35T,40T)..IV3;BU410,430,BZU410,XZU40#,410,420..(T2,T3,T4,T5)..IV3

 1
48481 - SEAT, REAR SPRING, UPPER
48481-37090

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU412..DCB..T5..5F;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411..(T4,T5)..(4FC,5F)..20T;XZU412..T4..(4FC,5F)..20T..DSL;XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU401,402..(T3,T4,T5)..(20T,30T,35T)

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-37050

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48505-37050

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80685

BU420,430..T4,T5;BU400,410,XZU40#,41#,42#,430..20T,295T,30T,35T

ﾏｰｸ 48531−37080

 1
48531-37150

XZU411..T3..DSL;BU420,430,XZU411..T2,T4,T5;BU410,BZU410,XZU40#,410,412,42#,430..20T,30T,35T

ﾏｰｸ 48531−37150

 1
48531-37080

BU420,430..T4,T5;BU400,410,XZU40#,41#,42#,430..20T,295T,30T,35T

ﾏｰｸ 48531−37080

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19011

XZU411..4FC..20T;XZU412,421..(T2,T4)..(4FC,5F);XZU412,421,430..6F..(30T,35T,40T);BU410,420,430,XZU401,402..20T,30T,35T;XZU400,410,411,420..295T,30T,35T,40T,40TOV

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19011

XZU411..4FC..20T;XZU412,421..(T2,T4)..(4FC,5F);XZU412,421,430..6F..(30T,35T,40T);BU410,420,430,XZU401,402..20T,30T,35T;XZU400,410,411,420..295T,30T,35T,40T,40TOV

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03011

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU382,40#,410,412,42#,430

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03011

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU382,40#,410,412,42#,430

 4
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-37080

BU420,430..T4,T5;BU400,410,XZU40#,41#,42#,430..20T,295T,30T,35T

ﾏｰｸ 48531−37080

 1
48531-80685

BU420,430..T4,T5;BU400,410,XZU40#,41#,42#,430..20T,295T,30T,35T

ﾏｰｸ 48531−37080

 1
48531-37150

XZU411..T3..DSL;BU420,430,XZU411..T2,T4,T5;BU410,BZU410,XZU40#,410,412,42#,430..20T,30T,35T

ﾏｰｸ 48531−37150

 1
Common parts
90031-01172
90031-79042
90032-01143
90032-04031
90101-10081
90119-12088
90170-16016
90179-16030
90201-16035
91112-81025
94130-01002
94184-61001
Linked diagrams
5151

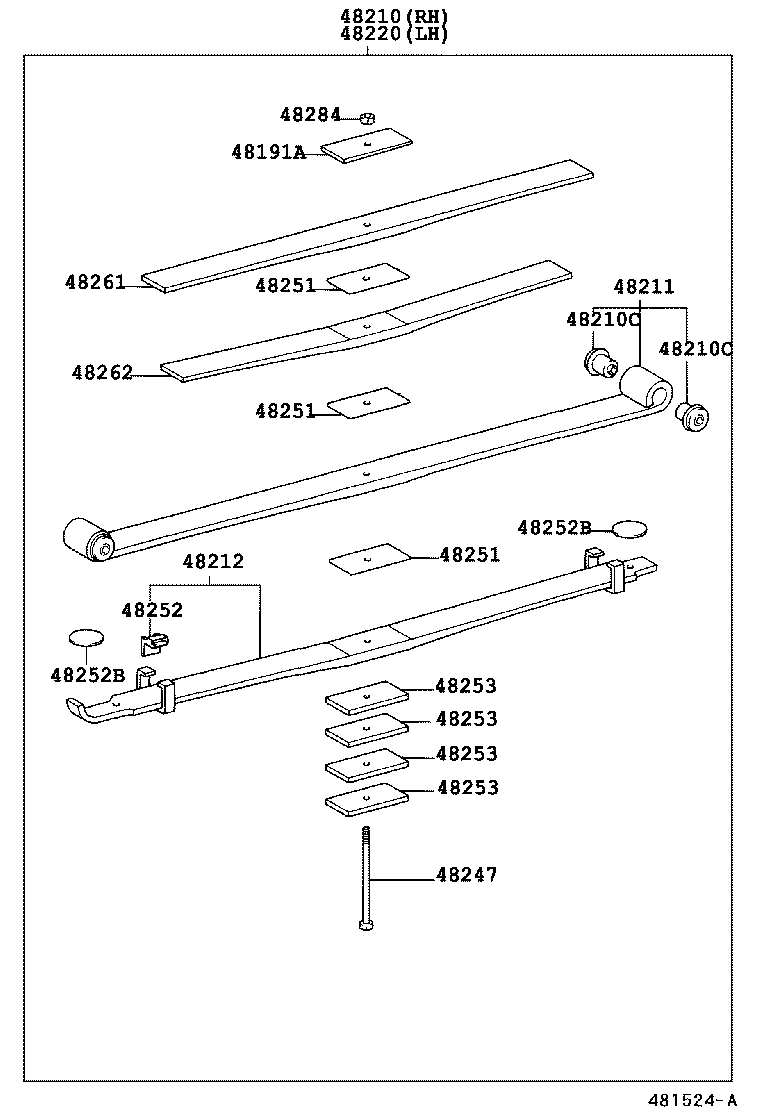

ILLUST NO. 2 OF 2(9905-0406)XZU400..40T ; (9905-0406)XZU410..IV6; (0005-0406)40TOV ; (0406-0505)XZU

Click highlighted areas on diagram

MAIN 7+HELPER 6-LEAF

diagram 48191A 48210 48210C 48211 48212 48213 48214 48215 48216 48217 48220 48247 48251 48251 48251 48251 48251 48251 48251 48251 48251 48251 48251 48252A 48252A 48252A 48253 48253D 48254 48261 48262 48263 48264 48265 48266 48284
Part # Description Qty Price
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37100

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430

 2
48210 - SPRING ASSY, REAR RH
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
48211 - LEAF, REAR SPRING, NO.1
48201-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48201-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48212 - LEAF, REAR SPRING, NO.2
48202-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48202-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48220 - SPRING ASSY, REAR LH
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3V070

BU410,XZU41#,421..T4..(295T,30T)

 2
48247-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..(295T,30T)

 2
48247-3V070

BU410,XZU410,411,412,421..T4..30T..(DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254 - SPACER, REAR SPRING LEAF
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48261 - LEAF, REAR HELPER SPRING, NO.1
48213-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48213-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48214-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48214-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-3B750

XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T

 2

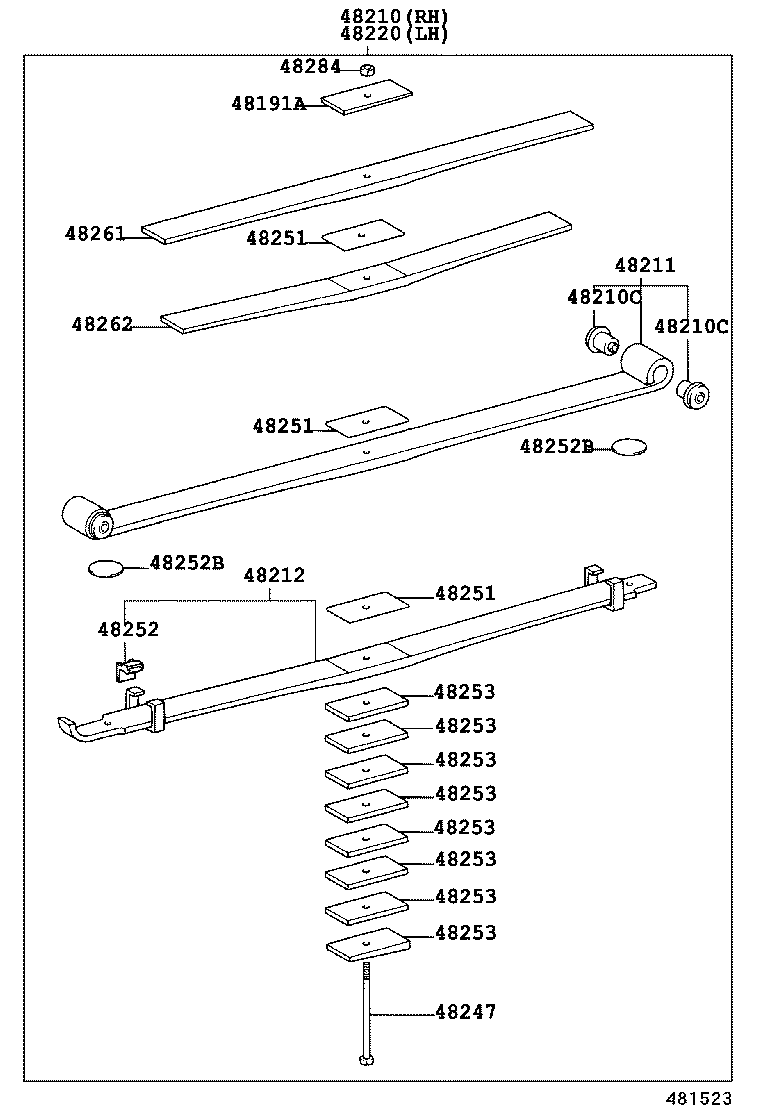

ILLUST NO. 2 OF 2(9905-0406)XZU400..40T ; (9905-0406)XZU410..IV6; (0005-0406)40TOV ; (0406-0505)XZU

Click highlighted areas on diagram

MAIN 7+HELPER 6-LEAF,ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ

diagram 48191A 48210 48210C 48211 48212 48213 48214 48215 48216 48217 48220 48247 48251 48251 48251 48251 48251 48251 48251 48251 48251 48251 48251 48252A 48254 48254 48254 48254 48261 48262 48263 48264 48265 48266 48284
Part # Description Qty Price
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37100

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430

 2
48192-37100

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430

 2
48210 - SPRING ASSY, REAR RH
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
48211 - LEAF, REAR SPRING, NO.1
48201-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48201-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48201-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48201-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48212 - LEAF, REAR SPRING, NO.2
48202-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48202-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48202-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48202-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48220 - SPRING ASSY, REAR LH
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3V070

BU410,XZU41#,421..T4..(295T,30T)

 2
48247-3V070

BU410,XZU41#,421..T4..(295T,30T)

 2
48247-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..(295T,30T)

 2
48247-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..(295T,30T)

 2
48247-3V070

BU410,XZU410,411,412,421..T4..30T..(DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48247-3V070

BU410,XZU410,411,412,421..T4..30T..(DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48261 - LEAF, REAR HELPER SPRING, NO.1
48213-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48213-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48213-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48213-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48214-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48214-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48214-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48214-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-3B750

XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T

 2
48284-3B750

XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T

 2

ILLUST NO. 2 OF 2(0206-0406)BU410,420,BZU410,XZU402,410,412,414,421..T4,T5..20T..IV3 ; (0406-0610)XZ

Click highlighted areas on diagram

MAIN 2+HELPER 2-LEAF,TYPE:D

diagram 48191A 48210 48210C 48210C 48211 48212 48220 48247 48251 48251 48252 48252B 48252B 48253 48253 48253 48253 48253 48254 48254 48261 48262 48284
Part # Description Qty Price
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37100

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430

 2
48192-37100

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430

 2
48192-37100

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430

 2
48192-37100

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430

 2
48210 - SPRING ASSY, REAR RH
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
48211 - LEAF, REAR SPRING, NO.1
48201-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48201-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48201-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48201-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48201-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48201-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48201-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48201-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48212 - LEAF, REAR SPRING, NO.2
48202-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48202-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48202-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48202-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48202-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48202-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48202-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48202-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48220 - SPRING ASSY, REAR LH
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3V070

BU410,XZU41#,421..T4..(295T,30T)

 2
48247-3V070

BU410,XZU41#,421..T4..(295T,30T)

 2
48247-3V070

BU410,XZU41#,421..T4..(295T,30T)

 2
48247-3V070

BU410,XZU41#,421..T4..(295T,30T)

 2
48247-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..(295T,30T)

 2
48247-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..(295T,30T)

 2
48247-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..(295T,30T)

 2
48247-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..(295T,30T)

 2
48247-3V070

BU410,XZU410,411,412,421..T4..30T..(DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48247-3V070

BU410,XZU410,411,412,421..T4..30T..(DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48247-3V070

BU410,XZU410,411,412,421..T4..30T..(DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48247-3V070

BU410,XZU410,411,412,421..T4..30T..(DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48252 - SILENCER, REAR SPRING
48252-37380

XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL

 8
48252-37380

XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL

 8
48252-37380

XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL

 8
48252-37380

XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL

 8
48252B - SILENCER, REAR SPRING, NO.1
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252B - SILENCER, REAR SPRING, NO.1
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254 - SPACER, REAR SPRING LEAF
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48261 - LEAF, REAR HELPER SPRING, NO.1
48213-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48213-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48213-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48213-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48213-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48213-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48213-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48213-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48214-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48214-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48214-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48214-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48214-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48214-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48214-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48214-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-3B750

XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T

 2
48284-3B750

XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T

 2
48284-3B750

XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T

 2
48284-3B750

XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T

 2

ILLUST NO. 2 OF 2(0206-0406)XZU411..T5 ; (0206-0406)XZU411..T4..20T..IV3 ; (0206-0406)BU410,420,XZU4

Click highlighted areas on diagram

MAIN 2+HELPER 2-LEAF,TYPE:D

diagram 48191A 48210 48210C 48210C 48211 48212 48220 48247 48251 48251 48252 48252B 48252B 48253 48253 48253 48253 48253 48254 48254 48261 48262 48284
Part # Description Qty Price
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37100

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430

 2
48192-37100

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430

 2
48192-37100

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430

 2
48192-37100

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430

 2
48210 - SPRING ASSY, REAR RH
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
48211 - LEAF, REAR SPRING, NO.1
48201-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48201-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48201-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48201-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48201-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48201-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48201-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48201-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48212 - LEAF, REAR SPRING, NO.2
48202-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48202-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48202-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48202-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48202-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48202-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48202-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48202-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48220 - SPRING ASSY, REAR LH
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3V070

BU410,XZU41#,421..T4..(295T,30T)

 2
48247-3V070

BU410,XZU41#,421..T4..(295T,30T)

 2
48247-3V070

BU410,XZU41#,421..T4..(295T,30T)

 2
48247-3V070

BU410,XZU41#,421..T4..(295T,30T)

 2
48247-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..(295T,30T)

 2
48247-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..(295T,30T)

 2
48247-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..(295T,30T)

 2
48247-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..(295T,30T)

 2
48247-3V070

BU410,XZU410,411,412,421..T4..30T..(DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48247-3V070

BU410,XZU410,411,412,421..T4..30T..(DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48247-3V070

BU410,XZU410,411,412,421..T4..30T..(DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48247-3V070

BU410,XZU410,411,412,421..T4..30T..(DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48252 - SILENCER, REAR SPRING
48252-37380

XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL

 8
48252-37380

XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL

 8
48252-37380

XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL

 8
48252-37380

XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL

 8
48252B - SILENCER, REAR SPRING, NO.1
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252B - SILENCER, REAR SPRING, NO.1
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254 - SPACER, REAR SPRING LEAF
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48261 - LEAF, REAR HELPER SPRING, NO.1
48213-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48213-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48213-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48213-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48213-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48213-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48213-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48213-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48214-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48214-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48214-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48214-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48214-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48214-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48214-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48214-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-3B750

XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T

 2
48284-3B750

XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T

 2
48284-3B750

XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T

 2
48284-3B750

XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T

 2

ILLUST NO. 2 OF 2(0206-0406)XZU402,411..T2 ; (0206-0406)XZU412..SCB..T2,T5 ; (0406-0610)XZU401,411..

Click highlighted areas on diagram

MAIN 2+HELPER 2-LEAF,TYPE:E

diagram 48191A 48210 48210C 48210C 48211 48212 48220 48247 48251 48251 48251 48252 48252B 48252B 48253 48253 48253 48253 48253 48253 48253 48253 48261 48262 48284
Part # Description Qty Price
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37100

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430

 2
48210 - SPRING ASSY, REAR RH
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
48211 - LEAF, REAR SPRING, NO.1
48201-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48201-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48212 - LEAF, REAR SPRING, NO.2
48202-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48202-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48220 - SPRING ASSY, REAR LH
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3V070

BU410,XZU41#,421..T4..(295T,30T)

 2
48247-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..(295T,30T)

 2
48247-3V070

BU410,XZU410,411,412,421..T4..30T..(DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48252 - SILENCER, REAR SPRING
48252-37380

XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL

 8
48252B - SILENCER, REAR SPRING, NO.1
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252B - SILENCER, REAR SPRING, NO.1
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48261 - LEAF, REAR HELPER SPRING, NO.1
48213-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48213-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48214-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48214-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-3B750

XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T

 2

ILLUST NO. 2 OF 2(0206-0406)XZU414..T4 ; (0206-0406)BU410,420,BZU410,XZU402,410,411,412,421..T4,T5..

Click highlighted areas on diagram

MAIN 2+HELPER 2-LEAF,TYPE:F

diagram 48191A 48210 48210C 48210C 48211 48212 48220 48247 48251 48251 48251 48252 48252B 48252B 48253 48253 48253 48253 48261 48262 48284
Part # Description Qty Price
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37100

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430

 2
48192-37100

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430

 2
48210 - SPRING ASSY, REAR RH
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
48211 - LEAF, REAR SPRING, NO.1
48201-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48201-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48201-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48201-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48212 - LEAF, REAR SPRING, NO.2
48202-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48202-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48202-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48202-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48220 - SPRING ASSY, REAR LH
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3V070

BU410,XZU41#,421..T4..(295T,30T)

 2
48247-3V070

BU410,XZU41#,421..T4..(295T,30T)

 2
48247-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..(295T,30T)

 2
48247-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..(295T,30T)

 2
48247-3V070

BU410,XZU410,411,412,421..T4..30T..(DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48247-3V070

BU410,XZU410,411,412,421..T4..30T..(DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48252 - SILENCER, REAR SPRING
48252-37380

XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL

 8
48252-37380

XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL

 8
48252B - SILENCER, REAR SPRING, NO.1
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252B - SILENCER, REAR SPRING, NO.1
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48261 - LEAF, REAR HELPER SPRING, NO.1
48213-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48213-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48213-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48213-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48214-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48214-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48214-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48214-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-3B750

XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T

 2
48284-3B750

XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T

 2

ILLUST NO. 2 OF 2(9905-0406)BU410,420,430,BZU410,XZU401,410,411,412,42#..30T,35T..IV3 ; (0406-0705)X

Click highlighted areas on diagram

MAIN 2+HELPER 2-LEAF,TYPE:B

diagram 48191A 48210 48210C 48210C 48211 48212 48220 48247 48251 48251 48252 48252B 48252B 48253 48254 48254 48261 48262 48284
Part # Description Qty Price
48191A - WEDGE, CASTER(FOR REAR LEAF SPRING)
48192-37100

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430

 2
48192-37100

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430

 2
48192-37100

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430

 2
48192-37100

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430

 2
48210 - SPRING ASSY, REAR RH
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
90033-84013

XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV

 4
48211 - LEAF, REAR SPRING, NO.1
48201-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48201-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48201-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48201-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48201-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48201-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48201-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48201-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48212 - LEAF, REAR SPRING, NO.2
48202-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48202-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48202-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48202-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48202-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48202-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48202-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48202-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48220 - SPRING ASSY, REAR LH
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48210-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-3V070

BU410,XZU41#,421..T4..(295T,30T)

 2
48247-3V070

BU410,XZU41#,421..T4..(295T,30T)

 2
48247-3V070

BU410,XZU41#,421..T4..(295T,30T)

 2
48247-3V070

BU410,XZU41#,421..T4..(295T,30T)

 2
48247-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..(295T,30T)

 2
48247-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..(295T,30T)

 2
48247-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..(295T,30T)

 2
48247-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..(295T,30T)

 2
48247-3V070

BU410,XZU410,411,412,421..T4..30T..(DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48247-3V070

BU410,XZU410,411,412,421..T4..30T..(DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48247-3V070

BU410,XZU410,411,412,421..T4..30T..(DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48247-3V070

BU410,XZU410,411,412,421..T4..30T..(DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48251 - SPACER, REAR SPRING LEAF
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48253-3V020

XZU411..T3..30T..DSL;XZU411..T4..(295T,30T);BU410,BZU410,XZU401,410,412,421..30T

 4
48252 - SILENCER, REAR SPRING
48252-37380

XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL

 8
48252-37380

XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL

 8
48252-37380

XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL

 8
48252-37380

XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL

 8
48252B - SILENCER, REAR SPRING, NO.1
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252B - SILENCER, REAR SPRING, NO.1
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48252-3B800

XZU411..T3..DSL;XZU410..20T,30T,35T;XZU411..T4..(295T,30T);XZU412..5F..20T..(DSL,LPG);BZU410,XZU382,411,421..(T2,T4,T5)..5F;BU410,420,430,XZU400,401,412,42#,430..30T,35T

 4
48253 - SPACER, REAR SPRING, NO.1
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;BU410,420,430,XZU401,41#,42#..T3..(30T,35T)..CBU;BU410,420,430,XZU401,41#,42#..(30T,35T)..(CNG,DSL,LPG,TDEFI)..IV3

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254-3V080

XZU400,430..35T;XZU411..T3..295T;XZU412..30T..DSL..IV3;BU410,420,430,BZU410,XZU401,410,411,42#..(30T,35T)..IV3;BU410,420,430,XZU401,410,411,412,42#..T3..(30T,35T)..CBU

 2
48254 - SPACER, REAR SPRING LEAF
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254 - SPACER, REAR SPRING LEAF
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48254-3V070

XZU411..T5..5F;XZU411..T3..DSL;BZU410..30T..CBU;XZU410..20T..IV3;XZU411..T4..(295T,30T);XZU412,421..T5..5F..CBU;BZU410,XZU411..T4..5F..IV3;XZU412,421..(T4,T5)..5F..20T..(DSL,LPG)..IV3;BU410,420,430,XZU400,401,410,412,42#,430..30T,35T

 4
48261 - LEAF, REAR HELPER SPRING, NO.1
48213-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48213-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48213-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48213-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48213-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48213-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48213-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48213-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ

 2
48262 - LEAF, REAR HELPER SPRING, NO.2
48214-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48214-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48214-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48214-3V050

BU410,BZU410,XZU401,410,411,412,421..T4..30T

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
48214-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48214-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48214-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48214-3V120

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)..IV3

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-3B750

XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T

 2
48284-3B750

XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T

 2
48284-3B750

XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T

 2
48284-3B750

XZU411..T3..DSL;XZU411..T2,T4,T5;BU420,430,XZU400,401,410,420,430..T3..35T;BU400,410,420,BZU410,XZU401,402,410,412,421..20T,30T

 2

ILLUST NO. 1 OF 2(9905-0406)BU400,410,420,430,BZU410,XZU40#,41#,42#,430

Click highlighted areas on diagram

ﾗﾊﾞｰﾌﾞｯｼｭﾀｲﾌﾟ

diagram 48042 48046 48046A 48046A 48047 48210Q 48210Q 48344 48422A 48435 48435 48475R 48481 48516 48517 48530 48530A 48530A 48530B 48530B 48540 9003179042 9003201143 9003204031 9010516021 9010516070 9010516075 9011912088 9011912088 9017016016 9017016016 9017916030 9020116035 9020116035 9020116035 9111281025 91651B0820 9413001002 9418461001 9418461001 9418461001
Part # Description Qty Price
48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2
48042-37050

XZU421..T4..30T;XZU421,430..T3..6F..(30T,35T,40T);XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL;BU410,420,430,BZU410,XZU401,411..295T,30T,35T

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48473-37110

XZU412..DCB..T5;XZU412..T3..CBU;XZU411..(T3,T5)..DSLL;BU400,410,420,430,XZU401,402,41#,42#..T4;XZU400,401,410,411,420,430..T3..(295T,35T)..IV3;BU410,420,XZU401,410,411,421..(T3,T5)..(20T,295T,30T)..CBU

 1
48473-37110

XZU412..T4,T5;XZU412..T3..CBU;XZU411..(T3,T5)..DSLL;BU400,410,420,430,XZU401,402,410,411,42#..T4;XZU400,401,410,411,420,430..T3..(295T,35T)..IV3;BU410,420,XZU401,410,411,421..(T3,T5)..(20T,295T,30T)..CBU

 1
48473-37110

XZU411..T3..295T;XZU411..T3..DSLL;XZU412..(T4,T5)..DSL;XZU400,401,410,411,420,430..T3..35T..IV3;BU410,XZU401,410,411,412,421..T3..30T..CBU;BU410,420,430,BZU410,XZU401,402,410,411,42#..T4,T5

 1
48473-37110

XZU411..T3..295T;BU410,XZU401,41#,421..T3..30T..CBU;BU410,420,430,XZU401,402,41#,42#..T4,T5;XZU400,401,410,411,420,430..T3..35T..IV3

 1
48046A - BOLT, U(FOR REAR SPRING)
90031-17015

XZU411..295T;XZU401,410..T4..35T..CBU;BU410,XZU412,421..T3..CBU;XZU401,410,411..T3..30T..DSL;BU410,420,430,XZU420..T4..35T;BU410,BZU410,XZU412,421..30T..IV3;XZU401,410,411..T4..(30T,35T)..IV3

長さ=310

 4
90031-17014

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)

長さ=300

 4
48046A - BOLT, U(FOR REAR SPRING)
90031-17015

XZU411..295T;XZU401,410..T4..35T..CBU;BU410,XZU412,421..T3..CBU;XZU401,410,411..T3..30T..DSL;BU410,420,430,XZU420..T4..35T;BU410,BZU410,XZU412,421..30T..IV3;XZU401,410,411..T4..(30T,35T)..IV3

長さ=310

 4
90031-17014

BU410,XZU410,411,412,421..T4..30T..(CNG,DSL,TDEFI)

長さ=300

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48473-37110

XZU412..DCB..T5;XZU412..T3..CBU;XZU411..(T3,T5)..DSLL;BU400,410,420,430,XZU401,402,41#,42#..T4;XZU400,401,410,411,420,430..T3..(295T,35T)..IV3;BU410,420,XZU401,410,411,421..(T3,T5)..(20T,295T,30T)..CBU

 1
48473-37110

XZU411..T3..295T;XZU411..T3..DSLL;XZU412..(T4,T5)..DSL;XZU400,401,410,411,420,430..T3..35T..IV3;BU410,XZU401,410,411,412,421..T3..30T..CBU;BU410,420,430,BZU410,XZU401,402,410,411,42#..T4,T5

 1
48473-37110

XZU411..T3..295T;BU410,XZU401,41#,421..T3..30T..CBU;BU410,420,430,XZU401,402,41#,42#..T4,T5;XZU400,401,410,411,420,430..T3..35T..IV3

 1
48473-37110

XZU412..T4,T5;XZU412..T3..CBU;XZU411..(T3,T5)..DSLL;BU400,410,420,430,XZU401,402,410,411,42#..T4;XZU400,401,410,411,420,430..T3..(295T,35T)..IV3;BU410,420,XZU401,410,411,421..(T3,T5)..(20T,295T,30T)..CBU

 1
48210Q - BUSH(FOR REAR SPRING SHACKLE)
90033-84013

BU420..6F..35T;XZU421..T3..6F;XZU421..T4..30T;XZU401,420..35T,40T;XZU410,411,412..(30T,35T,40T)..DSL;BU410,430,XZU400,430..MTM..(30T,35T,40T)

 2
48210Q - BUSH(FOR REAR SPRING SHACKLE)
90033-84013

BU420..6F..35T;XZU421..T3..6F;XZU421..T4..30T;XZU401,420..35T,40T;XZU410,411,412..(30T,35T,40T)..DSL;BU410,430,XZU400,430..MTM..(30T,35T,40T)

 2
48344 - STOPPER, BUMPER, REAR
48344-37090

XZU412..T4..30T..DSL;BU410,420,430,BZU410,XZU401,410,411,42#..T4..(295T,30T,35T)

 2
48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1
48435-37020

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 4
48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1
48435-37020

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 4
48475R - PLATE, DISTANCE(FOR REAR)
48475-37090

XZU421..T3..6F..IV3;XZU421..T5..5F..IV3;XZU412..6F..30T..IV3;XZU421..T4..30T..IV3;BU420..(20T,35T)..IV3;XZU411..(4FC,5F)..20T..IV3;XZU421..T4..(4FC,5F)..20T..IV3;XZU412..SCB..(4FC,5F)..DSL..IV3;XZU411,430..(295T,30T,35T,40T)..IV3;BU410,430,BZU410,XZU40#,410,420..(T2,T3,T4,T5)..IV3

 1
48481 - SEAT, REAR SPRING, UPPER
48481-37090

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU412..DCB..T5..5F;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411..(T4,T5)..(4FC,5F)..20T;XZU412..T4..(4FC,5F)..20T..DSL;XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU401,402..(T3,T4,T5)..(20T,30T,35T)

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-37050

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48505-37050

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80685

BU420,430..T4,T5;BU400,410,XZU40#,41#,42#,430..20T,295T,30T,35T

ﾏｰｸ 48531−37080

 1
48531-37150

XZU411..T3..DSL;BU420,430,XZU411..T2,T4,T5;BU410,BZU410,XZU40#,410,412,42#,430..20T,30T,35T

ﾏｰｸ 48531−37150

 1
48531-37080

BU420,430..T4,T5;BU400,410,XZU40#,41#,42#,430..20T,295T,30T,35T

ﾏｰｸ 48531−37080

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19011

XZU411..4FC..20T;XZU412,421..(T2,T4)..(4FC,5F);XZU412,421,430..6F..(30T,35T,40T);BU410,420,430,XZU401,402..20T,30T,35T;XZU400,410,411,420..295T,30T,35T,40T,40TOV

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19011

XZU411..4FC..20T;XZU412,421..(T2,T4)..(4FC,5F);XZU412,421,430..6F..(30T,35T,40T);BU410,420,430,XZU401,402..20T,30T,35T;XZU400,410,411,420..295T,30T,35T,40T,40TOV

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03011

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU382,40#,410,412,42#,430

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03011

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU382,40#,410,412,42#,430

 4
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-37080

BU420,430..T4,T5;BU400,410,XZU40#,41#,42#,430..20T,295T,30T,35T

ﾏｰｸ 48531−37080

 1
48531-80685

BU420,430..T4,T5;BU400,410,XZU40#,41#,42#,430..20T,295T,30T,35T

ﾏｰｸ 48531−37080

 1
48531-37150

XZU411..T3..DSL;BU420,430,XZU411..T2,T4,T5;BU410,BZU410,XZU40#,410,412,42#,430..20T,30T,35T

ﾏｰｸ 48531−37150

 1
Common parts
90031-79042
90032-01143
90032-04031
90105-16021
90105-16070
90105-16075
90119-12088
90170-16016
90179-16030
90201-16035
91112-81025
91651-B0820
94130-01002
94184-61001
