XZU411-TPPMS (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004
Engine S05D
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

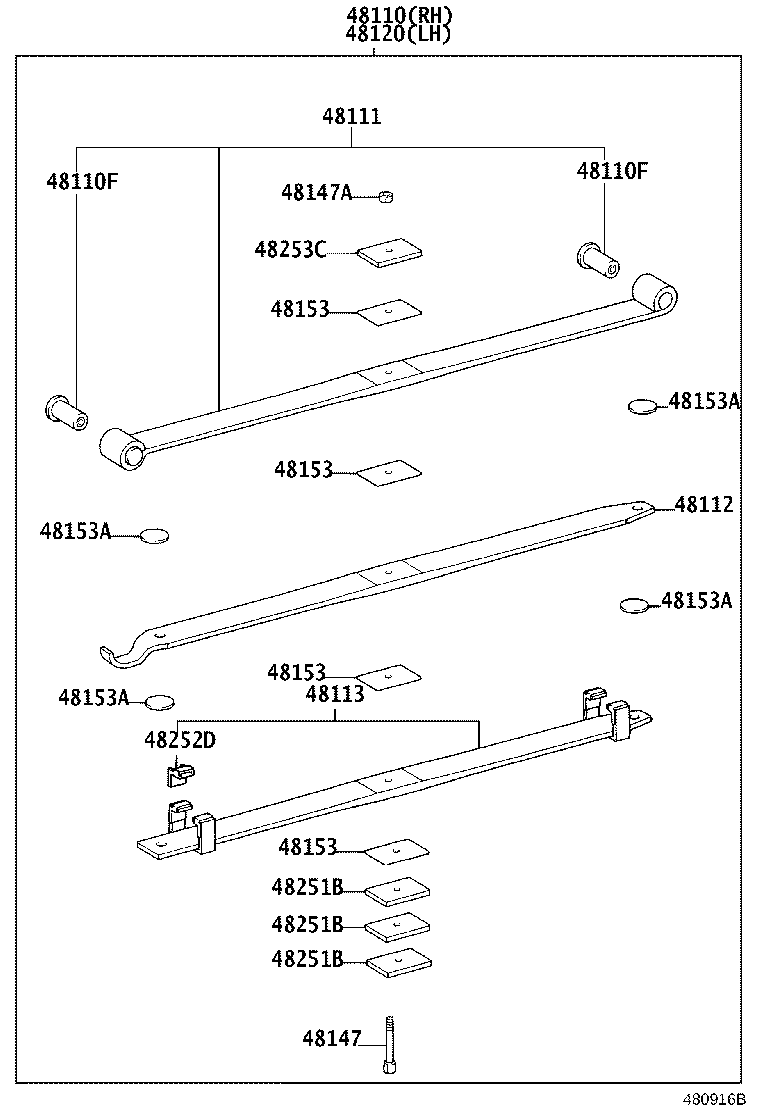

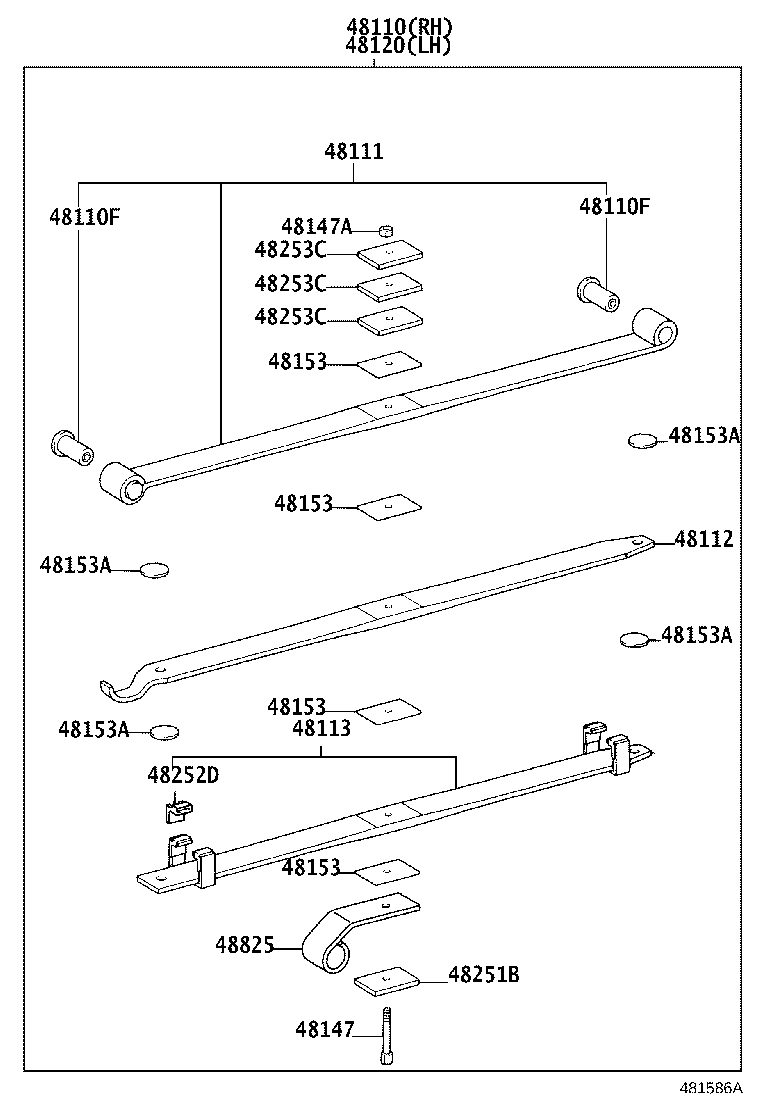

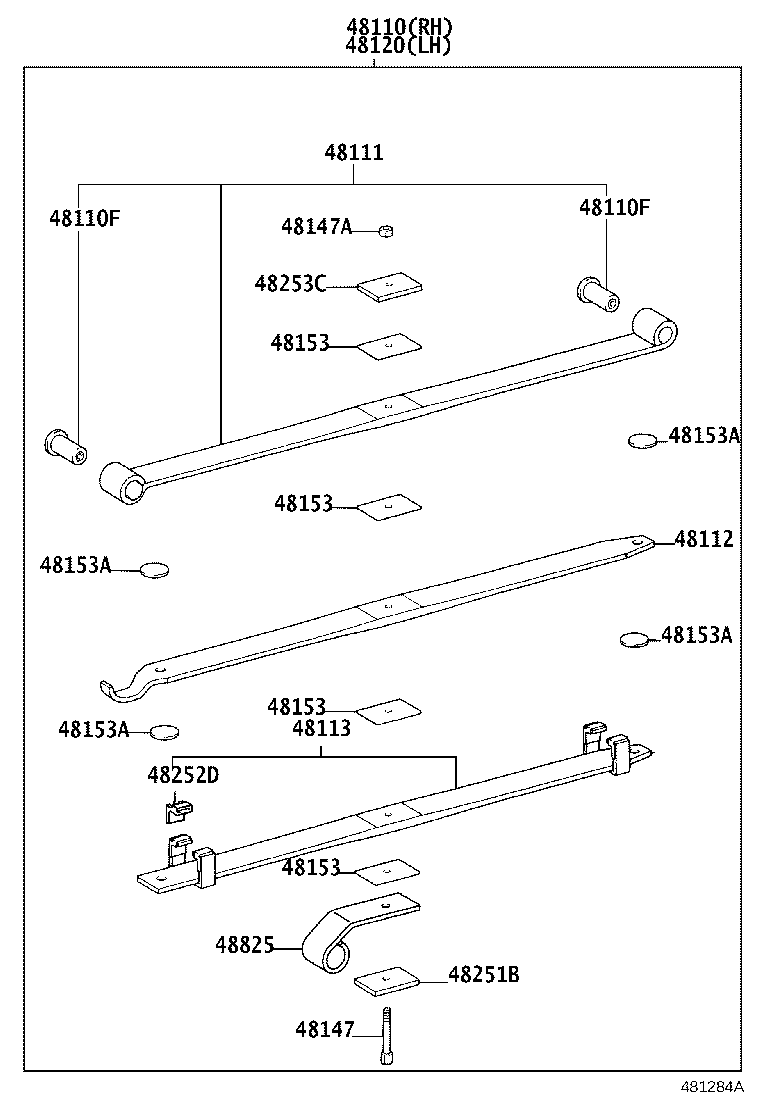

ILLUST NO. 2 OF 2(9905-0103)BU400,410,420,XZU402,411,412,421..T4,T5..20T ; (0310-0406)XZU414..20T

Click highlighted areas on diagram

3-LEAF

diagram 48110 48110F 48110F 48111 48112 48113 48120 48147 48147A 48153 48153 48153 48153 48153A 48153A 48153A 48153A 48251B 48251B 48251B 48252D 48253C
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
48111 - LEAF, FRONT SPRING, NO.1
48101-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48101-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48101-37750

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48101-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48101-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48101-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48101-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48101-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48112-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48112-37830

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48112-37630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37750

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48112-37700

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48112-37690

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48113 - LEAF, FRONT SPRING, NO.3
48102-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48102-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48102-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48102-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48102-37630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48102-37750

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48102-37690

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48102-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48102-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48102-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48102-37700

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48102-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48120 - SPRING ASSY, FRONT, LH
48110-37750

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48210-3V112

BU410,420,XZU411,412,421..T5

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ

 1
48110-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-37430

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

 2
48147-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48147A - NUT, FRONT SPRING CENTER BOLT
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(CNG,DSL,LPG);BU430,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48284-37130

XZU412,421..30T..IV3;XZU402,411,412..T2..IV3;BU410,XZU411..(T4,T5)..20T..CBU;BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T;BU400,420,XZU382,402,412,421..(T3,T4,T5)..(20T,30T)..(CBU,IV5)

 2
48284-37130

XZU412,421..CBU;XZU411..20T..DSLL;BU410..6F..20T..CBU;XZU402,411..20T..CBU;XZU402,411,412..T2..IV3;XZU412,421..30T..DSL..IV3;BU400,420,XZU382..MTM..(20T,30T)..(CBU,IV5);BU410,420,XZU412..(4FC,5F)..(20T,30T)..(CNG,TDEFI);BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T

 2
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(DSL,DSLL);BU430,BZU410,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48251B - SPACER(FOR FRONT SPRING)
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48251B - SPACER(FOR FRONT SPRING)
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48251B - SPACER(FOR FRONT SPRING)
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48252D - SILENCER
48252-37380

XZU421..T4..4FC..20T;XZU411,412..(T4,T5)..4FC..20T;BU410,420,XZU402..(T4,T5)..20T

 8
48253C - SPACER, FRONT LEAF SPRING, NO.2
48114-3B060

XZU411,412..T2..5F;BU410,420,XZU402..(T4,T5)..20T;XZU411,412,421..(T4,T5)..4FC..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..CBU

 2
48114-3B060

XZU402,411,412..T2..CBU;BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..(DSL,DSLL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B770

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 6

ILLUST NO. 2 OF 2(9905-0406)XZU400..IV3 ; (9905-0406)XZU430..35T,40T ; (9905-0406)XZU400..35T..CBU ;

Click highlighted areas on diagram

2-LEAF 48110-37570,37760

diagram 48110 48110F 48110F 48111 48112 48120 48147 48147A 48153 48153 48153 48153A 48153A 48251B 48251B 48251B 48252D 48253C
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
48111 - LEAF, FRONT SPRING, NO.1
48101-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48101-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48101-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48101-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48101-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48101-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48101-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48101-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48101-37750

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48101-37750

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48101-37750

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48101-37750

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48101-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48101-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48101-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48101-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48101-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48101-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48101-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48101-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48101-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48101-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48101-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48101-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48101-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48101-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48101-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48101-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48101-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48112-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48112-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48112-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48112-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48112-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48112-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48112-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48112-37830

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48112-37830

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48112-37830

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48112-37830

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48112-37630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37750

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37750

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37750

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37750

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48112-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48112-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48112-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48112-37700

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37700

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37700

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37700

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48112-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48112-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48112-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48112-37690

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37690

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37690

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37690

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48112-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48112-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48112-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48120 - SPRING ASSY, FRONT, LH
48110-37750

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37750

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37750

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37750

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48210-3V112

BU410,420,XZU411,412,421..T5

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ

 1
48210-3V112

BU410,420,XZU411,412,421..T5

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ

 1
48210-3V112

BU410,420,XZU411,412,421..T5

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ

 1
48210-3V112

BU410,420,XZU411,412,421..T5

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ

 1
48110-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-37430

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

 2
48147-37430

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

 2
48147-37430

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

 2
48147-37430

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

 2
48147-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48147-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48147-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48147-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48147A - NUT, FRONT SPRING CENTER BOLT
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(CNG,DSL,LPG);BU430,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(CNG,DSL,LPG);BU430,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(CNG,DSL,LPG);BU430,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(CNG,DSL,LPG);BU430,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48284-37130

XZU412,421..30T..IV3;XZU402,411,412..T2..IV3;BU410,XZU411..(T4,T5)..20T..CBU;BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T;BU400,420,XZU382,402,412,421..(T3,T4,T5)..(20T,30T)..(CBU,IV5)

 2
48284-37130

XZU412,421..30T..IV3;XZU402,411,412..T2..IV3;BU410,XZU411..(T4,T5)..20T..CBU;BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T;BU400,420,XZU382,402,412,421..(T3,T4,T5)..(20T,30T)..(CBU,IV5)

 2
48284-37130

XZU412,421..30T..IV3;XZU402,411,412..T2..IV3;BU410,XZU411..(T4,T5)..20T..CBU;BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T;BU400,420,XZU382,402,412,421..(T3,T4,T5)..(20T,30T)..(CBU,IV5)

 2
48284-37130

XZU412,421..30T..IV3;XZU402,411,412..T2..IV3;BU410,XZU411..(T4,T5)..20T..CBU;BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T;BU400,420,XZU382,402,412,421..(T3,T4,T5)..(20T,30T)..(CBU,IV5)

 2
48284-37130

XZU412,421..CBU;XZU411..20T..DSLL;BU410..6F..20T..CBU;XZU402,411..20T..CBU;XZU402,411,412..T2..IV3;XZU412,421..30T..DSL..IV3;BU400,420,XZU382..MTM..(20T,30T)..(CBU,IV5);BU410,420,XZU412..(4FC,5F)..(20T,30T)..(CNG,TDEFI);BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T

 2
48284-37130

XZU412,421..CBU;XZU411..20T..DSLL;BU410..6F..20T..CBU;XZU402,411..20T..CBU;XZU402,411,412..T2..IV3;XZU412,421..30T..DSL..IV3;BU400,420,XZU382..MTM..(20T,30T)..(CBU,IV5);BU410,420,XZU412..(4FC,5F)..(20T,30T)..(CNG,TDEFI);BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T

 2
48284-37130

XZU412,421..CBU;XZU411..20T..DSLL;BU410..6F..20T..CBU;XZU402,411..20T..CBU;XZU402,411,412..T2..IV3;XZU412,421..30T..DSL..IV3;BU400,420,XZU382..MTM..(20T,30T)..(CBU,IV5);BU410,420,XZU412..(4FC,5F)..(20T,30T)..(CNG,TDEFI);BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T

 2
48284-37130

XZU412,421..CBU;XZU411..20T..DSLL;BU410..6F..20T..CBU;XZU402,411..20T..CBU;XZU402,411,412..T2..IV3;XZU412,421..30T..DSL..IV3;BU400,420,XZU382..MTM..(20T,30T)..(CBU,IV5);BU410,420,XZU412..(4FC,5F)..(20T,30T)..(CNG,TDEFI);BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T

 2
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(DSL,DSLL);BU430,BZU410,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(DSL,DSLL);BU430,BZU410,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(DSL,DSLL);BU430,BZU410,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(DSL,DSLL);BU430,BZU410,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48251B - SPACER(FOR FRONT SPRING)
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48251B - SPACER(FOR FRONT SPRING)
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48251B - SPACER(FOR FRONT SPRING)
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48252D - SILENCER
48252-37380

XZU421..T4..4FC..20T;XZU411,412..(T4,T5)..4FC..20T;BU410,420,XZU402..(T4,T5)..20T

 8
48252-37380

XZU421..T4..4FC..20T;XZU411,412..(T4,T5)..4FC..20T;BU410,420,XZU402..(T4,T5)..20T

 8
48252-37380

XZU421..T4..4FC..20T;XZU411,412..(T4,T5)..4FC..20T;BU410,420,XZU402..(T4,T5)..20T

 8
48252-37380

XZU421..T4..4FC..20T;XZU411,412..(T4,T5)..4FC..20T;BU410,420,XZU402..(T4,T5)..20T

 8
48253C - SPACER, FRONT LEAF SPRING, NO.2
48114-3B060

XZU411,412..T2..5F;BU410,420,XZU402..(T4,T5)..20T;XZU411,412,421..(T4,T5)..4FC..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

XZU411,412..T2..5F;BU410,420,XZU402..(T4,T5)..20T;XZU411,412,421..(T4,T5)..4FC..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

XZU411,412..T2..5F;BU410,420,XZU402..(T4,T5)..20T;XZU411,412,421..(T4,T5)..4FC..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

XZU411,412..T2..5F;BU410,420,XZU402..(T4,T5)..20T;XZU411,412,421..(T4,T5)..4FC..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..CBU

 2
48114-3B060

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..CBU

 2
48114-3B060

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..CBU

 2
48114-3B060

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..CBU

 2
48114-3B060

XZU402,411,412..T2..CBU;BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..(DSL,DSLL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

XZU402,411,412..T2..CBU;BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..(DSL,DSLL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

XZU402,411,412..T2..CBU;BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..(DSL,DSLL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

XZU402,411,412..T2..CBU;BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..(DSL,DSLL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B770

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 6
48253-3B770

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 6
48253-3B770

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 6
48253-3B770

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 6

ILLUST NO. 2 OF 2(9905-0406)BU410,420,430,BZU410,XZU400,401,41#,42#,430..295T,30T,35T ; (0406- )B

Click highlighted areas on diagram

2-LEAF,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)48110-37640,3771

diagram 48110 48110F 48110F 48111 48112 48120 48147 48147A 48153 48153 48153 48153A 48153A 48251B 48252D 48253C 48825
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
48111 - LEAF, FRONT SPRING, NO.1
48101-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48101-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48101-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48101-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48101-37750

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48101-37750

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48101-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48101-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48101-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48101-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48101-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48101-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48101-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48101-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48101-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48112-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48112-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48112-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48112-37830

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48112-37830

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48112-37630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37750

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37750

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48112-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48112-37700

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37700

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48112-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48112-37690

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37690

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48112-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48120 - SPRING ASSY, FRONT, LH
48110-37750

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37750

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48210-3V112

BU410,420,XZU411,412,421..T5

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ

 1
48210-3V112

BU410,420,XZU411,412,421..T5

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ

 1
48110-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-37430

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

 2
48147-37430

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

 2
48147-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48147-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48147A - NUT, FRONT SPRING CENTER BOLT
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(CNG,DSL,LPG);BU430,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(CNG,DSL,LPG);BU430,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48284-37130

XZU412,421..30T..IV3;XZU402,411,412..T2..IV3;BU410,XZU411..(T4,T5)..20T..CBU;BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T;BU400,420,XZU382,402,412,421..(T3,T4,T5)..(20T,30T)..(CBU,IV5)

 2
48284-37130

XZU412,421..30T..IV3;XZU402,411,412..T2..IV3;BU410,XZU411..(T4,T5)..20T..CBU;BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T;BU400,420,XZU382,402,412,421..(T3,T4,T5)..(20T,30T)..(CBU,IV5)

 2
48284-37130

XZU412,421..CBU;XZU411..20T..DSLL;BU410..6F..20T..CBU;XZU402,411..20T..CBU;XZU402,411,412..T2..IV3;XZU412,421..30T..DSL..IV3;BU400,420,XZU382..MTM..(20T,30T)..(CBU,IV5);BU410,420,XZU412..(4FC,5F)..(20T,30T)..(CNG,TDEFI);BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T

 2
48284-37130

XZU412,421..CBU;XZU411..20T..DSLL;BU410..6F..20T..CBU;XZU402,411..20T..CBU;XZU402,411,412..T2..IV3;XZU412,421..30T..DSL..IV3;BU400,420,XZU382..MTM..(20T,30T)..(CBU,IV5);BU410,420,XZU412..(4FC,5F)..(20T,30T)..(CNG,TDEFI);BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T

 2
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(DSL,DSLL);BU430,BZU410,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(DSL,DSLL);BU430,BZU410,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48251B - SPACER(FOR FRONT SPRING)
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48252D - SILENCER
48252-37380

XZU421..T4..4FC..20T;XZU411,412..(T4,T5)..4FC..20T;BU410,420,XZU402..(T4,T5)..20T

 8
48252-37380

XZU421..T4..4FC..20T;XZU411,412..(T4,T5)..4FC..20T;BU410,420,XZU402..(T4,T5)..20T

 8
48253C - SPACER, FRONT LEAF SPRING, NO.2
48114-3B060

XZU411,412..T2..5F;BU410,420,XZU402..(T4,T5)..20T;XZU411,412,421..(T4,T5)..4FC..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

XZU411,412..T2..5F;BU410,420,XZU402..(T4,T5)..20T;XZU411,412,421..(T4,T5)..4FC..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..CBU

 2
48114-3B060

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..CBU

 2
48114-3B060

XZU402,411,412..T2..CBU;BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..(DSL,DSLL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

XZU402,411,412..T2..CBU;BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..(DSL,DSLL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B770

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 6
48253-3B770

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 6

ILLUST NO. 1 OF 2(9905-0406)BU400,410,420,BZU410,XZU402,410,411,412,414,421..20T ; (0406-0610)XZU401

Click highlighted areas on diagram

diagram 48042A 48042B 48191 48304 48422 48475 48475A 48505A 48505A 48510 48510A 48510A 48510B 48510C 48510C 48510N 48514 48515 48520 48520C 48802F 48809 48811 48815 48815 48815 48815 48815 48817 48817 48817A 48817A 48817B 48817B 48819A 48824 48836 48837 9003101173 9003101174 9003178086 9003201146 9003204032 9003204032 9003204033 9003204034 9010112074 9010516067 9010516075 9017016016 9017016016 9017816004 9017910036 9020116035 9020116035 9020124003 91651B0820 9413001202 9413001402 9418360801 9418461001
Part # Description Qty Price
48042A - SHACKLE SUB-ASSY, FRONT SPRING, NO.2
48042-37020

XZU421..T5..5F;XZU411,412..(4FC,5F)..20T;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..20T

 2
48042-37020

XZU421..T5..5F;XZU411,412..(4FC,5F)..20T;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..20T

 2
48042-37020

XZU382;XZU412..20T..DSL;BU410,420,BZU410,XZU402,410,411,421..20T

 2
48042-37020

XZU382;XZU412..20T..DSL;BU410,420,BZU410,XZU402,410,411,421..20T

 2
48042-37030

XZU382;BU400,410,420,XZU402,411,412,421..20T

 2
48042-37030

XZU382;BU400,410,420,XZU402,411,412,421..20T

 2
48042B - BUSH, FRONT SPRING NO.2 SHACKLE
90389-16025

XZU382;BU400,410,420,XZU402,411,412,421..20T

 2
90389-16025

XZU382;BU400,410,420,XZU402,411,412,421..20T

 2
90389-16026

XZU421..T5..5F;XZU411,412..(4FC,5F)..20T;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..20T

 4
90389-16026

XZU421..T5..5F;XZU411,412..(4FC,5F)..20T;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..20T

 4
90389-16026

XZU382;XZU412..20T..DSL;BU410,420,BZU410,XZU402,410,411,421..20T

 4
90389-16026

XZU382;XZU412..20T..DSL;BU410,420,BZU410,XZU402,410,411,421..20T

 4
48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING)
48191-37090

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

 2
48191-37090

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

 2
48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1
48304-37050

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48304-37050

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48304-36110

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..20T..(DSL,LPG,TDEFI)

 2
48304-36110

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..20T..(DSL,LPG,TDEFI)

 2
48422 - SUPPORT, FRONT SPRING PIN
48422-37010

XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

 2
48422-37010

XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

 2
48475 - PLATE, DISTANCE(FOR FRONT)
48475-36070

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

 1
48475-36070

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

 1
48505A - BOLT, U(FOR FRONT SPRING)
90117-16080

BZU410,XZU411..T4..30T..(CNG,DSLL,LPG);BU400,410,420,BZU410,XZU402,410,411,412,421..(T4,T5)..20T..(DSL,DSLL,LPG,TDEFI)

長さ=130

 2
90117-16080

BZU410,XZU411..T4..30T..(CNG,DSLL,LPG);BU400,410,420,BZU410,XZU402,410,411,412,421..(T4,T5)..20T..(DSL,DSLL,LPG,TDEFI)

長さ=130

 2
90117-16065

XZU400..40T..(IV3,IV6);BU400,410,420,BZU410,XZU402,410,411,412,42#,430..(T3,T4,T5)..(20T,40T,40TOV)..(DSL,DSLL,LPG,TDEFI)..(CBU,IV3)

長さ=150

 2
90117-16065

XZU400..40T..(IV3,IV6);BU400,410,420,BZU410,XZU402,410,411,412,42#,430..(T3,T4,T5)..(20T,40T,40TOV)..(DSL,DSLL,LPG,TDEFI)..(CBU,IV3)

長さ=150

 2
90117-16073

BU400,410,420,BZU410,XZU402,410,411,412,421..(T4,T5)..20T

長さ=160

 2
90117-16073

BU400,410,420,BZU410,XZU402,410,411,412,421..(T4,T5)..20T

長さ=160

 2
90117-16075

XZU400..40T..(IV3,IV6);BU400,410,420,BZU410,XZU402,410,411,412,42#,430..(T3,T4,T5)..(20T,40T,40TOV)..(CBU,IV3)

長さ=170

 2
90117-16075

XZU400..40T..(IV3,IV6);BU400,410,420,BZU410,XZU402,410,411,412,42#,430..(T3,T4,T5)..(20T,40T,40TOV)..(CBU,IV3)

長さ=170

 2
48505A - BOLT, U(FOR FRONT SPRING)
90117-16080

BZU410,XZU411..T4..30T..(CNG,DSLL,LPG);BU400,410,420,BZU410,XZU402,410,411,412,421..(T4,T5)..20T..(DSL,DSLL,LPG,TDEFI)

長さ=130

 2
90117-16080

BZU410,XZU411..T4..30T..(CNG,DSLL,LPG);BU400,410,420,BZU410,XZU402,410,411,412,421..(T4,T5)..20T..(DSL,DSLL,LPG,TDEFI)

長さ=130

 2
90117-16065

XZU400..40T..(IV3,IV6);BU400,410,420,BZU410,XZU402,410,411,412,42#,430..(T3,T4,T5)..(20T,40T,40TOV)..(DSL,DSLL,LPG,TDEFI)..(CBU,IV3)

長さ=150

 2
90117-16065

XZU400..40T..(IV3,IV6);BU400,410,420,BZU410,XZU402,410,411,412,42#,430..(T3,T4,T5)..(20T,40T,40TOV)..(DSL,DSLL,LPG,TDEFI)..(CBU,IV3)

長さ=150

 2
90117-16073

BU400,410,420,BZU410,XZU402,410,411,412,421..(T4,T5)..20T

長さ=160

 2
90117-16073

BU400,410,420,BZU410,XZU402,410,411,412,421..(T4,T5)..20T

長さ=160

 2
90117-16075

XZU400..40T..(IV3,IV6);BU400,410,420,BZU410,XZU402,410,411,412,42#,430..(T3,T4,T5)..(20T,40T,40TOV)..(CBU,IV3)

長さ=170

 2
90117-16075

XZU400..40T..(IV3,IV6);BU400,410,420,BZU410,XZU402,410,411,412,42#,430..(T3,T4,T5)..(20T,40T,40TOV)..(CBU,IV3)

長さ=170

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-80071

XZU412..6F;XZU412..4FC..20T;XZU40#,410,411,42#,430

ﾏｰｸ 48511−37121

 1
48511-80071

XZU412..6F;XZU412..4FC..20T;XZU40#,410,411,42#,430

ﾏｰｸ 48511−37121

 1
48511-80095

XZU400..IV3;XZU400..35T..CBU;BU410,420,430,XZU401,402,41#,42#,430..(CNG,DSL,LPG,TDEFI)..(CBU,IV3)

ﾏｰｸ 48511−37160

 1
48511-80095

XZU400..IV3;XZU400..35T..CBU;BU410,420,430,XZU401,402,41#,42#,430..(CNG,DSL,LPG,TDEFI)..(CBU,IV3)

ﾏｰｸ 48511−37160

 1
48511-80095

XZU412..DSL;XZU400..IV3;XZU400..35T..CBU;BU410,420,430,BZU410,XZU401,402,410,411,42#,430..CBU,IV3

ﾏｰｸ 48511−37160

 1
48511-80095

XZU412..DSL;XZU400..IV3;XZU400..35T..CBU;BU410,420,430,BZU410,XZU401,402,410,411,42#,430..CBU,IV3

ﾏｰｸ 48511−37160

 1
48511-80071

BU400,410,420,430,XZU40#,41#,42#,430

ﾏｰｸ 48511−37121

 1
48511-80071

BU400,410,420,430,XZU40#,41#,42#,430

ﾏｰｸ 48511−37121

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01031

XZU412..6F;XZU412..4FC..20T;XZU40#,410,411,42#,430

 4
90948-01031

XZU412..6F;XZU412..4FC..20T;XZU40#,410,411,42#,430

 4
90948-01031

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 4
90948-01031

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01031

XZU412..6F;XZU412..4FC..20T;XZU40#,410,411,42#,430

 4
90948-01031

XZU412..6F;XZU412..4FC..20T;XZU40#,410,411,42#,430

 4
90948-01031

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 4
90948-01031

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02017

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 2
90948-02017

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 2
90948-02017

XZU412..6F;XZU412..4FC..20T;XZU40#,410,411,42#,430

 2
90948-02017

XZU412..6F;XZU412..4FC..20T;XZU40#,410,411,42#,430

 2
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-03018

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 4
90948-03018

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-03018

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 4
90948-03018

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 4
48510N - BUSH(FOR FRONT SHOCK ABSORBER RH)
90385-19011

XZU412..6F;XZU412..4FC..20T;XZU40#,410,411,42#,430

 1
90385-19011

XZU412..6F;XZU412..4FC..20T;XZU40#,410,411,42#,430

 1
90385-19011

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 1
90385-19011

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 1
48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH
48514-37020

XZU412..6F;XZU412..4FC..20T;XZU40#,410,411,42#,430

 1
48514-37020

XZU412..6F;XZU412..4FC..20T;XZU40#,410,411,42#,430

 1
48514-37020

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 1
48514-37020

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 1
48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH
48515-37030

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 1
48515-37030

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 1
48515-37030

XZU412..6F;XZU412..4FC..20T;XZU40#,410,411,42#,430

 1
48515-37030

XZU412..6F;XZU412..4FC..20T;XZU40#,410,411,42#,430

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-80071

XZU412..6F;XZU412..4FC..20T;XZU40#,410,411,42#,430

ﾏｰｸ 48511−37121

 1
48511-80071

XZU412..6F;XZU412..4FC..20T;XZU40#,410,411,42#,430

ﾏｰｸ 48511−37121

 1
48511-80095

XZU412..DSL;XZU400..IV3;XZU400..35T..CBU;BU410,420,430,BZU410,XZU401,402,410,411,42#,430..CBU,IV3

ﾏｰｸ 48511−37160

 1
48511-80095

XZU412..DSL;XZU400..IV3;XZU400..35T..CBU;BU410,420,430,BZU410,XZU401,402,410,411,42#,430..CBU,IV3

ﾏｰｸ 48511−37160

 1
48511-80071

BU400,410,420,430,XZU40#,41#,42#,430

ﾏｰｸ 48511−37121

 1
48511-80071

BU400,410,420,430,XZU40#,41#,42#,430

ﾏｰｸ 48511−37121

 1
48511-80095

XZU400..IV3;XZU400..35T..CBU;BU410,420,430,XZU401,402,41#,42#,430..(CNG,DSL,LPG,TDEFI)..(CBU,IV3)

ﾏｰｸ 48511−37160

 1
48511-80095

XZU400..IV3;XZU400..35T..CBU;BU410,420,430,XZU401,402,41#,42#,430..(CNG,DSL,LPG,TDEFI)..(CBU,IV3)

ﾏｰｸ 48511−37160

 1
48520C - BUSH(FOR FRONT SHOCK ABSORBER LH)
90385-19011

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 1
90385-19011

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 1
90385-19011

XZU412..6F;XZU412..4FC..20T;XZU40#,410,411,42#,430

 1
90385-19011

XZU412..6F;XZU412..4FC..20T;XZU40#,410,411,42#,430

 1
48802F - LINK SUB-ASSY, FRONT STABILIZER
48802-37040

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 2
48802-37040

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 2
48809 - BRACKET SUB-ASSY, STABILIZER
48809-37021

XZU400..IV3,IV6;XZU400..35T..CBU;BU410,420,430,BZU410,XZU401,402,410,411,412,42#,430

 2
48809-37021

XZU400..IV3,IV6;XZU400..35T..CBU;BU410,420,430,BZU410,XZU401,402,410,411,412,42#,430

 2
48809-37020

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 2
48809-37020

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 2
48811 - BAR, STABILIZER, FRONT
48811-37070

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 1
48811-37070

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-37030

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

NO.1

 4
48815-37030

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

NO.1

 4
48815-37040

XZU400..IV3,IV6;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU400..35T..CBU;BU400,410,420,430,BZU410,XZU401,402,410,412,42#,430

NO.2

 2
48815-37040

XZU400..IV3,IV6;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU400..35T..CBU;BU400,410,420,430,BZU410,XZU401,402,410,412,42#,430

NO.2

 2
48815-37020

BU410,420,430..6F..(20T,30T,35T)..CBU;BU400,XZU40#,41#,42#,430..(T2,T3,T4,T5)..(20T,295T,30T,35T,40T)..CBU

NO.2

 4
48815-37020

BU410,420,430..6F..(20T,30T,35T)..CBU;BU400,XZU40#,41#,42#,430..(T2,T3,T4,T5)..(20T,295T,30T,35T,40T)..CBU

NO.2

 4
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-37030

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

NO.1

 4
48815-37030

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

NO.1

 4
48815-37040

XZU400..IV3,IV6;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU400..35T..CBU;BU400,410,420,430,BZU410,XZU401,402,410,412,42#,430

NO.2

 2
48815-37040

XZU400..IV3,IV6;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU400..35T..CBU;BU400,410,420,430,BZU410,XZU401,402,410,412,42#,430

NO.2

 2
48815-37020

BU410,420,430..6F..(20T,30T,35T)..CBU;BU400,XZU40#,41#,42#,430..(T2,T3,T4,T5)..(20T,295T,30T,35T,40T)..CBU

NO.2

 4
48815-37020

BU410,420,430..6F..(20T,30T,35T)..CBU;BU400,XZU40#,41#,42#,430..(T2,T3,T4,T5)..(20T,295T,30T,35T,40T)..CBU

NO.2

 4
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-37030

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

NO.1

 4
48815-37030

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

NO.1

 4
48815-37040

XZU400..IV3,IV6;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU400..35T..CBU;BU400,410,420,430,BZU410,XZU401,402,410,412,42#,430

NO.2

 2
48815-37040

XZU400..IV3,IV6;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU400..35T..CBU;BU400,410,420,430,BZU410,XZU401,402,410,412,42#,430

NO.2

 2
48815-37020

BU410,420,430..6F..(20T,30T,35T)..CBU;BU400,XZU40#,41#,42#,430..(T2,T3,T4,T5)..(20T,295T,30T,35T,40T)..CBU

NO.2

 4
48815-37020

BU410,420,430..6F..(20T,30T,35T)..CBU;BU400,XZU40#,41#,42#,430..(T2,T3,T4,T5)..(20T,295T,30T,35T,40T)..CBU

NO.2

 4
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-37030

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

NO.1

 4
48815-37030

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

NO.1

 4
48815-37040

XZU400..IV3,IV6;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU400..35T..CBU;BU400,410,420,430,BZU410,XZU401,402,410,412,42#,430

NO.2

 2
48815-37040

XZU400..IV3,IV6;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU400..35T..CBU;BU400,410,420,430,BZU410,XZU401,402,410,412,42#,430

NO.2

 2
48815-37020

BU410,420,430..6F..(20T,30T,35T)..CBU;BU400,XZU40#,41#,42#,430..(T2,T3,T4,T5)..(20T,295T,30T,35T,40T)..CBU

NO.2

 4
48815-37020

BU410,420,430..6F..(20T,30T,35T)..CBU;BU400,XZU40#,41#,42#,430..(T2,T3,T4,T5)..(20T,295T,30T,35T,40T)..CBU

NO.2

 4
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-37030

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

NO.1

 4
48815-37030

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

NO.1

 4
48815-37040

XZU400..IV3,IV6;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU400..35T..CBU;BU400,410,420,430,BZU410,XZU401,402,410,412,42#,430

NO.2

 2
48815-37040

XZU400..IV3,IV6;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU400..35T..CBU;BU400,410,420,430,BZU410,XZU401,402,410,412,42#,430

NO.2

 2
48815-37020

BU410,420,430..6F..(20T,30T,35T)..CBU;BU400,XZU40#,41#,42#,430..(T2,T3,T4,T5)..(20T,295T,30T,35T,40T)..CBU

NO.2

 4
48815-37020

BU410,420,430..6F..(20T,30T,35T)..CBU;BU400,XZU40#,41#,42#,430..(T2,T3,T4,T5)..(20T,295T,30T,35T,40T)..CBU

NO.2

 4
48817 - CUSHION, FRONT STABILIZER
48817-36011

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 4
48817-36011

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 4
48817 - CUSHION, FRONT STABILIZER
48817-36011

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 4
48817-36011

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 4
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02015

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 4
90948-02015

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 4
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02015

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 4
90948-02015

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 4
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02167

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 4
90948-02167

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 4
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02167

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 4
90948-02167

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 4
48819A - BOLT, FRONT STABILIZER
48819-37010

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 2
48819-37010

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 2
48824 - BRACKET, STABILIZER, FRONT
48824-37060

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 2
48824-37060

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 2
48836 - BRACKET, FRONT STABILIZER END, RH
48836-37050

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 2
48836-37050

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 2
48837 - BRACKET, FRONT STABILIZER END, LH
48837-37030

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 2
48837-37030

XZU410..(30T,35T,40T)..CBU;XZU411,412,421..(4FC,6F)..CBU;BU410,420,430,XZU401..MTM..(20T,30T,35T)..CBU;BU400,XZU400,402,420,430..(T2,T3,T4)..(20T,35T,40T)..CBU

 2
Common parts
90031-01173
90031-01174
90031-78086
90032-01146
90032-04032
90032-04033
90032-04034
90101-12074
90105-16067
90105-16075
90170-16016
90178-16004
90179-10036
90201-16035
90201-24003
91651-B0820
94130-01202
94130-01402
94183-60801
94184-61001

ILLUST NO. 2 OF 2(9905-0406)XZU400..40T..IV3,IV6 ; (9905-0406)BU420,XZU410,420,430..40T ; (0406-

Click highlighted areas on diagram

5-LEAF, ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

diagram 48110 48110F 48110F 48111 48112 48113 48114 48115 48120 48147 48147A 48153 48153 48153 48153 48153A 48153A 48251B 48253C 48253E 48825
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
48111 - LEAF, FRONT SPRING, NO.1
48101-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48101-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48101-37750

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48101-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48101-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48101-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48101-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48101-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48112-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48112-37830

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48112-37630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37750

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48112-37700

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48112-37690

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48113 - LEAF, FRONT SPRING, NO.3
48102-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48102-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48102-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48102-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48102-37630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48102-37750

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48102-37690

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48102-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48102-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48102-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48102-37700

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48102-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48120 - SPRING ASSY, FRONT, LH
48110-37750

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48210-3V112

BU410,420,XZU411,412,421..T5

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ

 1
48110-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-37430

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

 2
48147-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48147A - NUT, FRONT SPRING CENTER BOLT
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(CNG,DSL,LPG);BU430,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48284-37130

XZU412,421..30T..IV3;XZU402,411,412..T2..IV3;BU410,XZU411..(T4,T5)..20T..CBU;BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T;BU400,420,XZU382,402,412,421..(T3,T4,T5)..(20T,30T)..(CBU,IV5)

 2
48284-37130

XZU412,421..CBU;XZU411..20T..DSLL;BU410..6F..20T..CBU;XZU402,411..20T..CBU;XZU402,411,412..T2..IV3;XZU412,421..30T..DSL..IV3;BU400,420,XZU382..MTM..(20T,30T)..(CBU,IV5);BU410,420,XZU412..(4FC,5F)..(20T,30T)..(CNG,TDEFI);BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T

 2
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(DSL,DSLL);BU430,BZU410,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48251B - SPACER(FOR FRONT SPRING)
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253C - SPACER, FRONT LEAF SPRING, NO.2
48114-3B060

XZU411,412..T2..5F;BU410,420,XZU402..(T4,T5)..20T;XZU411,412,421..(T4,T5)..4FC..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..CBU

 2
48114-3B060

XZU402,411,412..T2..CBU;BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..(DSL,DSLL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B770

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 6

ILLUST NO. 2 OF 2(9905-0103)BU400,410,420,XZU402,411,412,421..T4,T5..20T ; (0310-0406)XZU414..20T

Click highlighted areas on diagram

3-LEAF, ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

diagram 48110 48110F 48110F 48111 48112 48113 48120 48147 48147A 48153 48153 48153 48153 48153A 48153A 48153A 48153A 48251B 48252D 48253C 48825
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
48111 - LEAF, FRONT SPRING, NO.1
48101-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48101-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48101-37750

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48101-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48101-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48101-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48101-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48101-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48112-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48112-37830

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48112-37630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37750

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48112-37700

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48112-37690

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48113 - LEAF, FRONT SPRING, NO.3
48102-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48102-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48102-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48102-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48102-37630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48102-37750

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48102-37690

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48102-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48102-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48102-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48102-37700

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48102-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48120 - SPRING ASSY, FRONT, LH
48110-37750

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48210-3V112

BU410,420,XZU411,412,421..T5

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ

 1
48110-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-37430

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

 2
48147-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48147A - NUT, FRONT SPRING CENTER BOLT
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(CNG,DSL,LPG);BU430,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48284-37130

XZU412,421..30T..IV3;XZU402,411,412..T2..IV3;BU410,XZU411..(T4,T5)..20T..CBU;BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T;BU400,420,XZU382,402,412,421..(T3,T4,T5)..(20T,30T)..(CBU,IV5)

 2
48284-37130

XZU412,421..CBU;XZU411..20T..DSLL;BU410..6F..20T..CBU;XZU402,411..20T..CBU;XZU402,411,412..T2..IV3;XZU412,421..30T..DSL..IV3;BU400,420,XZU382..MTM..(20T,30T)..(CBU,IV5);BU410,420,XZU412..(4FC,5F)..(20T,30T)..(CNG,TDEFI);BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T

 2
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(DSL,DSLL);BU430,BZU410,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48251B - SPACER(FOR FRONT SPRING)
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48252D - SILENCER
48252-37380

XZU421..T4..4FC..20T;XZU411,412..(T4,T5)..4FC..20T;BU410,420,XZU402..(T4,T5)..20T

 8
48253C - SPACER, FRONT LEAF SPRING, NO.2
48114-3B060

XZU411,412..T2..5F;BU410,420,XZU402..(T4,T5)..20T;XZU411,412,421..(T4,T5)..4FC..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..CBU

 2
48114-3B060

XZU402,411,412..T2..CBU;BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..(DSL,DSLL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B770

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 6

(9905- )XZU454..5F..DCRTJ ; (9905- )BU400,410,420,430,BZU410,XZU38#,40#,41#,4

Click highlighted areas on diagram

diagram
Part # Description Qty Price

ILLUST NO. 2 OF 2(0206-0406)XZU400..40T..IV3 ; (0206-0406)XZU410,420,430..40T,40TOV..CBU,IV3 ; (0406

Click highlighted areas on diagram

2-LEAF, ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

diagram 48110 48110F 48110F 48111 48112 48120 48147 48147A 48153 48153 48153 48153A 48153A 48251B 48251B 48252D 48253C 48825
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
48111 - LEAF, FRONT SPRING, NO.1
48101-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48101-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48101-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48101-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48101-37750

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48101-37750

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48101-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48101-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48101-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48101-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48101-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48101-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48101-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48101-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48101-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48112-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48112-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48112-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48112-37830

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48112-37830

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48112-37630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37750

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37750

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48112-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48112-37700

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37700

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48112-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48112-37690

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37690

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48112-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48120 - SPRING ASSY, FRONT, LH
48110-37750

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37750

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48210-3V112

BU410,420,XZU411,412,421..T5

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ

 1
48210-3V112

BU410,420,XZU411,412,421..T5

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ

 1
48110-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-37430

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

 2
48147-37430

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

 2
48147-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48147-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48147A - NUT, FRONT SPRING CENTER BOLT
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(CNG,DSL,LPG);BU430,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(CNG,DSL,LPG);BU430,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48284-37130

XZU412,421..30T..IV3;XZU402,411,412..T2..IV3;BU410,XZU411..(T4,T5)..20T..CBU;BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T;BU400,420,XZU382,402,412,421..(T3,T4,T5)..(20T,30T)..(CBU,IV5)

 2
48284-37130

XZU412,421..30T..IV3;XZU402,411,412..T2..IV3;BU410,XZU411..(T4,T5)..20T..CBU;BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T;BU400,420,XZU382,402,412,421..(T3,T4,T5)..(20T,30T)..(CBU,IV5)

 2
48284-37130

XZU412,421..CBU;XZU411..20T..DSLL;BU410..6F..20T..CBU;XZU402,411..20T..CBU;XZU402,411,412..T2..IV3;XZU412,421..30T..DSL..IV3;BU400,420,XZU382..MTM..(20T,30T)..(CBU,IV5);BU410,420,XZU412..(4FC,5F)..(20T,30T)..(CNG,TDEFI);BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T

 2
48284-37130

XZU412,421..CBU;XZU411..20T..DSLL;BU410..6F..20T..CBU;XZU402,411..20T..CBU;XZU402,411,412..T2..IV3;XZU412,421..30T..DSL..IV3;BU400,420,XZU382..MTM..(20T,30T)..(CBU,IV5);BU410,420,XZU412..(4FC,5F)..(20T,30T)..(CNG,TDEFI);BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T

 2
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(DSL,DSLL);BU430,BZU410,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(DSL,DSLL);BU430,BZU410,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48251B - SPACER(FOR FRONT SPRING)
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48251B - SPACER(FOR FRONT SPRING)
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48252D - SILENCER
48252-37380

XZU421..T4..4FC..20T;XZU411,412..(T4,T5)..4FC..20T;BU410,420,XZU402..(T4,T5)..20T

 8
48252-37380

XZU421..T4..4FC..20T;XZU411,412..(T4,T5)..4FC..20T;BU410,420,XZU402..(T4,T5)..20T

 8
48253C - SPACER, FRONT LEAF SPRING, NO.2
48114-3B060

XZU411,412..T2..5F;BU410,420,XZU402..(T4,T5)..20T;XZU411,412,421..(T4,T5)..4FC..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

XZU411,412..T2..5F;BU410,420,XZU402..(T4,T5)..20T;XZU411,412,421..(T4,T5)..4FC..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..CBU

 2
48114-3B060

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..CBU

 2
48114-3B060

XZU402,411,412..T2..CBU;BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..(DSL,DSLL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

XZU402,411,412..T2..CBU;BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..(DSL,DSLL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B770

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 6
48253-3B770

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 6

ILLUST NO. 2 OF 2(0103-0406)BU400,410,420,BZU410,XZU402,410,411,412,414,421..T4,T5..20T ; (0610-

Click highlighted areas on diagram

3-LEAF,ｷﾖｳｶｻｽﾍﾟﾝｼｮﾝ

diagram 48110 48110F 48110F 48111 48112 48113 48120 48147 48147A 48153 48153 48153 48153 48153A 48153A 48153A 48153A 48251B 48251B 48251B 48252D 48253C 48253C 48253C
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
48111 - LEAF, FRONT SPRING, NO.1
48101-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48101-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48101-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48101-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48101-37750

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48101-37750

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48101-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48101-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48101-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48101-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48101-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48101-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48101-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48101-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48101-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48112-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48112-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48112-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48112-37830

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48112-37830

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48112-37630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37750

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37750

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48112-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48112-37700

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37700

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48112-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48112-37690

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37690

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48112-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48113 - LEAF, FRONT SPRING, NO.3
48102-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48102-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48102-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48102-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48102-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48102-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48102-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48102-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48102-37630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48102-37630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48102-37750

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48102-37750

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48102-37690

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48102-37690

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48102-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48102-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48102-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48102-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48102-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48102-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48102-37700

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48102-37700

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48102-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48102-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48120 - SPRING ASSY, FRONT, LH
48110-37750

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37750

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48210-3V112

BU410,420,XZU411,412,421..T5

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ

 1
48210-3V112

BU410,420,XZU411,412,421..T5

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ

 1
48110-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-37430

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

 2
48147-37430

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

 2
48147-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48147-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48147A - NUT, FRONT SPRING CENTER BOLT
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(CNG,DSL,LPG);BU430,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(CNG,DSL,LPG);BU430,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48284-37130

XZU412,421..30T..IV3;XZU402,411,412..T2..IV3;BU410,XZU411..(T4,T5)..20T..CBU;BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T;BU400,420,XZU382,402,412,421..(T3,T4,T5)..(20T,30T)..(CBU,IV5)

 2
48284-37130

XZU412,421..30T..IV3;XZU402,411,412..T2..IV3;BU410,XZU411..(T4,T5)..20T..CBU;BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T;BU400,420,XZU382,402,412,421..(T3,T4,T5)..(20T,30T)..(CBU,IV5)

 2
48284-37130

XZU412,421..CBU;XZU411..20T..DSLL;BU410..6F..20T..CBU;XZU402,411..20T..CBU;XZU402,411,412..T2..IV3;XZU412,421..30T..DSL..IV3;BU400,420,XZU382..MTM..(20T,30T)..(CBU,IV5);BU410,420,XZU412..(4FC,5F)..(20T,30T)..(CNG,TDEFI);BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T

 2
48284-37130

XZU412,421..CBU;XZU411..20T..DSLL;BU410..6F..20T..CBU;XZU402,411..20T..CBU;XZU402,411,412..T2..IV3;XZU412,421..30T..DSL..IV3;BU400,420,XZU382..MTM..(20T,30T)..(CBU,IV5);BU410,420,XZU412..(4FC,5F)..(20T,30T)..(CNG,TDEFI);BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T

 2
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(DSL,DSLL);BU430,BZU410,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(DSL,DSLL);BU430,BZU410,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48251B - SPACER(FOR FRONT SPRING)
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48251B - SPACER(FOR FRONT SPRING)
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48251B - SPACER(FOR FRONT SPRING)
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48252D - SILENCER
48252-37380

XZU421..T4..4FC..20T;XZU411,412..(T4,T5)..4FC..20T;BU410,420,XZU402..(T4,T5)..20T

 8
48252-37380

XZU421..T4..4FC..20T;XZU411,412..(T4,T5)..4FC..20T;BU410,420,XZU402..(T4,T5)..20T

 8
48253C - SPACER, FRONT LEAF SPRING, NO.2
48114-3B060

XZU411,412..T2..5F;BU410,420,XZU402..(T4,T5)..20T;XZU411,412,421..(T4,T5)..4FC..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

XZU411,412..T2..5F;BU410,420,XZU402..(T4,T5)..20T;XZU411,412,421..(T4,T5)..4FC..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..CBU

 2
48114-3B060

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..CBU

 2
48114-3B060

XZU402,411,412..T2..CBU;BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..(DSL,DSLL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

XZU402,411,412..T2..CBU;BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..(DSL,DSLL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B770

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 6
48253-3B770

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 6
48253C - SPACER, FRONT LEAF SPRING, NO.2
48114-3B060

XZU411,412..T2..5F;BU410,420,XZU402..(T4,T5)..20T;XZU411,412,421..(T4,T5)..4FC..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

XZU411,412..T2..5F;BU410,420,XZU402..(T4,T5)..20T;XZU411,412,421..(T4,T5)..4FC..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..CBU

 2
48114-3B060

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..CBU

 2
48114-3B060

XZU402,411,412..T2..CBU;BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..(DSL,DSLL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

XZU402,411,412..T2..CBU;BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..(DSL,DSLL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B770

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 6
48253-3B770

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 6
48253C - SPACER, FRONT LEAF SPRING, NO.2
48114-3B060

XZU411,412..T2..5F;BU410,420,XZU402..(T4,T5)..20T;XZU411,412,421..(T4,T5)..4FC..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

XZU411,412..T2..5F;BU410,420,XZU402..(T4,T5)..20T;XZU411,412,421..(T4,T5)..4FC..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..CBU

 2
48114-3B060

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..CBU

 2
48114-3B060

XZU402,411,412..T2..CBU;BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..(DSL,DSLL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

XZU402,411,412..T2..CBU;BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..(DSL,DSLL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B770

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 6
48253-3B770

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 6

ILLUST NO. 2 OF 2(0103-0406)BU400,410,420,BZU410,XZU402,410,411,412,414,421..T4,T5..20T

Click highlighted areas on diagram

3-LEAF,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),ｷﾖｳｶｻｽﾍﾟﾝｼｮﾝ

diagram 48110 48110F 48110F 48111 48112 48113 48120 48147 48147A 48153 48153 48153 48153 48153A 48153A 48153A 48153A 48251B 48252D 48253C 48253C 48253C 48825
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90389-16025

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

 4
90389-16025

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾌﾛﾝﾄ

 2
90389-16026

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL)

ﾘﾔ

 4
48111 - LEAF, FRONT SPRING, NO.1
48101-37630

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48101-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48101-37750

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48101-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37691

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48101-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37631

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37690

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48101-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48101-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48101-37692

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48101-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48101-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48101-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48112-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48112-37830

BU410,420..6F..20T;BU400,XZU402,411,412,421..(T4,T5)..20T..(DSL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48112-37630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37750

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48112-37700

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48112-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48112-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48112-37690

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48112-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48113 - LEAF, FRONT SPRING, NO.3
48102-37550

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

運転席側

 1
48102-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

助手席側

 1
48102-37820

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48102-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48102-37630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48102-37750

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48102-37690

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側

 1
48102-37821

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),運転席側

 1
48102-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ),助手席側

 1
48102-37551

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

運転席側

 1
48102-37700

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側

 1
48102-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

助手席側

 1
48120 - SPRING ASSY, FRONT, LH
48110-37750

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37830

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37700

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37560

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ

 1
48110-37751

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37701

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48210-3V112

BU410,420,XZU411,412,421..T5

ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ

 1
48110-37561

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ

 1
48110-37831

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
48110-37702

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) & ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48110-37752

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-37430

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL);BU410,420,BZU410,XZU402,410..(T4,T5)..20T..(DSL,LPG,TDEFI)

 2
48147-37632

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 2
48147A - NUT, FRONT SPRING CENTER BOLT
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(CNG,DSL,LPG);BU430,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48284-37130

XZU412,421..30T..IV3;XZU402,411,412..T2..IV3;BU410,XZU411..(T4,T5)..20T..CBU;BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T;BU400,420,XZU382,402,412,421..(T3,T4,T5)..(20T,30T)..(CBU,IV5)

 2
48284-37130

XZU412,421..CBU;XZU411..20T..DSLL;BU410..6F..20T..CBU;XZU402,411..20T..CBU;XZU402,411,412..T2..IV3;XZU412,421..30T..DSL..IV3;BU400,420,XZU382..MTM..(20T,30T)..(CBU,IV5);BU410,420,XZU412..(4FC,5F)..(20T,30T)..(CNG,TDEFI);BU410,420,430,XZU400,401,410,411,420,430..295T,30T,35T

 2
48284-37130

XZU402,421..CBU;XZU402..T2..IV3;XZU411..4FC..CBU;XZU412..4FC..30T;XZU421..MTM..IV3;BU410,420..30T,35T;BU410,420..4FC..20T;XZU412..4FC..20T..CBU;BU410,420..6F..20T..CBU;XZU411,412..T2..4FC..IV3;XZU411,421..4FC..30T..IV3;XZU411,412..MTM..(DSL,DSLL);BU430,BZU410,XZU382,400,401,410,420,430..(T3,T4)..(CBU,IV3,IV5)

 2
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153 - SPACER, FRONT LEAF SPRING, NO.1
48253-3B440

XZU411..20T..DSLL;XZU402,411,412..T2..IV3;BU400,410,420..MTM..20T..CBU;XZU402,411,412,421..20T..CBU;BU410,420,XZU412..(4FC,5F)..20T..(CNG,TDEFI)

 8
48253-3B440

XZU412..5F..DSL;XZU421..5F..IV3;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;BZU410,XZU410,411..MTM..20T;XZU402,421..(T4,T5)..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48153A - SILENCER, FRONT SPRING, NO.1
48252-3B800

XZU402..T4..CBU;BU410,420..4FC..20T;BU410,420..6F..20T..CBU;XZU421..T4..4FC..20T..CBU;XZU411,412..(T4,T5)..4FC..20T..CBU

 8
48251B - SPACER(FOR FRONT SPRING)
48235-3B630

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

 6
48253-3B122

XZU421..T5..5F;BU410,420..6F..20T;XZU421..T4..(4FC,5F)..20T;BZU410,XZU402,410..T4..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..DSL

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48252D - SILENCER
48252-37380

XZU421..T4..4FC..20T;XZU411,412..(T4,T5)..4FC..20T;BU410,420,XZU402..(T4,T5)..20T

 8
48253C - SPACER, FRONT LEAF SPRING, NO.2
48114-3B060

XZU411,412..T2..5F;BU410,420,XZU402..(T4,T5)..20T;XZU411,412,421..(T4,T5)..4FC..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..CBU

 2
48114-3B060

XZU402,411,412..T2..CBU;BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..(DSL,DSLL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B770

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 6
48253C - SPACER, FRONT LEAF SPRING, NO.2
48114-3B060

XZU411,412..T2..5F;BU410,420,XZU402..(T4,T5)..20T;XZU411,412,421..(T4,T5)..4FC..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..CBU

 2
48114-3B060

XZU402,411,412..T2..CBU;BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..(DSL,DSLL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B770

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 6
48253C - SPACER, FRONT LEAF SPRING, NO.2
48114-3B060

XZU411,412..T2..5F;BU410,420,XZU402..(T4,T5)..20T;XZU411,412,421..(T4,T5)..4FC..20T

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48114-3B060

BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..CBU

 2
48114-3B060

XZU402,411,412..T2..CBU;BU400,410,420,XZU402,411,412,421..(T4,T5)..20T..(DSL,DSLL,TDEFI)

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 2
48253-3B770

XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,XZU402,410..(T4,T5)..20T;XZU411,412..(T4,T5)..(4FC,5F)..20T..(DSL,DSLL)

ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ

 6
