XZU411-TPMMS3 (2002)
Toyota Dyna/Toyoace
(9905-0406)BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430..MTM ; (0406-070
M155,H260,H261,H350,H351
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

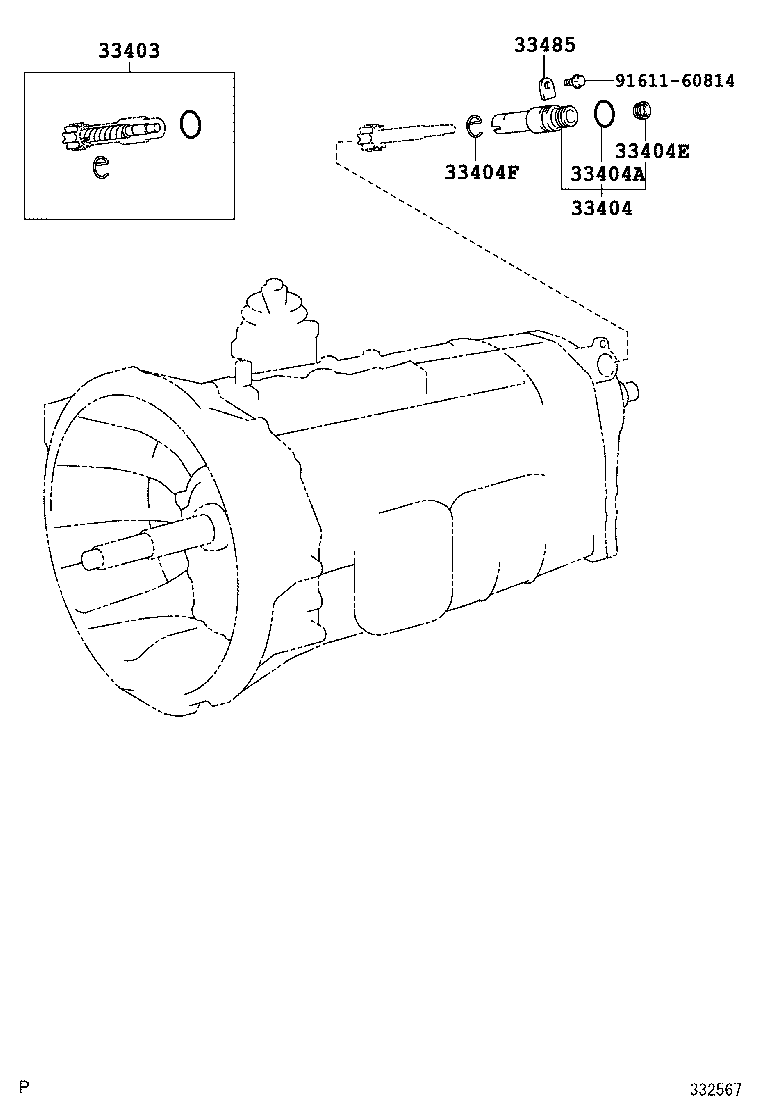

| 33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM) | ||||
| 33482-39225 |
XZU420..T4..CBU;XZU410..20T..IV3;XZU411,421..5F..IV3;XZU412..SCB..T5..5F;XZU401,410..T3..30T;XZU402,412..T4..5F..CBU;XZU402,412..T2..5F..IV3;XZU410,420,430..40T..CBU;XZU412..DCB..T5..5F..CBU;XZU400,401..T3..35T..CBU;XZU410..T4..6F..(30T,35T);XZU382,400,401..(DM7,T4)..5F;XZU411,412,421..6F..(295T,30T,35T)..CBU 歯数=22,ﾏｰｸ 22:6 |
1 | ||
| 33482-39215 |
XZU411..T5;XZU401..5F..CBU;XZU411..T3..CBU;XZU421..5F..20T..CBU;XZU411..SCB..(T2,T4)..5F..20T..CBU 歯数=21,ﾏｰｸ 21:6 |
1 | ||
| 33482-39225 |
XZU401..5F..30T;XZU411..T3..5F..IV3;XZU411..DCB..T4..5F..CBU;XZU411,421..5F..30T..CBU;XZU401,411,421..5F..20T..IV3 歯数=22,ﾏｰｸ 22:6 |
1 | ||
| 33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM) | ||||
| 33404-36020 |
XZU412..5F..DSL;BZU410,XZU40#,411,421..5F |
1 | ||
| 33404-36020 |
XZU401,411,421..5F |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
XZU412..5F..DSL;BZU410,XZU40#,411,421..5F |
1 | ||
| 33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
XZU412..5F..DSL;BZU410,XZU40#,411,421..5F |
1 | ||
| 90310-09001 |
XZU401,411,421..5F |
1 | ||
| 33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
XZU401,411,421..5F |
1 | ||
| 90468-12005 |
XZU412..5F..DSL;BZU410,XZU40#,411,421..5F |
1 | ||
| 33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM) | ||||
| 33485-30020 |
XZU412..5F..DSL;BZU410,XZU40#,411,421..5F |
1 | ||
| 33485-30020 |
XZU401,411,421..5F |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
(0406-0610)XZU401,411,421..5F ; (0610- )XZU404,414,424,454..5F
M550
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM) | ||||
| 33482-39225 |
XZU420..T4..CBU;XZU410..20T..IV3;XZU411,421..5F..IV3;XZU412..SCB..T5..5F;XZU401,410..T3..30T;XZU402,412..T4..5F..CBU;XZU402,412..T2..5F..IV3;XZU410,420,430..40T..CBU;XZU412..DCB..T5..5F..CBU;XZU400,401..T3..35T..CBU;XZU410..T4..6F..(30T,35T);XZU382,400,401..(DM7,T4)..5F;XZU411,412,421..6F..(295T,30T,35T)..CBU 歯数=22,ﾏｰｸ 22:6 |
1 | ||
| 33482-39215 |
XZU411..T5;XZU401..5F..CBU;XZU411..T3..CBU;XZU421..5F..20T..CBU;XZU411..SCB..(T2,T4)..5F..20T..CBU 歯数=21,ﾏｰｸ 21:6 |
1 | ||
| 33482-39225 |
XZU401..5F..30T;XZU411..T3..5F..IV3;XZU411..DCB..T4..5F..CBU;XZU411,421..5F..30T..CBU;XZU401,411,421..5F..20T..IV3 歯数=22,ﾏｰｸ 22:6 |
1 | ||
| 33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM) | ||||
| 33404-36020 |
XZU412..5F..DSL;BZU410,XZU40#,411,421..5F |
1 | ||
| 33404-36020 |
XZU401,411,421..5F |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
XZU412..5F..DSL;BZU410,XZU40#,411,421..5F |
1 | ||
| 33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
XZU412..5F..DSL;BZU410,XZU40#,411,421..5F |
1 | ||
| 90310-09001 |
XZU401,411,421..5F |
1 | ||
| 33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
XZU401,411,421..5F |
1 | ||
| 90468-12005 |
XZU412..5F..DSL;BZU410,XZU40#,411,421..5F |
1 | ||
| 33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM) | ||||
| 33485-30020 |
XZU412..5F..DSL;BZU410,XZU40#,411,421..5F |
1 | ||
| 33485-30020 |
XZU401,411,421..5F |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
(0310-0610)XZU388,404,413,414,415,423,424,433..MTM ; (0610- )XZU404,414,424,434,
MYY5A,MYY6P,MYY6S,MZZ6R,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM) | ||||
| 33482-39225 |
XZU420..T4..CBU;XZU410..20T..IV3;XZU411,421..5F..IV3;XZU412..SCB..T5..5F;XZU401,410..T3..30T;XZU402,412..T4..5F..CBU;XZU402,412..T2..5F..IV3;XZU410,420,430..40T..CBU;XZU412..DCB..T5..5F..CBU;XZU400,401..T3..35T..CBU;XZU410..T4..6F..(30T,35T);XZU382,400,401..(DM7,T4)..5F;XZU411,412,421..6F..(295T,30T,35T)..CBU 歯数=22,ﾏｰｸ 22:6 |
1 | ||
| 33482-39215 |
XZU411..T5;XZU401..5F..CBU;XZU411..T3..CBU;XZU421..5F..20T..CBU;XZU411..SCB..(T2,T4)..5F..20T..CBU 歯数=21,ﾏｰｸ 21:6 |
1 | ||
| 33482-39225 |
XZU401..5F..30T;XZU411..T3..5F..IV3;XZU411..DCB..T4..5F..CBU;XZU411,421..5F..30T..CBU;XZU401,411,421..5F..20T..IV3 歯数=22,ﾏｰｸ 22:6 |
1 | ||
| 33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM) | ||||
| 33404-36020 |
XZU412..5F..DSL;BZU410,XZU40#,411,421..5F |
1 | ||
| 33404-36020 |
XZU401,411,421..5F |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
XZU412..5F..DSL;BZU410,XZU40#,411,421..5F |
1 | ||
| 33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
XZU412..5F..DSL;BZU410,XZU40#,411,421..5F |
1 | ||
| 90310-09001 |
XZU401,411,421..5F |
1 | ||
| 33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM) | ||||
| 33485-30020 |
XZU412..5F..DSL;BZU410,XZU40#,411,421..5F |
1 | ||
| 33485-30020 |
XZU401,411,421..5F |
1 | ||
| Common parts | ||||
| 91511-J0820 | ||||
| 91551-80822 | ||||
