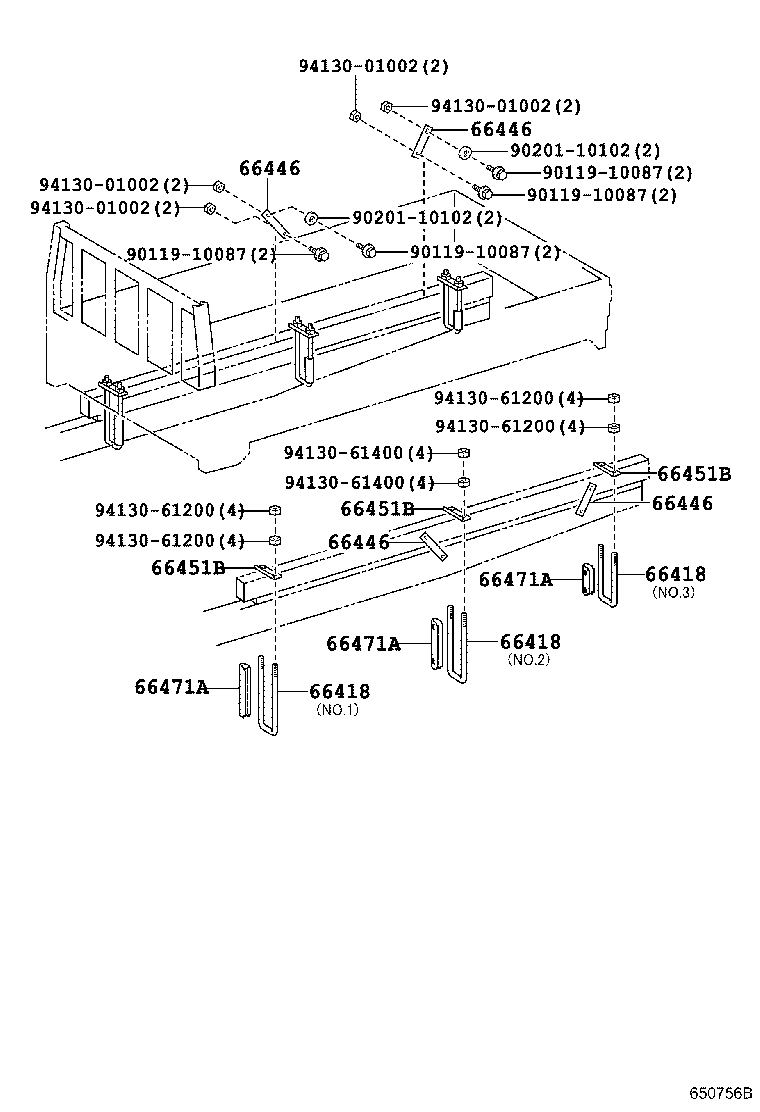

XZU411-TPMML (2002)
Toyota Dyna/Toyoace
(9905- )BU410,XZU400,401,404,410,411,412,413,414..T3,T5..20T,295T,30T,35T..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66418 - BOLT, MOUNTING | ||||
| 90117-12041 |
XZU411,412..T3..6F..CBU;XZU411,412..(T3,T5)..(4FC,5F)..CBU;BU410,XZU400,401,410..(T3,T5)..(20T,30T,35T)..CBU NO.1 |
2 | ||
| 90117-14074 |
XZU411,412..T3..6F..CBU;XZU411,412..(T3,T5)..(4FC,5F)..CBU;BU410,XZU400,401,410..(T3,T5)..(20T,30T,35T)..CBU NO.2 |
2 | ||
| 90117-12037 |
XZU382..20T;XZU411,412..T3..6F..CBU;XZU411,412..(T3,T5)..(4FC,5F)..CBU;BU410,XZU410..(T3,T5)..(20T,30T,35T)..CBU NO.3 |
2 | ||
| 66418 - BOLT, MOUNTING | ||||
| 90117-12041 |
XZU411,412..T3..6F..CBU;XZU411,412..(T3,T5)..(4FC,5F)..CBU;BU410,XZU400,401,410..(T3,T5)..(20T,30T,35T)..CBU NO.1 |
2 | ||
| 90117-14074 |
XZU411,412..T3..6F..CBU;XZU411,412..(T3,T5)..(4FC,5F)..CBU;BU410,XZU400,401,410..(T3,T5)..(20T,30T,35T)..CBU NO.2 |
2 | ||
| 90117-12037 |
XZU382..20T;XZU411,412..T3..6F..CBU;XZU411,412..(T3,T5)..(4FC,5F)..CBU;BU410,XZU410..(T3,T5)..(20T,30T,35T)..CBU NO.3 |
2 | ||
| 66418 - BOLT, MOUNTING | ||||
| 90117-12041 |
XZU411,412..T3..6F..CBU;XZU411,412..(T3,T5)..(4FC,5F)..CBU;BU410,XZU400,401,410..(T3,T5)..(20T,30T,35T)..CBU NO.1 |
2 | ||
| 90117-14074 |
XZU411,412..T3..6F..CBU;XZU411,412..(T3,T5)..(4FC,5F)..CBU;BU410,XZU400,401,410..(T3,T5)..(20T,30T,35T)..CBU NO.2 |
2 | ||
| 90117-12037 |
XZU382..20T;XZU411,412..T3..6F..CBU;XZU411,412..(T3,T5)..(4FC,5F)..CBU;BU410,XZU410..(T3,T5)..(20T,30T,35T)..CBU NO.3 |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66447-92802 |
BU400,XZU411,412..(T4,T5)..MTM..20T..CBU ﾘﾔ |
2 | ||
| 66447-92802 |
XZU411,412..(295T,30T,35T)..CBU;XZU411,412..(T4,T5)..(4FC,5F)..20T..CBU;BU410,BZU410,XZU40#,410..(T3,T4,T5)..(20T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 66446-92803 |
XZU411,412..T3..6F..CBU;XZU411,412..(T3,T5)..(4FC,5F)..CBU;BU410,XZU410..(T3,T5)..(20T,30T,35T)..CBU ﾌﾛﾝﾄ |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66447-92802 |
BU400,XZU411,412..(T4,T5)..MTM..20T..CBU ﾘﾔ |
2 | ||
| 66447-92802 |
XZU411,412..(295T,30T,35T)..CBU;XZU411,412..(T4,T5)..(4FC,5F)..20T..CBU;BU410,BZU410,XZU40#,410..(T3,T4,T5)..(20T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 66446-92803 |
XZU411,412..T3..6F..CBU;XZU411,412..(T3,T5)..(4FC,5F)..CBU;BU410,XZU410..(T3,T5)..(20T,30T,35T)..CBU ﾌﾛﾝﾄ |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66447-92802 |
BU400,XZU411,412..(T4,T5)..MTM..20T..CBU ﾘﾔ |
2 | ||
| 66447-92802 |
XZU411,412..(295T,30T,35T)..CBU;XZU411,412..(T4,T5)..(4FC,5F)..20T..CBU;BU410,BZU410,XZU40#,410..(T3,T4,T5)..(20T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 66446-92803 |
XZU411,412..T3..6F..CBU;XZU411,412..(T3,T5)..(4FC,5F)..CBU;BU410,XZU410..(T3,T5)..(20T,30T,35T)..CBU ﾌﾛﾝﾄ |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66447-92802 |
BU400,XZU411,412..(T4,T5)..MTM..20T..CBU ﾘﾔ |
2 | ||
| 66447-92802 |
XZU411,412..(295T,30T,35T)..CBU;XZU411,412..(T4,T5)..(4FC,5F)..20T..CBU;BU410,BZU410,XZU40#,410..(T3,T4,T5)..(20T,30T,35T)..CBU ﾘﾔ |
2 | ||
| 66446-92803 |
XZU411,412..T3..6F..CBU;XZU411,412..(T3,T5)..(4FC,5F)..CBU;BU410,XZU410..(T3,T5)..(20T,30T,35T)..CBU ﾌﾛﾝﾄ |
2 | ||
| 66451B - PLATE, U BOLT | ||||
| 66451-37030 |
BZU410..30T..CNG;BU400,410,BZU410,XZU382,40#,410,411,412..(T3,T4,T5)..(20T,295T,30T,35T)..(CBU,IV5) NO.1,NO.3 |
2 | ||
| 66451B - PLATE, U BOLT | ||||
| 66451-37030 |
BZU410..30T..CNG;BU400,410,BZU410,XZU382,40#,410,411,412..(T3,T4,T5)..(20T,295T,30T,35T)..(CBU,IV5) NO.1,NO.3 |
2 | ||
| 66451B - PLATE, U BOLT | ||||
| 66451-37030 |
BZU410..30T..CNG;BU400,410,BZU410,XZU382,40#,410,411,412..(T3,T4,T5)..(20T,295T,30T,35T)..(CBU,IV5) NO.1,NO.3 |
2 | ||
| 66471A - REINFORCEMENT, FRAME U BOLT | ||||
| 66405-37050 |
BU400,XZU411,412..(T4,T5)..MTM..20T..CBU NO.2 |
2 | ||
| 66405-37040 |
BU400,XZU411,412..(T4,T5)..MTM..20T..CBU NO.1 |
2 | ||
| 66405-37040 |
XZU411,412..(295T,30T,35T)..CBU;XZU411,412..(T4,T5)..(4FC,5F)..20T..CBU;BU410,BZU410,XZU40#,410..(T3,T4,T5)..(20T,30T,35T)..CBU NO.1 |
2 | ||
| 66405-37070 |
BZU410..30T..CNG;XZU411,412..(295T,30T,35T)..CBU;BU410,BZU410,XZU410..(20T,30T,35T)..CBU;XZU411,412..(T4,T5)..(4FC,5F)..20T..CBU NO.3 |
2 | ||
| 66405-37050 |
BZU410..30T..CNG;XZU411,412..(295T,30T,35T)..CBU;XZU411,412..(T4,T5)..(4FC,5F)..20T..CBU;BU410,BZU410,XZU40#,410..(T3,T4,T5)..(20T,30T,35T)..CBU NO.2 |
2 | ||
| 66471A - REINFORCEMENT, FRAME U BOLT | ||||
| 66405-37050 |
BU400,XZU411,412..(T4,T5)..MTM..20T..CBU NO.2 |
2 | ||
| 66405-37040 |
BU400,XZU411,412..(T4,T5)..MTM..20T..CBU NO.1 |
2 | ||
| 66405-37040 |
XZU411,412..(295T,30T,35T)..CBU;XZU411,412..(T4,T5)..(4FC,5F)..20T..CBU;BU410,BZU410,XZU40#,410..(T3,T4,T5)..(20T,30T,35T)..CBU NO.1 |
2 | ||
| 66405-37070 |
BZU410..30T..CNG;XZU411,412..(295T,30T,35T)..CBU;BU410,BZU410,XZU410..(20T,30T,35T)..CBU;XZU411,412..(T4,T5)..(4FC,5F)..20T..CBU NO.3 |
2 | ||
| 66405-37050 |
BZU410..30T..CNG;XZU411,412..(295T,30T,35T)..CBU;XZU411,412..(T4,T5)..(4FC,5F)..20T..CBU;BU410,BZU410,XZU40#,410..(T3,T4,T5)..(20T,30T,35T)..CBU NO.2 |
2 | ||
| 66471A - REINFORCEMENT, FRAME U BOLT | ||||
| 66405-37050 |
BU400,XZU411,412..(T4,T5)..MTM..20T..CBU NO.2 |
2 | ||
| 66405-37040 |
BU400,XZU411,412..(T4,T5)..MTM..20T..CBU NO.1 |
2 | ||
| 66405-37040 |
XZU411,412..(295T,30T,35T)..CBU;XZU411,412..(T4,T5)..(4FC,5F)..20T..CBU;BU410,BZU410,XZU40#,410..(T3,T4,T5)..(20T,30T,35T)..CBU NO.1 |
2 | ||
| 66405-37070 |
BZU410..30T..CNG;XZU411,412..(295T,30T,35T)..CBU;BU410,BZU410,XZU410..(20T,30T,35T)..CBU;XZU411,412..(T4,T5)..(4FC,5F)..20T..CBU NO.3 |
2 | ||
| 66405-37050 |
BZU410..30T..CNG;XZU411,412..(295T,30T,35T)..CBU;XZU411,412..(T4,T5)..(4FC,5F)..20T..CBU;BU410,BZU410,XZU40#,410..(T3,T4,T5)..(20T,30T,35T)..CBU NO.2 |
2 | ||
| Common parts | ||||
| 90119-10087 | ||||
| 90201-10102 | ||||
| 94130-01002 | ||||
| 94130-61200 | ||||
| 94130-61400 | ||||
