XZU411-TPMML (2002)
Toyota Dyna/Toyoace

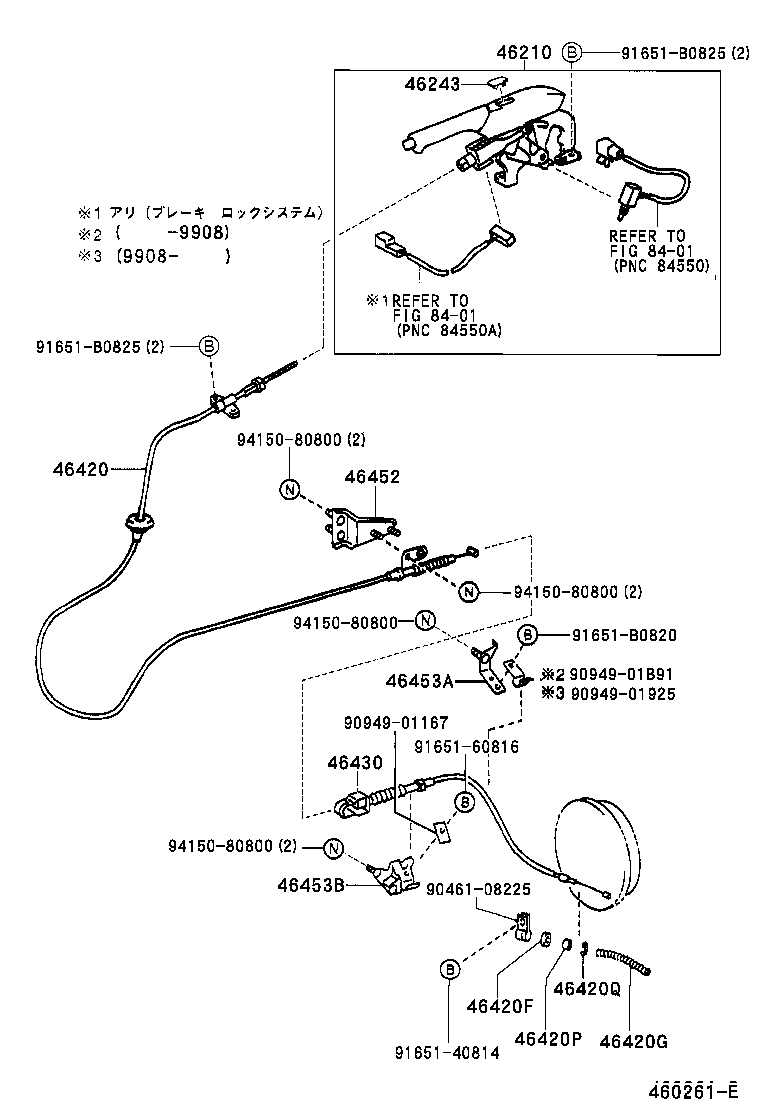

ILLUST NO. 1 OF 2(9905-0406)BU400,410,420,BZU410,XZU402,410,411,412,421..20T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37010B0 |
BU400,410,420,430,XZU382,40#,41#,42#,430 DK.CHARCOAL,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37240 |
BU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI) |
1 | ||
| 46420-37240 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 46420F - SEAL, DUST(FOR PARKING BRAKE CABLE) | ||||
| 90303-10001 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 90303-10001 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 46420G - SPRING(FOR PARKING CABLE INNER WIRE SET) | ||||
| 90501-14003 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 90501-14003 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 46420P - SPACER, PARKING BRAKE | ||||
| 90560-08002 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 90560-08002 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 46420Q - RING, E(FOR PARKING BRAKE CABLE) | ||||
| 96160-00700 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 96160-00700 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37410 |
XZU421..T5..5F;XZU402,410..20T;XZU421..T4..(4FC,5F)..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-37050 |
BU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI) |
1 | ||
| 46452-37050 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37100 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 46453-37100 |
BU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI) |
1 | ||
| 46453B - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37110 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 46453-37110 |
BU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI) |
1 | ||
| Common parts | ||||
| 90461-08225 | ||||
| 90949-01167 | ||||
| 90949-01925 | ||||
| 90949-01B91 | ||||
| 91651-40814 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(9905-0406)BU400,410,420,BZU410,XZU402,410,411,412,421..20T ; (0406- )BZU410,XZU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-37060 |
XZU412..DCB..T5;XZU412..(T2,T4)..6F..20T;BU400,XZU411,421..MTM..20T |
1 | ||
| 46501-37060 |
XZU412..DCB..T5;XZU412..(T2,T4)..6F..20T;BU400,XZU411,421..MTM..20T |
1 | ||
| 46501-37060 |
XZU382,411,421..5F;XZU412..DCB..T5..5F;XZU412..(T2,T4)..5F..DSL;BU410,420,BZU410,XZU402,410..MTM..20T |
1 | ||
| 46501-37060 |
XZU382,411,421..5F;XZU412..DCB..T5..5F;XZU412..(T2,T4)..5F..DSL;BU410,420,BZU410,XZU402,410..MTM..20T |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90031-01170 |
BU420..40T;XZU412..DCB..T5;XZU421..(T3,T5)..4FC;XZU412..(T2,T4)..6F..20T;BU400,XZU411,421,430..MTM..(20T,40TOV) |
4 | ||
| 90031-01170 |
BU420..40T;XZU412..DCB..T5;XZU421..(T3,T5)..4FC;XZU412..(T2,T4)..6F..20T;BU400,XZU411,421,430..MTM..(20T,40TOV) |
4 | ||
| 90031-01170 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU412..DCB..T5..5F;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU411..T4..(295T,30T);XZU412..(T2,T4)..(4FC,5F)..20T..DSL;XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
4 | ||
| 90031-01170 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU412..DCB..T5..5F;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU411..T4..(295T,30T);XZU412..(T2,T4)..(4FC,5F)..20T..DSL;XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-36011 |
BU400,410,420,XZU402,411,412,421..20T ｲﾗｽﾄ参照 |
1 | ||
| 46503-36011 |
BU400,410,420,XZU402,411,412,421..20T ｲﾗｽﾄ参照 |
1 | ||
| 46503-37061 |
XZU382;BU410,420,BZU410,XZU402,410,411,412,421..20T |
1 | ||
| 46503-37061 |
XZU382;BU410,420,BZU410,XZU402,410,411,412,421..20T |
1 | ||
| 46506A - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46506-36010 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 46506-36010 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 46506-36010 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 46506-36010 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46530-25020 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 46530-25020 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 46530-37030 |
XZU382;BU410,420,BZU410,XZU402,410,411,412,421..20T |
1 | ||
| 46530-37030 |
XZU382;BU410,420,BZU410,XZU402,410,411,412,421..20T |
1 | ||
| 46530-25020 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 46530-25020 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46530-25020 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 46530-25020 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 46530-25020 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 46530-25020 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 46530-37030 |
XZU382;BU410,420,BZU410,XZU402,410,411,412,421..20T |
1 | ||
| 46530-37030 |
XZU382;BU410,420,BZU410,XZU402,410,411,412,421..20T |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
2 | ||
| 90506-18001 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
2 | ||
| 90506-18001 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
2 | ||
| 90506-18001 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
2 | ||
| 90506-18001 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
2 | ||
| 90506-18001 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
2 | ||
| 90506-18001 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06013 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 90213-06013 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 90213-06013 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 90213-06013 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 90213-06003 |
XZU382;BU410,420,BZU410,XZU402,410,411,412,421..20T |
1 | ||
| 90213-06003 |
XZU382;BU410,420,BZU410,XZU402,410,411,412,421..20T |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14012 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 90506-14012 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 90506-14012 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 90506-14012 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14013 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 90506-14013 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 90506-14013 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 90506-14013 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16025 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
2 | ||
| 90501-16025 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
2 | ||
| 90501-16025 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
2 | ||
| 90501-16025 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-22010 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
2 | ||
| 47447-22010 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
2 | ||
| 47447-22010 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
2 | ||
| 47447-22010 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
4 | ||
| 47449-20011 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
4 | ||
| 47449-20011 |
BU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI) |
4 | ||
| 47449-20011 |
BU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI) |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
4 | ||
| 47449-20011 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
4 | ||
| 47449-20011 |
BU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI) |
4 | ||
| 47449-20011 |
BU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI) |
4 | ||
| 46577 - COVER, ADJUSTING CAM HOLE | ||||
| 46577-36010 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 46577-36010 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 46577-36010 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 46577-36010 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-36010 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 46601-36010 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 46601-36010 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 46601-36010 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 46601-37680 |
XZU382;BU410,420,BZU410,XZU402,410,411,412,421..20T |
1 | ||
| 46601-37680 |
XZU382;BU410,420,BZU410,XZU402,410,411,412,421..20T |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-36010 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 46612-36010 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 46612-36010 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 46612-36010 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10001 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 90504-10001 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 90504-10001 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 90504-10001 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| Common parts | ||||
| 90119-10339 | ||||
| 90119-12211 | ||||
| 94613-11200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
