XZU411-TPMML (2002)
Toyota Dyna/Toyoace

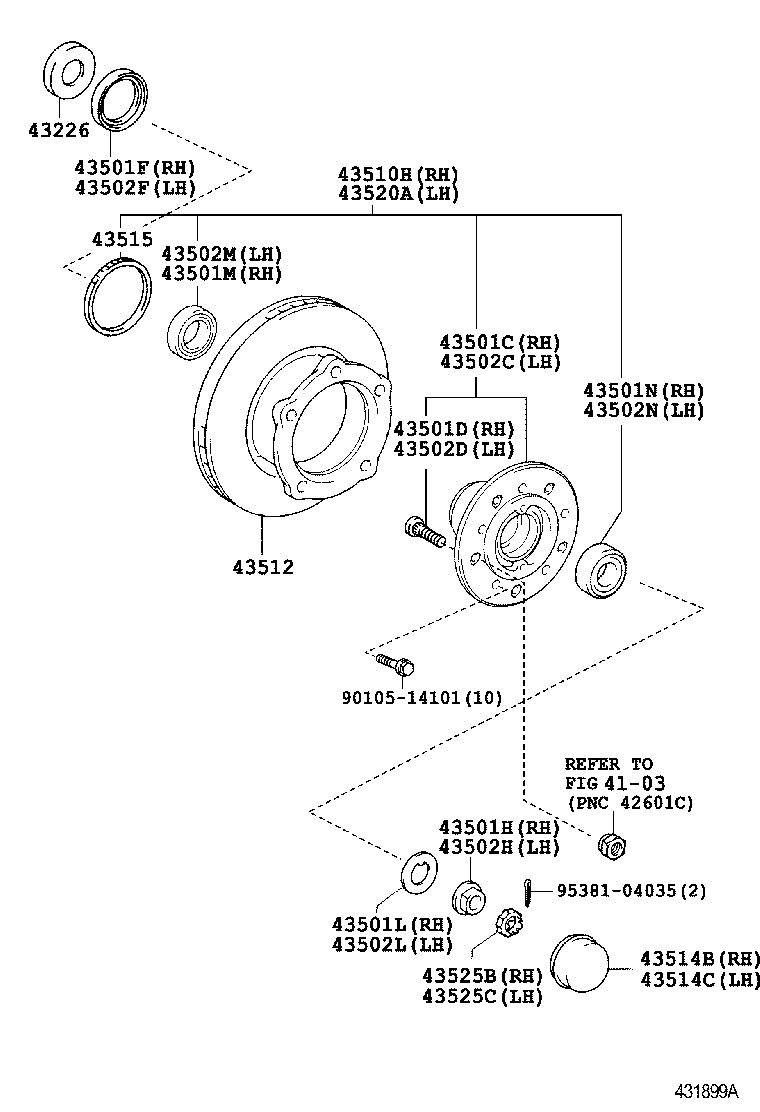

(9905-0406)BU400,410,420,BZU410,XZU402,410,411,412,421..20T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43501-37060 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43501-37060 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02071 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
5 | ||
| 90942-02071 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
5 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90311-68002 |
BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90178-28001 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 90178-28001 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) | ||||
| 90214-29001 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 90214-29001 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90366-50069 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 90366-50069 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90366-35105 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 90366-35105 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-37060 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 43502-37060 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02072 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
5 | ||
| 90942-02072 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
5 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90311-68002 |
BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90178-28001 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 90178-28001 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) | ||||
| 90214-29001 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 90214-29001 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90366-50069 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 90366-50069 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90366-35105 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 90366-35105 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-37090 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
2 | ||
| 43512-37090 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
2 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-37030 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 43514-37030 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-37030 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43514-37030 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 43515 - ROTOR, SKID CONTROL, FRONT | ||||
| 43515-37010 |
BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
2 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-37010 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43525-37010 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-37010 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43525-37010 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| Common parts | ||||
| 90105-14101 | ||||
| 95381-04035 | ||||
| Linked diagrams | ||||
| 4103 | ||||

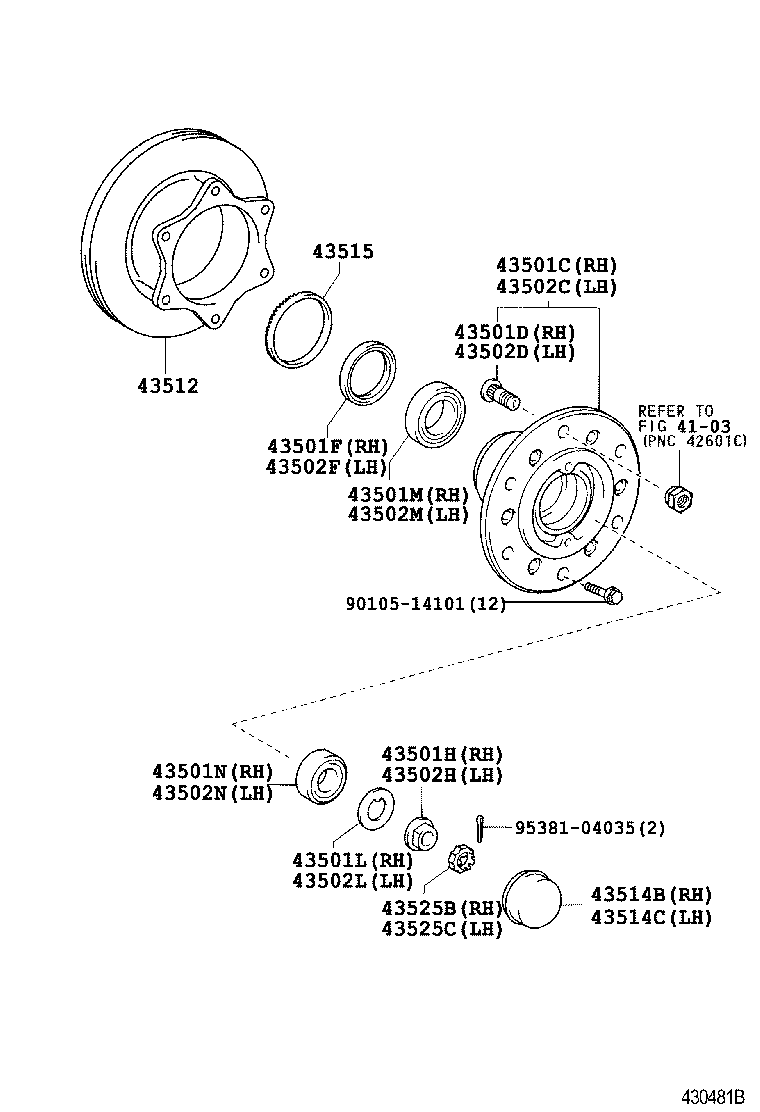

(0310- )BZU410,XZU401,411,413,414,421,423,424..20T..CNG,DCRL,DSL,DSLL,LPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43501-37060 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43501-37060 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02071 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
5 | ||
| 90942-02071 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
5 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90311-68002 |
BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90178-28001 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 90178-28001 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) | ||||
| 90214-29001 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 90214-29001 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90366-50069 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 90366-50069 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90366-35105 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 90366-35105 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-37060 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 43502-37060 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02072 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
5 | ||
| 90942-02072 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
5 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90311-68002 |
BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90178-28001 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 90178-28001 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) | ||||
| 90214-29001 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 90214-29001 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90366-50069 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 90366-50069 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90366-35105 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 90366-35105 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-37090 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
2 | ||
| 43512-37090 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
2 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-37030 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 43514-37030 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-37030 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43514-37030 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 43515 - ROTOR, SKID CONTROL, FRONT | ||||
| 43515-37010 |
BU400,410,420,BZU410,XZU402,410,411,412,421..20T |
2 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-37010 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43525-37010 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-37010 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 43525-37010 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| Common parts | ||||
| 90105-14101 | ||||
| 95381-04035 | ||||
| Linked diagrams | ||||
| 4103 | ||||
