XZU411-PQMMS3 (2004)
Toyota Dyna/Toyoace
(0406- )BZU410,XZU40#,411,413,414,42#,454..20T

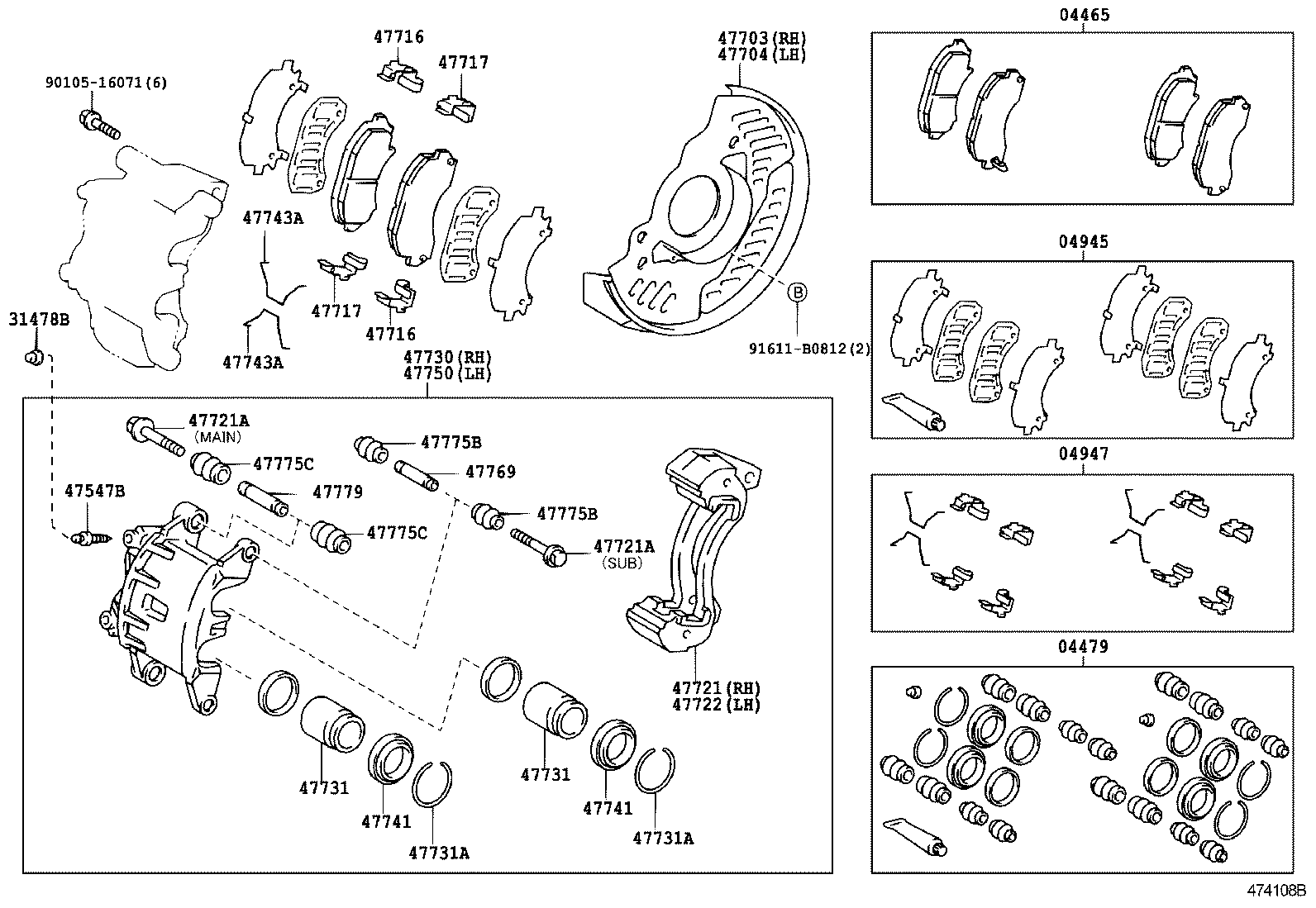

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-37030 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) ﾏｰｸ AISIN T536 |
1 | ||
| 04465-37030 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) ﾏｰｸ AISIN T536 |
1 | ||
| 04465-37030 |
XZU388;XZU401,411,413,414,42#..20T ﾏｰｸ AISIN T536 |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-37010 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 04479-37010 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 04479-37010 |
XZU388;XZU401,411,413,414,42#..20T |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-37030 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 04945-37030 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 04945-37030 |
XZU388;XZU401,411,413,414,42#..20T |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-36020 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 04947-36020 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 04947-36020 |
XZU388;XZU401,411,413,414,42#..20T |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-37040 |
XZU388;XZU401,411,413,414,42#..20T |
2 | ||
| 31478-37040 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
2 | ||
| 31478-37040 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
XZU388;XZU401,411,413,414,42#..20T |
2 | ||
| 47547-12010 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
2 | ||
| 47547-12010 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
2 | ||
| 47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH | ||||
| 47703-37030 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 47703-37030 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 47703-37030 |
XZU401,411,413,414,42#..20T |
1 | ||
| 47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH | ||||
| 47704-37030 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 47704-37030 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 47704-37030 |
XZU401,411,413,414,42#..20T |
1 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-36020 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
4 | ||
| 47716-36020 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
4 | ||
| 47716-36020 |
XZU388;XZU401,411,413,414,42#..20T |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-36020 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
4 | ||
| 47716-36020 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
4 | ||
| 47716-36020 |
XZU388;XZU401,411,413,414,42#..20T |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-36020 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
4 | ||
| 47717-36020 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
4 | ||
| 47717-36020 |
XZU388;XZU401,411,413,414,42#..20T |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-36020 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
4 | ||
| 47717-36020 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
4 | ||
| 47717-36020 |
XZU388;XZU401,411,413,414,42#..20T |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-37030 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 47721-37030 |
XZU401,411,413,414,42#..20T |
1 | ||
| 47721-37030 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-12256 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) *12−1.25PX75−30,ﾒｲﾝ ﾋﾟﾝ側 |
4 | ||
| 90119-08B87 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) *8−1.25PX59−27,ｻﾌﾞ ﾋﾟﾝ側 |
4 | ||
| 90119-12256 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) *12−1.25PX75−30,ﾒｲﾝ ﾋﾟﾝ側 |
4 | ||
| 90119-08B87 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) *8−1.25PX59−27,ｻﾌﾞ ﾋﾟﾝ側 |
4 | ||
| 90119-12256 |
XZU388;XZU401,411,413,414,42#..20T *12−1.25PX75−30,ﾒｲﾝ ﾋﾟﾝ側 |
4 | ||
| 90119-08B87 |
XZU388;XZU401,411,413,414,42#..20T *8−1.25PX59−27,ｻﾌﾞ ﾋﾟﾝ側 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-12256 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) *12−1.25PX75−30,ﾒｲﾝ ﾋﾟﾝ側 |
4 | ||
| 90119-08B87 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) *8−1.25PX59−27,ｻﾌﾞ ﾋﾟﾝ側 |
4 | ||
| 90119-12256 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) *12−1.25PX75−30,ﾒｲﾝ ﾋﾟﾝ側 |
4 | ||
| 90119-08B87 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) *8−1.25PX59−27,ｻﾌﾞ ﾋﾟﾝ側 |
4 | ||
| 90119-12256 |
XZU388;XZU401,411,413,414,42#..20T *12−1.25PX75−30,ﾒｲﾝ ﾋﾟﾝ側 |
4 | ||
| 90119-08B87 |
XZU388;XZU401,411,413,414,42#..20T *8−1.25PX59−27,ｻﾌﾞ ﾋﾟﾝ側 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-37020 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 47722-37020 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 47722-37020 |
XZU401,411,413,414,42#..20T |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-37030 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 47730-37030 |
XZU401,411,413,414,42#..20T |
1 | ||
| 47730-37030 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-37010 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
4 | ||
| 47731-37010 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
4 | ||
| 47731-37010 |
XZU388;XZU401,411,413,414,42#..20T |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-37010 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
4 | ||
| 47731-37010 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
4 | ||
| 47731-37010 |
XZU388;XZU401,411,413,414,42#..20T |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-61001 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
4 | ||
| 90522-61001 |
XZU388;XZU401,411,413,414,42#..20T |
4 | ||
| 90522-61001 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-61001 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
4 | ||
| 90522-61001 |
XZU388;XZU401,411,413,414,42#..20T |
4 | ||
| 90522-61001 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
4 | ||
| 47741 - BOOT, FRONT DISC BRAKE CYLINDER | ||||
| 47741-37010 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
4 | ||
| 47741-37010 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
4 | ||
| 47741-37010 |
XZU388;XZU401,411,413,414,42#..20T |
4 | ||
| 47741 - BOOT, FRONT DISC BRAKE CYLINDER | ||||
| 47741-37010 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
4 | ||
| 47741-37010 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
4 | ||
| 47741-37010 |
XZU388;XZU401,411,413,414,42#..20T |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-36020 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
4 | ||
| 47743-36020 |
XZU388;XZU401,411,413,414,42#..20T |
4 | ||
| 47743-36020 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-36020 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
4 | ||
| 47743-36020 |
XZU388;XZU401,411,413,414,42#..20T |
4 | ||
| 47743-36020 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-37030 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
1 | ||
| 47750-37030 |
XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 47750-37030 |
XZU401,411,413,414,42#..20T |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-36030 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
4 | ||
| 47769-36030 |
XZU388;XZU401,411,413,414,42#..20T |
4 | ||
| 47769-36030 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
4 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36040 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
8 | ||
| 47775-36040 |
XZU388;XZU401,411,413,414,42#..20T |
8 | ||
| 47775-36040 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
8 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36040 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
8 | ||
| 47775-36040 |
XZU388;XZU401,411,413,414,42#..20T |
8 | ||
| 47775-36040 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
8 | ||
| 47775C - BOOT, BUSH DUST, NO.2 | ||||
| 47775-36050 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
8 | ||
| 47775-36050 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
8 | ||
| 47775-36050 |
XZU388;XZU401,411,413,414,42#..20T |
8 | ||
| 47775C - BOOT, BUSH DUST, NO.2 | ||||
| 47775-36050 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
8 | ||
| 47775-36050 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
8 | ||
| 47775-36050 |
XZU388;XZU401,411,413,414,42#..20T |
8 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-36010 |
XZU421..T5..4FC;BU400,XZU411,412,421..MTM..20T..(DSL,DSLL,TDEFI) |
4 | ||
| 47779-36010 |
XZU382;XZU421..T5..5F;XZU421..T4..(4FC,5F)..20T;BU410,420,BZU410,XZU402,410..20T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL) |
4 | ||
| 47779-36010 |
XZU388;XZU401,411,413,414,42#..20T |
4 | ||
| Common parts | ||||
| 90105-16071 | ||||
| 91611-B0812 | ||||
