XZU410-TQFQS (1999)
Toyota Dyna/Toyoace
ILLUST NO. 3 OF 3(9905- )
O ﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

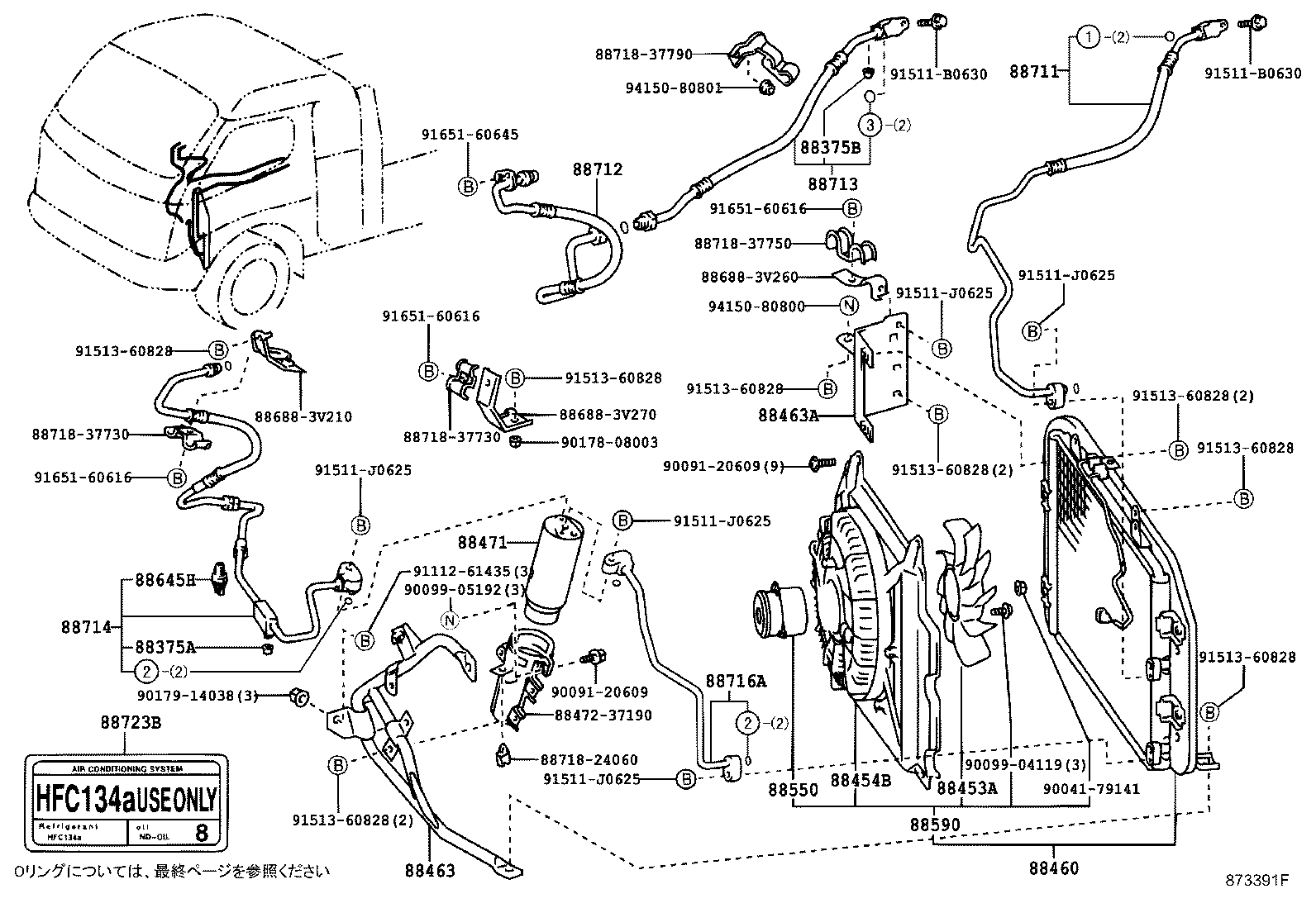

ILLUST NO. 1 OF 3(9905-0406)XZU40#,410,411,412,42#,430
ﾌﾛﾝﾄ ﾊﾟｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
XZU400,410,420,430 |
1 | ||
| 88374-30010 |
BZU410,XZU40#,410,411,412,42#,430 |
1 | ||
| 88374-30010 |
XZU40#,410,420;XZU412..4FC,5F;XZU421..T5..5F;XZU412,421..6F..30T;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU411,430..295T,30T,35T,40T |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
BU410,420,430,BZU410,XZU40#,410,411,412,42#,430 |
1 | ||
| 88375-30280 |
XZU400,410,420;XZU412..4FC,5F;XZU421..T5..5F;XZU412,421..6F..30T;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU411,430..295T,30T,35T,40T;BU410,420,430,XZU401,402..20T,30T,35T |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
XZU400,410,420;XZU412..4FC,5F;XZU421..T5..5F;XZU412,421..6F..30T;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU411,430..295T,30T,35T,40T;BU410,420,430,XZU401,402..20T,30T,35T |
1 | ||
| 88375-30290 |
BU410,420,430,BZU410,XZU40#,410,411,412,42#,430 |
1 | ||
| 88375-30290 |
XZU400,410,420,430 |
1 | ||
| 88453A - FAN, COOLING | ||||
| 88453-37010 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU401,402..20T,30T,35T |
1 | ||
| 88454B - SHROUD, FAN | ||||
| 88454-37040 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU401,402..20T,30T,35T |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-37380 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,XZU40#,410,412,42#,430..DSL,TDEFI |
1 | ||
| 88460-37381 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-37260 |
BU400,410,420,430,XZU40#,41#,42#,430 |
1 | ||
| 88463-37261 |
XZU400,410,420;XZU412..4FC,5F;XZU421..T5..5F;XZU412,421..6F..30T;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU411,430..295T,30T,35T,40T;BU410,420,430,XZU401,402..20T,30T,35T |
1 | ||
| 88463-37261 |
BU410,420,430,BZU410,XZU40#,410,411,412,42#,430 |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-37281 |
XZU400,410,420;XZU412..4FC,5F;XZU421..T5..5F;XZU412,421..6F..30T;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU411,430..295T,30T,35T,40T;BU410,420,430,XZU401,402..20T,30T,35T |
1 | ||
| 88463-37281 |
BU410,420,430,BZU410,XZU40#,410,411,412,42#,430 |
1 | ||
| 88463-37280 |
BU400,410,420,430,XZU40#,41#,42#,430 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
XZU411..T3..DSL;XZU411..T2,T4,T5;XZU412..DCB..4FC;BU400,410,420,430,XZU382,40#,410,412,42#,430..SCB..(DSL,TDEFI) |
1 | ||
| 88471-34010 |
XZU411..T3..DSL;XZU411..T2,T4,T5;XZU412..DCB..(4FC,5F);BU400,410,420,430,XZU382,40#,410,412,42#,430..SCB..(DSL,TDEFI) |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-37060 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-37070 |
XZU411..T3..DSL;XZU411..T2,T4,T5;XZU412..DCB..(4FC,5F);BU400,410,420,430,XZU40#,410,412,42#,430..SCB..(DSL,TDEFI) |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
XZU400,410,420;XZU412..4FC,5F;XZU421..T5..5F;XZU412,421..6F..30T;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU411,430..295T,30T,35T,40T;BU410,420,430,XZU401,402..20T,30T,35T |
1 | ||
| 88645-60030 |
BU410,420,430,BZU410,XZU40#,410,411,412,42#,430 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-37670 |
XZU400,410,420;XZU430..35T,40T |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-37891 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,XZU40#,410,412,42#,430 |
1 | ||
| 88712-37890 |
BU400,410,420,430,XZU40#,41#,42#,430 |
1 | ||
| 88712-37892 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU401,402..20T,30T,35T |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-37891 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,XZU40#,410,412,42#,430 |
1 | ||
| 88712-37890 |
BU400,410,420,430,XZU40#,41#,42#,430 |
1 | ||
| 88712-37892 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU401,402..20T,30T,35T |
1 | ||
| 88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2 | ||||
| 88712-37860 |
XZU400,410,420;XZU412..DCB..4FC;XZU411..T4..30T..DSLL;XZU411,412,421..5F..(DSL,DSLL);XZU401,430..(4FC,6F)..(30T,35T,40T) |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-37550 |
BU400,410,420,430,XZU40#,41#,42#,430 |
1 | ||
| 88721-37551 |
BU400,410,420,430,XZU40#,41#,42#,430 |
1 | ||
| 88721-37552 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-37780 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,XZU382,40#,410,412,42#,430 |
1 | ||
| 88733-22040 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU401,402..20T,30T,35T |
1 | ||
| Common parts | ||||
| 88472-37190 | ||||
| 88688-3V210 | ||||
| 88688-3V260 | ||||
| 88688-3V270 | ||||
| 88688-3V272 | ||||
| 88718-24060 | ||||
| 88718-37690 | ||||
| 88718-37730 | ||||
| 88718-37750 | ||||
| 90041-79141 | ||||
| 90091-20609 | ||||
| 90099-04119 | ||||
| 90099-05192 | ||||
| 90178-08003 | ||||
| 90179-14038 | ||||
| 91112-61435 | ||||
| 91511-B0630 | ||||
| 91511-G0814 | ||||
| 91511-J0625 | ||||
| 91513-60828 | ||||
| 91651-60616 | ||||
| 91651-60645 | ||||
| 91651-B0814 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 1 OF 3(9908-0406)BU400,410,420,430
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
BU410,420,430,BZU410,XZU40#,410,411,412,42#,430 |
1 | ||
| 88375-30280 |
XZU400,410,420;XZU412..4FC,5F;XZU421..T5..5F;XZU412,421..6F..30T;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU411,430..295T,30T,35T,40T;BU410,420,430,XZU401,402..20T,30T,35T |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
XZU400,410,420;XZU412..4FC,5F;XZU421..T5..5F;XZU412,421..6F..30T;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU411,430..295T,30T,35T,40T;BU410,420,430,XZU401,402..20T,30T,35T |
1 | ||
| 88375-30290 |
BU410,420,430,BZU410,XZU40#,410,411,412,42#,430 |
1 | ||
| 88375-30290 |
XZU400,410,420,430 |
1 | ||
| 88453A - FAN, COOLING | ||||
| 88453-37010 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU401,402..20T,30T,35T |
1 | ||
| 88454B - SHROUD, FAN | ||||
| 88454-37040 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU401,402..20T,30T,35T |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-37380 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,XZU40#,410,412,42#,430..DSL,TDEFI |
1 | ||
| 88460-37381 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-37260 |
BU400,410,420,430,XZU40#,41#,42#,430 |
1 | ||
| 88463-37261 |
XZU400,410,420;XZU412..4FC,5F;XZU421..T5..5F;XZU412,421..6F..30T;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU411,430..295T,30T,35T,40T;BU410,420,430,XZU401,402..20T,30T,35T |
1 | ||
| 88463-37261 |
BU410,420,430,BZU410,XZU40#,410,411,412,42#,430 |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-37281 |
XZU400,410,420;XZU412..4FC,5F;XZU421..T5..5F;XZU412,421..6F..30T;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU411,430..295T,30T,35T,40T;BU410,420,430,XZU401,402..20T,30T,35T |
1 | ||
| 88463-37281 |
BU410,420,430,BZU410,XZU40#,410,411,412,42#,430 |
1 | ||
| 88463-37280 |
BU400,410,420,430,XZU40#,41#,42#,430 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
XZU411..T3..DSL;XZU411..T2,T4,T5;XZU412..DCB..4FC;BU400,410,420,430,XZU382,40#,410,412,42#,430..SCB..(DSL,TDEFI) |
1 | ||
| 88471-34010 |
XZU411..T3..DSL;XZU411..T2,T4,T5;XZU412..DCB..(4FC,5F);BU400,410,420,430,XZU382,40#,410,412,42#,430..SCB..(DSL,TDEFI) |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-37060 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-37070 |
XZU411..T3..DSL;XZU411..T2,T4,T5;XZU412..DCB..(4FC,5F);BU400,410,420,430,XZU40#,410,412,42#,430..SCB..(DSL,TDEFI) |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
XZU400,410,420;XZU412..4FC,5F;XZU421..T5..5F;XZU412,421..6F..30T;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU411,430..295T,30T,35T,40T;BU410,420,430,XZU401,402..20T,30T,35T |
1 | ||
| 88645-60030 |
BU410,420,430,BZU410,XZU40#,410,411,412,42#,430 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-37670 |
XZU400,410,420;XZU430..35T,40T |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-37891 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,XZU40#,410,412,42#,430 |
1 | ||
| 88712-37890 |
BU400,410,420,430,XZU40#,41#,42#,430 |
1 | ||
| 88712-37892 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU401,402..20T,30T,35T |
1 | ||
| 88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2 | ||||
| 88712-37860 |
XZU400,410,420;XZU412..DCB..4FC;XZU411..T4..30T..DSLL;XZU411,412,421..5F..(DSL,DSLL);XZU401,430..(4FC,6F)..(30T,35T,40T) |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-37550 |
BU400,410,420,430,XZU40#,41#,42#,430 |
1 | ||
| 88721-37551 |
BU400,410,420,430,XZU40#,41#,42#,430 |
1 | ||
| 88721-37552 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-37780 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,XZU382,40#,410,412,42#,430 |
1 | ||
| 88733-22040 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU401,402..20T,30T,35T |
1 | ||
| Common parts | ||||
| 88472-37190 | ||||
| 88688-3V210 | ||||
| 88688-3V260 | ||||
| 88688-3V270 | ||||
| 88718-24060 | ||||
| 88718-37730 | ||||
| 88718-37750 | ||||
| 88718-37790 | ||||
| 90041-79141 | ||||
| 90091-20609 | ||||
| 90099-04119 | ||||
| 90099-05192 | ||||
| 90178-08003 | ||||
| 90179-14038 | ||||
| 91112-61435 | ||||
| 91511-B0630 | ||||
| 91511-J0625 | ||||
| 91513-60828 | ||||
| 91651-60616 | ||||
| 91651-60645 | ||||
| 94150-80800 | ||||
| 94150-80801 | ||||
