XZU410-TKFSS3 (1999)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(9905-0406)BU400,410,420,430,BZU410,XZU40#,41#,42#,430
ﾒﾀﾙﾌﾞｯｼｭﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37050 |
XZU421..T4..30T;XZU421,430..T3..6F..(30T,35T,40T);XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL;BU410,420,430,BZU410,XZU401,411..295T,30T,35T |
2 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90031-17028 |
XZU410,420,430..40T..IV3 長さ=400 |
4 | ||
| 90031-17019 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) 長さ=380 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90031-17028 |
XZU410,420,430..40T..IV3 長さ=400 |
4 | ||
| 90031-17019 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) 長さ=380 |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90033-84013 |
BU420..6F..35T;XZU421..T3..6F;XZU421..T4..30T;XZU401,420..35T,40T;XZU410,411,412..(30T,35T,40T)..DSL;BU410,430,XZU400,430..MTM..(30T,35T,40T) |
2 | ||
| 48323D - PIN, REAR SPRING BRACKET | ||||
| 48323-37040 |
XZU421..T4..30T;XZU421,430..T3..6F..(30T,35T,40T);XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL;BU410,420,430,BZU410,XZU401,411..295T,30T,35T |
6 | ||
| 48323D - PIN, REAR SPRING BRACKET | ||||
| 48323-37040 |
XZU421..T4..30T;XZU421,430..T3..6F..(30T,35T,40T);XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL;BU410,420,430,BZU410,XZU401,411..295T,30T,35T |
6 | ||
| 48323D - PIN, REAR SPRING BRACKET | ||||
| 48323-37040 |
XZU421..T4..30T;XZU421,430..T3..6F..(30T,35T,40T);XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL;BU410,420,430,BZU410,XZU401,411..295T,30T,35T |
6 | ||
| 48323E - NIPPLE, GREASE(FOR REAR SPRING BRACKET PIN) | ||||
| 90034-08006 |
XZU421..T4..30T;XZU421,430..T3..6F..(30T,35T,40T);XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL;BU410,420,430,BZU410,XZU401,411..295T,30T,35T |
6 | ||
| 48323E - NIPPLE, GREASE(FOR REAR SPRING BRACKET PIN) | ||||
| 90034-08006 |
XZU421..T4..30T;XZU421,430..T3..6F..(30T,35T,40T);XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL;BU410,420,430,BZU410,XZU401,411..295T,30T,35T |
6 | ||
| 48323E - NIPPLE, GREASE(FOR REAR SPRING BRACKET PIN) | ||||
| 90034-08006 |
XZU421..T4..30T;XZU421,430..T3..6F..(30T,35T,40T);XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL;BU410,420,430,BZU410,XZU401,411..295T,30T,35T |
6 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37180 |
XZU382..20T;BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48344-37280 |
XZU412..SCB..(T2,T5);XZU402,410,411,420,430..(T2,T3)..(20T,40T)..(CBU,IV3) |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37020 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37020 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
4 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-37090 |
XZU421..T3..6F..IV3;XZU421..T5..5F..IV3;XZU412..6F..30T..IV3;XZU421..T4..30T..IV3;BU420..(20T,35T)..IV3;XZU411..(4FC,5F)..20T..IV3;XZU421..T4..(4FC,5F)..20T..IV3;XZU412..SCB..(4FC,5F)..DSL..IV3;XZU411,430..(295T,30T,35T,40T)..IV3;BU410,430,BZU410,XZU40#,410,420..(T2,T3,T4,T5)..IV3 |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37090 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU412..DCB..T5..5F;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411..(T4,T5)..(4FC,5F)..20T;XZU412..T4..(4FC,5F)..20T..DSL;XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU401,402..(T3,T4,T5)..(20T,30T,35T) |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37050 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-37050 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-37140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾏｰｸ 48531−37140 |
1 | ||
| 48531-80687 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾏｰｸ 48531−37140 |
1 | ||
| 48531-37141 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) ﾏｰｸ 48531−37141 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU411..4FC..20T;XZU412,421..(T2,T4)..(4FC,5F);XZU412,421,430..6F..(30T,35T,40T);BU410,420,430,XZU401,402..20T,30T,35T;XZU400,410,411,420..295T,30T,35T,40T,40TOV |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU411..4FC..20T;XZU412,421..(T2,T4)..(4FC,5F);XZU412,421,430..6F..(30T,35T,40T);BU410,420,430,XZU401,402..20T,30T,35T;XZU400,410,411,420..295T,30T,35T,40T,40TOV |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU382,40#,410,412,42#,430 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU382,40#,410,412,42#,430 |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80687 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾏｰｸ 48531−37140 |
1 | ||
| 48531-37140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾏｰｸ 48531−37140 |
1 | ||
| 48531-37141 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) ﾏｰｸ 48531−37141 |
1 | ||
| Common parts | ||||
| 90031-01172 | ||||
| 90031-79042 | ||||
| 90032-01143 | ||||
| 90032-04031 | ||||
| 90101-10081 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91112-81025 | ||||
| 94130-01002 | ||||
| 94184-61001 | ||||
| Linked diagrams | ||||
| 5151 | ||||

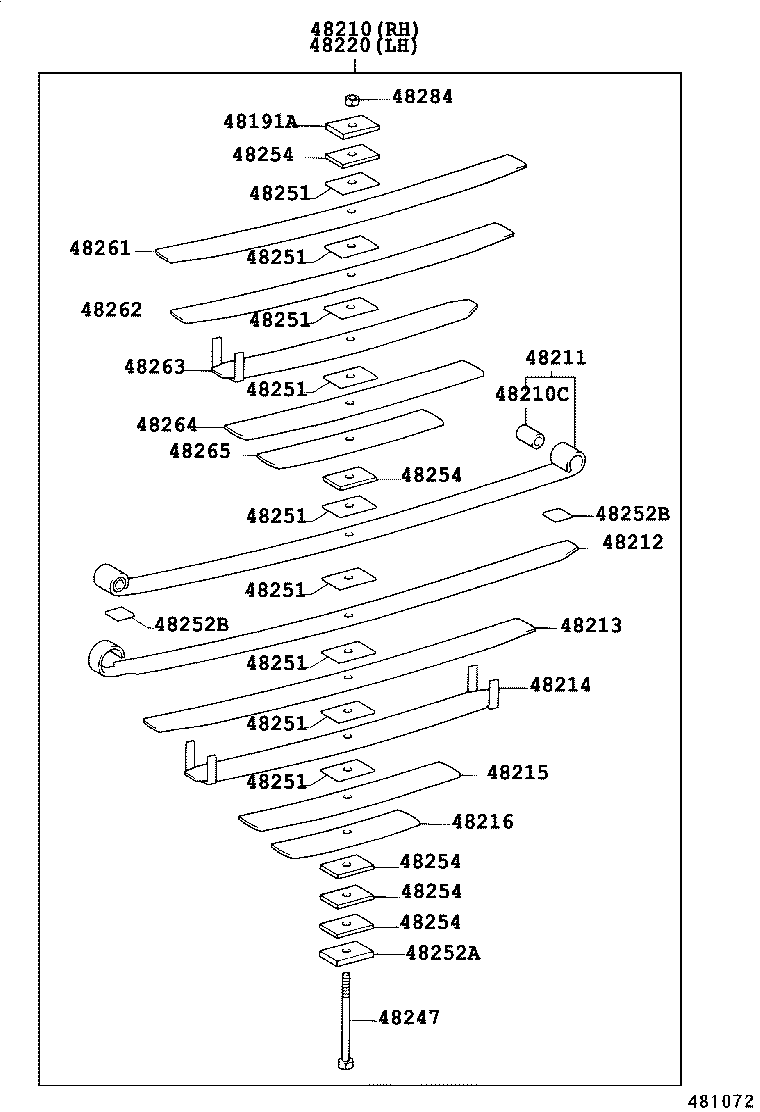

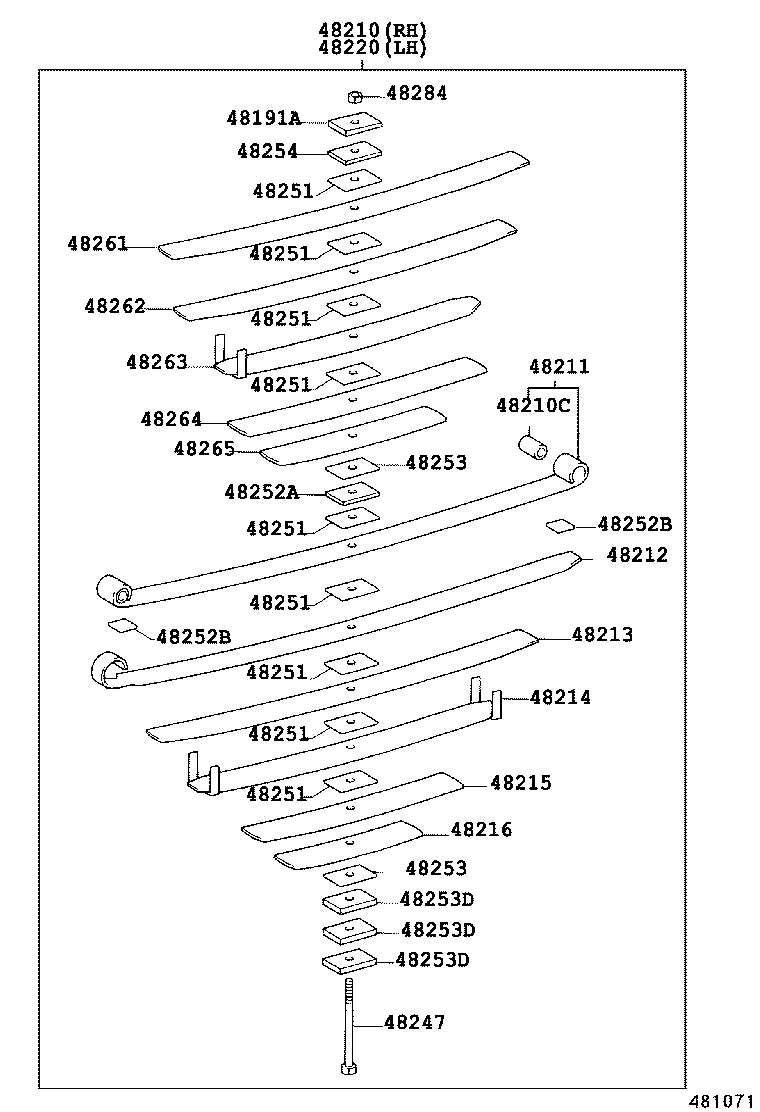

ILLUST NO. 2 OF 2(9905-0406)XZU410,420,430..40T..CBU,IV3 ; (0005-0406)BU420..40T
MAIN 6+HELPER 5-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V540 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48203-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48203-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48202-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48202-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48205-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48205-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48215-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48216-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V540 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V280 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48269-3V150 |
BU420,XZU400,410,420,430..40T,40TOV |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48218-3V280 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
6 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48218-3V280 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
6 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48218-3V280 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
6 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48261-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48213-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48262-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48207-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48215-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48215-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48264-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48264-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48265-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48265-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3B750 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
ILLUST NO. 2 OF 2(9905-0406)XZU410,420,430..40T..CBU,IV3 ; (0005-0406)BU420..40T
MAIN 6+HELPER 5-LEAF,ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V540 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48203-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48203-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48202-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48202-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48205-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48205-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48215-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48216-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V540 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V280 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48269-3V150 |
BU420,XZU400,410,420,430..40T,40TOV |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48261-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48213-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48262-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48207-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48215-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48215-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48264-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48264-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48265-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48265-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3B750 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
ILLUST NO. 2 OF 2(9905-0406)XZU400..40T ; (9905-0406)XZU410..IV6; (0005-0406)40TOV ; (0406-0505)XZU
MAIN 7+HELPER 6-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V540 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48203-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48203-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48202-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48202-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48213-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48205-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48205-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48215-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48216-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V540 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V280 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48269-3V150 |
BU420,XZU400,410,420,430..40T,40TOV |
2 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48269-3V150 |
BU420,XZU400,410,420,430..40T,40TOV |
2 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48269-3V150 |
BU420,XZU400,410,420,430..40T,40TOV |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48218-3V280 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
6 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48261-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48213-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48262-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48207-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48215-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48215-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48264-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48264-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48265-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48265-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3B750 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
ILLUST NO. 2 OF 2(9905-0406)XZU400..40T ; (9905-0406)XZU410..IV6; (0005-0406)40TOV ; (0406-0505)XZU
MAIN 7+HELPER 6-LEAF,ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V540 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48203-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48203-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48203-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48203-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48202-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48202-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48202-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48202-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48213-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48213-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48205-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48205-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48205-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48205-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48215-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48215-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48215-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48216-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48216-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48216-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V540 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V280 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V280 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48269-3V150 |
BU420,XZU400,410,420,430..40T,40TOV |
2 | ||
| 48269-3V150 |
BU420,XZU400,410,420,430..40T,40TOV |
2 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48261-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48261-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48261-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48213-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48213-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48262-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48262-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48214-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48207-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48207-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48207-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48215-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48215-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48215-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48215-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48264-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48264-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48264-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48264-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48265-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48265-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48265-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48265-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3B750 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3B750 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
ILLUST NO. 2 OF 2(0206-0406)BU410,420,BZU410,XZU402,410,412,414,421..T4,T5..20T..IV3 ; (0406-0610)XZ
MAIN 2+HELPER 2-LEAF,TYPE:D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V540 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48203-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48203-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48203-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48203-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48203-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48203-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48203-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48203-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48202-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48202-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48202-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48202-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48202-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48202-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48202-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48202-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V540 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V280 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V280 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V280 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V280 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48261-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48261-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48261-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48261-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48261-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48261-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48261-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48213-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48213-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48213-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48213-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48262-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48262-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48262-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48262-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48214-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48214-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48214-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3B750 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3B750 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3B750 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3B750 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
ILLUST NO. 2 OF 2(0206-0406)XZU411..T5 ; (0206-0406)XZU411..T4..20T..IV3 ; (0206-0406)BU410,420,XZU4
MAIN 2+HELPER 2-LEAF,TYPE:D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V540 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48203-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48203-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48203-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48203-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48203-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48203-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48203-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48203-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48202-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48202-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48202-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48202-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48202-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48202-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48202-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48202-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V540 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V280 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V280 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V280 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V280 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48261-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48261-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48261-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48261-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48261-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48261-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48261-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48213-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48213-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48213-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48213-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48262-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48262-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48262-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48262-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48214-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48214-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48214-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3B750 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3B750 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3B750 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3B750 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
ILLUST NO. 2 OF 2(0206-0406)XZU400..40T..IV3 ; (0206-0406)XZU410,420,430..40T..CBU,IV3
MAIN 2+HELPER 3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V540 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48203-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48203-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48202-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48202-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V540 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V280 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48261-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48213-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48262-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48207-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48215-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48215-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3B750 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
ILLUST NO. 2 OF 2(9905-0406)BU410,420,430,BZU410,XZU401,410,411,412,42#..30T,35T..IV3 ; (0406-0705)X
MAIN 2+HELPER 2-LEAF,TYPE:B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V540 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 90033-84013 |
XZU411..T3..DSL;XZU411..T4..(295T,30T);BU410,420,430,BZU410,XZU400,401,410,412,42#,430..30T,35T,40T,40TOV |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48201-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48201-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48203-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48203-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48203-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48203-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48203-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48203-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48203-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48203-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48202-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48202-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48202-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48202-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48202-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48202-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48202-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48202-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V090 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V091 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V140 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V141 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ5枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V540 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V560 |
XZU410,420,430..40T..(CBU,IV3) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V280 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V280 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V280 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V280 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48247-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48282-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
18 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48253-3V020 |
XZU410,420,430..40T..(CBU,IV3) |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252-37380 |
XZU412..CNG;XZU400..40T..IV3;XZU401,410..MTM..(30T,40T)..(CBU,IV3);BU410,420,XZU402,420,430..20T,30T,40T;XZU411,412,421..(4FC,6F)..(20T,30T)..DSL |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3B800 |
XZU400..40T..IV3;XZU412..20T..CNG;XZU410..40T..(CBU,IV3);XZU411,412,421..4FC..20T;BU410,420,XZU402,420,430..20T,40T |
4 | ||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48252-3V090 |
XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48267-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
4 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254-3V080 |
XZU410,420,430..40T..(CBU,IV3) |
14 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48254-3V070 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48268-3V150 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
10 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48261-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48261-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48261-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48261-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48261-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48261-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48261-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48213-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48213-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48213-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48213-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48213-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48262-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48262-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48262-3V090 |
BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48262-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262-3V140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V560 |
XZU410,420,430..40T..(CBU,IV3) ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48214-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48214-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48214-3V540 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3B750 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3B750 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3B750 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3B750 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48284-3V150 |
XZU410,420,430..40T..(CBU,IV3) |
2 | ||
ILLUST NO. 1 OF 2(9905-0406)BU400,410,420,430,BZU410,XZU40#,41#,42#,430
ﾗﾊﾞｰﾌﾞｯｼｭﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37050 |
XZU421..T4..30T;XZU421,430..T3..6F..(30T,35T,40T);XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL;BU410,420,430,BZU410,XZU401,411..295T,30T,35T |
2 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90031-17028 |
XZU410,420,430..40T..IV3 長さ=400 |
4 | ||
| 90031-17019 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) 長さ=380 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90031-17028 |
XZU410,420,430..40T..IV3 長さ=400 |
4 | ||
| 90031-17019 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) 長さ=380 |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90033-84013 |
BU420..6F..35T;XZU421..T3..6F;XZU421..T4..30T;XZU401,420..35T,40T;XZU410,411,412..(30T,35T,40T)..DSL;BU410,430,XZU400,430..MTM..(30T,35T,40T) |
2 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90033-84013 |
BU420..6F..35T;XZU421..T3..6F;XZU421..T4..30T;XZU401,420..35T,40T;XZU410,411,412..(30T,35T,40T)..DSL;BU410,430,XZU400,430..MTM..(30T,35T,40T) |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37180 |
XZU382..20T;BU420,XZU410,420,430..40T..(CBU,IV3) |
2 | ||
| 48344-37280 |
XZU412..SCB..(T2,T5);XZU402,410,411,420,430..(T2,T3)..(20T,40T)..(CBU,IV3) |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37020 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37020 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
4 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-37090 |
XZU421..T3..6F..IV3;XZU421..T5..5F..IV3;XZU412..6F..30T..IV3;XZU421..T4..30T..IV3;BU420..(20T,35T)..IV3;XZU411..(4FC,5F)..20T..IV3;XZU421..T4..(4FC,5F)..20T..IV3;XZU412..SCB..(4FC,5F)..DSL..IV3;XZU411,430..(295T,30T,35T,40T)..IV3;BU410,430,BZU410,XZU40#,410,420..(T2,T3,T4,T5)..IV3 |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37090 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU412..DCB..T5..5F;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411..(T4,T5)..(4FC,5F)..20T;XZU412..T4..(4FC,5F)..20T..DSL;XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU401,402..(T3,T4,T5)..(20T,30T,35T) |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37050 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-37050 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-37140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾏｰｸ 48531−37140 |
1 | ||
| 48531-80687 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾏｰｸ 48531−37140 |
1 | ||
| 48531-37141 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) ﾏｰｸ 48531−37141 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU411..4FC..20T;XZU412,421..(T2,T4)..(4FC,5F);XZU412,421,430..6F..(30T,35T,40T);BU410,420,430,XZU401,402..20T,30T,35T;XZU400,410,411,420..295T,30T,35T,40T,40TOV |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU411..4FC..20T;XZU412,421..(T2,T4)..(4FC,5F);XZU412,421,430..6F..(30T,35T,40T);BU410,420,430,XZU401,402..20T,30T,35T;XZU400,410,411,420..295T,30T,35T,40T,40TOV |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU382,40#,410,412,42#,430 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU382,40#,410,412,42#,430 |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80687 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾏｰｸ 48531−37140 |
1 | ||
| 48531-37140 |
BU420,XZU410,420,430..40T..(CBU,IV3) ﾏｰｸ 48531−37140 |
1 | ||
| 48531-37141 |
XZU400..40T..IV3;XZU410,420,430..40T..(CBU,IV3) ﾏｰｸ 48531−37141 |
1 | ||
| Common parts | ||||
| 90031-79042 | ||||
| 90032-01143 | ||||
| 90032-04031 | ||||
| 90105-16021 | ||||
| 90105-16070 | ||||
| 90105-16075 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91112-81025 | ||||
| 91651-B0820 | ||||
| 94130-01002 | ||||
| 94184-61001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
