XZU404A-TMFSW3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0406-0610)XZU404,414,415,424 ; (0610- )XZU404,414,424,434,454..DCRTJ,DCRTK,DCRT

Click highlighted areas on diagram

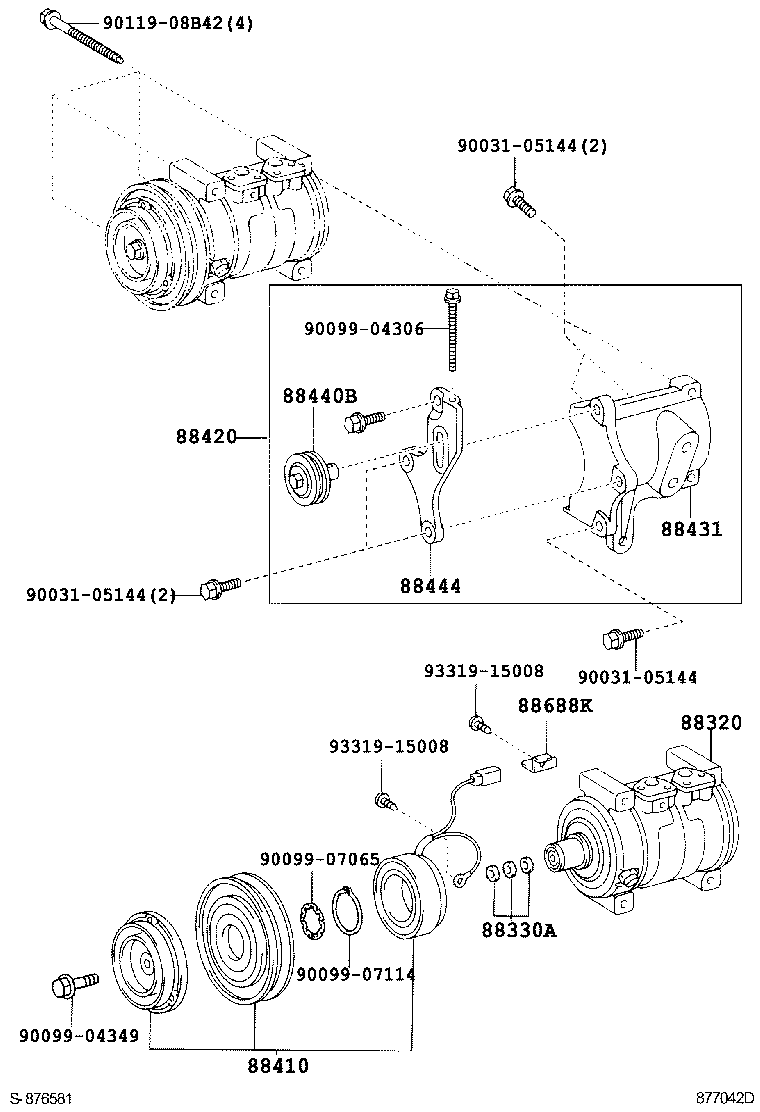

diagram 88320 88330A 88410 88420 88431 88440B 88444 88688K 9003105144 9003105144 9003105144 9009904306 9009904349 9009907065 9009907114 9011908B42 9331915008 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-37110

XZU404,414,415,424..DCRL,DSLL

 1
88410 - CLUTCH ASSY, MAGNET
88410-17100

XZU404,414,415,424..DCRL,DSLL

 1
88420 - PULLEY ASSY, IDLE, W/BRACKET
88420-37230

XZU404,414,415,424..DCRL,DSLL

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-37130

XZU404,414,415,424..DCRL,DSLL

 1
88440B - PULLEY ASSY, IDLE
88440-37020

XZU421..T5..5F;XZU421..6F..30T;XZU382,40#,410,420;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 1
88444 - BRACKET, IDLE PULLEY
88444-37160

XZU388,404,414,415,424..DCRL,DSLL

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-37800

XZU40#,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 1
88688-3V580

XZU404,414,415,424..DCRL,DSLL

 1
Common parts
90031-05144
90099-04306
90099-04349
90099-07065
90099-07114
90119-08B42
93319-15008
