XZU404A-TMFSW3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

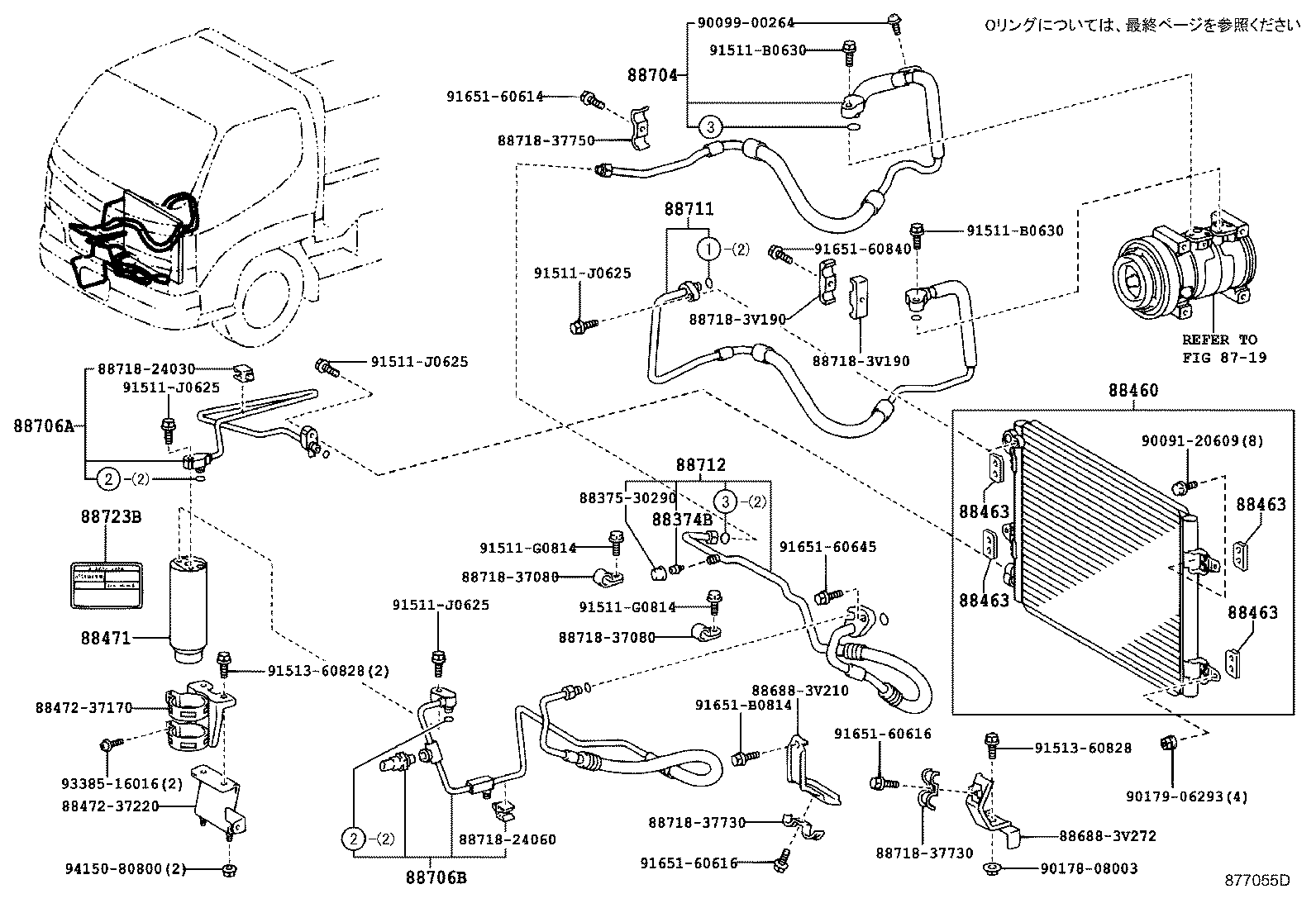

ILLUST NO. 1 OF 3(0406- )XZU404,414,415,424..DCR,DCRL,DSLL

Click highlighted areas on diagram

diagram 8719 88374B 8837530290 88460 88463 88463 88463 88463 88471 8847237170 8847237220 886883V210 886883V272 88704 88706A 88706B 88711 88712 8871824030 8871824060 8871837080 8871837080 8871837730 8871837730 8871837750 887183V190 887183V190 88723B 9009120609 9009900264 9017808003 9017906293 91511B0630 91511B0630 91511G0814 91511G0814 91511J0625 91511J0625 91511J0625 91511J0625 9151360828 9151360828 9165160614 9165160616 9165160616 9165160645 9165160840 91651B0814 9338516016 9415080800
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)

 1
88460 - CONDENSER ASSY, COOLER
88460-37611

XZU404,413,414,415,423,424,433..DCRL,DSLL

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37260

BU400,410,420,430,XZU40#,41#,42#,430

 1
88463-37370

XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)

 4
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37260

BU400,410,420,430,XZU40#,41#,42#,430

 1
88463-37370

XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)

 4
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37260

BU400,410,420,430,XZU40#,41#,42#,430

 1
88463-37370

XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)

 4
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37260

BU400,410,420,430,XZU40#,41#,42#,430

 1
88463-37370

XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)

 4
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010

XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-37040

XZU404,414,415,424..DCRL,DSLL

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-37181

XZU404,413,414,415,423,424,433..DCRL,DSLL

 1
88706B - TUBE SUB-ASSY, LIQUID, B
88708-37010

XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37870

XZU404,414,415,424..DCRL,DSLL

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37890

BU400,410,420,430,XZU40#,41#,42#,430

 1
88712-3V450

XZU404,413,414,415,423,424,433..DCRL,DSLL

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,XZU382,40#,410,412,42#,430

 1
88733-22040

XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

 1
Common parts
88375-30290
88472-37170
88472-37220
88688-3V210
88688-3V272
88718-24030
88718-24060
88718-37080
88718-37730
88718-37750
88718-3V190
90091-20609
90099-00264
90178-08003
90179-06293
91511-B0630
91511-G0814
91511-J0625
91513-60828
91651-60614
91651-60616
91651-60645
91651-60840
91651-B0814
93385-16016
94150-80800
Linked diagrams
8719
