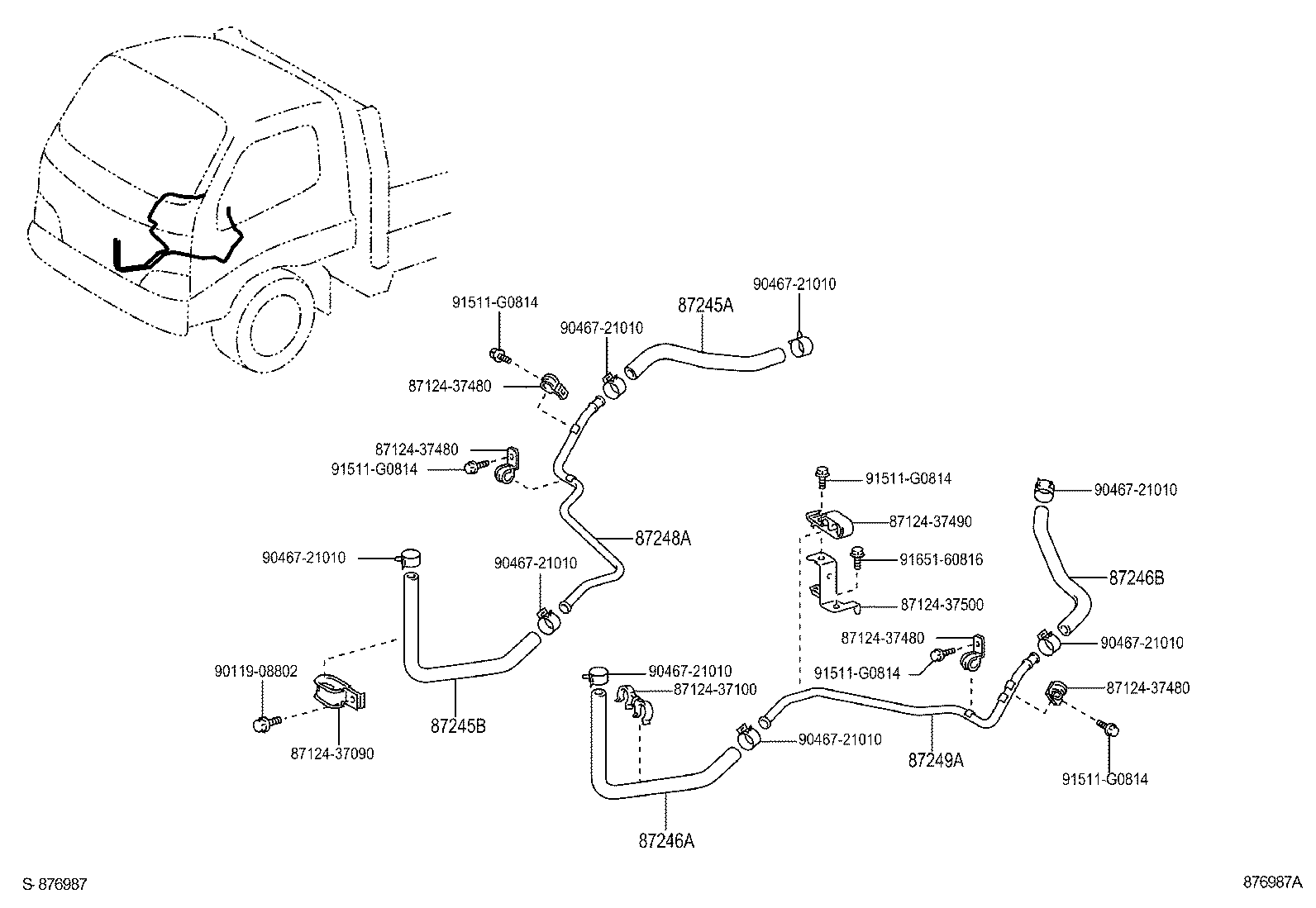

Toyota Dyna/toyoace XZU404 HEATING & AIR CONDITIONING - WATER PIPING

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-37A10	XZU404,414,415,424..DCRL,DSLL	06/2004 - 10/2006	1
87245-37750	XZU40#,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)	05/1999 - 06/2004	1
87245B - HOSE, HEATER WATER, INLET B
87245-3V150	XZU40#,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)	05/1999 - 06/2004	1
87245-37A20	XZU40#,41#,42#,433	06/2004 - 10/2006	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3V150	XZU40#,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)	05/1999 - 06/2004	1
87246-37480	XZU40#,41#,42#,433	06/2004 - 10/2006	1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37030	XZU40#,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)	05/1999 - 06/2004	1
87246-37470	XZU404,414,415,424	06/2004 - 09/2006	1
87248A - PIPE, HEATER WATER INLET, A
87248-37540	XZU404,413,414,415,423,424,433	06/2004 - 10/2006	1
87248-37300	XZU40#,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)	05/1999 - 06/2004	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37550	XZU40#,41#,42#,433	06/2004 - 10/2006	1
87248-37310	XZU40#,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)	05/1999 - 06/2004	1
Common parts
87124-37090
87124-37100
87124-37480
87124-37490
87124-37500
90119-08802
90467-21010
91511-G0814
91651-60816

XZU404A-TMFSW3 (2004)

(0406-0610)XZU404,414,415,424
