XZU404A-TMFSW3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

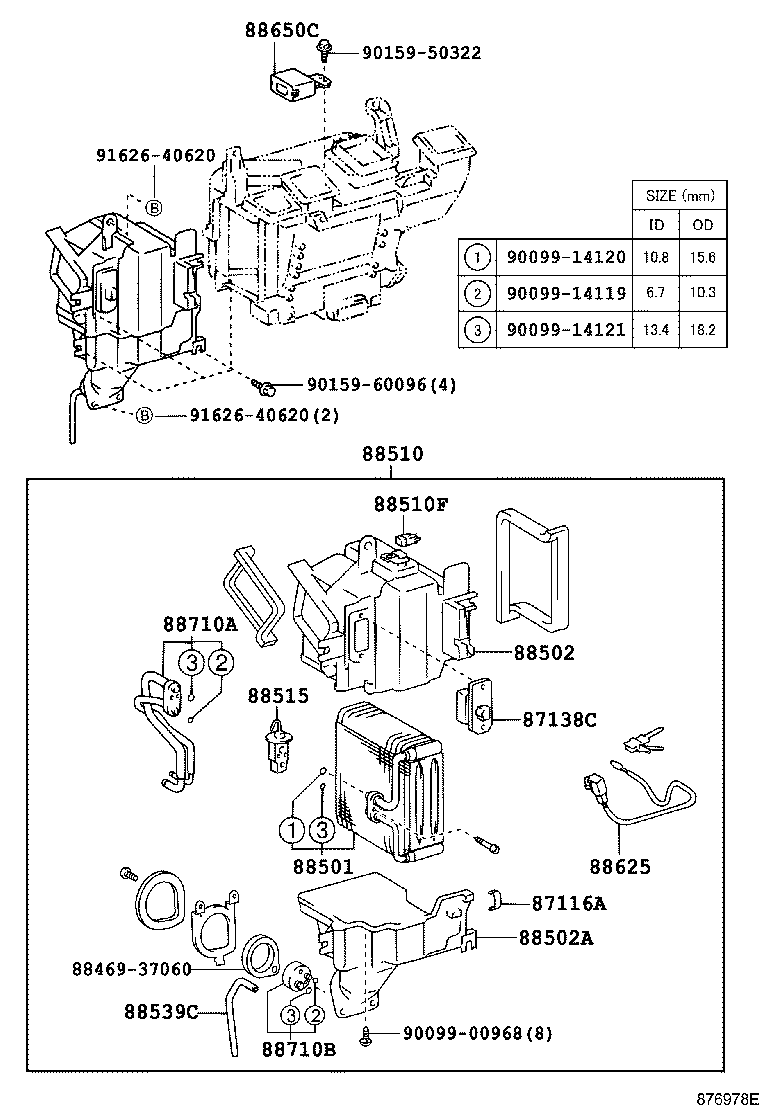

ILLUST NO. 1 OF 2(0406- )XZU488 ; (0406- )XZU414..DCB ; (0406- )DCR,DCRL,DCRTL,DSL,DSLL

Click highlighted areas on diagram

diagram 87116A 87138C 8846937060 88501 88502 88502A 88510 88510F 88515 88539C 88625 88650C 88710A 88710B 9009900968 9009914119 9009914120 9009914121 9015950322 9015960096 9162640620 9162640620
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-37060

BU400,410,420,430,XZU382,40#,41#,42#,430

 1
88515 - VALVE, COOLER EXPANSION
88515-16060

BU400,410,420,430,XZU382,40#,41#,42#,430

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-37060

XZU388,40#,41#,42#,433..SCB..(DCRL,DSL,DSLL)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20460

BU400,410,420,430,XZU382,40#,41#,42#,430

 1
Common parts
88469-37060
90099-00968
90099-14119
90099-14120
90099-14121
90159-50322
90159-60096
91626-40620
